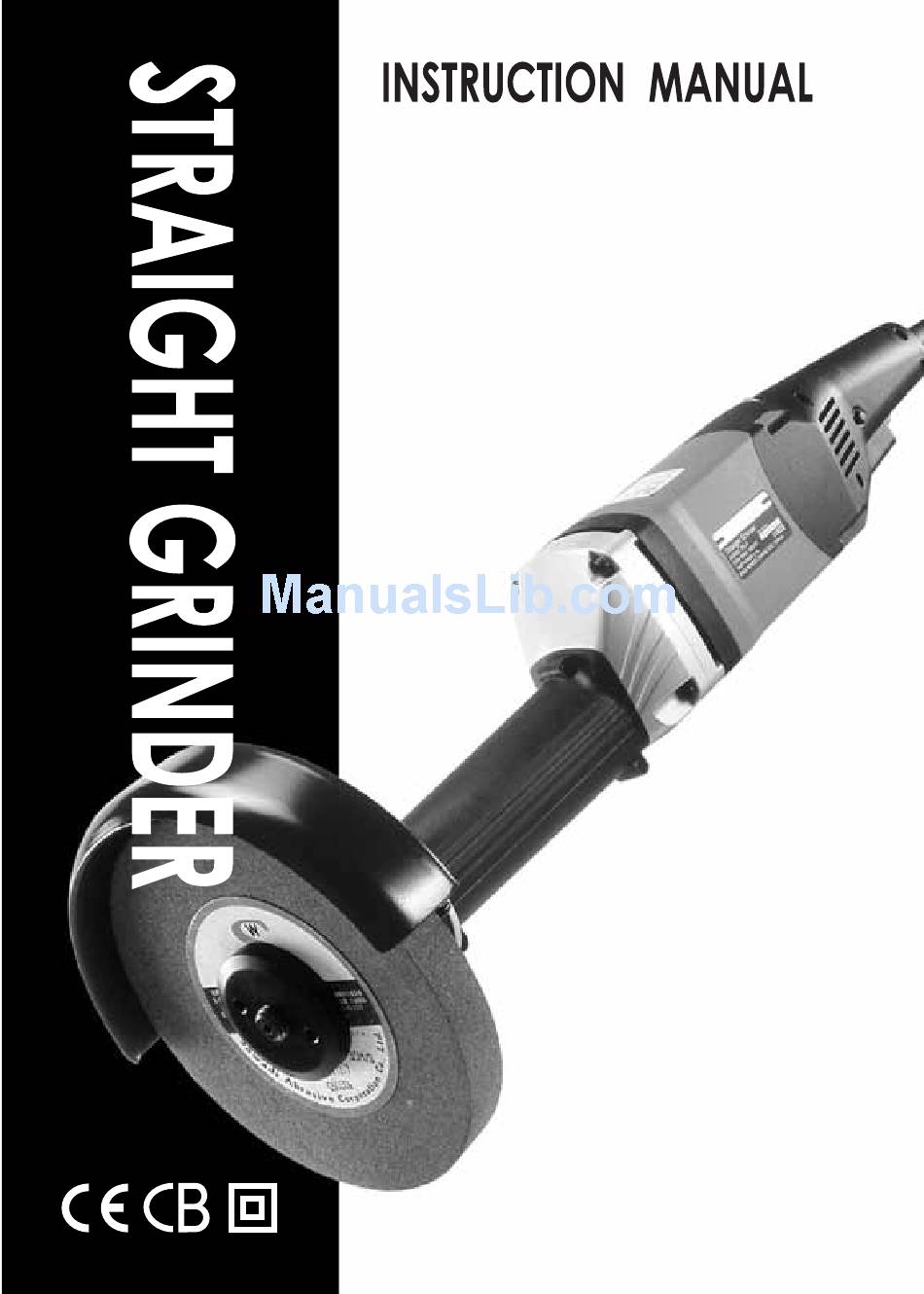

ORIGINAL INSTRUCTIONS
For your personal safety,
READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE.
CAUTION:
For tools equipped with overload
protection, when the motor shuts off
due to overload, always run the machine
with no load for at least 3 minutes to
reduce temperature before returning
to operation to avoid burn-out of the
motor.
Version:20130917

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG6 and is the answer not in the manual?

Questions and answers

Related Manuals for AGP SG6

Summary of Contents for AGP SG6

  • Page 1 ORIGINAL INSTRUCTIONS For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. CAUTION: For tools equipped with overload protection, when the motor shuts off due to overload, always run the machine with no load for at least 3 minutes to reduce temperature before returning to operation to avoid burn-out of the motor.
  • Page 2 Power input 110-120V:1300W, 220-240W:1500W Voltage See machine nameplate No Load min 1600 ~ 4800 Spindle 14mm Max. Wheel Diameter 150mm Net Weight 3.4kg (7.48Lbs) Variable Speed Wheel Adjustable Guard Trigger Switch Hand Grip...
  • Page 3 GENERAL SAFETY INSTRUCTIONS sharp edges or moving parts. Damaged or entangled cords increase the risk of electric WARNING! Read all safety warnings and shock. all instructions. Failure to follow the When operating a power tool outdoors, use an extension cord suitable for outdoor use. warnings and instructions may result in electric shock, fire and/or serious injury.

  • Page 4: Symbols Used In This Manual

    or jewelry. Keep your hair, clothing and gloves b i t s e t c . , i n a c c o r d a n c e w i t h t h e s e away from moving parts. Loose clothes, instruc tions, taking into account the working conditions and the work to be jewelry or long hair can be caught in moving...
  • Page 5 SPECIFIC SAFETY RULES 12. The dust that arises when working with this tool can be harmful to health. Use a dust Keep hands away from rotating wheelarea absorption system and wear a suitable dust at all times! protection mask and remove deposited dust Prolonged breathing of airborne dust from with a vacuum cleaner.

  • Page 6: Kickback And Related Warnings

    cause loss of control. be pulled into the spinning accessory. Do not use a damaged accessory. Before Never lay the power tool down until the each use inspect the accessory such as accessory has come to a complete stop. abrasive wheels for chips and cracks, The spinning accessory may grab the surface backing pad for cracks, tear or excess wear, and pull the power tool out of your control.

  • Page 7: Additional Safety Instructions For Grinding And Cutting-Off Operations

    Maintain a firm grip on the power tool and with wheel and sparks that could ignite position your body and arm to allow you clothing. to resist kickback forces. Always use W h e e l s m u s t b e u s e d o n l y f o r auxiliary handle, if provided, for maximum recommended applications.

  • Page 8: Electrical Connection

    Electrical connection CARTON CONTENTS The network voltage must conform to the voltage 1. Straight Grinder machine indicated on the tool name plate. Under no 2. Instruction manual circumstances should the tool be used when the 3. Face spanner wrench power supply cable is damaged. A damaged cable must be replaced immediately DO NOT OPERATE THIS TOOL UNTIL YOU READ by an authorized Customer Service Center.

  • Page 9: Maintenance

    STARTING AND STOPPING TOOL Variable Speed Wheel Make sure that the power circuit voltage is the same as that shown on the specification plate of the machine and that switch is “OFF” before connecting the tool to the power circuit. Switching the machine on and off HOW TO USE THE TOOL To switch on:...
  • Page 10 KEEP TOOL CLEAN NOTE: To reinstall the same brushes, first make sure the brushes go back in the way they came out. Otherwise a break-in period will occur that Periodically blow out all air passages with dry will reduce motor performance and increase compressed air.
  • Page 11 WIRING...

  • Page 12: Exploded View

    EXPLODED VIEW...

  • Page 13: Parts List

    PARTS LIST Parts Name Q'TY POWER SUPPLY CABLE CORD ARMOR CABLE CLIP SCREW M4 x 14 SWITCH SCREW M4 x 30 SCREW M4 x 20 RIGHT HANDLE COVER LEFT HANDLE COVER ELECTRONICS UNIT ELECTRONICS UNIT THUMB WHEEL SCREW M4 x 10 BRUSH SPRING CARBON BRUSH 7 x 11 x 17 +33L+FLDNBI-110...
