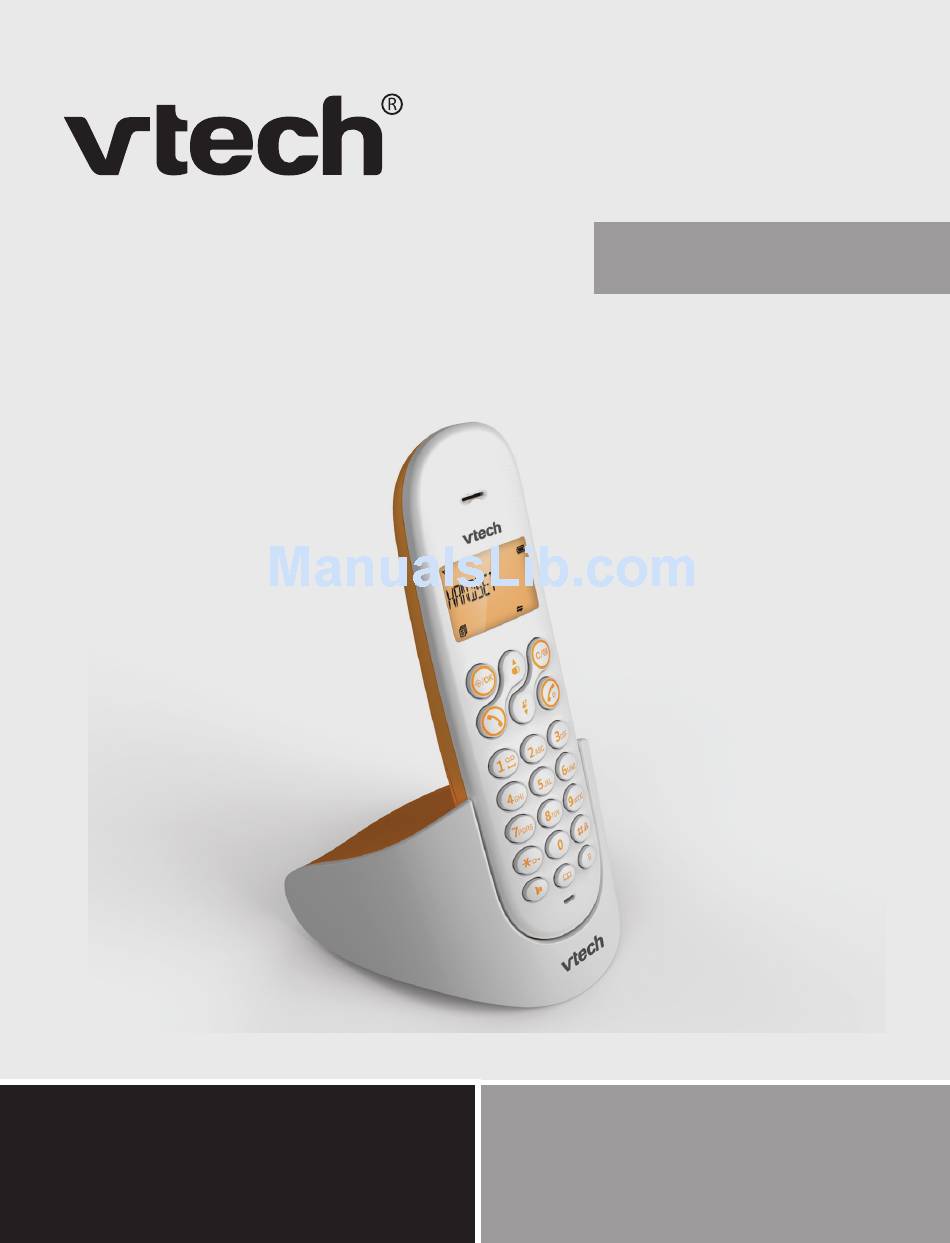

  • Page 1 User’s manual www.euphones.vtech.com CS1100-O...

  • Page 2: Important Safety Instructions

    Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. Unplug this product from the wall outlet and refer servicing to VTech/ distributor under the following conditions: •...
  • Page 3 If you have questions about this product, or having difficulty with setup or operation, contact our Customer Service Centre. pOwer aDaptOr InfOrmatIOn power VTech (Qingyuan) Plastic & Electronics Co. Ltd. - Model: adaptor VT04EEU06045, Input: 00-40V AC 50/60Hz 50mA, Output: 6VDC 450mA (EU plug).

  • Page 4: Set Up The Telephone

    Set Up tHe telepHOne package Contents The package contains the following items: •  Handset •  Base station •  Power adaptor for base station •  Telephone line cord •  AAA NiMH rechargeable batteries •  User’s manual Connect the Base To telephone wall jack...

  • Page 5: Install And Charge The Handset Battery

    Install and Charge the Handset Battery NOTES • Use only the supplied AAAx, Ni-MH, 300mAh batteries. • If you do not use the handset for a long time, disconnect and remove the battery to prevent possible leakage.

  • Page 6: Get To Know Your Phone

    get tO KnOw yOUr pHOne Overview of the Handset earpIeCe menU / OK mUte / Delete / InterCOm DOwn / Call lISt / VOlUme DOwn Up / reDIal lISt / VOlUme Up talK On / reCall(flaSH) talK Off / CanCel / BaCK alpHanUmerIC KeypaD, (Star), (HaSH)

  • Page 7: Overview Of The Base Station

    Overview of the Base Station page Press to page all registered handset(s). Handset(s) will ring for approximately 60 seconds. Press and hold for 5 seconds to enter the registration mode. 2. CHargIng CraDle For charging the handset.

  • Page 8: Handset Lcd Display Icons And Symbols

    Handset lCD display icons and symbols The LCD display gives you information on the current status of the telephone. Display icons Icons can be Steadily On (visible), Flashing or Off (not visible) Scroll up / down the menu items / Phonebook list / Redial list / Call List.
  • Page 9 Steadily on when more characters are existed after the text currently displayed. Press to select more menu options if applicable Press to confirm the current selection if applicable. Press to initial an intercom call when idle. Press to go back to previous menu level or cancel the current action if applicable.

  • Page 10: Menu Navigation

    menu navigation In idle mode: Press to scroll to a menu option. Press to select. -Or- Press to return to previous screen. -Or- press and hold to return to idle mode. Call lISt pHOneBOOK Call BlOCKer BS SettIngS Review Call List Review DELETE HS Phonebook list...

  • Page 11: Use Your Phone

    USe yOUr pHOne Switch On/Off the Handset Press and hold make a Call Enter phone number. Press answer an Incoming Call Press -Or- If aUtO anSwer is On: Lift the handset. adjust listening Volume During a Call to adjust listening volume during a call: Press mute/unmute a Call (microphone Off/On) to mute or end mute the microphone during a call:...
  • Page 12 redial 4.9.1 redial a number from the redial list Press → (a desired entry). Press NOTE If there is no number in the list, the display shows “empty”. 4.9.2 Store a redial number into the phonebook Press → (a desired entry). Press →...
  • Page 13 pHOneBOOK Store a number entry in the phonebook Press -Or- Press → → pHOneBOOK. Press NOTE If there is no entry in the list, the display shows “empty”. . Press → → aDD. 3. Press → Enter name. 4. Press →...

  • Page 14: Delete All Phonebook Entries

    Delete a phonebook entry Press -Or- Press → → pHOneBOOK. Press → (a desired entry). Press → → Delete. Press Delete all phonebook entries Press -Or- → pHOneBOOK. Press Press → Press → → Delete all. Press twice. Check number of phonebook entry Used You can check how many entries have been occupied in your phone and how many phonebook entries are available for you to store in the phonebook.

  • Page 15: Phone Settings

    pHOne SettIngS Your phone comes with a selection of settings that you can change to personalize your phone the way you like it to work. Date and time Settings You will need to set the correct time and date so that you know when you received answering machine (applicable to model with answering machine) or call list entries.
  • Page 16 Handset Settings 6.2.1 alarm Press → → HS SettIngS. Press → → alarm. Press → → On / Off. If On is selected: Press → Enter time. Press → am or pm . Press . You will need to set the snooze function. Press →...
  • Page 17 6.2.5 Set alert tones A single beep is emitted when you press a key. You can turn on or off the key tone. You can also turn on the alert tones when low battery and out of range are detected. Low battery tone will be emitted while you are talking with the phone to alert you that you need to charge your battery.

  • Page 18: Auto Answer

    6.2.9 Set the auto answer → HS SettIngS. Press → Press → → aUtO anSwer. Press → → On / Off. Press Base Settings 6.3.1 Set the Dial mode The dial mode settings is country dependent. Please contact your local service provider for the correct settings.

  • Page 19: Reset Your Phone

    reset your phone You can reset your phone to the default settings. After reset, all settings and entries (except phonebook) will be deleted. Press → → DefaUlt. Press → Enter old pIn (Default: 0000). Press twice.

  • Page 20: Caller Display

    Caller DISplay Call list This feature is available if you have subscribed to the Caller ID service from your local service provider telephone company. Store a Call list number into the phonebook Press → (a desired entry). Press → → aDD tO pB. Press →...

  • Page 21: Call Blocker

    Call BlOCKer If you have subscribed to Calling Number Display (Caller ID) service, you can use the call block feature to automatically reject incoming calls without caller number display. These number types are those withheld number, and unavailable number. You will not hear any ring tone from the blocked calls but they would be answered by answering machine (for answering machine model) all the time.

  • Page 22: Troubleshooting

    trOUBleSHOOtIng problem Solutions my telephone does • Make sure the batteries are installed and charged correctly. For optimum daily performance, return the not work at all. handset to the telephone base after use. • Remove and reinstall the batteries, then charge for up to 6 hours.
  • Page 23 there is interference • The handset may be out of range. Move it closer to the telephone base. during a telephone • If you subscribe to high-speed Internet service conversation. my (digital subscriber line - DSL) through your calls fade out when I telephone line, you must install a DSL filter between am using the handset.
  • Page 24 Common cure for If the telephone is not responding normally, put the handset in the telephone base. If it does not respond, electronic equipment. try the following (in the order listed): • Disconnect the power to the telephone base. • Disconnect the batteries on the handset.

  • Page 25: Warranty

    10. warranty Vtech product warranty Dear Customer, Thank you for purchasing a VTech telephone. For the product warranty applicable to this product, we refer you to the VTech website www.euphones.vtech.com for on line registration. Your retailer will provide you with a statutory 2-year warranty. If you have a problem within the first 2 years from purchase, call the warranty helpline or email them.

  • Page 26: Approval And Conformity

    The declaration of conformity may be viewed at www.euphones.vtech.com. The CE symbol confirms the conformity of the telephone and the above directive.

  • Page 27: Care And Maintenance

    Care anD maIntenanCe InStrUCtIOnS take care of your telephone • Your cordless telephone contains sophisticated electronic parts, so you must treat it with care. • Avoid rough treatment. • Place the handset down gently. • Save the original packing materials to protect your telephone if you ever need to ship it.
  • Page 28 VteCH teleCOmmUnICatIOnS ltD. a member of tHe VteCH grOUp Of COmpanIeS. © 05 VTech Telecommunications Ltd. All Rights Reserved. V.0. /5.
