Summary of Contents for ORANGE AD200B MKIII

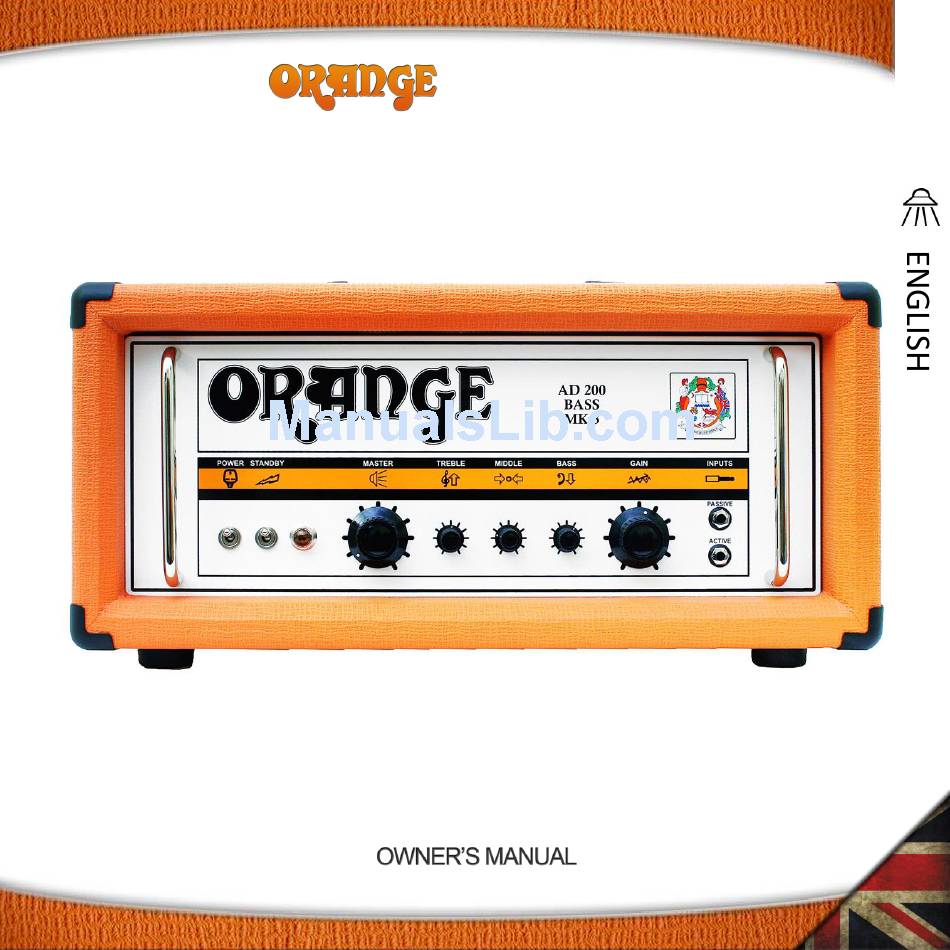

- Page 1 AD200B MKIII...
-
Page 2: Thank You
To maintain this level of excellence, each Orange amplifier is put through many rigorous test procedures before leaving the factory. -
Page 3: Table Of Contents
IMPORTANT SAFETY INFORMATION ....................... 5 POWERING UP ............................8 REAR PANEL ............................10 USING YOUR AMPLIFIER ........................11 USING THE AD200B MKIII ........................12 TECHNICAL SPECIFICATIONS ......................... 13 VALVES AND FUSES CAN FAIL AT ANY TIME! ..................14 FREE EXTENDED WARRANTY OFFER ..................... 14... -
Page 4: Contact Details
AD200B MKIII CONTACT DETAILS Orange Amplifiers OMEC House 108 Ripon Way Borehamwood Hertfordshire WD6 2JA ENGLAND Tel: +44 20 8905 2828 Fax: +44 20 8905 2868 info@omec.com Orange USA 2065 Peachtree Industrial Ct. Suite 208 Atlanta, GA 30341 Tel: 1-404-303-8196 Fax: 1-404-303-7176 info@orangeusa.com... -
Page 5: Important Safety Information
AD200B MKIII IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Terminals labelled as “Speaker Outputs”... - Page 6 AD200B MKIII • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades, one wider than the other.
- Page 7 AC Mains Input. Replace only with the same type and value. If the mains fuse repeatedly blows, contact your Orange dealer. To reduce the possibility of outside electrical interference during performance, operate your amplifier and instrument away from appliances/equipment that generate high levels of electronic/electromagnetic noise.
-
Page 8: Powering Up
AD200B MKIII POWERING UP When powering up a valve amplifier, it must be switched to standby for at least four minutes before being switched to play. This gives the valves time to warm up and will prolong their life. Good quality standard instruments (shielded) and speaker (non-shielded) cables are essential to a prolonged and enjoyable relationship with your amp. -
Page 9: Front Panel
AD200B MKIII FRONT PANEL NAME DESCRIPTION Power Switch Two way toggle On/Off switch Toggles between Standby and Play. Ensure this switch is set to Standby Switch standby before powering up amp. Power Indicator Lamp Illuminates when the Power is switched to ON... -
Page 10: Rear Panel
AD200B MKIII REAR PANEL NAME DESCRIPTION The slave output socket is a line level output signal from the output Slave Output socket stage of the amplifier. The correct speaker load needs to be also connected when using the slave output. -
Page 11: Using Your Amplifier
Make sure that the PLAY/STANBY output switch is in the Standby position before switching the power switch to the ON position (this will maximise the life of your valves). If you are unsure about any of the above points please consult your local Orange supplier. -
Page 12: Using The Ad200B Mkiii
AD200B MKIII USING THE AD200B MKIII Using The Controls This amplifier features a classic Orange control section of Gain, Treble, Bass, Middle and Master Volume. Selecting an Input Plug bass guitars of traditional output into the Passive Input. Plug bass guitars of high output into the... -
Page 13: Technical Specifications
AD200B MKIII TECHNICAL SPECIFICATIONS AD200B 200 Watts POWER Gain / Volume / Bass / Middle / Treble CONTROLS 2 x 12AX7 1 x 12AT7 PREAMP VALVES 4 x 6550 POWER VALVES 100 / 120V – T6.3 A MAINS FUSES 220 / 240V – T3.15 A... -
Page 14: Valves And Fuses Can Fail At Any Time
90 days from the date of purchase. The warranty status of any Orange product is subject to its being used for its intended purpose in suitable conditions. As the manufacturer we reserve the right to refuse to warranty any Orange...
