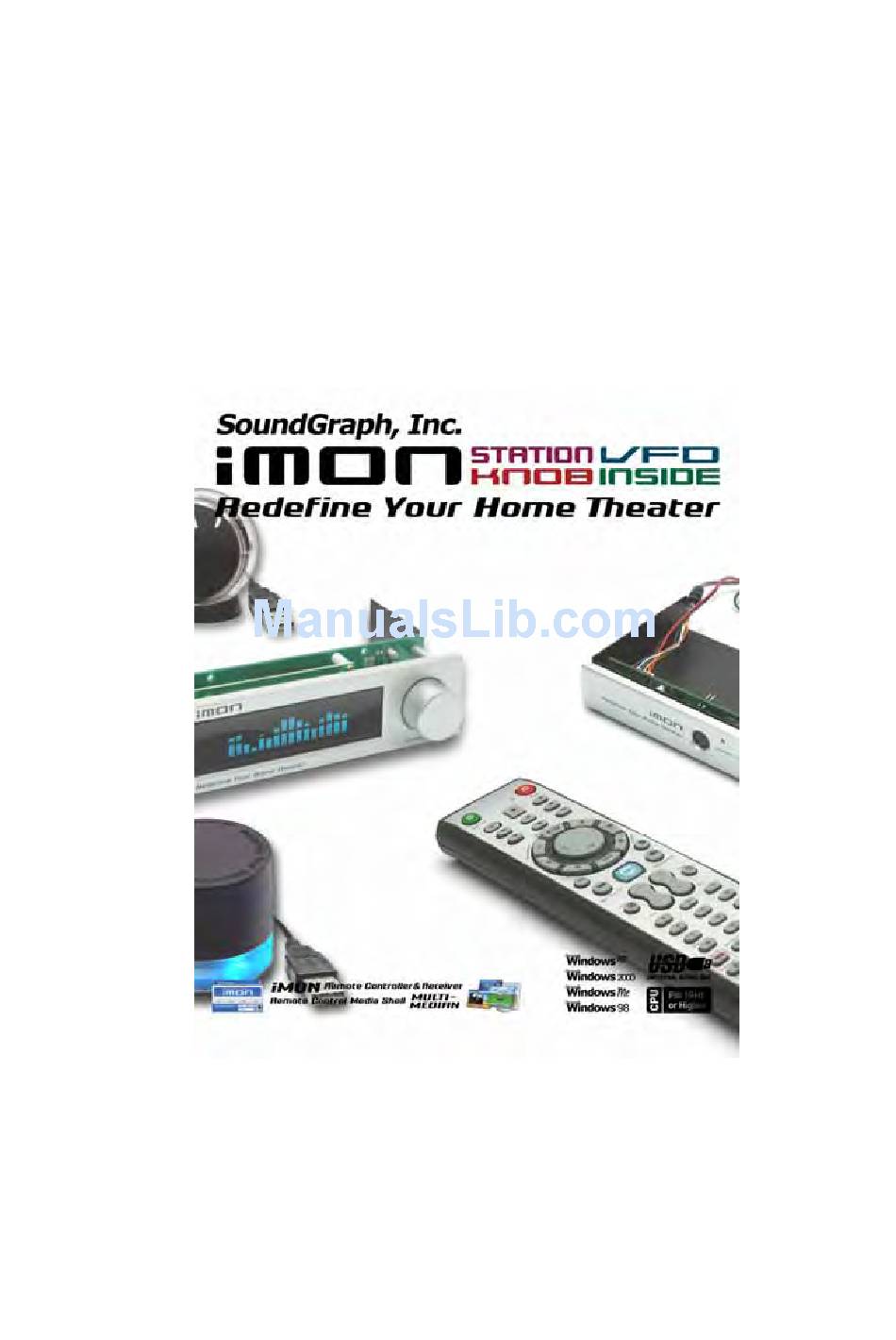

SoundGraph iMON User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

iMON & Multi-Median
Users Guide
2004-11-22
SoundGraph, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iMON and is the answer not in the manual?

Questions and answers

Summary of Contents for SoundGraph iMON

  • Page 1 & Multi-Median Users Guide 2004-11-22 SoundGraph, Inc.

  • Page 2: Table Of Contents

    1. Installation Process 1) S/W Installation 2) H/W (IR Receiver) Installation 3) Execute iMON Manager 2. Button Layout and its Feature of iMON Remote Controller 1) iMON PAD Remote Controller 2) iMON MM Remote Controller 3) iMON RSC Remote Controller Multi-Median Users Guide 1.
  • Page 3 4. Using All Time Control 5. Using Monitor Resolution Changer 6. Using Timer 7. Using Virtual Keyboard 8. Using VFD Control Panel (iMON VFD Model) 9. Setting Program Command 10. Setting Windows Command 11. Setting Customized Windows Command 12. Setting Macro 13.

  • Page 4: In Your Package

    Please check the components on the below in your box. 1. iMON Station In the Box : 1 iMON PAD Remote Controller, 1 iMON Station (External IR Receiver), 1 Extension USB Cable, 1 Installation CD (iMON Manager, Multi-Median), 1 Quick Guide, 2 AAA Batteries 2.

  • Page 5: Imon Vfd

    Internal iMON Station can be loaded to the 3.5”(iMON Inside) or 5.25”(iMON VFD) disk drive bay. The additional feature of internal type iMON IR receiver is that you can power on your PC system using the power button of the remote controller. After turn off your PC system, open your PC cover and connect the cable to its proper pin refer to the following picture.
  • Page 6 You should be careful to connect these four cables refer to your mainboard manual. 1. Stand-By Power Connection Cable A1 : (2pin, iMON Inside ‘ST PWR1’ A2 : (2pin, Mainboard power extension cable) connector)

  • Page 7: Execute Imon Manager

    3) Execute iMON Manager After finish S/W and H/W installation, please execute the iMON Manager using the desktop iMON icon. Please refer to the iMON Users Guide in order to learn about the various settings and usage of iMON Manager.

  • Page 8: Button Layout And Its Feature Of Imon Remote Controller

    Controller 1) iMON PAD Remote Controller iMON PAD Remote Controller is designed to control the mouse pointer using the center PAD of the remote controller. The detail features of each button of iMON PAD remote controller are as like follows.
  • Page 9 Backspace : This button is used as same like [Backspace] key of the keyboard. Mouse/Keyboard : This button is used to toggle the ‘PAD’ operation mode of iMON PAD remote controller. This button could toggle the mode of the PAD between Mouse mode and Keyboard mode. The following two icons on the...
  • Page 10 The mouse icon in the iMON Indicator on the screen shows that the PAD is now working as mouse. You could move mouse pointer using PAD. The keyboard icon in the iMON Indicator on the screen means that the PAD is now working as four way arrow keys.
  • Page 11 CH - : This button is used to decrease the channel number. Timer : This button runs the timer setup screen of the iMON manager. This timer feature could turn off the PC or set the alarm assigned by timer setup. At iMON VFD model, user can set the turn on time of the PC too.
  • Page 12 Num 0~9 : The numeric buttons from 0 to 9 are custom buttons that could be assigned by users. These buttons also could be used as input the number on the Multi-Median. Shift+Tab : This button is used as same like [Shift]+[TAB] key of the keyboard. Tab : This button is used as same like [TAB] key of the keyboard.
  • Page 13 Thumbnail : This button is used to generate ‘Thumbnail’ or ‘Capture’ command in the various media applications. Aspect Ratio : This button is used to generate ‘Change the Aspect Ratio’ command in the various media applications. Full Screen : This button is used to generate ‘Full Screen’ command in the various media applications.

  • Page 14: Imon Mm Remote Controller

    2) iMON MM Remote Controller iMON MM (Multi-Median) remote controller is designed in order to use every functions of Multi- Median. The detail features of each button are as like follows. Power : This button is used to turn on or turn off the PC. You need to push this button more than 2 seconds in order to turn off the PC.
  • Page 15 Multi-Median : This button runs the Multi-Median which is provided with the iMON Manager. You could enjoy the various media files like DVD, Movie, Music, Photo and use the multimedia device like TV card, Digital Camcorder, and Digital Camera.
  • Page 16 All Time Control Mode : This button used for the ‘All Time Control Mode’ of the iMON Manager. Please refer to the iMON Users Guide for the details of the ‘All Time Control Mode’. Eject : This button is used to open and close the CD/DVD ROM.
  • Page 17 Rew : This button is used to generate ‘Rewind’ command in the various media applications F.Fwd : This button is used to generate ‘Fast Foward’ command in the various media applications. Stop : This button is used to generate ‘Stop’ command in the various media applications.

  • Page 18: Imon Rsc Remote Controller

    3) iMON RSC Remote Controller iMON RSC (Remote Stick Controller) Remote Controller is designed to control the mouse pointer in 16 directions using the Joystick of the remote controller. The detail features of each button are as like follows.
  • Page 19 Screen Saver : This button runs the screen saver instantly. Timer : This button runs the timer setup screen of the iMON manager. This timer feature could turn off the PC or set the alarm assigned by timer setup.
  • Page 20 Multi-Median : This button runs the Multi-Median which is provided with the iMON Manager. You could enjoy the various media files like DVD, Movie, Music, Photo and use the multimedia device like TV card, Digital Camcorder, and Digital Camera.
  • Page 21 Keyboard mode. The following two states show the each mode, mouse and keyboard. The mouse icon in the iMON Indicator on the screen means that you could use Joystick as a mouse. You could move the mouse pointer using the Joystick lever and you could get the [double click] action when you push the Joystick.
  • Page 22 VOL + : This button is used to increase the PC system volume. Play : This button is used to generate ‘Play’ command in the various media applications. Pause : This button is used to generate ‘Pause’ command in the various media applications.
  • Page 23 Full Screen : This button is used to generate ‘Full Screen’ command in the various media applications. -23-...

  • Page 24: Multi-Median Users Guide

    1. Screen Layout of Multi-Median 1) Main View Run the Multi-Median using the ‘Quick Launch’ button of the iMON PAD remote controller, you could see the main view of Multi-Median as like below picture. The icons on the menu bar located on the upper side of the main view show the each devices and functions as like below.

  • Page 25: Hard Disk Drive

    ● Digital Camcorder : Multi-Median supports the DV Digital Camcorder which is connected through the IEEE1394 port of PC. You could control your Camcorder using the iMON remote controller and record the video clips of the Camcorder. ● Internet Radio : Multi-Median supports the internet radio if your PC is connected to the internet.

  • Page 26: Media Folder View

    files from network or change the scan folder, you could update your media database using this icon. Please select the scan folder that has media files, if you choose a root folder (like my computer) as a scan folder, it will take much time to scan. 3) Media Folder View If you choose the type of media like ‘My Music’, ‘My Movie’, ‘My Photo’, the media folder view will be appeared.

  • Page 27: Media File View

    4) Media File View If you enter to the ‘Media File View’ from ‘Media Folder View’, you may see the following screen. ‘Media File View’ has different style according to the media type as like following pictures. You can enter to the ‘Media Preview’ from ‘Media File View’ after selecting the media file that you want.

  • Page 28: Full Screen View

    displays the sequence number in the playlist with current playing time. 6) Full Screen View Full Screen View shows the current playing media file on the full screen. If you want to see the detail information about the current playing media file, you may go back to the media preview or call the control panel using the ‘(Windows)-Menu’...

  • Page 29: Digital Camcorder View

    2. Using Remote Controller on Multi-Median Multi-Median could be controlled by iMON PAD/MM/RSC remote controller. The following is the detail description of using iMON PAD remote controller. Using iMON MM/RSC is similar to iMON PAD remote controller. 1) PAD (Up, Down, Left, Right) The PAD is used to move the focus on the Multi-Median.
  • Page 30 8) Next button ‘Next’ button is used to make ‘next’ command. 9) Rew button ‘Rew’ button is used to make ‘rewind’ command. 10) F.FWD button ‘F.FWD’ button is used to make ‘fast forward’ command. 11) Stop button ‘Stop’ button is used to make ‘stop’ command. 12) Open button ‘Open’...

  • Page 31: Using Mouse On Multi-Median

    Multi-Median could be controlled by mouse, In order to execute the Multi-Median, you need an iMON Station which is connected to USB port of your PC through internal or external connection. If you move the mouse pointer to the upside or downside of the screen, you may see the control panel (control bar or shortcut bar).

  • Page 32: Setting Environment

    4. Setting Environment All the setting of Multi-Median could be changed by remote controller. Please refer to the followings in order to learn more about the various settings of Multi-Median. 1) Back The ‘Back’ menu on the list is used to go back to the previous step of the current setting. 2) Common At the ‘Common’...

  • Page 33: Music

    on your PC, and this media database helps you to select the media file you want without searching through the explorer one by one. When you execute the Multi-Median for the first time, the default scan folder sets as ‘My Music’, ‘My Video’ and ‘My Pictures’ folders under ‘My Documents’...

  • Page 34: Installation Of Video Codec

    You can set many properties of the Digital Camcorder View. 5. Installation of Video Codec In order to see the various video files which are encoded by different Codecs, you need to install the appropriate Codec of the video file. You can install the unified Codec package that installs many different Codecs at one time.

  • Page 35: Imon Users Guide

    Users Guide 1. Using Application Launcher Let’s start Application Launcher. While iMON Manger is running, press the ‘App. Launcher’. The ‘Application Launcher’ will start as like shown on the below picture. ‘Application Launcher’ and ‘Task Switcher’, described in the next chapter, are useful application that allows you to use your remote controller for basic Windows functions to launch the application on the Windows and to switch the application like using [ALT]+[TAB] key.

  • Page 36: Application Control

    ‘Windows Media Player’ while ‘WinAMP’ is active, you have to activate ‘Windows Media Player’ first using ‘iMON Task Switcher’. But you can use the ‘All-Time Control’ in order to control the specific S/W regardless of the current active state of the application. If you run the ‘All Time Control’...

  • Page 37: Using Monitor Resolution Changer

    ● All Time Control ON : Use the application shown in the iMON icon as a ‘All Time Control’ mode. You can use the Winamp as ‘All Time Control’ mode in the above picture. If the Winamp automatically starts, if it does not running before.

  • Page 38: Using Timer

    To set the timer, press the timer button on the remote controller and use Left/Right arrow button to navigate, and use Up/Down arrow button to adjust the value of each item. Then, press the timer button again. After set the iMON timer, you can se the iMON timer icon on the system tray.

  • Page 39: Using Virtual Keyboard

    8. Using VFD Control Panel (iMON VFD model) On the iMON VFD model, you can select the display mode of VFD using iMON VFD Control Panel and you can set the display information options by ‘Option’ button. If you push the knob...
  • Page 40 EQ at your VFD display, please choose the right recording source on your soundcard at the ‘Option’ menu. 5) E-Mail Check Mode iMON VFD can show the number of unread email messages on your POP3 account. You need to register your POP3 email account information at the ‘Option’ menu. 6) News Mode iMON VFD can show the important worldwide headline news.

  • Page 41: Setting Program Command

    You can control many applications which are registered to the ‘Program Command’ setting on the iMON Manager. Many applications which are installed in your PC would be automatically registered during the installation process. You can also register the other application that you want.

  • Page 42: Setting Windows Command

    10. Setting Windows Command In the Windows CMD section of iMON setup window, there are three different sections (Keyboard CMD, Mouse CMD and Power Management CMD) of Windows commands that will help you to use Windows with remote controller. You can assign various Windows system commands to remote controller.

  • Page 43: Setting Macro

    But if you want to log in to the website, you need a ID and password, in this case, you can use the Macro function of iMON usefully. You can also register the command which is composed of mouse button and keyboard keys. The registration of Macro is little different to the above commands setting of the remote controller.
  • Page 44 Shows the usage of PAD and Joystick as Keyboard 3) Adding Sound Effect This option is the function that let you know the IR signal reception from the iMON Station. You can set the sound or turn off the sound of IR signal reception.

  • Page 45: Update Of Imon & Multi-Median

    You can select the resolution that will be listed on the ‘Monitor Resolution Changer’ window. 8) Virtual Keyboard You can assign the word that you will use the URL set of iMON virtual keyboard. Update of iMON & Multi-Median iMON and Multi-Median will be continuously updated through the iMON website, http://www.soundgraph.com.

  • Page 46: Soundgraph, Inc

    2. The contents of this manual are subject to change without any prior notice for product function addition and performance enhancement. 3. iMON is the registered trademark for USB IR reception device of SoundGraph Co., Ltd. 4. Other mentioned software band names are registered trademarks of each owner.
