Osaki Power Tools PDB132 Operator's Manual

Bench pillar drill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

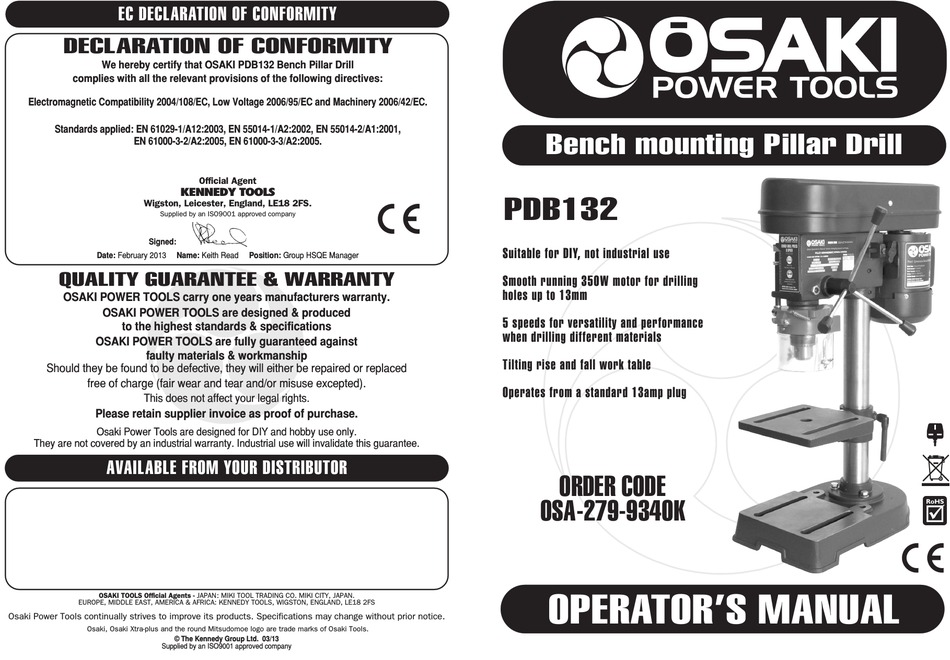

EC DECLARATION OF CONFORMITY

DECLARATION OF CONFORMITY

We hereby certify that OSAKI PDB132 Bench Pillar Drill
complies with all the relevant provisions of the following directives:
Electromagnetic Compatibility 2004/108/EC, Low Voltage 2006/95/EC and Machinery 2006/42/EC.
Standards applied: EN 61029-1/A12:2003, EN 55014-1/A2:2002, EN 55014-2/A1:2001,
EN 61000-3-2/A2:2005, EN 61000-3-3/A2:2005.
KENNEDY TOOLS
Wigston, Leicester, England, LE18 2FS.
Supplied by an ISO9001 approved company
Signed:
Date: February 2013
Name: Keith Read
QUALITY GUARANTEE & WARRANTY
OSAKI POWER TOOLS carry one years manufacturers warranty.
OSAKI POWER TOOLS are designed & produced
to the highest standards & specifications
OSAKI POWER TOOLS are fully guaranteed against
faulty materials & workmanship
Should they be found to be defective, they will either be repaired or replaced
free of charge (fair wear and tear and/or misuse excepted).
This does not affect your legal rights.
Please retain supplier invoice as proof of purchase.
Osaki Power Tools are designed for DIY and hobby use only.
They are not covered by an industrial warranty. Industrial use will invalidate this guarantee.
AVAILABLE FROM YOUR DISTRIBUTOR
OSAKI TOOLS Official Agents - JAPAN: MIKI TOOL TRADING CO. MIKI CITY, JAPAN.
EUROPE, MIDDLE EAST, AMERICA & AFRICA: KENNEDY TOOLS, WIGSTON, ENGLAND, LE18 2FS
Osaki Power Tools continually strives to improve its products. Specifications may change without prior notice.
Osaki, Osaki Xtra-plus and the round Mitsudomoe logo are trade marks of Osaki Tools.
© The Kennedy Group Ltd. 03/13
Supplied by an ISO9001 approved company
Official Agent
Position: Group HSQE Manager
Bench mounting Pillar Drill
PDB132
Suitable for DIY, not industrial use
Smooth running 350W motor for drilling
holes up to 13mm
5 speeds for versatility and performance
when drilling different materials
Tilting rise and fall work table
Operates from a standard 13amp plug
ORDER CODE
OSA-279-9340K
OPERATOR'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDB132 and is the answer not in the manual?

Questions and answers

Related Manuals for Osaki Power Tools PDB132

Summary of Contents for Osaki Power Tools PDB132

  • Page 1: Declaration Of Conformity

    EUROPE, MIDDLE EAST, AMERICA & AFRICA: KENNEDY TOOLS, WIGSTON, ENGLAND, LE18 2FS Osaki Power Tools continually strives to improve its products. Specifications may change without prior notice. Osaki, Osaki Xtra-plus and the round Mitsudomoe logo are trade marks of Osaki Tools.

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS OTHER OSAKI PRODUCTS Osaki Power Tools are committed to the Production of a range of Quality Power Tools that are designed for high performance and long service life. By following the recommended safety and maintenance procedures they will last for many years.

  • Page 3: Maintenance

    SAFETY INSTRUCTIONS MAINTENANCE The drill requires very little maintenance apart from keeping all unpainted surfaces coated in light oil. When drilling use the correct cutting Keep the machine clear of swarf which should be disposed of in a proper manner and not put into Always wear approved eye protection during lubricant/coolant for the material being drilled.

  • Page 4: Electrical Information

    2. With the machine switched off, check for bearings play in the drive spindle. If there is movement, the bearings must be removed, inspected and replaced if neccessary by a Column Diameter Model Number PDB132 qualified person Order Code Drilling Speed OSA-279-9340K 580-2650RPM Æ46mm...

  • Page 5: Operation

    OPERATION BOX CONTENTS SWITCHING THE PILLAR DRILL 1. Drill Head Stock & Motor Assembly Fig.34 ON OR OFF 2. Chuck, Chuck Key & Hex. Key When all the the desired settings have been 3. Column Mounting Bolts made, you switch the Pillar Drill on by pressing 4.

  • Page 6: Drilling Guidelines

    ASSEMBLY OPERATION BELT TENSION Caution! This packaging contains sharp objects. Take care when unpacking. Remove the Pillar Drill, together with the accessories supplied, from the When the desired pulley arrangement has been achieved, undo the wing nut (Fig.31a) to tension the drive packaging.
  • Page 7 OPERATION ASSEMBLY USING THE 3 JAW CHUCK FITTING THE COLUMN (Fig.2, 3 & 4) Fig.9 Fig.10 Fig.27 Align the holes in the column support base with Select the drill bit required and from the drill speed chart the threaded holes in the base plate and fit (Page.12 - Fig.36) select the correct speed and change using the three bolts supplied.
  • Page 8 ASSEMBLY SETTING UP & ADJUSTMENT FITTING THE CHUCK QUILL SPRING ADJUSTMENT Fig.20 The chuck has a taper fitting, simply place it onto WARNING: The quill spring is under extreme tension. the spindle adaptor and tap with a soft rubber Adjustment is normally only required after many hours of mallet (Fig.19 &...
