Druck DPI 530 User Manual

Pneumatic pressure controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

To buy, sell, rent or trade-in this product please click on the link below:
http://www.avionteq.com/Druck-GE-Sensing-DPI-530-Digital-Pressure-Controller.aspx
www.avionteq.com

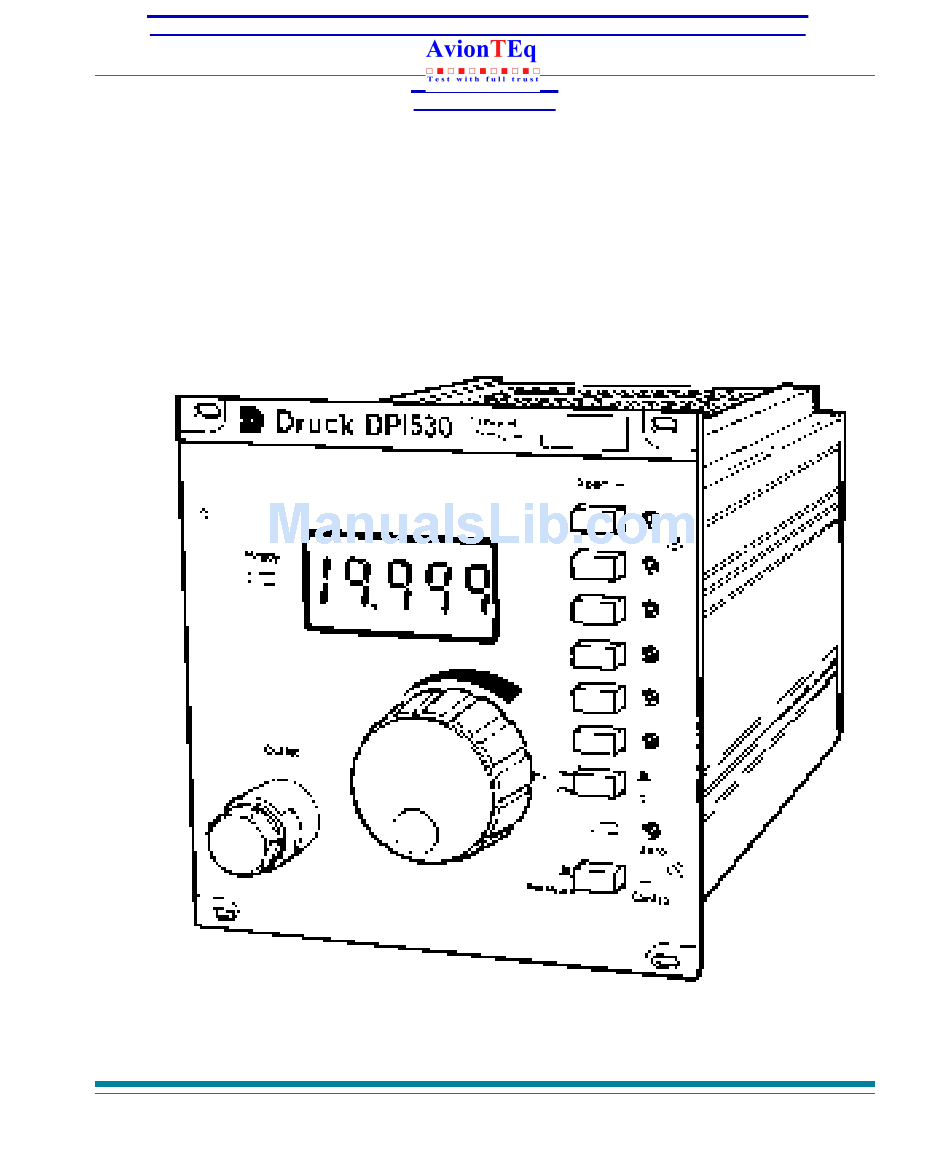

Druck DPI 530 Sub-Rack
Pneumatic Pressure Controller
User Manual
K162
K162 Issue No. 2
