Denon AVR-1913 Service Manual

Integrated network av receiver
Hide thumbs Also See for AVR-1913:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
e

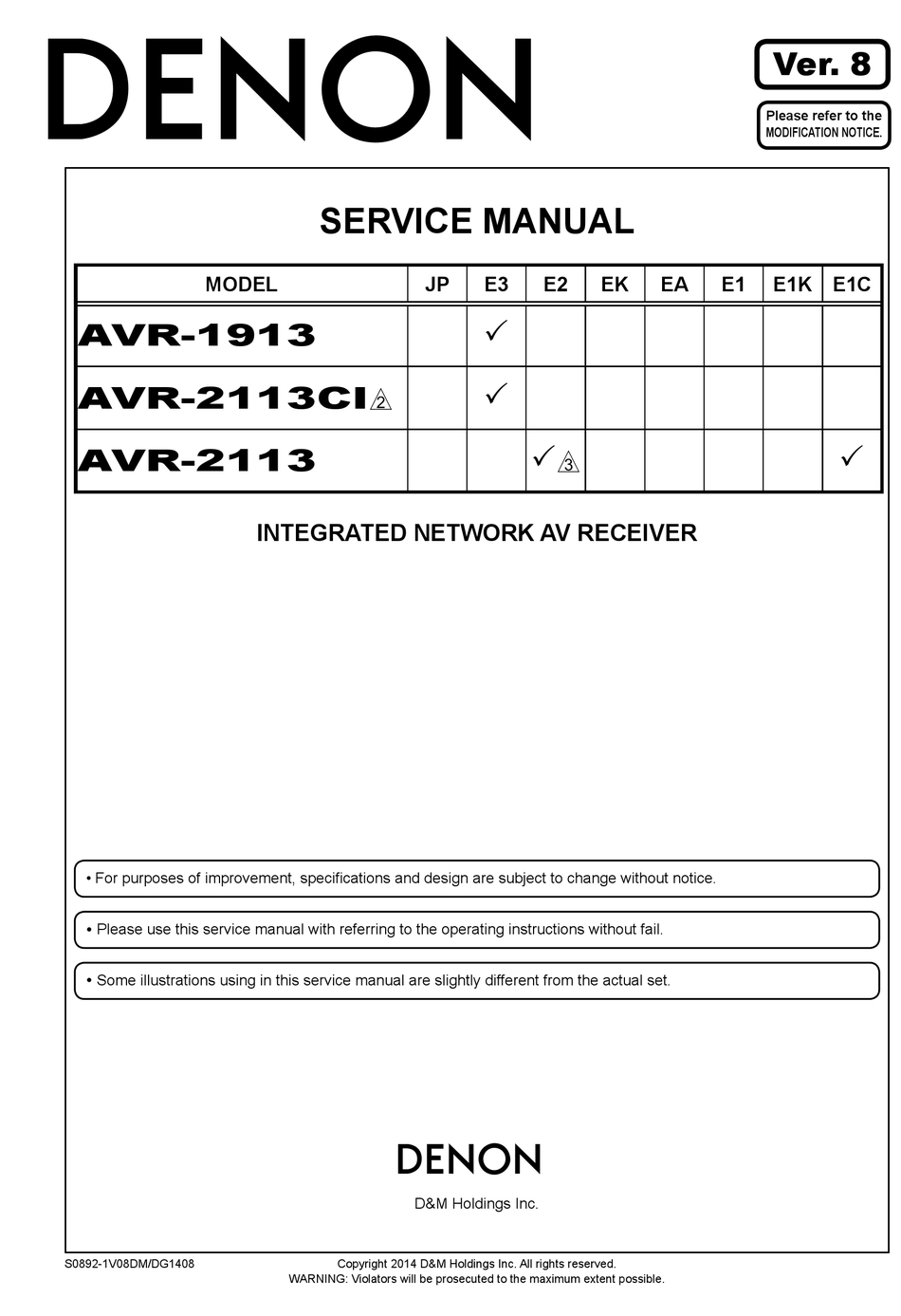

MODEL
AVR-1913
AVR-2113CI
AVR-2113
• For purposes of improvement, specifications and design are subject to change without notice.
• Please use this service manual with referring to the operating instructions without fail.
• Some illustrations using in this service manual are slightly different from the actual set.
S0892-1V08DM/DG1408
SERVICE MANUAL
JP
s
INTEGRATED NETWORK AV RECEIVER
e
D&M Holdings Inc.
Copyright 2014 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to the maximum extent possible.
E3
E2
EK
P
P
P
d
Ver. 8
Please refer to the
MODIFICATION NOTICE.
EA
E1
E1K E1C
P

Advertisement

Table of Contents
loading

Related Manuals for Denon AVR-1913

Summary of Contents for Denon AVR-1913

  • Page 1 Please refer to the MODIFICATION NOTICE. SERVICE MANUAL MODEL E1K E1C AVR-1913 AVR-2113CI AVR-2113 INTEGRATED NETWORK AV RECEIVER • For purposes of improvement, specifications and design are subject to change without notice. • Please use this service manual with referring to the operating instructions without fail.

  • Page 2: Table Of Contents

    CONTENTS ABOUT THIS MANUAL .............3 FUNCTION ................116 What you can do with this manual ..........3 F/H_GUIDE ................116 Using Adobe Reader (Windows version) ........4 CNT ..................116 USB ..................117 SAFETY PRECAUTIONS ............6 GUIDE L ................117 NOTE FOR SCHEMATIC DIAGRAM .........7 TOP_GUIDE .................117 TECHNICAL SPECIFICATIONS ..........8 GUIDE R ................117 DIMENSION ................8...

  • Page 3: About This Manual

    ABOUT THIS MANUAL Read the following information before using the service manual. What you can do with this manual Search for a Ref. No. (phrase) Jump to the target of a schematic diagram (Ctrl+Shift+F) connector You can use the search function in Acrobat Reader to Click the Ref.

  • Page 4: Using Adobe Reader (Windows Version)

    Using Adobe Reader (Windows version) Add notes to this data (Sign) Magnify schematic / printed wiring board diagrams - 1 The Sign function lets you add notes to the data in this manual. (Ctrl+Space, mouse operation) Save the file once you have finished adding notes. [Example using Adobe Reader 9,X] Press Ctrl+Space on the keyboard and drag the [Example using Adobe Reader X]...
  • Page 5 Magnify schematic / printed wiring board Magnify schematic / printed wiring board diagrams - 2 diagrams - 3 (Pan & Zoom function) (Loupe Tool function) The Pan & Zoom function lets you see which part of a The Loupe Tool function lets you magnify a specific magnified diagram is being shown in a separate window.

  • Page 6: Safety Precautions

    SAFETY PRECAUTIONS The following items should be checked for continued protection of the customer and the service technician. LEAKAGE CURRENT CHECK Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis resistance check.

  • Page 7: Note For Schematic Diagram

    NOTE FOR SCHEMATIC DIAGRAM WARNING: Parts indicated by the z mark have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. CAUTION: Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set is defective.

  • Page 8: Technical Specifications

    TECHNICAL SPECIFICATIONS n Audio Section n Tuner section • Power amplifier (Note: μV at 75 Ω, 0 dBf = 1 x 10 –15 Rated output (for 1913 model) : Receiving Range (for E3 model) : 87.5 MHz – 107.9 MHz Front : 50 dB Quieting Sensitivity : 90 W + 90 W (8 Ω, 20 Hz –...
  • Page 9 [AVR-2113CIE3, 2113E2/E1C models] 434.0 344.0...

  • Page 10: Cautions In Servicing

    DIMMER ZONE2 SOURCE Service Jig When you repair the printing board, you can use the following JIG (Extension cable kit). Please order it from Denon Official Service Distributor in your region if necessary. 8U-110084S EXTENSION UNIT KIT 1 Set (Refer to 49 page.) When you update the firmware by DFW, you can use the following JIG (RS232C to internal connector conversion adapter with 4P FFC kit ).

  • Page 11: Disassembly

    DISASSEMBLY • Disassemble in order of the arrow in the following figure. • In the case of the re-assembling, assemble it in order of the reverse of the following flow. • In the case of the re-assembling, observe "attention of assembling". •...
  • Page 12 • Refer to the diagram below about the shooting direction of each photograph. • Photographs with no shooting direction indicated were taken from the top of the set. • The photograph is AVR-1913 E3 model. The viewpoint of each photograph...

  • Page 13: Front Panel Assy

    1. FRONT PANEL ASSY Proceeding : TOP COVER FRONT PANEL ASSY → (1) Remove the screws. View from the bottom (2) Cut the wire clamp band, then disconnect the connector wires and FFC. Remove the screws. CP4400 STYLE PIN : Loosen STYLE PIN : Loosen N3405 N2801...

  • Page 14: Pcb Mx Port/Pcb Rs232C (Avr-2113Cie3 Only)

    2. PCB MX PORT/PCB RS232C (AVR-2113CIE3 only) Proceeding : TOP COVER BACK CHASSIS PCB MX PORT (AVR-2113CI only) → → PCB RS232C (AVR-2113CI only) → (1) Remove the screws. Shooting of photograph: A (2) Disconnect the connector board. Board to board PCB MX PORT PCB RS232C Please refer to "EXPLODED VIEW"...

  • Page 15: Pcb Hdmi

    3. PCB HDMI Proceeding : TOP COVER BACK CHASSIS PCB HDMI → → (1) Remove the screws. Shooting of photograph: A (2) Cut the wire clamp band, then disconnect the connector wires and FFC. Disconnect the connector board. N3601 N3405 N2801 Board to board Board to board...

  • Page 16: Power Trans Main

    4. POWER TRANS MAIN Proceeding : TOP COVER BACK CHASSIS PCB HDMI → → POWER TRANS MAIN → (1) Disconnect the connector wires, then remove the screws. STYLE PIN : Loosen CP4400 CP5003 CP4142 PCB VIDEO CP4000 5. PCB VIDEO ASSY Proceeding : TOP COVER BACK CHASSIS...

  • Page 17: Pcb Smps

    6. PCB SMPS Proceeding : TOP COVER BACK CHASSIS PCB HDMI → → PCB VIDEO PCB FRONT CNT PCB SMPS → → → (1) Remove the screws. View from the bottom (2) Disconnect the connector wire. PCB FRONT CNT CP5003...
  • Page 18 (3) Disconnect the connector wires, then remove the screws. CP4000 CP402 CP403 CP405 CP4142 POWER TRANS (4) Remove the screw. PCB SMPS Please refer to "EXPLODED VIEW" for the disassembly method of each PCB.

  • Page 19: Radiator Assy

    7. RADIATOR ASSY Proceeding : TOP COVER RADIATOR ASSY → (1) Remove the screws. View from the bottom (2) Cut the wire clamp band, then disconnect the connector wires and FFC. STYLE PIN : Loosen STYLE PIN : Loosen CP402 CP403 CP405 N2801...
  • Page 20 (3) Remove the screws. Shooting direction: C Shooting direction: D CP4400 STYLE PIN : Loosen Please refer to "EXPLODED VIEW" for the disassembly method of each PCB included in RADIATOR ASSY.

  • Page 21: Special Mode

    Selects the “Diagnostic mode” or “Displaying the protection Service Related Selection mode DIMMER STATUS SOURCE history mode”. When using multiple DENON AV receivers in the same Remote ID Setup mode STATUS DIMMER – room, make this setting so that only the desired AV receiver operates.

  • Page 22: Special Mode Setting Button (For 2113Cie3/2113E2/E1C Model)

    Selects the “Diagnostic mode” or “Displaying the protection Service Related Selection mode DIMMER STATUS SOURCE history mode”. When using multiple DENON AV receivers in the same Remote ID Setup mode STATUS DIMMER – room, make this setting so that only the desired AV receiver operates.

  • Page 23: Μcom/Dsp Version Display Mode

    → * i Ethernet(DM860A) 1st Boot Loader, Hardware ID → * o Ethernet(DM860A) 2nd Boot Loader, Rhapsody Flag → * Q0 Ethernet(DM860A) IMAGE → * Q1 Ethernet(DM860A)MAC ADDRESS information q Model destination information : Model AVR-1913 E3 model A V R 1 9 1 3 AVR-2113CI E3 model A V R 2 1 1 3...
  • Page 24 i Ethernet(DM860A) 1st Boot Loader, Hardware ID : E t h e r n e t F B L Press the "STATUS" button. * * * * * * - b d o Ethernet(DM860A) 2nd Boot Loader, Rhapsody Flag : E t h e r n e t S B L Press the "STATUS"...

  • Page 25: Error Display

    1.3. Error display See the following table for each "Error information" display and its explanation (status). Display order is q , w , e , r , t . Condition Status FL Display Trouble shooting • Please check the Compared with the destination setting destination-resistors (R3017/R3018, HDMI on the board.

  • Page 26: Info Display

    1.4. Version display on the Setup Menu d Use the following procedure to display the firmware version. (1) Press the "SETUP" button on the remote control. (2) Select "General-Information-Firmware". A version with 20 digits is displayed as shown in the following image. GUI Image The displayed 20 digits are derived from each device version as shown below.

  • Page 27: Panel/Remote Lock Selection Mode

    2. PANEL/REMOTE LOCK Selection mode 2.1. Behavior specifications In this mode, you can switch between the PANEL LOCK MODE and the Mode for preventing remote control acceptance. 2.2. Starting up Press the "Power operation ( X )" button to turn on power while pressing the "ZONE2 SOURCE" and "SOURCE SELECT 1 "...

  • Page 28: Service Related Selection Mode

    3. Service Related Selection mode 3.1. Behavior specifications In this mode, you can switch between the Diagnostic mode (SERVICE CHECK), the Displaying the protection mode (PROTECTION) and the 232C clear mode (RS232C RESET). 3.2. Starting up Press the "Power operation ( X )" button to turn on power while pressing the "ZONE2 SOURCE", "DIMMER" and "STATUS"...
  • Page 29 3.4. DIAGNOSTIC MODE (Video/Audio (signal) path confirmation mode) This mode is used for confirming the Video and Audio (signal) paths. (Troubleshooting) Confirming the operation of unit can be easily done after repair. Backup data will not be lost. 3.4.1. Operation Use the remote control (RC-1156) that is supplied with the AVRxx12 model. Press buttons on the remote control in the order indicated in the “Details of how to operate remote control” column in the following table to establish the confirmation path. You will find using another remote control unit with the macro functions very useful.
  • Page 30 3.4.3. Audio system confirmation items fig.XX : Refer to the block diagram of the fig.XXth. Output sequence of remote control codes Confirmation item Setting and display Details of how to operate remote controller Contents of confirmation Remarks b It is useful to form a macro program. Analog (signal) Path Input Mode : Fixed ANALOG 1.Press [AMP] qZONE2 POWER OFF ·Input : Analog / Output : Speakers (Front L/R) SURROUND mode : DIRECT 2.Press [ZONE SELECT] , Select "ZONE2"...
  • Page 31 3.5. Errors checking mode (Displaying the protection history) 3.5.1. Operation specifications Error mode (Displaying the protection history): When the set is started up in this mode, the error information is displayed. 3.5.2. About the display on the FL display When the "STATUS" button is pressed after the error (protection history display) mode is set, a history like the one shown below is displayed, depending on the conditions.
  • Page 32 3.5.3. Clearing the protection history There are two ways to clear the protection history, as described below. (1) Start up the set in error (protection display) mode and display the error, then press and hold down the "DIMMER" button for 3 seconds. P R T : D C Press and hold down "DIMMER"...

  • Page 33: Remote Id Setup Mode

    4. Remote ID Setup mode 4.1. Specifications When using multiple DENON AV receivers in the same room, make this setting so that only the desired AV receiver operates. 4.2. Setting the AV receivers Starting up: Turn on the power, then press and hold down the "STATUS" and "DIMMER" buttons for over 3 seconds.
  • Page 34 5.2. Starting up ① Turn on the power and switch to NETWORK FUNCTION. ② Wait until ”No Network Connection” or ”Favorites” is displayed on FLD. ③ Press and hold “ZONE2 SOURCE” and “DIMMER”. ④ When “Please wait” is displayed on FLD, release the buttons. If it is not displayed within 15 seconds, try again from Step ③...

  • Page 35: Block Diagram

    BLOCK DIAGRAM fig.1 VIDEO BLOCK DIAGRAM SPI FLASH HDMI1 HDMI2 TMDS SW TMDS IN ADV3002 TMDS OUTPUT HDMI OUT1 OUT1 HDMI3 HDMI Rx TMDS OUTPUT HDMI i/p Scaler_TX_OSD HDMI IN VIDEO DECODER TMDS IN ADV7850 HDMI4 TMDS IN HDMI5 ADV8195 FRONT HDMI BUFFER DDRII...

  • Page 36: Video Block Diagram

    fig.2 VIDEO BLOCK DIAGRAM SPI FLASH HDMI1 HDMI2 TMDS SW TMDS IN ADV3002 TMDS OUTPUT HDMI OUT1 OUT1 HDMI3 HDMI Rx TMDS OUTPUT HDMI i/p Scaler_TX_OSD HDMI IN VIDEO DECODER TMDS IN ADV7850 HDMI4 TMDS IN HDMI5 ADV8195 FRONT HDMI BUFFER DDRII DDRII...
  • Page 37 fig.3 VIDEO BLOCK DIAGRAM SPI FLASH HDMI1 HDMI2 TMDS SW TMDS IN ADV3002 TMDS OUTPUT HDMI OUT1 OUT1 HDMI3 HDMI Rx TMDS OUTPUT HDMI i/p Scaler_TX_OSD HDMI IN VIDEO DECODER TMDS IN ADV7850 HDMI4 TMDS IN HDMI5 ADV8195 FRONT HDMI BUFFER DDRII DDRII...
  • Page 38 fig.4 VIDEO BLOCK DIAGRAM SPI FLASH HDMI1 HDMI2 TMDS SW TMDS IN ADV3002 TMDS OUTPUT HDMI OUT1 OUT1 HDMI3 HDMI Rx TMDS OUTPUT HDMI i/p Scaler_TX_OSD HDMI IN VIDEO DECODER TMDS IN uCOM ADV7850 HDMI4 TMDS IN HDMI5 ADV8195 FRONT HDMI BUFFER DDRII DDRII...

  • Page 39: Audio Block Diagram

    fig.5 AUDIO BLOCK DIAGRAM AVR 2113 AVR1913 28.6363MHz ADV8002-4 HDMI RECEIVER ADV8003-3 HDMI1 27MHz HDMI ADV7850 ADV8002-4 SWITCHER HDMI TRANSCEIVER HDMI2 ADV3002 I2C/SPDIF HDMI OUT HDMI3 S/PDIF TXSPDIF HDMI IN HDMI4 HDMI5 MCLK ADV8195 ADV8003-2 FRONT SCLK TMDS HDMI HDMI TRANSCEIVER BUFFER 21.875MHz 27MHz...
  • Page 40 fig.6 AUDIO BLOCK DIAGRAM AVR 2113 AVR1913 28.6363MHz ADV8002-4 HDMI RECEIVER ADV8003-3 HDMI1 27MHz HDMI ADV7850 ADV8002-4 SWITCHER HDMI TRANSCEIVER HDMI2 ADV3002 I2C/SPDIF HDMI OUT HDMI3 S/PDIF TXSPDIF HDMI IN HDMI4 HDMI5 MCLK ADV8195 ADV8003-2 FRONT SCLK TMDS HDMI HDMI TRANSCEIVER BUFFER 21.875MHz 27MHz...
  • Page 41 fig.7 AUDIO BLOCK DIAGRAM AVR 2113 AVR1913 28.6363MHz ADV8002-4 HDMI RECEIVER ADV8003-3 HDMI1 27MHz HDMI ADV7850 ADV8002-4 SWITCHER HDMI TRANSCEIVER HDMI2 ADV3002 I2C/SPDIF HDMI OUT HDMI3 S/PDIF TXSPDIF HDMI IN HDMI4 HDMI5 MCLK ADV8195 ADV8003-2 FRONT SCLK TMDS HDMI HDMI TRANSCEIVER BUFFER 21.875MHz 27MHz...
  • Page 42 fig.8 AUDIO BLOCK DIAGRAM AVR 2113 AVR1913 28.6363MHz ADV8002-4 HDMI RECEIVER ADV8003-3 HDMI1 27MHz HDMI ADV7850 ADV8002-4 SWITCHER HDMI TRANSCEIVER HDMI2 ADV3002 I2C/SPDIF HDMI OUT HDMI3 S/PDIF TXSPDIF HDMI IN HDMI4 HDMI5 MCLK ADV8195 ADV8003-2 FRONT SCLK TMDS HDMI HDMI TRANSCEIVER BUFFER 21.875MHz 27MHz...
  • Page 43 fig.9 AUDIO BLOCK DIAGRAM AVR 2113 AVR1913 28.6363MHz ADV8002-4 HDMI RECEIVER ADV8003-3 HDMI1 27MHz HDMI ADV7850 ADV8002-4 SWITCHER HDMI TRANSCEIVER HDMI2 ADV3002 I2C/SPDIF HDMI OUT HDMI3 S/PDIF TXSPDIF HDMI IN HDMI4 HDMI5 MCLK ADV8195 ADV8003-2 FRONT SCLK TMDS HDMI HDMI TRANSCEIVER BUFFER 21.875MHz 27MHz...
  • Page 44 fig.10 AUDIO BLOCK DIAGRAM AVR 2113 AVR1913 28.6363MHz ADV8002-4 HDMI RECEIVER ADV8003-3 HDMI1 27MHz HDMI ADV7850 ADV8002-4 SWITCHER HDMI TRANSCEIVER HDMI2 ADV3002 I2C/SPDIF HDMI OUT HDMI3 S/PDIF TXSPDIF HDMI IN HDMI4 HDMI5 MCLK ADV8195 ADV8003-2 FRONT SCLK TMDS HDMI HDMI TRANSCEIVER BUFFER 21.875MHz 27MHz...
  • Page 45 fig.11 AUDIO BLOCK DIAGRAM AVR 2113 AVR1913 28.6363MHz ADV8002-4 HDMI RECEIVER ADV8003-3 HDMI1 27MHz HDMI ADV7850 ADV8002-4 SWITCHER HDMI TRANSCEIVER HDMI2 ADV3002 I2C/SPDIF HDMI OUT HDMI3 S/PDIF TXSPDIF HDMI IN HDMI4 HDMI5 MCLK ADV8195 ADV8003-2 FRONT SCLK TMDS HDMI HDMI TRANSCEIVER BUFFER 21.875MHz 27MHz...
  • Page 46 fig.12 AUDIO BLOCK DIAGRAM AVR 2113 AVR1913 28.6363MHz ADV8002-4 HDMI RECEIVER ADV8003-3 HDMI1 27MHz HDMI ADV7850 ADV8002-4 SWITCHER HDMI TRANSCEIVER HDMI2 ADV3002 I2C/SPDIF HDMI OUT HDMI3 S/PDIF TXSPDIF HDMI IN HDMI4 HDMI5 MCLK ADV8195 ADV8003-2 FRONT SCLK TMDS HDMI HDMI TRANSCEIVER BUFFER 21.875MHz 27MHz...
  • Page 47 VCC BLOCK DIAGRAM MAIN +B S1(AMP +B) MAIN -B NJM7808FA A+7.0V (R2A15218FP / AZ4580M) DA+5.0V (AK4358VQ / AK5358BET) NJM7805FA NJM7908FA A-7.0V (R2A15218FP / AZ4580M) S2(+8V,-8V) PQ033DNA1ZPH 3.3V (PCM5100) AC CORD NJM7805FA V+5.0V (BD7628 / MM74HC4051MX / NJM2586M) V+5.0V (BD7628 / MM74HC4051MX / NJM2586M) NJM7905FA RELAY MAIN TRANS...
  • Page 48 Personal notes: Personal notes:...

  • Page 49: Jig For Servicing

    When you repair the printing board, you can use the following JIG (Extension cable kit). Please order it from DENON Official Service. Distributor in your region if necessary. NOTE: The incorrect connection with in the JIG (EXTENSION UNIT KIT) may cause damage.
  • Page 50 Board to board PCB VIDEO (3) Detach PCB HDMI from the chassis, and turn it over. Please put an insulation sheet that is larger than PCB HDMI under PCB. b Connect the ground point of PCB to the chassis with a ground lead or the like. PCB HDMI PCB VIDEO Insulation sheet...
  • Page 51 (4) Connect the eight extension jig cables. PCB HDMI PCB FRONT CNT PCB HDMI PCB INPUT PCB VIDEO PCB FRONT CNT Connection table of Board to Board Ref. No. Ref. No. 7pin CP3404 FRONT CNT N3404 HDMI 9pin CP3402 FRONT CNT N3402 HDMI 13pin...

  • Page 52: When The Microprocessor Is Replaced With A New One

    WHEN THE MICROPROCESSOR IS REPLACED WITH A NEW ONE When the U-PRO (Microprocessor) or the Flash ROM is replaced, confirm the following. After PCB Name Ref. No. Description Remark replaced HDMI U3002 R5F56108VNFP SOFTWARE: Main HDMI U2003 EN29LV160BB-70TIP SOFTWARE: DSP ROM HDMI U2205 EPM3032A-TC44 SOFTWARE: AUDIO PLD...
  • Page 53 [AVR-2113CIE3 model] 1.1. Preparations before starting the operation (1) Personal Computer (Installed "DFW_0058_AVR2113_1913_(Rev.X.X.X).exe". (2) RS-232C cable (9P (Male), Straight). 1.2. Connection of AV receiver (1) Confirm the power on/off switch of the AV receiver is turning off. (2) Connect the RS-232C cable from PC with the "RS232C Terminal of AV receiver". RS-232C Cable [All model commonness] 1.3.
  • Page 54 (3) When connection is good, then you can see the "Communication check OK." message. (4) If connection is not good, then you can see the "Communication check NG" message. Please confirm the following (a) Check the connection of the AV receiver and PC. (refer to "1.2. Connection of the AV receiver" ) (b) Check the operation mode of the AV receiver.
  • Page 55 1.7. Complete the firmware updating (1) Click the "Update" button. XXXXXXXX XXXXXXX (2) When writing of the firmware is completed, the power of AV receiver turns on automatically and you can see the "Update completed" message. (3) If you can’t complete the firmware update, please retry the firmware update from "1.3. Turn on the AV receiver". 1.8.

  • Page 56: How To Update By Dpms

    2. How to update by DPMS You can update the firmware by downloading the latest version from the Internet. 2.1. Connecting to the Network (1) System requirements • Internet Connection by Broadband Circuit • Modem • Router • Ethernet cable (CAT-5 or greater recommended) (2) Setting Internet Computer...
  • Page 57 2.3. About the error code See the table below for error codes, details of faults, and coping strategies when the firmware is updated through DPMS (Denon Product Management Server). Error Details of Error code Display Coping strategies Code Reset and update again.
  • Page 58 Error Details of Error code Display Coping strategies Code Main CPU failed to receive firmware Turn off and on the power. for rewriting sent from DM860A (when U p d a t i n g f a i l Updating starts automatically. an error occurred).
  • Page 59 Error Details of Error code Display Coping strategies Code Check the network connection. Connection to DPMS timed out Carry out the update in an environment C o n n e c t i o n F a i l 3 9 when Main CPU was rewritten.
  • Page 60 Error Details of Error code Display Coping strategies Code DSP, PLD etc. failed to receive Turn off and on the power. firmware for rewriting sent from U p d a t i n g f a i l Updating starts automatically. DM860A (when timed out).
  • Page 61 Error Details of Error code Display Coping strategies Code Line congestion via DPMS access Check the network connection. was notified when DM860A related Carry out the update in an environment S e r v e r b u s y A 3 firmware was rewritten (Application that has little network load.
  • Page 62 Device display during firmware update Display of target device during firmware update. Target device Display Error code when an error occurs 08 - 0C 10 - 15 Main M a i n : * * % * * * m i n 22 - 24 36 - 3E 50 - 52 Audio PLD...

  • Page 63: How To Update By Usb Memory

    3. How to update by USB Memory You can update the firmware by downloading the latest version with USB Memory. 3.1. Connecting to the Network (1) Requirements • USB Memory capacity : FAT16 : 2 GB, FAT32 : 2 TB •...
  • Page 64 3.3. About the error code See the table below for error codes and details of faults when the firmware is updated through USB memory. Error Details of Error code Display Coping strategies Code Disconnect and connect the USB Unable to detect USB. C o n n e c t i o n F a i l 0 1 memory.
  • Page 65 Error Details of Error code Display Coping strategies Code No FirmwareFile in USB after Disconnect and connect the USB F i l e s N o t F o u n d SBLMode. memory. FirmwareFile in USB after SBLMode Check the supported Model name/area N o t M a t c h F i r m for unsupported Model name/area for the FirmwareFile.
  • Page 66 Error Details of Error code Display Coping strategies Code This unit automatically retries several times. Wait until the FL display stops. No FirmwareFile in USB. If the FL display stops at the Error F i l e s N o t F o u n d display, press and hold the "Power operation ( X )"...
  • Page 67 Error Details of Error code Display Coping strategies Code This unit automatically retries several Mismatched CheckSum in response times. Wait until the FL display stops. or no response from Sub for I If the FL display stops at the Error U p d a t e C h e c k N G command.
  • Page 68 Error Details of Error code Display Coping strategies Code This unit automatically retries several times. Wait until the FL display stops. FirmwareFile in USB for unsupported If the FL display stops at the Error N o t M a t c h F i r m Model name/area display, press and hold the "Power operation ( X )"...
  • Page 69 3.4. Device display during firmware update Display of target device during firmware update. Target device Display Error code when an error occurs 08 - 0B 10 - 15 Main CPU 20 - 27 M a i n : * * % * * * m i n 36 - 3B 50 - 52 Audio PLD...

  • Page 70: Adjustment

    ADJUSTMENT f Audio Section Adjusting Idling Current Required measurement equipment: DC Voltmeter 1. Preparation (1) Temperature should be at avoid direct blow from an air conditioner or an electric fan and humidity should be moderate, and place the set at normal usage environment. 15 °C ~ 30 °C (59 °F ~ 86 °F) (2) Presetting •...

  • Page 71: Surround Modes And Parameters

    SURROUND MODES AND PARAMETERS...

  • Page 75: Trouble Shooting

    TROUBLE SHOOTING 1. POWER 1.1. Power not turn on Power not turn on. When the power turned on, When the power turned on, does the ON/STANDBY does the ON/STANDBY indicator on the front panel indicator on the front panel flashing green? flashing red? Refer to 1.2.Fuse is blown.

  • Page 76: Analog Video

    2. Analog video MONITOR OUT (CVBS) output NG Input CVBS Input Function : DVD COMPONENT To A Not output HDMI OUT output NG Input CVBS Input COMPONENT Input Function : CBL/SAT Function : CBL/SAT HDMI To troubleshooting To B 3.2 HDMI/DVI.
  • Page 77 Input CVBS Is the power supply voltage correctly output? FRONT CONNECTOR B'D REGULATOR B'D flaw. V+5V : CN5001-9pin V-5V : CN5001-13pin Check on set value of each IC. Is they the following voltage values? HDMI B'D HDMI B'D flaw. CN3402-6pin : H(5V) CN3402-7pin : L(0V) CN3402-8pin : L(0V) Extend HDMI B'D using a jig.
  • Page 78 Input CVBS/COMPONENT Check the input signal to VIDEO DECODER. Is signal confirmed for the : Check A- q - t Input CVBS following point? If no problems are found in the HDMI B'D checks above, check the connections V : R1309 between boards.
  • Page 79 Input COMPONENT Is the power supply voltage correctly output? FRONT CONNECTOR B'D REGULATOR B'D flaw. V+5V : CN5001-9pin V-5V : CN5001-13pin Check on set value of each IC. Is they the following voltage values? HDMI B'D HDMI B'D flaw. N3402-4pin : H(5V) N3402-5pin : L(0V)
  • Page 80 HDMI test point (AVR-1913E3) R2489 C2473 C2465 N3601 N3401 L3627 R2417 R2418 C2455 C3801 N3404 U2001 L3626 ADSP21487 C3799 R2101 C3810 C3813 C2409 R2001 C3811 R2415 C2454 R2416 R2490 C2474 C2466 N2001 N3402 C3818 C2407 C2002 L3628 R2016 C3726 R2017 C2482 R2048 R2119...
  • Page 81 HDMI test point (AVR-2113CIE3 / E2 / E1C) s C2473 C2465 R2489 N3404 N3402 N3401 N3601 CLP1001 R2418 C2455 R2417 U2001 ADSP21487 C2409 R2101 C3811 C3810 C3813 R2001 C3801 R2415 C2454 R2416 N1301 C3799 C2466 N2001 L3627 L3626 R2490 C2474 C3818 C2407 C3791...
  • Page 82 VIDEO test point S_GND S_GND S_GND S_GND J5011 AGND AGND AGND AGND J5008 EXT_SL EXT_SR EXT_FL EXT_SBL EXT_SBR EXT_C EXT_SW EXT_FR SAT-Cr DVD-Cr SAT-Cb DVD-Cb SAT-Y OUT_Cr C-OUT OUT_Cb DVD-Y C-SAT OUT_Y C-DVD JACK5001 JACK5002 JACK5000 JACK5003 C5021 C5025 C5024 C5023 C5018 + side C5018...

  • Page 83: Hdmi/Dvi

    (6) Is the BD/DVD player's HDMI output setting correct? the BD/DVD player operating instructions. (7) When you use a DENON BD/DVD player, is the fluorescent display tube's "HDMI" indicator lit? If you use a non-DENON BD/ DVD player, proceed to "YES".
  • Page 84 Is TMDS line of HDMI connector (N1001/N1002/N1003/N1004/N1302) terminated by the TMDS signal of 3.3V and is the signal output? (20) U1601(ADV8002 (AVR-1913) / ADV8003 VIDEO CONVERT : Is the picture output when it is set to off? (AVR-2113)) and surrounding circuitry are (After item (23) : To be "VIDEO CONVERT:OFF"...
  • Page 85 The HDMI input circuitry is defective. (U1001 or U1302 and surrounding circuitry) Check operation of each device. (AMP source : BD / Video input of player : 480P / Connect the TV.) Check operation of U1(ADV3002). (21) Check power supply. Are 5V or 3.3V supplied to U1001 (each power supply pin)? The power supply circuitry is defective.
  • Page 86 The X1601 or U1601 is defective. Is oscillation of X1601(27MHz) transmitted? (30) Check RESET. Is RESET waveform confirmed in TP[8002 (AVR-1913) / 8003 The RESET circuitry or U1601 is defective. (AVR-2113)RESET], when power is turned on? (If not reference waveform, proceed to "NO".) The pattern and circuit from the HDMI connector (N1602) to the IC(U1601) is defective, or HDMI output circuitry is defective.
  • Page 87 L3626 ADSP21487 C3799 C2409 R2101 C3810 C3813 R2001 C3811 2415 C2454 R2416 N2001 C3818 N3402 C2002 L3628 R2016 C3726 R2017 C2482 R2048 R2119 R2006 R2049 C2464 C3802 N1301 R2007 C2004 C2481 N2401 C2006 R2003 C3603 C3761 C3216 C2421 R2002 R3630 C3633 C3211 R3609...
  • Page 88 Detail C Detail D L3603 HSCL HSDA L3604 D2804 D2803 D2801 C3626 C3688 C3632 Q3601 C3604 C3791 R3610 R1637 R3649 R3654 C3673 Q3608 C3787 R1638 U1304 C1515 TX-SDA C3674 C3622 R3655 Q3626 C1032 R3650 C1493 1.8V Q3614 C1499 R1307 R1319 Q3607 C1483 C1473...
  • Page 89 ADSP21487 R2101 C2409 R2001 C3811 C3810 C3813 C3801 N1301 C3799 N2001 L3627 L3626 C3818 C3791 L3609 C2002 L3628 R2016 C3726 R2017 L3610 R2048 R2119 R2006 C3605 U3605 R2049 R3611 C3802 R2007 C3812 C2004 R3605 C3623 2401 C2006 R2003 C3629 C3216 C3603 C3761 C2421...
  • Page 90 Detail C Detail D L3603 HSCL HSDA L3604 D2804 D2803 D2801 C3626 C3688 C3632 Q3601 C3604 C3791 R3610 R1637 R3649 R3654 C3673 Q3608 C3787 R1638 U1304 C1515 TX-SDA C3674 C3622 R3655 Q3626 C1032 R3650 C1493 1.8V Q3614 C1499 R1307 R1319 Q3607 C1483 C1473...
  • Page 91 DDC_CLK/DDC_DATA/TMDS : Check items HDMI to HDMI (17)/(19)/(24) 0.9V 2.6V TMDS Waveform Zoom DDC_CLK DDC_CLK DDC_DATA DDC_DATA Timing waveform illustration from the start of CEC3.3V to when reset is released : Check items (22) CEC3.3V 338ms 3002RESET...
  • Page 92 Controlled waveform (I2C), when power is turned on : Check items (23) Zoom HSCL 330ms HSDA Timing waveform illustration from the start of CEC3.3V to when reset is released : Check items (27) CEC3.3V 338ms 7850RESET Timing waveform illustration from the start of CEC3.3V to when reset is released : Check items (30) DV3.3V 10ms 10ms...

  • Page 93: Audio

    4. AUDIO 4.1. AUDIO CHECK Audio output NG. Refer to "Audio Check PATH" (101 page). CHECK1 INPUT SURROND MODE SOURCE Check ANALOG audio BLOCK. Audio output OK? ANALOG 2CH DIRECT ANALOG CHECK2 INPUT SURROND MODE SOURCE Check Digital audio BLOCK. Legacy Audio output OK? COAX or OPT...
  • Page 94 4.2. Power AMP (AMP UNIT) No sound is output. The protector operates. Is the power transistor open or short- circuited? Replace the power transistor. 2SB1560/2SD2390 Is the emitter resistance of the power transistor open? Replace the emitter resistance. 0.47Ω Is the base resistance of the power transistor open? Replace the base resistance.

  • Page 95: Analog Audio

    4.3. Analog audio No sound is output Is the voltage of ±7V supplied to The power supply of ±7V is repaired. INPUT B'D CN4004? Is the audio signal transmitted to The power amplifier is repaired. INPUT B'D CN401? Connect the connectors properly. Is the serial data for electronic volume Is the connector correctly connected transmitted to INPUT B'D CP4200?

  • Page 96: Network/Usb

    Checking the settings Set the IP address and other parameters properly. For a fixed IP setting, check Are the AVR-1913/2113's network settings correct? whether the IP address is redundant with that of other devices and the subnet mask setting is correct.
  • Page 97 The circuitry from U2602 on the HDMI board to CP4406 on the USB board is defective. 5.3. No picture or no sound is output Checking the set (AVR-1913/2113):(If no picture is output) The circuit between U2602 and U2803 is Are video signals output from U2803 pin 27 (Y) and pin 24 (C)? defective.
  • Page 98 HDMI test point (AVR-1913E3) N3601 R2489 C2473 C2465 N3601 N3401 L3627 R2417 R2418 C2455 N3404 U2001 C3801 L3626 ADSP21487 C3799 C2409 R2101 C3811 C3810 C3813 R2001 R2415 C2454 R2416 C2474 C2466 N2001 R2490 N3402 C3818 C2407 C2002 L3628 R2016 C3726 R2017 C2482 R2048...

  • Page 99: Smps

    6. SMPS DC 5V is not output. Is there damage in IC4140 Replace the IC4140 (TOP258MG) and (TOP258MG)? D4142/D4143/D4144/D4145. Is there the damage in D4142/D4143/ Is the fuse (F4140) blown? Replace the damaged parts. D4144/D4145/IC4140? Is there solder short circuit in the PCB Repair the solder short part of the PCB board? board.
  • Page 100 Operation waveform for each part SMPS B'D Primary drain (Caution: High voltage, electric shock) After primary side rectification (Caution: High voltage, electric shock) After secondary rectifications OPTION L4141 BKT4140 C4148 OPEN OPTION OPEN OPTION L4140 F4140 S.E.C JP4140 JUMPER 1N4007 D4142 live ZD4151...
  • Page 101 Audio Check PATH Refer to troubleshooting "4.1. AUDIO CHECK"(93 page). HDMI CHECK6 TRANSMITTER ADV8002/8003 CHECK5 with scaler video encoder etc... ADV7850 FRONT TMDS BUFFER AD8195 CHECK4 CHECK2 LAN8720A CHECK3 CHECK1...

  • Page 102: Clock Flow & Wave Form In Digital Block

    CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK WAVE FORM DIR input CH1:D-DATA DIR output CH1: DATA Test point (AVR-1913E3) C2215 Detail A R2489 C2473 C2465 N3601 CH2: fs N3401 R2236 L3627 R2418 C2455 R2417 N3404 U2001 C3801 L3626 ADSP21487 C3799 C2409 R2101...
  • Page 103 Test point (AVR-2113CIE3 / E2 / E1C) s Detail A R2649 R2489 C2473 C2465 N3404 N3402 N3401 N3601 R2418 C2455 R2417 CLP1001 U2001 ADSP21487 R2101 C2409 R2001 C3801 C3811 C3810 C3813 C2215 R2415 C2454 R2416 N1301 C3799 R2490 C2474 C2466 N2001 L3627 L3626...

  • Page 104: Level Diagram

    LEVEL DIAGRAM LEVEL DIAGRAM FRONT ch ＋ ＋ ＋ ＋ － － Ω ･ ･ ･ ･ ① ② ③ ① （ ） ② ③...
  • Page 105 LEVEL DIAGRAM CENTER ch ＋ ＋ ＋ － － Ω...
  • Page 106 LEVEL DIAGRAM SUBWOOFER ch ＋ ＋ － －...
  • Page 107 LEVEL DIAGRAM SURROUND ch ＋ ＋ ＋ － － Ω...
  • Page 108 LEVEL DIAGRAM SURR.BACK ch ＋ ＋ ＋ － － Ω...

  • Page 109: Printed Wiring Boards

    PRINTED WIRING BOARDS HDMI (AVR-1913E3) (COMPONENT SIDE) R2489 C2473 C2465 N3601 N3401 L3627 R2418 C2455 R2417 N3404 U2001 C3801 L3626 ADSP21487 C3799 R2101 C3810 C3813 C2409 R2001 C3811 R2415 C2454 R2416 R2490 C2474 C2466 N2001 C3818 N3402 C2407 C2002 L3628 R2016 C3726 C2482...
  • Page 110 HDMI (AVR-1913E3) (FOIL SIDE) R2444 R2487 C2453 C2463 R2488 C2420 C2411 C2417 C2414 U2403 C2098 AK5358 C2105 L3625 C1038 C2096 C2101 C2099 R1321 C2072 C3615 R2118 C2001 R2403 C3213 R2032 R3230 R2008 R3621 C2081 C3760 R2117 C3609 R3231 C2114 C2068 R3615 C3657 C2083...

  • Page 111: Hdmi (Avr-2113Cie3 / E2 / E1C)

    HDMI (AVR-2113CIE3 / E2 / E1C) (COMPONENT SIDE) C2465 R2489 C2473 N3404 N3402 N3401 N3601 CLP1001 R2418 C2455 R2417 U2001 ADSP21487 C2409 R2101 R2001 C3811 C3810 C3813 R2415 C2454 R2416 C3801 N1301 C3799 R2490 C2474 C2466 N2001 L3627 L3626 C3818 C2407 C3791 L3609...
  • Page 112 HDMI (AVR-2113CIE3 / E2 / E1C) (FOIL SIDE) R2444 R2487 C2453 C2463 R2488 C2420 C2411 C2417 C2414 C2098 C2105 C1038 L3625 C2096 C2101 C2099 C2072 R3617 R1321 C3615 C2001 R2118 C3611 R2403 R2032 C3213 R3230 C3617 R2008 R3621 R2117 C2081 C3760 R3623 C3609...

  • Page 113: Front Hdmi

    FRONT HDMI FRONT HDMI (COMPONENT SIDE) (FOIL SIDE) C1219 C1220 C1221 R1204 R1211 R1212 R1045 C1206 C1213 C1211 R1210 C1214 R1213 C1209 C1216 C1222 U1201 C1223 C1202 AD8195 C1208 L1202 C1207 N1202 L1203 OPTIONAL CIRCUIT OPTIONAL CIRCUIT (COMPONENT SIDE) (FOIL SIDE) BKT4700 BURRING C4714...

  • Page 114: Front

    FRONT (COMPONENT SIDE) FRONT B'D J4486 7028-07185-101-0 J4453 CN4400 J4498 J4434 R4457 J4519 J4419 J4516 J4517 J4518 J4455 R4420 J4469 J4503 J4456 J4506 R4458 CP4401 J4466 J4520 J4521 J4522 J4523 J4524 J4525 J4491 J4481 R4471 J4489 J4463 J4512 R4449 R4472 C4412 J4443 C4410...
  • Page 115 FRONT (FOIL SIDE) R4416 R4403 C4479 Q4402 R4415 R4404 J4458 R4437 R4436 CB4400 C4425 C4427 C4428 C4414 J4457 R4425 C4429 Q4403 C4411 C4413 R4410 R4423 C4426 CB4401 R4491 R4435 R4433 Q4406 C4418 Q4407 R4446 Q4405 R4445 R4432 R4441 R4431 R4402 Q4401 R4440 Q4408...

  • Page 116: Function

    FUNCTION FUNCTION (COMPONENT SIDE) (FOIL SIDE) C4445 C4446 C4475 R4490 R4463 R4462 C4476 SW4412 R4460 SW4411 FUNCTION B'D 7028-07185-801-0 F/H_GUIDE F/H_GUIDE (COMPONENT SIDE) (FOIL SIDE) CLAMP 406 FRONT HDMI CABLE F/H_GUIDE B'D 7028-07185-701-0 (COMPONENT SIDE) (FOIL SIDE) CNT B'D 7028-07185-301-0 CP4402 CP4403 鉛フリー半田...

  • Page 117: Usb

    (COMPONENT SIDE) (FOIL SIDE) G4402 R4486 C4469 L4401 J4504 CN4402 USB B'D 7028-07185-201-0 GUIDE L GUIDE L GUIDE R GUIDE R (COMPONENT SIDE) (FOIL SIDE) (COMPONENT SIDE) (FOIL SIDE) CLAMP 405 GUIDE R 7028-07185-501-0 GUIDE L 7028-07185-401-0 CLAMP 401 TOP_GUIDE TOP_GUIDE (COMPONENT SIDE) (FOIL SIDE)

  • Page 118: 7Ch Amp

    7CH AMP (COMPONENT SIDE) G401 7CH AMP B'D WIRE 631010096006S BONDING CLAMP 400 G400 G401 7020-06941-000-0S BKT400 CP401 WIRE J590 WIRE WIRE BONDING BONDING BONDING C408 R428 C456 C424 WIRE R687 G402 R440 R558 C440 R601 R472 BONDING R471 C504 R644 CLAMP 401 Q480...

  • Page 119: Video

    VIDEO VIDEO (COMPONENT SIDE) (FOIL SIDE) S_GND S_GND S_GND S_GND AGND AGND AGND AGND C5037 C5042 C5036 C5044 C5005 EXT_SBR EXT_SL EXT_SR EXT_C EXT_FL EXT_FR EXT_SBL EXT_SW SAT-Cr DVD-Cr SAT-Cb DVD-Cb SAT-Y OUT_Cr OUT_Cb DVD-Y C-OUT C-SAT OUT_Y C-DVD JACK5001 JACK5002 JACK5000 JACK5003...

  • Page 120: Front Cnt

    FRONT CNT FRONT CNT (COMPONENT SIDE) (FOIL SIDE) BURRING BKT5001 V-5V J5036 V-5V VAGND VAGND CN4001 V+5V H/P_L V+5V H/P_L H/P_GND PSAVE H/P_GND CP5001 H/P_R V_INC H/P_R F_RLY V_INB F_RLY C/S_RLY V_INA C/S_RLY V-5V SB_RLY COMPONENT SW2 SB_RLY V-5V H/P_RLY COMPONENT SW1 H/P_RLY VAGND...

  • Page 121: Input

    (COMPONENT SIDE) INPUT INPUT (COMPONENT SIDE) (FOIL SIDE) Q4201 SWM5V(MX) SWM5V(MX) R4207 R4203 D4203 D4204 C4203 D5V(MX) C4201 C4207 D5V(MX) R4213 KILLIR R4217 KILLIR RC_OUT RC_OUT BT_LINK BT_LINK FRONT_IRIN FRONT_IRIN C4222 RC_IN RC_IN R4201 C4202 MUTE3.3V C4205 JK4201 JK4200 MUTE3.3V R4208 JK4202 REMOTE3.3V...

  • Page 122: Main

    MAIN (COMPONENT SIDE) J4058 J4089 J4091 鉛フリー半田 半田付けには、鉛フリー半田 (Sn-Ag-Cu) を使用してください。 Lead-free Solder When soldering, use the Lead-free Solder (Sn-Ag-Cu).
  • Page 123 MAIN (FOIL SIDE) C4093 C4097 C4082 C4111 D4045 C4104 D4046 D4043 C4086 C4081 R4103 C4026 C4033 C4036 C4039 C4042 C4046 C4044 C4027 C4032 C4035 C4038 C4041 C4047 C4045 R4046 C4080 D4047 C4034 C4029 C4031 C4037 C4040 C4048 C4043 D4048 C4079 D4040 GPIO2 TUNERR...

  • Page 124: Smps

    SMPS SMPS (COMPONENT SIDE) (FOIL SIDE) BKT4141 BKT4140 NEUTRAL CP4140 LIVE JK4140 Sec. R4140 Sec. Pri. C4141 470P/250 Pri. 7028-07184-201-0 F4141 T6.3AL/250V SMPS B'D FC4141B FC4141A D4150 MAINPOWER WHITE R4156 R4155 BONDING DGND MAINPOWER TR4142 DGND DGND C4142 DGND FC4140A FC4140B D5.2V 0.01/250...

  • Page 125: Schematic Diagrams (1/26)

    HDMI SW ADV3002 CEC_COM RXC_5V N1001 R1001 R1005 R1009 R1013 AD3PBI19G0-REV.B OPEN HP_DET DDC_SDA Q1001 RT1N141C DDC_SCK Q1005 RT1N441C CE_REMOTE TXC- TXC_SHLD TXC+ TX0- TX0_SHLD TX0+ TX1- TX1_SHLD TX1+ TX2- CEC5V TX2_SHLD TX2+ R1037 R1038 OPEN DGND RXE_5V N1002 R1002 R1006 R1010 R1014...

  • Page 126: Front Hdmi Unit

    FRONT HDMI R1201 R1203 R1205 R1206 OPEN OPEN OPEN R1202 R1204 N1201 AD3PBI19G0-REV.B Q1201 OPEN HPA_D.. HP_DET Q1202 OPEN DDC_SDA N1202 DDC_SCK N1202 FFC-23P (1.0-16-23PB-2) CE_REMOTE TXC- TO N1301 R1207 R1208 HPA_D.. TXC_SHLD HPDF TX_EN. TX_EN TXC+ DDC_SDA TX0- DDCA_SDA DDC_SCL DDCA_SCL TX0_SHLD...

  • Page 127: Hdmi Rx Unit

    HDMI RX (ADV7850) STBY5V CEC5V D.SUPPLY 680mA CEC3.3V 1620mA FROM CEC1.8V TO BG DGND HPD5V L1302 C1302 100N-K VIN8 BLM21PG221 TVDD C1303 10N-K U1302 VIN9 ADV7850 3.3V 400mA C1304 100N-K VIN7 1Vp-p C1305 1N-K SYNC2 DIGITAL CNT R1306 24-D(1608) C1306 100N-K DECIN_Y VIN4...

  • Page 128: Hdmi Tx Unit

    DV5V DV3.3V DV1.8V DGND L1622 R1642 0(2012) DVDD_TX AVDD3_1_TX PVDD_TX PVDD3_TX PVDD5_TX AVDD2_TX OPEN TO BI L1602 L1605 L1607 L1609 22UH L1611 L1613 BLM21PG221 BLM21PG221 BLM21PG221 BLM21PG221 BLM21PG221 3 TK73318WTL-G TX1_2+ R1729 R1654 L1620 OPEN(2012) U1603 OPEN TX1_2- L1623 HDMI OUT 1 DDR_1.8V PVDDR_TX AVDD3_3_TX...

  • Page 129: Hdmi Tx Ddr Unit

    HDMI TX DDR TO Q HDMI TX (ADV8002) HDMI TX (ADV8002) HDMI TX (ADV8002) L1801 BLM21PG221 U1801 K4T51163QJ-BCE7 (512M) U1802 K4T51163QJ-BCE7 (512M) DDR1 DDR2 DDR_1.8V DDR_1.8V DGND DGND DR_TXDQSB1 DDR_1.8V DDR_1.8V DGND DGND DR_TXDQSB3 DDR_1.8V DR_TXDQ14 DGND DR_TXDM1 DR_TXDQS1 DGND DR_TXDQ15 DR_TXDQ30 DGND...

  • Page 130: Dsp Unit

    TO Z TO AS TO DIR/PLD TO CPU MP OPEN R2029 OPEN N2001 FFC-10P (1.0-16-10PB-2) DTCK DTDO R2002 OPEN R2030 DTMS TRST DTRST EMU0 DEMU0 R2003 EMU1 DTDI R2028 C2093 1N-K U2002 C2108 1N-K R2006 W9864G6JH-6 C2001 1N-K C2094 100N-K R2007 OPEN AMI_RD C2002...

  • Page 131: Dir/Pld Unit

    TO AL DIR/PLD HDMI RX MODEL AVR1913 AVR2113 HDMI RX/HDMI TX TO AT NET PHY TO CPU ADV7850 (ADV7850/ADV8002) R_NO K2201 OPEN TO N TO J U2202 OPEN OPEN OPEN OPEN R2222,R2226 OPEN OPEN OPEN 100N R2235 330K 330K 330K 330K R2221 OPEN...

  • Page 132: Main Dac Unit

    TO AI TO AB TO AA FROM FROM DIR/PLD FROM MAIN DAC DM860A DIR/PLD R2443 0(1608) R2431 R2485 OPEN(1608) OPEN(1608) C2481 C2462 R2486 OPEN(1608) 10/16(RV2) OPEN(1608) R2413 R2432 0(1608) OPEN(1608) A/DIN_R. C2452 U2405:A C2464 OPEN(1608) OPEN OPEN C2453 U2405:B OPEN(1608) OPEN A/DIN_R R2414...

  • Page 133: Dm860A Unit

    DM860A SDRAM R2709 DM_A18/DQM1 .DM_A18/DQM1 33*4 .DM_A16/BA1 U2602 DM_A16/BA1 DM860A R2714 DM_A15/BA0 .DM_A15/BA0 DM_D3 33*4 JTAG DM_A12 .DM_A12 DM_D2 R2710 R2704 .DM_A10 JTAG DM_A10 33*4 DM_D1 33*4 MP OPEN DM_A14/CAS .DM_A14/CAS ETCK DM_D0 .DM_A13/RAS DM_A13/RAS ETDO USBD- NET3.3V DGND NET3.3V HIGHZ RXD1 DM_A0...

  • Page 134: Net Phy Unit

    TO AX TO AH NET PHY TO DM860A CPU LEVEL CHG MODEL AVR1913 AVR2113 R_NO L2814,L2815 1.5UH 1.5UH C2851,C2852 330P 330P TO V 860SPDIF DIR/PLD TO BK FROM NET3.3V D.SUPPLY DGND NET1.2V USB_P_FLUG L2803 OPEN R2805 TO CN4402 L2806 R2806 DLW21SN181SQ2L L2805 N2801...

  • Page 135: Cpu Unit

    TO U TO BA TO Y TO CPU LEVEL CHG TO DIR/PLD TO DSP HSDA CEC_POWER2 TO R HSCL MAIN_POWER R3102 OPEN(1608) ADV8002_INT2 .E_POWER2 E_POWER2 ADV8002_INT1 R3103 0(1608) HDMI TX ADV8002_SPI_MO ADV8002_SPI_MI E_POWER R3013 OPEN (ADV8002) TO BL ADV8002_SPI_CLK BDOWN R3014 OPEN ADV8002_SPI_CS...

  • Page 136: Cpu Level Chg Unit

    CPU LEVEL CHG TO BF TO AJ TO NET/PHY TO DIGITAL CNT STBY3.3V TO BM STBY5V FROM REMOTE3.3V D.SUPPLY SWM5V SWM3.3V M3.3V DGND SWM3.3V N3201 R3215 FFC-4P (1.0-9-4PW) M3.3V 232MO 232MI SWM3.3V DGND R3216 R3217 Except AVR2113E3 C3207 OPEN R3212 R3213 R3214 R3218...

  • Page 137: Digital Cnt Unit

    TO BN DIGITAL CNT INPUT 1/1 M1 C3402 C3401 N3406 OPEN OPEN N3406 C125Z2-7-AN TO CP4201 TU_SCLK/SCL TU_SCLK/SCL TO CP4203 TU_SDIO/SDA TU_SDIO/SDA INPUT 1/1 G1 TU_SEN TU_SEN N3403 N3403 TU_RST/ST C125Z2-31-AN TU_RST/ST TU_GPIO2_INT TU_GPIO2/TUNED DM860L USB_L PRE_Z2_MUTE MUTE_Z2 DAGND DAGND PRE_MUTE PRE_MUTE DM860R...

  • Page 138: D.supply Unit

    L3625 BLM21PG221 D.SUPPLY C3637 C3643 L3626 BLM21PG221 10/6.3(X5R) 10/6.3(X5R) L3627 BLM21PG221 C3619 10/6.3(X5R) L3601 N3601 0(2012) N3601 L3613 Q3608 5P(SMW250) TO CN4141 PVIN VOUT 0(2012) 2.08A FDC608PZ D3.3V PVIN VOUT D5.2V D5.2V L3602 PVIN VOUT 0(2012) L3614 R3649 D5.2V D5.2V U3601 0(2012) TO SMPS B'D...

  • Page 139: 7Ch-Amp Unit (1/2)

    AMP B'D 1/2 R703 R401 1.2K ZD401 R402 R403 1.2K R404 R406 MTZJ5.1A 100K OPEN R405 5.6K(1) PRF18BC471QB5RB C401 OPEN 100N-K C402 Q401 D401 OPEN TP401 KTA1024Y C403 R407 OPEN 10N-K C404 47/50 Q403 R408 R409 R410 R411 150K 2N5401S 5.6K(1) Q404 150K...

  • Page 140: 7Ch-Amp Unit (2/2)

    TO BP PAGE 2 TO BO PAGE 2 AMP B'D 1/2_A10 AMP B'D 1/2_M10 R706 R531 ZD410 R532 1.2K R533 1.2K R534 MTZJ5.1A 100K OPEN R535 OPEN 5.6K(1) R537 C449 PRF18BC471QB5RB C450 Q437 D419 OPEN TP404 100N-K KTA1024Y OPEN C452 47/50 Q439 R538 R539...

  • Page 141: Spk Reg Smps Unit (1/4)

    SPK_REG_SMPS 1/4 SPK PART R4000 470(2) H/PR RLY4000 BC3-12 L4000 OPTION R4001 470(2) H/PL 0.5UH OPTION JACK4000 C4000 FR_GND C4001 C4002 47N(M)-50V 2N2-K OPTION R4002 C4003 FR_A 10(2) 47N(M)-50V R4003 10(2) L4001 FL_GND C4004 C4005 0.5UH 2N2-K C4006 FL_A 47N(M)-50V C4007 RLY4001 C_GND...

  • Page 142: Spk Reg Smps Unit (2/4)

    SPK_REG_SMPS 2/4 TO BS TO BY SPK PART TUNER PART REG PART VIDEO_F/CNT_MX D4010 D4009 TRG_15V TRG_15V CP4001 CP4001 OPEN OPEN D4011 D4012 H/PL H/P_L VIDEO_F/CNT_MX 3/3 G9 D4013 OPEN OPEN RB721Q-40(SCHOTTKY) H/P_GND H/P_GND CP4002 H/PR H/P_R CP4002 IC4000 NJM7805FA RLY_F D4014 1N4007...

  • Page 143: Spk Reg Smps Unit (3/4)

    SPK_REG_SMPS 3/4 TO BU TUNER / PREOUT PART REG PART REG PART TO BV R4035 REG PART C4069 L4007 OPEN C4070 R4037 10/50 OPEN R4036 TUNERL. TO BW C4071 TU_GND OPEN TUNERR. PACK4000 R4038 OPEN TUNERL TUNERL TUNERR TUNERR BD4000 BEAD TU_5V TU_5V/9V...

  • Page 144: Spk Reg Smps Unit (4/4)

    SPK_REG_SMPS 4/4 SMPS B'D OPTION L4141 BKT4140 C4148 OPEN OPTION OPEN OPTION L4140 F4140 S.E.C JP4140 JUMPER D4142 1N4007 JK4140 live ZD4151 ZD4147 AC INLET D4143 1N4007 ｡ﾜ ｡ﾜ MTZ39B MTZJ22B Neutral C4143 ZD4152 0.1/250V ｡ﾜ ｡ﾜ D4144 1N4007 ZD4148 MTZJ22B MTZ39B D4145...

  • Page 145: Input Unit

    SPK_REG_SMPS 3/4 M4 HDMI_1 RS232 / MS_PORT 1/1 A4 RS232 / MS_PORT 1/1 A6 HDMI_2 HDMI_3 VIDEO_F/CNT_MX 2/3 M5 TO CP4004 TO N3406 TO CP4700 TO CP4701 TO N3407 TO N3403 INPUT CN4700 CN4701 CP4200 CP4201 CN4004 CP4203 CP4201 CP4202 CP4203 CN4700 CN4701...

  • Page 146: Front Unit (1/2)

    FRONT 1/2 FL4400 018BT021GINK AUDYSSEY TUNED STEREO SLEEP AUTO HDMI DIGITAL ANALOG S.BACK MUTE DIG. ANA. R4466 R4451 A+7V C4439 R4470 ZD4405 OPEN MTZ5.1B 10/50 R4467 7 8 9 10 BD4403 0 MICDET A-7V C4447 CB4400 R4455 100 R4407 1/50 OPEN FROM TRANS R4452...

  • Page 147: Front Unit (2/2)

    FRONT 2/2 BLM21PG221 BD4411 CP4406 USB-JACK CN4402 BD4409 VBUS R4487 VBUS TO N2801 -DATA -DATA +DATA TO HDMI +DATA R4488 OPEN L4401 CN4402 BD4410 G4402 SCHEMATIC DIAGRAMS (23/26) POWER + POWER + POWER - POWER - STBY POWER STBY POWER FRONT UNIT (2/2)

  • Page 148: Rs232 / Optional Circuit Unit

    OPTIONAL CIRCUIT RS232 / TRI PART R4700 OPTION B IC4700 Q4702 PQ120DNA RT1P141C TRIGGER R4701 Q4700 Q4701 RT1P141C OUT1 CP4700 RT1N141C ON/OFF C4700 C4701 OPEN 4700N-K JACK4700 TO CN4700 C4705 INPUT 1/1 B1 D4703 KDS4148U 100N-K CP4700 D5V(MX) R4702 OPEN(2W) Q4703 SWM5V(MX) R4703 OPEN(2W)

  • Page 149: Video F/Cnt Unit (1/2)

    VIDEO PART VIDEO_F/CNT Y/V. R5000 820-D IC5000:A BD7628 R5001 MONITOR R5002 R5003 C5000 Y/V. 100/10 IC5000:B BD7628 V+5V VIDEO_F/CNT_MX 3/3 J6 * MODEL / AREA OPTION CN5001 CN5001 MODEL AVR2113 AVR1913 AVR2113 AVR2113 CHASSIS D/MGND AREA E2/E1C COMPONENT SW1 CVBS INPUT SW JACK5000 (MM74HC4051MX) OPTION A...

  • Page 150: Video F/Cnt Unit (2/2)

    VIDEO_F/CNT FRONT_CNT PART TO N3402 FUSE F5001,F5002,F5003,F5004 F5000 HDMI AVR1913_2113 T1.6A/250V OPEN HDMI HDMI TO N3401 TO N3404 CP3401 CP3401 CP3402 CP3404 CP3402 CP3404 R5064 OPEN F5000 OPEN TRG_15V_A MAIN TRANS TAP F5001 FUSE CP5003 AC_IN +5V_IN_A R5065 VGND OPEN AC_IN AC_IN AC_IN...

  • Page 151: Wiring Diagram

    WIRING DIAGRAM s AC CORD OPTIONAL HDMI B'D CIRCUIT B’D (AVR-2113 only) 2P WIER (TRANS PW) SPK B'D 40P CARD CABLE VIDEO FRONT CNT B'D MAIN TRANS EXT_IN 13P WIRE (AUDIO IN) 4P WIER AUDIO D10SB60 VIDEO VIDEO AUDIO AUDIO 7805 7905 7805...

  • Page 152: Exploded View

    EXPLODED VIEW s J X3 K X3 J X3 AVR2113CIBKE3 AVR2113BKE2 C X5 AVR2113SPE1C C X6 21 X5 C X2 H X21 G x4 C x2 (INLET) J X2 C x2 (SCREW : 1500-04008-3B1-0S) AVR2113 BKE2 A X29 (FRONT PCB&FUNCTION PCB H/P PCB&USB PCB&FRONT HDMI PCB&SUB PANEL+FRONT PANEL) HDMI JACK/TUNER PACK/M3 BRACKET K X20...

  • Page 153: Parts List Of Exploded View

    PARTS LIST OF EXPLODED VIEW s z Parts indicated by "nsp" on this table cannot be supplied. z PCB ASS'Y indicated by "nsp" on this table cannot be supplied. When repairing the PCB ASS'Y, check the board parts list and order replacement parts. z Parts indicated by the "...
  • Page 154 Ref. No. Part No. Part Name Remarks Q'ty 963416100720D WINDOW 1913BKE3 5077213333000S 2113CIBKE3, 963416100730D WINDOW 2113BKE2, 5077213333010S 2113SPE1C 1913BKE3, 42151002100AD BADGE (BK) 2113CIBKE3, 5630210761000S 2113BKE2 42151002101AD BADGE (SP) 2113SPE1C 963402102150D PANEL FRONT 1913BKE3 3067215551000S 963402102160D PANEL FRONT 2113CIBKE3 3067215561000S 963402102170D PANEL FRONT 2113BKE2 3067215561100S...
  • Page 155 Ref. No. Part No. Part Name Remarks Q'ty BRACKET SIDE 401021068600DS 963451101130D SHEET PET CLEAR 1210211919000S ★ 31 DOUBLE TAPE A710000520000S 2113CIBKE3, 963451101140D SHEET PET CLEAR FUNCTION 2113BKE2, 1210211939000S 2113SPE1C BRACKET HDMI 4010215226000S SUPPORTER(4.8mm) 4070211653000S "Q404, Q416, ★ 35 00D9960018706 TR 2SD2390-Y Q428, Q440,Q452, J5032390Y0000S...

  • Page 156: Packing View

    PACKING VIEW s 2113BKE2 model 2113BKE2, SPE1C model 2113SPE1C model 2113SPE1C model D E N O D E N O 2113SPE1C model...

  • Page 157: Parts List Of Packing & Accessories

    PARTS LIST OF PACKING & ACCESSORIES s z Parts indicated by "nsp" on this table cannot be supplied. z The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE: The symbols in the column "Remarks"...

  • Page 158: Semiconductors

    SEMICONDUCTORS Only major semiconductors are shown. General semiconductors etc. are omitted from list. The semiconductors which have a detailed drawing in a schematic diagram are omitted from list. 1. IC's R5F56108VNFP (HDMI : U3002) PE0/D8 PC4/A20 PD7/D7 PC5/A21/SCK5/CS5#-D PD6/D6 PC6/A22/RxD5/CS6#-D PD5/D5 PC7/A23/TxD5/CS4#-D/CS7#-D PD4/D4...
  • Page 159 Pull up/ Pin Name Symbol LvCnv STBY STOP Function down STBY P02/IRQ10-A/TMO2/ SCK6/TRST# Data received from the external P01/IRQ9-A/TMCI2/ RXD MI232O M3VPu pin(AMX)/Use for firmware upgrading RxD6 by DFW. P00/IRQ8-A/TMRI2/ Data transfer to external pin(AMX)/Use TXD MO232I TxD6 for firmware upgrading by DFW. POWER KEY (Waiting Mode cancel, P65/IRQ15-A POWER KEY...
  • Page 160 Pull up/ Pin Name Symbol LvCnv STBY STOP Function down STBY ADV8002 P13/IRQ3-B/TxD2/ (AVR1913) OSD control pin (ADV8002 or ADTRG0# or ADV8003 ADV8003) (AVR2113) SPI MO ADV8002 (AVR1913) OSD control pin (ADV8002 or 45 P12/IRQ2-B/RxD2 or ADV8003 ADV8003) (AVR2113) SPI MI ADV8002 (AVR1913) OSD control pin (ADV8002 or...
  • Page 161 Pull up/ Pin Name Symbol LvCnv STBY STOP Function down STBY PB7/A15/PO31/ H/P RLY HEADPHONE RLY control pin TIOCA11/TIOCB11 PB6/A14/PO30/ FRONT RLY FRONT Ch RELAY control pin TIOCA11 TC74VHC4051AFT control pin. PB5/A13/PO29/ HIN SELC (Control the detection of HDMI 5V TIOCA10/TIOCB10 INPUT for CEC STANDBY.
  • Page 162 Pull up/ Pin Name Symbol LvCnv STBY STOP Function down STBY ETHERNET communication control 116 P62/CS2#-A/CS6#-A E SPI CS N3VPu pin(DM860) P61/CS1#/CS2#-B/ CS5#-A/CS6#-B/ DAC MS D/A converter control pin (AK4358VQ) CS7#-B P60/CS0#/CS4#-A/ DAC RST D/A converter control pin (AK4358VQ) CS5#-B 119 PD3/D3 Unused 120 PD2/D2...
  • Page 163 ADV3002BSTZ (HDMI : U1001) IN_B_CLK- 60 IN_C_DATA2+ PIN 1 IN_B_CLK+ 59 IN_C_DATA2- INDICATOR HPD_B 58 HPD_C IN_B_DATA0- 57 IN_C_DATA1+ 56 IN_C_DATA1- IN_B_DATA0+ HPD_A 55 HPD_D IN_B_DATA1- 54 IN_C_DATA0+ IN_B_DATA1+ 53 IN_C_DATA0- AVCC 52 AVCC ADV3002 51 IN_C_CLK+ IN_B_DATA2- TOP VIEW IN_B_DATA2+ 50 IN_C_CLK- (Not to Scale)
  • Page 164 AD8195ACPZ (HDMI : U1201) AD8195 30 AVCC PIN CONFIGURATION AND FUNCTION DESCRIPTIONS PIN 1 29 PE_EN INDICATOR 28 TX_EN 27 AVEE VTTI 26 AVCC AD8195 TOP VIEW 25 AVCC (Not to Scale) 30 AVCC 24 AVEE PIN 1 29 PE_EN INDICATOR 23 AVCC 28 TX_EN...
  • Page 165 AD8195ACPZ Block diagram PARALLEL AVCC AD8195 AMUXVCC VTTI AVEE CONTROL LOGIC VTTO IP[3:0] OP[3:0] BUFFER – – IN[3:0] ON[3:0] HIGH SPEED BUFFERED VREF_IN VREF_OUT SCL_IN SCL_OUT SDA_IN SDA_OUT CEC_IN CEC_OUT LOW SPEED BUFFERED BIDIRECTIONAL...
  • Page 166 LC89058W-E (HDMI : U2203) 35 34 33 32 31 30 29 28 27 26 25 SDIN SLRCK SBCK RDATA XMODE RLRCK LC89058W-E DV DD DGND DGND DV DD RBCK GPIO0 GPIO1 RMCK GPIO2 AGND GPIO3 AV DD RXOUT2 * : Pull-down resistor internal at no selection Pin Functions RXOUT1 RX0-6 input S/PDIF through output pin 1...
  • Page 167 LC89058W-E Continued from preceding page. Pin No. Name Function DGND Digital GND DV DD Digital power supply (3.3V) XMCK Oscillation amplifier clock output pin XOUT Output pin connected to the resonator External clock input pin, connected to the resonator (12.288MHz/24.576MHz) DV DD Digital power supply DGND...
  • Page 168 ADSP21487KSWZ3B (HDMI : U2001) PIN 1 GND PAD (PIN 177) at BOTTOM TOP VIEW (PINS DOWN) ADSP21487KSWZ3B Terminal Function Pin Name Pin No. Pin Name Pin No. Pin Name Pin No. Pin Name Pin No. SDDQM DAI_P10 DPI_P08 FLAG0 SDCKE DPI_P07 FLAG1 DAI_P20...
  • Page 169 W9864G2IH W9864G6JH-6 (HDMI : U2002) 4. PIN CONFIGURATION                                 ...
  • Page 170 W9864G2IH W9864G6JH-6 Pin description 5. PIN DESCRIPTION PIN NUMBER PIN NAME FUNCTION DESCRIPTION Multiplexed pins for row and column address. Row address: A0−A10. Column address: A0−A7. 24, 25, 26, 27, 60, 61, 62, A0−A10 Address A10 is sampled during a precharge command to 63, 64, 65, 66 determine if all banks are to be precharged or bank selected by BS0, BS1.
  • Page 171 W9864G6JH-6 Block diagram CLOCK BUFFER CONTROL SIGNAL GENERATOR COMMAND DECODER COLUMN DECODER COLUMN DECODER CELL ARRAY CELL ARRAY BANK #0 BANK #1 MODE REGISTER SENSE AMPLIFIER SENSE AMPLIFIER ADDRESS BUFFER DATA CONTROL CIRCUIT BUFFER DQ31 COLUMN REFRESH COUNTER COUNTER DQM0~3 COLUMN DECODER COLUMN DECODER CELL ARRAY...
  • Page 172 EN29LV160BB-70TIP (HDMI : U2003) BYTE# DQ15/A-1 DQ14 DQ13 Standa rd DQ12 TSOP RESET# DQ11 RY/BY# DQ10 EN29LV160BB-70TIP Block Diagram Block Diagram RY/BY# DQ0-DQ15 (A-1) Block Protect Switches Erase V oltage Generato r Input/Output Buffers State Control Program Voltage Generato r Command Chip Enable Regi s ter...
  • Page 173 AK5358BET (HDMI : U2403) AK5358BET Pin Function...

  • Page 174: Device Information

    SLAS764 – MAY 2011 www.ti.com DEVICE INFORMATION TERMINAL FUNCTIONS, PCM510x PCM5100 (HDMI:U2401) PCM510X (top view) Table 2. TERMINAL FUNCTIONS, PCM510x TERMINAL DESCRIPTION NAME CPVDD Charge pump power supply, 3.3V CAPP Charge pump flying capacitor terminal for positive rail CPGND Charge pump ground CAPM Charge pump flying capacitor terminal for negative rail VNEG...
  • Page 175 AK4358VQ -40∼+85°C 48pin LQFP AKD4358 評価ボード ピン配置 AK4358VQ (HDMI : U2404) AVSS LOUT1- AVDD LOUT1+ DZF3 VREFH DZF2 ROUT4+ AK4358VQ DZF1 ROUT4- DIF0 CAD0 ACKSN DSDR3 Top View DSDL3 BICK DSDR2 MCLK DSDL2 DSDR1 DVDD DVSS DSDL1 ASAHI KASEI [AK4358] PIN/FUNCTION AK4358VQ Pin Function Pin Name...
  • Page 176 DSDL4 DAC4 DSD Lch Data Input Pin DSDR4 DAC4 DSD Rch Data Input Pin DSDL1 DAC1 DSD Lch Data Input Pin DSDR1 DAC1 DSD Rch Data Input Pin DSDL2 DAC2DSD Lch Data Input Pin DSDR2 DAC2 DSD Rch Data Input Pin DSDL3 DAC3 DSD Lch Data Input Pin DSDR3...
  • Page 177 No Connection Figure 1 : Logic Diagram Table 1 : Signal Names H27U1G8F2BTR-BC (HDMI : U2603) I/O5 I/O7 I/O8 I/O10 I/O12 I/O14 I/O1 I/O9 I/O3 I/O6 I/O15 I/O0 I/O2 I/O11 I/O4 I/O13 H27U1G8F2B Series 1 Gbit (128 M x 8 bit) NAND Flash Figure 2 : 48-TSOP1 / 63-FBGA Contact, x8 Device 1.2 PIN DESCRIPTION H27U1G8F2BTR-BC Pin Function...
  • Page 178 H27U1G8F2B Series 1 Gbit (128 M x 8 bit) NAND Flash H27U1G8F2BTR-BC Block Diagram A27 ~ A0 ADDRESS REGISTER/ COUNTER PROGRAM ERASE CONTROLLER 1024 Mbit + 32 Mbit HV GENERATION NAND Flash MEMORY ARRAY COMMAND INTERFACE LOGIC PAGE BUFFER COMMAND REGISTER Y DECODER DATA...
  • Page 179 PIN CONFIGURATION A3V56S30FTP-G6 (HDMI:U2604,2605) (TOP VIEW) DQ15 VddQ VddQ VssQ VssQ VddQ VssQ DQ14 DQ13 VssQ VssQ VddQ VddQ VssQ VddQ DQ12 DQ11 VddQ VddQ VssQ VssQ VddQ VssQ DQ10 VssQ VssQ VddQ VddQ VssQ VddQ DQML DQMU /CAS /CAS /CAS /RAS /RAS...
  • Page 180 A3V56S30FTP A3V56S40FTP 256M Single Data Rate Synchronous DRAM A3V56S30FTP-G6 Pin Function Pin Descriptions SYMBOL TYPE DESCRIPTION Clock: CLK is driven by the system clock. All SDRAM input signals are sampled on the positive edge of CLK. CLK also increments the internal burst counter and controls the output registers. Input Clock Enable: CKE activates (HIGH) and deactivates (LOW) the CLK signal.
  • Page 181 A3V56S30FTP A3V56S40FTP 256M Single Data Rate Synchronous DRAM A3V56S30FTP-G6 Block Diagram Note:This figure shows the A3V56S30FTP The A3V56S40FTP configuration is 8192x512x16 of cell array and DQ0-15 Type Designation Code A 3Ｖ 56 Ｓ４０F ＴＰ－G6 Speed Grade 75： 133MHz@CL=3 7： 143MHz@CL=3 6：...
  • Page 182 SAA7121H (HDMI : U2803) 33 V SSA2 res. V SSA1 V DDA3 CVBS V SSD1 res. SAA7120 V DDD1 V DDA2 SAA7121 RCV1 res. RCV2 V DDA1 res. MBH790 SAA7121H Block Diagram V DDA1, handbook, full pagewidth RCV1 TTXRQ XTALO V DDA2 , V DDA4 V DDA3...
  • Page 183 Digital Video Encoder (ConDENC) SAA7120; SAA7121 SAA7121H Pin Description PINNING SYMBOL DESCRIPTION res. − reserved test pin; connected to digital ground for normal operation test pin; connected to digital ground for normal operation line-locked clock; this is the 27 MHz master clock for the encoder digital ground 1 SSD1 digital supply voltage 1...
  • Page 184 CONFIDENTIAL 8-CHANNEL ELECTRONIC VOLUME With 14-Input selector And Tone control BLOCK DIAGRAM AND PIN CONFIGURATION (TOP VIEW) R2A15218FP (INPUT : IC4200) TRER MUTE AVEE AVCC BASSR2 AVEE BASSR1 ADCL 0/-6/-12/-18dB ADCR TREL SUB2 AGND BASSL2 MAIN INR1 BASSL1 Bass/ Treble 0~-95dB, +42~0dB -14~+14dB...
  • Page 185 R2A15220FP R2A15220FP CONFIDENTIAL 8-CHANNEL ELECTRONIC VOLUME With 14-Input selector And Tone control PIN DESCRIPTION R2A15218FP Pin Function PIN No. Function Name FROUT,FLOUT, 22,20, COUT,SWOUT, 16,14, Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel SROUT, SLOUT, 10, 8, SBROUT,SBLOUT 2, 100 23,19, FR Pre-out,FL Pre-out, Pre-output pin of FL/FR/SL/SR/SBL/SBR channel 11, 7, SR Pre-out, SL Pre-out,...
  • Page 186 NJM2586AM (VIDEO : IC5002)

  • Page 187: Fl Display

    2. FL DISPLAY FLD (018BT021GINK) (FRONT : FL4400) PIN CONNECTION...
  • Page 188 GRID ASSIGNMENT...
  • Page 189 ANODE CONNECTION...

  • Page 190: Parts List Of Pcb Unit

    PARTS LIST OF PCB UNIT d f z Parts indicated by "nsp" on this table cannot be supplied. z The parts listed below are only for maintenance. Therefore they might differ from the parts used in the unit in appearances or dimensions. NOTE: The symbols in the column "Remarks"...
  • Page 191 Ref. No. Part No. Part Name Remarks Q'ty New ZD404 963202500300D D,ZENER ZJ5.1A-0.5W K06005R134522S ZD405,406 963202500280D D,ZENER ZJ3.3B-0.5W K06003R344522S ZD407 963202500300D D,ZENER ZJ5.1A-0.5W K06005R134522S ZD408,409 963202500280D D,ZENER ZJ3.3B-0.5W K06003R344522S ZD410 963202500300D D,ZENER ZJ5.1A-0.5W K06005R134522S ZD411,412 963202500280D D,ZENER ZJ3.3B-0.5W K06003R344522S ZD413 963202500300D D,ZENER ZJ5.1A-0.5W K06005R134522S ZD414,415...
  • Page 192 Ref. No. Part No. Part Name Remarks Q'ty New R545 963125012630S R,METAL FILM 22-J,1W FLAME RETARDANT C060022065050S R551 00D9639005639 R,METAL FILM 100-J,1W FLAME RETARDANT C060010165060S R554,555 00D9630345903 R,FIXED 2WJ-0.47 FLAME RETARDANT N113136647820S R561,562 00D9630345903 R,FIXED 2WJ-0.47 FLAME RETARDANT N113136647820S R564 R,METAL FILM 3.3K-J,1W C060033265050S R569...
  • Page 193 Ref. No. Part No. Part Name Remarks Q'ty New C408 00D9630224503 C,ELECT 22UF-M/50V D040220087060S C408 00D2544583971 C,ELECT GE 85C 47UF-M/50V(ROB) 2113E2 D040470087140S C410 00D2544574922 C,ELECT 100UF-M/50V D040101087060S C410 963134001860S C,ELECT 470UF-M/16V 2113E2 D040471083080S C412 C,CERAMIC 470PF-K/500V D00447127D050S C413 C,CERAMIC X7R2200PF-K/50V D011222777200S C415,416 00D9630234302 C,ELECT 10UF-M/100V...
  • Page 194 Ref. No. Part No. Part Name Remarks Q'ty New C476 C,CERAMIC 470PF-K/500V D00447127D050S C477 C,CERAMIC X7R2200PF-K/50V D011222777200S C479,480 00D9630234302 C,ELECT 10UF-M/100V D04010008C050S C482 C,CERAMIC 0.1UF-K/50V D011104577160S C484 00D2544574919 C,ELECT 47UF-M/50V (Pb Free) D040470087070S C484 00D2544574922 C,ELECT 100UF-M/50V (Pb Free) 2113E2 D040101087060S C485 C,CERAMIC 100PF-J/50V...

  • Page 195: Main Pcb Unit Ass'y

    MAIN PCB UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC4000 00D2630553006 IC NJM7805FA J126780500130S IC4001 00D2630554005 IC NJM7905FA J126790500020S IC4002 00D2630810008 IC NJM7808FA J126780800030S IC4003 00D2630553006 IC NJM7805FA J126780500130S IC4004 00D2630503001 IC NJM7908FA J126790800020S z IC4140 231010091708S IC TOP258MG G200258000010S...
  • Page 196 Ref. No. Part No. Part Name Remarks Q'ty New R4029 R,METAL FILM 10K-J,1/4W C060103063050S R4147 270K-J,1/16W-1608 1913E3, 2113CIE3 C20002746M160S R4147 56K-J,1/16W-1608 2113E2, 2113E1C C20005636M160S 1913E3, 2113CIE3, R4148,4149 2.2M-J,1/5W-52RE-AX C00002256P520S 2113E1C R4150 1M-J,1/5W-52RE-AX 1913E3, 2113CIE3 C00001056P520S CAPACITORS GROUP C4000 C,FILM MI-0.047UF-J/50V D020473167050S C4001 C,CERAMIC 2200PF-K/50V...
  • Page 197 Ref. No. Part No. Part Name Remarks Q'ty New C4066 00D9630333203 C,ELECT 100UF-M/16V D040101083090S C4066 963134001860S C,ELECT 470UF-M/16V 2113E2 D040471083080S C4067 90M-OA000500R C,ELECT 4700UF-M/25V(MHA) D040472084240S C4068 00D9630333203 C,ELECT 100UF-M/16V D040101083090S C4068 963134001860S C,ELECT 470UF-M/16V 2113E2 D040471083080S C4070 00D2544573981 C,ELECT 10UF-M/50V D040100087070S C4076 00D2544573981 C,ELECT 10UF-M/50V...
  • Page 198 Ref. No. Part No. Part Name Remarks Q'ty New CP4002 CN,WAFER C125Z1-15 15P L109012511520S CP4003 CN,WAFER C125Z1-11 11P L109012511120S CP4004 CN,WAFER C125Z1-17 17P L109012511720S 1913E3, 2113CIE3, CP4140 CN.WAFER 7.92MM L108202000220S 2113E1C CP4142 CN.WAFER 7.92MM LWBP1143-02P L108011430210S z F4140 963652010510S FUSE T2A/250V 1913E3, 2113CIE3 N751502001160S z F4140...

  • Page 199: Video Pcb Unit Ass'y

    VIDEO PCB UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC5000 232810005504S IC BD7628F-E2 J127762800010S IC5001 963239100770S IC,LOGIC TC4051BF SINGLE 8CH J040405101110S IC5002 963239003470S IC NJM2586AM J171258600010S CAPACITORS GROUP C5000 00D9630293709 C,ELECT 100UF-M/10V D040101082070S C5001 C,CERAMIC 0.01UF-K/50V D010103777160S C5002,5003...
  • Page 200 Ref. No. Part No. Part Name Remarks Q'ty New JACK5001 963643101630D TER,RCA 3PIN RCA-303B1-08 G606303B1080YS JP212 R,CHIP 0-J,1/8W C200000061300S...

  • Page 201: Front Pcb Unit Ass'y

    FRONT PCB UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC4400,4401 00D2631289900 IC AZ4580M J121458000020S Q4400 943216500050S TR 2SC RT1N441C J522104411210S Q4401 943215500030S TR 2SA RT1P441C J520104411210S Q4402,4403 943214500020S TR 2SC 2SC3052 J522305200050S Q4404 00D9630226705 TR KTC1027Y J5021027Y0020S Q4405...
  • Page 202 Ref. No. Part No. Part Name Remarks Q'ty New C4423 00D9630293602 C,ELECT 1UF-M/50V (Pb Free) D040010087150S C4423 00D2544574922 C,ELECT 100UF-M/50V 2113E2 D040101087060S C4424 C,CERAMIC0.047UF-K/25V D011473774161S C4425 C,CERAMIC 100PF-J/50V D010101167160S C4426 C,CERAMIC 1UF-Z/50V D011105597160S C4427,4428 C,CERAMIC 100PF-J/50V D010101167160S C4429,4430 C,CERAMIC 0.1UF-K/50V D011104577160S C4431,4432 C,FILM 0.1UF-J/100V...
  • Page 203 Ref. No. Part No. Part Name Remarks Q'ty New CN4400 CN.FPC 1.0MM 1.0-11S-40PW 40P L130100114050S CN4402 CN,WIRE 2MM 570MM/5P L002571050090S CN4402 CN,WIRE 2MM 500MM/5P 2113E2 L002501050040S CP4400 CN.WAFER 5268-07A 7P L102526800700S CP4401 CN.WAFER 7P L101100030710S CP4402,4403 CN.WAFER 7P L101100040710S CP4405 CN.WAFER 7P L101100030710S CP4406...

  • Page 204: Input Pcb Unit Ass'y

    INPUT PCB UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC4200 963239000650S IC R2A15218FP J084152180010S Q4200,4201 943214500030S TR 2SC INC2001AC1 2113CIE3 J522020011210S Q4204-4206 943215500020S TR 2SA RT1P141C 2113CIE3 J520101411210S Q4207 943215500020S TR 2SA RT1P141C J520101411210S Q4208 943216500020S TR 2SC RT1N141C...
  • Page 205 Ref. No. Part No. Part Name Remarks Q'ty New CN,WAFER C125Z2-11 11P BtoB CN4003 L109012521120S SOCKET(FEMALE) P=1.25MM CN,WAFER C125Z2-17 17P BtoB CN4004 L109012521720S SOCKET(FEMALE) P=1.25MM CN4700 CN,WAFER 9P C125Z2-09 2113CIE3 L109012520920S CN4701 CN.WAFER 13P C125Z2-13 2113CIE3 L109012521320S CP4200 CN,WAFER C125Z1-23 23P L109012512320S CP4201 CN.WAFER C125Z1-31 31P...

  • Page 206: Hdmi Pcb Unit Ass'y

    HDMI PCB UNIT ASS'Y NOTE: When replacing the U3002 or U1602, use the U3002(943243100930S) or U1602(963248100710S). When the following are replaced, always rewrite with updated firmware using DFW. (Refer to "PROCEDURE FOR UPGRADING THE VERSION OF THE FIRMWARE" (52 page).) •...
  • Page 207 Ref. No. Part No. Part Name Remarks Q'ty New R1017,1018 CHIP RES. 2.2K-J 1/16W-1005REEL C20002226M101S R1019-1021 R,CHIP 10K-J,1/16W C20001036M111S R1024-1032 R,CHIP THICK 4.7K-J,1/16W C20004726M101S R1033,1034 R,CHIP 33-J, 1/16W C20003306M101S R1036 CHIP RES. 1KJ 1/16W1005REEL C20001026M101S R1037 R,CHIP 10K-J,1/16W C20001036M111S R1039 R,CHIP 10K-J,1/16W C20001036M111S R1041...
  • Page 208 Ref. No. Part No. Part Name Remarks Q'ty New 2113CIE3, 2113E2, R1631 CHIP RES. 180-F,1/16W-1608REEL C20001814M161S 2113E1C R1632 R,CHIP 33-J, 1/16W C20003306M101S R1635,1636 R,CHIP 10K-J,1/16W C20001036M111S R1639 CHIP RES. 1KJ 1/16W1005REEL C20001026M101S R1640 R,CHIP THICK 4.7K-J,1/16W C20004726M101S R1641 CHIP RES. 1.8K-J 1/16W-1005REEL C20001826M101S R1642 R,CHIP THICK 0-J,1/10W...
  • Page 209 Ref. No. Part No. Part Name Remarks Q'ty New R2037 R,CHIP THICK 4.7K-J,1/16W C20004726M101S R2039 R,CHIP 10K-J,1/16W C20001036M111S R2040 R,CHIP 0-J,1/16W C20000006M101S R2041 R,CHIP 10K-J,1/16W C20001036M111S R2043 R,CHIP 10K-J,1/16W C20001036M111S R2044 R,CHIP 0-J,1/16W C20000006M101S R2045 R,CHIP 10K-J,1/16W C20001036M111S R2046 R,CHIP 0-J,1/16W C20000006M101S R2048,2049 R,CHIP THICK 4.7K-J,1/16W...
  • Page 210 Ref. No. Part No. Part Name Remarks Q'ty New R2615-2617 R,CHIP 33-J, 1/16W C20003306M101S R2618 R,CHIP THICK 13K-D,1/16W-1608REEL C20001331M160S R2620 R,CHIP 33-J, 1/16W C20003306M101S R2621 CHIP RES. 1M-J 1/16W-1005REEL C20001056M101S R2622 CHIP RES. 1.5K-J 1/16W-1005REEL C20001526M101S R2623-2626 R,CHIP 33-J, 1/16W C20003306M101S R2629,2630 R,CHIP 33-J, 1/16W...
  • Page 211 Ref. No. Part No. Part Name Remarks Q'ty New R3017 CHIP RES. 18K-J 1/16W-1608 1913E3 C20001836M160 R3017 CHIP RES. 10K-J 1/16W-1608REEL 2113E1C C20001036M160S R3018 CHIP RES. 3.3K-J 1/16W-1608REEL 1913E3 C20003326M160S R3018 CHIP RES. 0-J 1/16W-1608REEL 2113CIE3 C20000006M160S R3018 CHIP RES. 10K-J 1/16W-1608REEL 2113E1C C20001036M160S R3019-3022...
  • Page 212 Ref. No. Part No. Part Name Remarks Q'ty New R3230 R,CHIP THICK 16K-J,1/16W-1005REEL C20001636M101S R3231 CHIP RES. 100J 1/16W1005REEL C20001016M101S R3232 R,CHIP THICK 4.7K-J,1/16W C20004726M101S R3234 CHIP RES. 100J 1/16W1005REEL C20001016M101S R3235 R,CHIP THICK 120K-J,1/16W-1005REEL C20001246M101S R3237 CHIP RES. 470J 1/16W1005REEL C20004716M101S R3238 R,CHIP 10K-J,1/16W...
  • Page 213 Ref. No. Part No. Part Name Remarks Q'ty New C1023 C,CERAMIC 1000PF-K/50V D011102177101S C1025 C,CERAMIC 1000PF-K/50V D011102177101S C1027 C,CERAMIC 1000PF-K/50V D011102177101S C1029 C,CERAMIC 1000PF-K/50V D011102177101S C1031 C,CERAMIC 1000PF-K/50V D011102177101S C1201-1207 C,CERAMIC 0.1UF-K/50V D011104177101S C1208 C,CERAMIC 10UF-K/16V D011106573200S C1209 C,CERAMIC 1000PF-K/50V D011102177101S C1210 CER.
  • Page 214 Ref. No. Part No. Part Name Remarks Q'ty New C1424 CER. CAP. X7R)0.01UFK/25V1005REEL D011103174101S C1425 C,CERAMIC 0.1UF-K/50V D011104177101S C1429 C,CERAMIC 0.1UF-K/50V D011104177101S C1430 CER. CAP. X7R)0.01UFK/25V1005REEL D011103174101S C1431 C,CERAMIC 0.1UF-K/50V D011104177101S C1434,1435 CER. CAP. X7R)0.01UFK/25V1005REEL D011103174101S C1439,1440 CER. CAP. X7R)0.01UFK/25V1005REEL D011103174101S C1441 C,CERAMIC 0.1UF-K/50V...
  • Page 215 Ref. No. Part No. Part Name Remarks Q'ty New C1636 C,CERAMIC 0.1UF-K/50V D011104177101S C1637 C,CERAMIC 4.7UF-K/6.3V D011475571160S C1639 C,CERAMIC 0.1UF-K/50V D011104177101S C1640 C,CERAMIC 4.7UF-K/6.3V D011475571160S C1642 C,CERAMIC 0.1UF-K/50V D011104177101S C1643,1644 CER. CAP. X7R)0.01UFK/25V1005REEL D011103174101S C1645 C,CERAMIC 4.7UF-K/6.3V D011475571160S C1647 C,CERAMIC 0.1UF-K/50V D011104177101S C1649 CER.
  • Page 216 Ref. No. Part No. Part Name Remarks Q'ty New C2005 C,CERAMIC 1000PF-K/50V D011102177101S C2006 C,CERAMIC 0.1UF-K/50V D011104177101S C2007 C,CERAMIC 1000PF-K/50V D011102177101S C2008 C,CERAMIC 0.1UF-K/50V D011104177101S C2009 C,CERAMIC 1000PF-K/50V D011102177101S C2010 C,CERAMIC 0.1UF-K/50V D011104177101S C2011,2012 C,CERAMIC 1000PF-K/50V D011102177101S C2013 C,CERAMIC 0.1UF-K/50V D011104177101S C2014-2016 C,CERAMIC 1000PF-K/50V...
  • Page 217 Ref. No. Part No. Part Name Remarks Q'ty New C2086 C,CERAMIC 0.1UF-K/50V D011104177101S C2087 C,CERAMIC 1000PF-K/50V D011102177101S C2088-2092 C,CERAMIC 0.1UF-K/50V D011104177101S C2093 C,CERAMIC 1000PF-K/50V D011102177101S C2094 C,CERAMIC 0.1UF-K/50V D011104177101S C2095 C,CERAMIC 1000PF-K/50V D011102177101S C2096 C,CERAMIC 0.1UF-K/50V D011104177101S C2097 C,CERAMIC 1000PF-K/50V D011102177101S C2098 C,CERAMIC 0.1UF-K/50V...
  • Page 218 Ref. No. Part No. Part Name Remarks Q'ty New C2450 C,CERAMIC 4.7UF-K/6.3V D011475571160S C2451 963134000450S C,ELECT 100UF-MVG/16V D050101083660S C2454-2461 C,CERAMIC X7R3900PF-K/50V D011392777160S C,CERAMIC CHIP T.C CH)3900PF-K/50V- C2454-2461 2113E2 D010392177163S 1608REEL C2465-2468 C,CERAMIC 680pF-J 50V D010681167160S C,CERAMIC CHIP T.C CH)680PF-J/50V- C2465-2468 2113E2 D010681167163S 1608REEL...
  • Page 219 Ref. No. Part No. Part Name Remarks Q'ty New C2829 C,CERAMIC 4.7UF-K/6.3V D011475571160S C2831 C,CERAMIC 0.1UF-K/50V D011104177101S C2832 C,CERAMIC 1000PF-K/50V D011102177101S C2833 C,CERAMIC 0.1UF-K/50V D011104177101S C2834 C,CERAMIC 4.7UF-K/6.3V D011475571160S C2842-2845 C,CERAMIC 0.1UF-K/50V D011104177101S C2846 C,CERAMIC 1000PF-K/50V D011102177101S C2850 C,CERAMIC 0.001UF-J/50V D010102167160S C2851,2852 C,CERAMIC 0.001UF-J/50V...
  • Page 220 Ref. No. Part No. Part Name Remarks Q'ty New OTHERS PARTS GROUP L1201-1203 R,CHIP THICK 0-J,1/10W C200000060200S L1301-1313 COIL,BEAD BLM21PG221SN1 D340201212210S L1602 COIL,BEAD BLM21PG221SN1 D340201212210S L1605-1615 COIL,BEAD BLM21PG221SN1 D340201212210S L1616 COIL,BEAD BLM21PG221SN1 1913E3 D340201212210S L1617-1619 COIL,BEAD BLM21PG221SN1 D340201212210S L1801 COIL,BEAD BLM21PG221SN1 D340201212210S L2601-2603 COIL,BEAD BLM21PG221SN1...
  • Page 221 Ref. No. Part No. Part Name Remarks Q'ty New N3405 CN.WAFER 5P 20010-05 L101200100510S N3406 CN,WAFER C125Z2-07 7P L109012520720S N3407 CN,WAFER C125Z2-23 23P L109012522320S N3408 CN.FPC 40P 10022HS-40C L130100220400S N3601 CN.WAFER 5P SMW250-5P L102050010040S U1001 236810057606S IC LOGIC ADV3002BSTZ J040300205510S U1201 IC,LOGIC AD8195 J040819505510S...

  • Page 222: Rs232 Pcb Unit Ass'y

    Ref. No. Part No. Part Name Remarks Q'ty New U3608 943239100730S IC,LINEAR-RESET PST8448UR J125844800010S BRACKET AVR2113(DENON)HDMI 4010215496000S FRONT RS232 PCB UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC4701 236810090504S IC ILX3232D 2113CIE3 J046323200020S CAPACITORS...

This manual is also suitable for:

Avr-2113Avr-2113ci

Table of Contents
