Summary of Contents for Blaupunkt IVTV-05

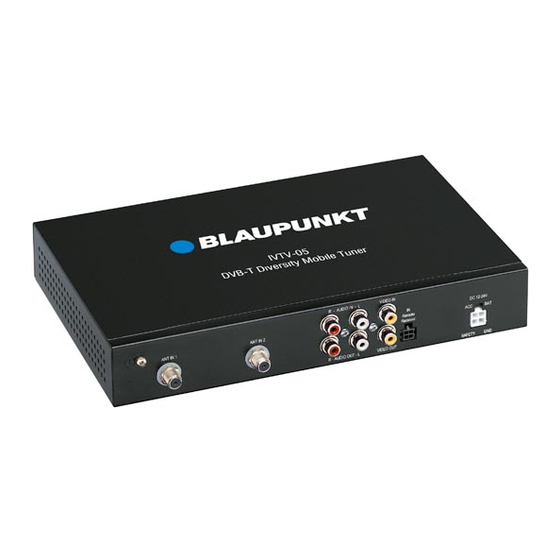

- Page 1 In Car Entertainment DVB-T Tuner IVTV-05 7 607 003 543 Operating and installationinstructions www.blaupunkt.com...
-
Page 2: Overview
Overview Power On/off Subtitle Text TV/Radio Pause SWAP — — — Exit Menu Timer Audio Info List Mute... -
Page 3: Menu
Overview 1 Power On/Off button for switching the IVTV-05 on = Exit button to exit menus. and off. > SWAP button to return to the previous station. 2 Numeric keypad. ? PRF +/- buttons to change from the station list to the 3 TV/Radio button to toggle between TV and radio list of favourites. mode. @ Pause button to generate a freeze frame. 4 AV button to switch sources (DVB-T / external video A Vol +/- buttons to control the volume. input at IVTV-05). B EPG button to display the daily program of the cur- 5 CH +/- buttons to select the memory location in the rent station (Electronic Program Guide). station list. C Text button to display the video text of the current 6 Menu button to call up the menu for the configuration station. of the IVTV-05. D Subtitle button to display subtitles for the current 7 Arrow keys for moving the selection mark, memory broadcast (if broadcast by the station). -
Page 4: Table Of Contents
Installation and Displaying the time setting ..... 69 Editing a Favourites List ....52 Displaying System Information ..69 Operation......42 Deleting a Favourites List....54 Resetting the device ....... 70 Safety notes ........42 Functions during IVTV-05 Tuner Connection ....42 Specifications ....71 the TV Mode ....56 Notes about the reception ....43 TV Tuner for DVB-T ......71 Displaying Information about Installation of the Current Broadcast ....56 Diversity Antenna System ....44 Electronic Program Guide . -
Page 5: Introduction
Dear Customer, Congratulations on the purchase of the DVB-T tuner IVTV-05. You have made the perfect decision in purchasing this tuner. With the IVTV-05, digital television makes its arrival in automobiles. The excellent picture quality and the interference-free reception, even while driving, are only two of the benefits of the IVTV-05. In addition, you can enjoy all the benefits of digital television, such as the electronic program guide, with the IVTV-05. In the event that no DVB-T is available in a region, you can connect an analogue TV tuner to the inputs of the IVTV-05. These instructions provide step-by-step guidance through the functions of the IVTV-05 and answer the most frequently asked questions. More information about working with these instructions can be found in the section "About these instructions." If you have additional questions or suggestions, you can always contact our telephone hotline or contact your Blaupunkt dealer. The telephone numbers of the international telephone hotline are located on the last page of these instruc- tions. We provide a manufacturer guarantee for our products bought within the Euro- pean Union. You can view the guarantee conditions at www.blaupunkt.de or ask for them directly at:... -
Page 6: General
General About these Instructions These instructions are intended to familiarise you with the operation and func- tions of your DVB-T receiver IVTV-05 and allow you to operate the device safely and successfully. Please read these instructions carefully before the initial startup and store them in a safe place inside the vehicle. To help you in quickly locating information, the following symbols are used in these instructions to identify individual steps: 1. … Marks instructional steps to be performed to reach the goal of an action. The device responses that must follow an action are marked like this. Recycling and disposal Our product has been manufactured from materials that are disposed of in an environmentally-friendly manner and can be professionally recycling. Old products must be collected separately from household rubbish. Please use the return and collection systems available to dispose of the product. -
Page 7: Installation And Operation
Installation and Operation Safety notes IVTV-05 Tuner Connection Safety circuit The tuner module has been fitted with Please observe the following safety First, the tuner must be installed at a a safety circuit to ensure safe TV oper- notes during the installation and con- suitable location. Ensure that the de- ation. The supplied accessory compo- nection. vice is safely fastened and not exposed nents include a special safety cable. If to any moisture or dirt. The connecting the safety system is installed correctly, Disconnect the negative pole of cables must be routed in such a way you can only activate TV operating the battery. that passengers do not come into con- mode if the vehicle handbrake is on. tact with them and that they cannot... -
Page 8: Notes About The Reception
Installation and Operation IVTV-05 Tuner Connection VIDEO IN R- AUDIO IN- L ANT IN 1 ANT IN 2 REMOTE RECEIVER VIDEO OUT R- AUDIO OUT- L IR-Sensor BATT +12V Handbremse handbrake +12V SAFETY Notes about the reception max. 300mm The reception behaviour of the IVTV-05 can Parkleuchte be optimised by using 2 active antennas. parking-light The antennas to be used must be suitable... -
Page 9: Installation Of Diversity Antenna System
Installation and Operation Installation of Diversity Antenna System Installation on the side window The diversity antenna system integrated in the tuner was developed specifically for mobile applications and ensures perfect signal reception. Remove the protective cover from the antenna base and install the base on the desired dustfree and degreased ad- hesive position. Fastening the antenna To achieve a perfect reception quality, orient the antenna so The adhesive strips for the antenna reach their perfect ad- that one rod is aligned horizontally and one rod is aligned hesion after approx. 24 hours. After detaching the adhesive vertically. -
Page 10: First Use
First use Switching on/off The IVTV-05 is connected to the vehicle's battery and the vehicle ignition (see the installation instructions). 1. To turn the IVTV-05 on or off, press the Power On/Off button. E The IVTV-05 is switched on or off. Default Settings After installing the IVTV-05 and switching it on for the first time, additional menus for selecting the language, the TV format and starting the station seek tuning Language Setup are displayed. Language English 1. Press the O or P button repeatedly until the desired language is displayed and press the OK button. E The TV Format menu is displayed. 2. Select the TV format corresponding to the attached monitor (4:3 or 16:9). For this pur- pose, press the O or P button repeatedly until the desired TV format is displayed. TV Format E The configurations are adopted and the automatic station seek tuning is started. After TV Format 4 : 3 the station seek tuning finishes, the first station of the list is displayed. You can repeat the station seek tuning at any time; for this purpose, please read the section "Tuning into a station". -
Page 11: Tuning Into A Station
Automatic station seek tuning Menu With automatic station seek tuning, all previously stored stations are deleted and Favourites lists the memory locations are reassigned. New channels 1. Press the Menu button on the remote control. User preferences Setup E The menu of the IVTV-05 is displayed. System information Delete channel 2. Move the selection mark with the M or N button to the Setup menu item and press the OK button. EXIT MENU E The Setup menu is displayed, the Channels installation entry is selected. 3. Press the OK button. Setup E The Station Channels installation menu is displayed. Press the OK button. Channels installation 4. Press the O or P button repeatedly until Full is displayed. -
Page 12: Manual Setting Of Stations
Tuning into a station Manual setting of stations If you know the frequency of the stations in your environment, you can also set the stations manually. 1. Press the Menu button on the remote control. Menu E The menu of the IVTV-05 is displayed. Favourites lists New channels 2. Move the selection mark with the M or N button to the Setup menu item and press User preferences the OK button. Setup System information E The Setup menu is displayed, the Channels installation entry is selected. Delete channel 3. Press the OK button. E The Station Channels installation menu is displayed. EXIT MENU 4. Press the O or P button repeatedly until Manual is displayed. -
Page 13: Refreshing The Station List
Tuning into a station Refreshing the station list You can refresh the current station list by adding newly broadcasting stations since the time you created your station list. 1. Press the Menu button on the remote control. Menu E The menu of the IVTV-05 is displayed. Favourites lists New channels 2. Move the selection mark with the M or N button to the Setup menu item and press User preferences the OK button. Setup E The Station Channels installation entry is selected. System information Delete channel 3. Press the OK button. E The Station Channels installation menu is displayed. EXIT MENU 4. Press the O or P button repeatedly until Update is displayed. 5. Press the OK button. -
Page 14: Selecting A Station
Selecting a station The IVTV-05 offers different options for selecting stations: Directly from the sta- tion list that is being created during the scanning or from a list of favourites in which you can store your top ten stations. For further details about the favourites list, please read the chapter "Favourites list". Selecting a Station from the Station List From the station list, you can select stations in different ways: By entering the station number using the numeric buttons, with the CH +/- buttons and from the station list, which you can display on the connected monitor. Displaying the station list You can display the station list on the connected monitor and conveniently select the desired station. 1. Press the List button. E The station list is displayed. 2. Move the selection mark with the M or N button to the desired station and press the OK button. E The station is displayed, the station list is shown in the foreground. 3. Press the Exit button to exit the station list 3. use the M or N button to select another station and press the OK button. Selecting stations using the numeric buttons 1. Enter the number of the station in the station list using the keys of the numeric... -
Page 15: Reverting To The Previous Station
Selecting a station Selecting stations using the channel buttons 1. Press the CH + button to select the next station in the list. E The station is displayed 2. press the CH - button to select the previous station in the list. E The station is displayed. Reverting to the Previous station After changing the station, you can conveniently switch back to the previously watched station. 1. Press the SWAP button to return to the previous station. Selecting a Station from the Favourites List You can create 4 favourites lists each for the TV and radio mode (see "Favourites") and sort the stations in your favourites list according to your needs. Selecting a favourites list 1. Press the PRF + or PRF - button to select among the favourites lists you created. -
Page 16: Favourites
Favourites Creating a Favourites List 1. Press the Menu button on the remote control. Menu E The menu is displayed. The selection mark is positioned on the Favourites lists en- Favourites lists try. New channels User preferences 2. Press the OK button. Setup E The Favourites list menu is displayed, the Create a favourite list entry is selected. System information Delete channel 3. Press the OK button. E The Create a favourite list menu is displayed. EXIT MENU 4. Press the OK button. E The top row displays the number of the favourites list. Favourites lists 5. Press the O or P button repeatedly until the desired favourites list is displayed. -
Page 17: Editing A Favourites List
Favourites Editing a Favourites List You can edit the favourites list at any time, such as activating stations in the list, deselecting them from the list and changing the position of the stations in the list. If you created a new favourites list, the list is displayed after it is created. In this case, continue reading with item 6. Menu 1. Press the Menu button on the remote control. Favourites lists New channels E The menu is displayed. The selection mark is positioned on the Favourites lists en- User preferences try. Setup System information 2. Press the OK button. Delete channel E The Favourites lists menu is displayed, the Create a favourite list entry is selected. 3. Press the N button repeatedly until Modify a favourite list is selected. EXIT MENU 4. Press the OK button. - Page 18 Favourites Deselecting a Station from the Favourites List 8. Press the M or N button repeatedly until the station to be deselected from the fa- vourites list is selected. 9. Press the green button on the remote control. E The station is identified by a black dot and is deselected in the favourites list. Selecting/deselecting all stations You can select or deselect all stations in the favourites list. 1. Press the blue button on the remote control. E A selection is displayed. 2. Press the green button to select all stations in the favourites list 2. press the red button to deselect all stations. Sorting the favourites list 1. Press the M or N button repeatedly until the station to be moved in the favourites list is selected. 2. Press the yellow button on the remote control. 3. Press the green button on the remote control. 4. Press the OK button.
-
Page 19: Deleting A Favourites List
Favourites Finishing the edit of the favourites list If you finished editing the favourites list 1. Press the Exit button. E A confirmation is displayed. 2. If you want to save the changes, select Yes and press the OK button 2. if you do not want to save the changes, select No and press the OK button. 3. Press the Menu button to display the menu again. Press this button again to exit the menu. Deleting a Favourites List To delete a favourites list Menu 1. Press the Menu button on the remote control. - Page 20 Favourites 7. Press the OK button to delete the favourites list. Delete a favourite list E The Favourites list menu is displayed again. You are going to remove the Favourites list, 8. Press the Menu button to display the menu again. Press this button again to exit the press OK to confirm menu. EXIT...
-
Page 21: Functions During The Tv Mode
Functions during the TV Mode Displaying Information about the Current Broadcast You can display additional information about the current broadcast (if the station provides them). The display time of the information can be set; for further details, please read the section "Info Display" in the chapter "Configuration". 1. Press the Info button. Eurosport E The list (TV or favourites list), memory location, station name, name of broadcast and Ch28 progress bar of the current broadcast are displayed. 2. Press the Info button again to display additional information about the current broad- cast. Pressing the P button displays the following broadcast. No event information is available E The information is hidden again after the predefined time. If you want to end the display earlier, press the Exit button. -
Page 22: Displaying Video Text
Functions during the TV Mode Displaying Video Text You can display the video text of the current station (if the station supports this function) on the connected monitor. 1. Press the Text button to display the video text of the station in full-screen mode. Eurosport 100 18 Jan E The video text is displayed......2. To enter a page number, press the corresponding numbers on the keypad......3. Press the M / N button to select a page. 4. Press the Text button again to display the video text transparently. 5. Press the button again to end the video text display. Displaying Subtitles Some stations offer subtitles for the hearing impaired for their broadcasts. 1. Press the Subtitle button. E A selection is displayed. If subtitles are available for the broadcast, the available Subtitles language languages are displayed for selection. If no subtitles are available, "NO SUBTITLE" is NO SUBTITLE... -
Page 23: Freeze Frame
Functions during the TV Mode Ending the display of subtitles To end the display of subtitles 1. Press the Subtitle button. E A selection is displayed. If subtitles are available for the broadcast, the available languages are displayed for selection. If no subtitles are available, "NO SUBTITLE" is displayed. 2. Press the O or P button to select "NO SUBTITLE". 3. Press the OK button. E The program is displayed again without subtitles. Freeze frame You can "stop" the playback of a movie at any time and display a freeze frame. The sound playback continues during this time. 1. Press the Pause button. E The image playback is stopped. - Page 24 Functions during the TV Mode Changing the playback language 1. Press the Audio button. E The audio menu is displayed, the selection mark is positioned on Audio language. Audio-language German 2. Press the O or P button to change the playback language. Audio mode Default 3. Press the Exit button to exit the menu. Changing the audio mode 1. Press the Audio button. E The audio menu is displayed, the selection mark is positioned on Audio language. 2. Press the N button to move the selection mark to Audio mode. Audio-language German 3. Press the O or P button to change the audio mode. Audio mode Default 4. Press the Exit button to exit the menu.
-
Page 25: External Source
External Source The IVTV-05 features a video input and a stereo audio input to which you can connect an external source, e.g. an analogue television set (for further details, read the installation instructions). 1. Press the AV button to play back picture and sound from the external source on the devices connected to the IVTV-05. 2. Press the AV button again to play back picture and sound from the IVTV-05. Radio mode 1. Press the TV/Radio button to play back radio stations. 2. The operating functions for radio reception are identical to those of TV reception. 3. Press the TV/Radio button again to play back TV stations. -
Page 26: Configuration
Configuration The basic settings of the IVTV-05 can be made in the menu. Displaying New Channels If new channels are available in the listings stored in the TV list, they are displayed in the New channels menu. Menu 1. Press the Menu button on the remote control. Favourites lists New channels E The menu of the IVTV-05 is displayed. User preferences New channels 2. Move the selection mark with the M or N button to the menu item Setup System information and press the OK button. Delete channel E If new programs are available, they are displayed. 3. Press the Menu button to return to the menu. Press the button again to exit the menu. EXIT MENU Menu Deleting channels Favourites lists... -
Page 27: Setting The Menu Language
Setting the Menu Language For the display of the menus, you can select among the following languages: Menu German, Spanish, English and French. Favourites lists 1. Press the Menu button on the remote control. New channels User preferences E The menu of the IVTV-05 is displayed. Setup 2. Move the selection mark with the M or N button to the User preferences menu item System information Delete channel and press the OK button. E The User preferences menu is displayed, the Languages entry is selected. EXIT MENU 3. Press the OK button. -
Page 28: Setting The Audio Language
Persisch (Farsi), Gaeilge, Georgisch, Ellinika‘, Ivrit, Hindi, Magyar, Yslenska, User preferences Indonesisch, Iranisch, Italienisch, Nihongo, Kabyle, Khmer, Hankuko, Kurdisch, Languages Lietuviskai, Mazedonisch, Bahasa Me, Nynorsk, Norsk, Polnisch, Portugiesisch, Banner time-out Româna, Serbokroatisch, Slowenisch, Slovenscin, Spanisch, Thai, Türkisch, Ukrai- nisch, Urdu, Uzbekisch, Vietnamesisch, Englisch, Französisch, Chinesisch, Finn- isch, Schwedisch and Holländisch" (of the selected station supports them). 1. Press the Menu button on the remote control. EXIT MENU E The menu of the IVTV-05 is displayed. 2. Move the selection mark with the M or N button to the User preferences menu item and press the OK button. Languages E The User preferences menu is displayed, the Languages entry is selected. Menu language English Audio language German 3. Press the OK button. Subtitles language German E The Languages menu is displayed, the Menu language entry is selected. -
Page 29: Setting The Language For Subtitles
New channels Norsk, Polnisch, Portugiesisch, Româna, Serbokroatisch, Slowenisch, Slovenscin, User preferences Spanisch, Thai, Türkisch, Ukrainisch, Urdu, Uzbekisch, Vietnamesisch, Englisch, Setup System information Französisch, Chinesisch, Finnisch, Schwedisch and Holländisch" (of the selected Delete channel station supports them). 1. Press the Menu button on the remote control. EXIT MENU E The menu of the IVTV-05 is displayed. 2. Move the selection mark with the M or N button to the User preferences menu item User preferences and press the OK button. Languages E The User preferences menu is displayed, the Languages entry is selected. Banner time-out 3. Press the OK button. E The Languages menu is displayed, the Menu language entry is selected. 4. Move the selection mark with the N button to the Subtitles language menu item and press the OK button. EXIT MENU 5. Press the O or P button repeatedly until the desired language is displayed. -
Page 30: Info Display
Configuration Info Display You can set the display time for information about the program, which can be called with the Info button, between three and ten seconds. 1. Press the Menu button on the remote control. User preferences E The menu of the IVTV-05 is displayed. Languages Banner time-out 2. Move the selection mark with the M or N button to the User preferences menu item and press the OK button. E The User preferences menu is displayed, the Languages entry is selected. 3. Move the selection mark with the N button to the Banner time out menu item and press the OK button. EXIT MENU E The Info Display menu is displayed. 4. Press the O or P button repeatedly until the desired time is displayed. Banner timing 5. Press the OK button. Display time E The User preferences menu is displayed again. -
Page 31: Tv Settings
Setting the image format For the image format of the connected monitor, you can select among the con- figurations 4:3 Letter box, 4:3 Pan Scan and 16:9. You should perform these settings according to the connected monitor; otherwise, it could result in display errors. 1. Press the Menu button on the remote control. Menu E The menu of the IVTV-05 is displayed. Favourites lists New channels 2. Move the selection mark with the M or N button to the Setup menu item and press User preferences the OK button. Setup System information E The Setup menu is displayed. - Page 32 Configuration Setting TV standards You can select the PAL, SECAM or NTSC configuration as the TV standard for the connected monitor. You should perform these settings according to the con- nected monitor; otherwise, it could result in display errors. 1. Press the Menu button on the remote control. Menu E The menu of the IVTV-05 is displayed. Favourites lists 2. Move the selection mark with the M or N button to the Setup menu item and press New channels User preferences the OK button. Setup E The Setup menu is displayed. System information Delete channel 3. Move the selection mark with the N button to the TV Configuration menu item and press the OK button. EXIT MENU E The TV Configuration menu is displayed, the TV Format menu item is selected.
- Page 33 Configuration Setting the TV sound signal You can select whether the IVTV-05 outputs the sound signal as mono or Menu stereo. Favourites lists New channels 1. Press the Menu button on the remote control. User preferences E The menu of the IVTV-05 is displayed. Setup System information 2. Move the selection mark with the M or N button to the Setup menu item and press Delete channel the OK button.
-
Page 34: Displaying The Time Setting
The IVTV-05 receives the time and date from stations it receives. You can display the time and date. If your local time deviates from the time of the station, you can set the time difference in the menu. 1. Press the Menu button on the remote control. Time setting E The menu of the IVTV-05 is displayed. Actual Date 2005 2. Move the selection mark with the M or N button to the Setup menu item and press the Time OK button. -
Page 35: Resetting The Device
Configuration Resetting the device You can reset the device to the delivery state. All station and favourites list as well as all personal configurations are deleted in the process. 1. Press the Menu button on the remote control. Menu E The menu of the IVTV-05 is displayed. Favourites lists New channels 2. Move the selection mark with the M or N button to the Setup menu item and press the User preferences OK button. Setup E The Setup menu is displayed. System information Delete channel 3. Move the selection mark with the N button to the Reinstallation menu item and press the OK button. EXIT MENU E A confirmation dialogue appears. 4. Press the OK button if you want to reset the device Setup Channels installation 4. press the Exit button if you do not want to reset the device. -
Page 36: Specifications
Specifications TV Tuner for DVB-T • Digital channel bandwidth 7 / 8 MHz (VHF/UHF) • TV standards: DVB-T ETSI EN 300 744 • Modulation COFDM 2 k, 8 k FFT • Frequency ranges VHF III (174-230 MHz), UHF IV/V • Mapping QPSK, 16/64 QAM (470-862 MHz) • Protection interval 1/4, 1/8, 1/16, 1/32 • Video text • FEC 1/2, 2/3, 3/4, 5/6, 7/8 • 1000 stored video text pages • Audio operating modes Mono/Stereo/Dual Sound • Electronic program guide for each station (EPG) • 2 Antenna inputs • Subtitles • Antenna impedance 75 ohm • Space Diversity (double tuner) • Operating voltage 12 V / 24 V • Automatic/manual station seek tuning • Maximum consumption 1 A • Station list • Fuse 2 A... - Page 37 (PL) 0800-118922 022-8771260 Turkey (TR) 0212-3350677 0212-3460040 (USA) 800-2662528 708-6817188 Brasil (Mercosur) (BR) +55-19 3745 2769 +55-19 3745 2773 Malaysia (Asia Pacific) (MAL) +604-6382 474 +604-6413 640 Blaupunkt GmbH, Robert-Bosch-Str. 200, D-31139 Hildesheim 01/06 CM-AS/SCS1 - 8 622 404 793...
