MODEL 5499
Distributed Power Module
Document 151253
Rev M
151253:M
ECN 15-0644
Installation and
Operations Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5499 and is the answer not in the manual?

Questions and answers

Related Manuals for SILENT KNIGHT 5499

Summary of Contents for SILENT KNIGHT 5499

  • Page 1 MODEL 5499 Distributed Power Module Document 151253 Rev M 151253:M ECN 15-0644 Installation and Operations Manual...

  • Page 3: Table Of Contents

    Current Requirements (Standby and Alarm) ................6 4.3.1 Current Drawn From Host Panel ................... 6 4.3.2 Current Drawn from Battery ....................6 Connecting the 5499 to a Control Panel ..................9 4.4.1 Common Trouble Relay ......................9 Notification Appliance Wiring ..................... 10 4.5.1 Class A Supervised Wiring ....................
  • Page 4 5499 Distributed Power Module Installation Manual 4.8.4 Setting the Auxiliary Output ....................17 Section 5 Sample Applications ........................18 Notification Power Applications ....................18 Non-Resettable Power Application .................... 20 Door Holder Application ......................21 Section 6 Troubleshooting ..........................21 LEDs ............................21 Trouble Conditions ........................

  • Page 5: Introduction

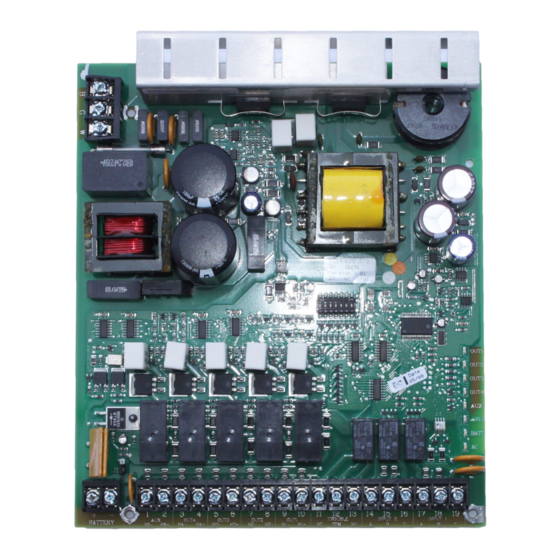

    Section 1 Introduction The 5499 is a notification appliance circuit and auxiliary power expander that provides up to 9 amps of filtered, 24 volt power for powering notification appliances and auxiliary devices. The 5499 provides its own AC power connection, battery charging circuit, and battery connections. Used with security and fire alarm control panels, the 5499 enables you to connect and distribute power to many more devices than your panel may normally allow.

  • Page 6: System Overview

    151253 Section 3 System Overview CAUTION Each output circuit is rated at 3 amps. DO NOT OVERLOAD. Overloading a circuit will cause it to shut down (power limit). The circuit will automatically reset once you remove the overload condition. Terminal Descriptions and Electrical Ratings Terminal # Description Ratings...

  • Page 7: Notification Appliance Circuit Terminals

    Terminals 3 through 10 are the notification appliance circuit output terminals. Each of the four circuits are rated at 3 amps, although you can only draw a total of 9 amps from the 5499. The 5499 outputs are short-circuit protected (power limited) according to UL 864 standards. Overcurrent indicators are yellow LEDs. The output voltage can vary depending on the load and input voltage.

  • Page 8: Section 4

    151253 For Option: These Inputs: Control These Outputs: Input 1 or Outputs 1, 2, 3, and 4 Class B ANSI temporal- Input 2 coded circuits Input 1 Outputs 1 and 2 Class B circuits Input 2 Outputs 3 and 4 Class B circuits Input 1 Output 1...

  • Page 9: Installation

    Section 4 Installation Before installing the 5499, the AC input must first be wired into the building’s main electrical power through the TB1 terminals (see Figure 4-2). Shut off the electrical power to the 5499, and then complete the general installation of the 5499 using the information in this section.

  • Page 10: Current Requirements (Standby And Alarm)

    Batteries used with the 5499 must not exceed 35AH. (33AH max. for FM (Factory Mutual) Installations). Batteries larger than 7 AH will not fit into the 5499 cabinet and must be housed in the RBB Remote Battery Box. See Section 4.7 for battery installation.
  • Page 11 The above numbers were calculated assuming the use of 7 AH batteries at 100% of rated capacity. The total current of the 5499, plus all items powered from it, must not exceed 9 A when the panel is in alarm. Use Table 4-2 to ensure that the current does not exceed 9 A and, that the desired amount of standby is possible for the battery intended for use with the 5499.
  • Page 12 Current per Device Devices Current Current For each device use this formula: This column X This column Current per number of devices. 5499 Distributed Power Module Standby: 75 mA 75 mA Alarm: 205 mA 205 mA (Current draw from battery)

  • Page 13: Connecting The 5499 To A Control Panel

    Common Trouble Relay The 5499 has a Form C trouble relay built into Terminals 11-13. The relay provides a normally open and a normally closed contact, both of which are rated at 2.5A. The trouble relay will deactivate under any trouble...

  • Page 14: Notification Appliance Wiring

    5499 board. Pay close attention to the polarities when wiring a panel to the 5499 and follow these requirements: • When wiring to Terminal 18 on the 5499, you must use two separate wires. Do not loop a single wire or twist 4-10...

  • Page 15: Class B Supervised Wiring

    Class B Supervised Wiring Figure 4-5 shows how to wire for Class B input and output supervision. Use in/out wiring methods for proper supervision (Refer to the Appendix for notification appliances approved for use with the 5499.) Class B Output Notification Circuits Figure 4-5 shows four, 1.5 A devices wired as Class B.

  • Page 16: Class B Supervised Input Circuits

    Use an EOL resistor as shown to enable notification appliance circuit input supervision. Some panels use EOLs that have a different value from the 4.7k ohm EOL resistor used by the 5499. In this case, the EOL must be UL listed for the fire alarm control panel (not the 5499).

  • Page 17: Dip Switch Settings

    The position of Switches 4 and 5 does not affect the relationship of inputs to outputs. Note: The 5499 checks switches 1, 2, 3, and 6 only when powering up the 5499. If you change these switch settings, you must 4-13...

  • Page 18: Input/Output Configurations That Select Ansi Temporal-Coded Outputs

    151253 remove both the AC power and the battery to make the 5499 recognize the new settings. Figure 4-7 Setting DIP Switches 1-3 Figure 4-8 Setting DIP Switches 1-3 (Continued) Note: For 100 mS input signal debounce with no synchronization DIP switches 6 and 7 must be turned On.

  • Page 19: Selecting Synchronized Output Configurations

    The 5499 can also produce temporal patterns if the inputs are non-ANSI temporal configurations. 4.8.2 Selecting Synchronized Output Configurations The following sections describe how to configure the 5499 as a synchronization power expander for Amseco, Faraday, Gentex, System Sensor, or Wheelock synchronized horn/strobe appliances. Note: In order for the synchronization feature to operate properly, make sure you have set the DIP switches for the proper manufacturer.

  • Page 20: Selecting Synchronized Gentex Configurations

    151253 4.8.2.2 Selecting Synchronized Gentex Configurations To select the input/outputs for Gentex synchronized appliances, set the DIP switches as shown in Figure 4-10. Figure 4-10 Gentex Synchronized Configurations 4.8.2.3 Selecting Synchronized System Sensor Configurations To select the input/outputs for System Sensor synchronized appliances, set the DIP switches as shown in Figure 4-11.

  • Page 21: Selecting Synchronized Amseco Configurations

    Switch 5 on the DIP switch determines how the auxiliary power operates on the 5499. The 5499 checks Switch 5 only when powering up the 5499. If you change this switch, you must remove both the AC power and the battery to force the 5499 to recognize the new switch setting.

  • Page 22: Sample Applications

    151253 Section 5 Sample Applications The drawings in this section show various 5499 configurations, including “daisy-chaining”. Notification Power Applications 5499 Local Fire Alarm Control Panel Figure 5-1 Input 1 Activates All Four Outputs 5499 Local Fire Alarm Control Panel Figure 5-2 Input 1 Activates NACs 1 and 2; Input 2 Activates NACs 3 and 4...
  • Page 23 5499 Distributed Power Module Installation Manual Note: When multiple power supplies are used with one control unit they will not sync with each other 5499 Local Fire Alarm Control Panel 5499 Figure 5-3 One Control Activating Two 5499s 5499 Local Fire Alarm...

  • Page 24: Non-Resettable Power Application

    Non-Resettable Power Application The 5499 provides a dedicated 3 A auxiliary power output that you can select as non-resettable (output is always on). See Section 4.8.4 for setting the auxiliary power. If you need more than 3 A, wire the inputs as shown in Figure 5-6.

  • Page 25: Door Holder Application

    5499 Distributed Power Module Installation Manual Door Holder Application In a typical door holder application, the door holder power must be interrupted to close all fire doors under the following conditions: • Any active alarm condition. • AC power failure (to conserve battery power).

  • Page 26: Trouble Conditions

    151253 Color Description BATT Yellow When ON, a low battery condition exists. Green When OFF, there is no AC power to the unit. Under normal conditions, this LED is ON to indicate the presence of AC power. See Figure 4-2 for locations of LEDs. Trouble Conditions Trouble Condition What Happens...

  • Page 27: Earth Fault Resistance

    5499 Distributed Power Module Installation Manual Earth Fault Resistance Table 6-1 lists the earth fault resistance detection for each applicable terminal on the FACP. Table 6-1: Earth Fault Resistance Values by Terminal Terminal Value Function Terminal Label Number (in kohms)

  • Page 28: Replacing The Control Panel

    151253 Remove the two heat sink screws. The heat sink screws are located on the top of the cabinet. See Figure 6-1. Figure 6-1 Mounting Screw Locations Remove the four chassis mounting screws. See Figure 6-1 for chassis screw locations. Carefully remove the control panel.

  • Page 29: Appendix A Ul Listed Notification Appliances

    For proper operation, you must use polarized devices with a Model 7628 4.7k ohm EOL resistor on each circuit. All supervised notification appliances used with the 5499 must be polarized. Note: Not all devices can use the Sync feature, be sure to check Table A-1 to ensure the device you have chosen will work with this feature.

  • Page 30: Ul Listed Notification Appliances

    5499 Distributed Power Module Installation Manual Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type Vibrating Bell Vibrating Bell Single Stroke Bell 2700 -M. -R, -T, -Y, -Z Strobe 2701 Series Strobe 2705 Series Strobe 2820 Snyc Temporal Horn/Strobe...
  • Page 31 151253 UL Listed Notification Appliances Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type 5378 8-Tone Horn/Strobe 5383 8-Tone Horn/Strobe with Sync Strobe 5386 8-Tone Horn/Strobe with Sync Strobe 5387 8-Tone Horn/Strobe with Sync Strobe 5388 8-Tone Horn/Strobe with Sync Strobe 5508 Single Gang Sync Strobe 5509...
  • Page 32 5499 Distributed Power Module Installation Manual Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type BLVCH Vibrating Chime H12/24-FC Horn H12/24W-FC Horn H12/24K-FC Horn HC12/24-FC Horn HC12/24W-FC Horn HC12/24K-FC Horn P2415-FC Horn/Strobe P2415W-FC Horn/Strobe P2415K-FC Horn/Strobe P241575-FC Horn/Strobe P241575W-FC...
  • Page 33 151253 UL Listed Notification Appliances Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type HG124 Horn HS24-15 Horn/Strobe HS24-30 Horn/Strobe HS24-60 Horn/Strobe HS24-75 Horn/Strobe HS24-110 Horn/Strobe HS24-1575 Horn/Strobe GCC24 Multi Candella Horn/Strobe Ceiling Mount GCCR24 Multi Candella Horn/Strobe Ceiling Mount GCS24 Multi Candella Strobe Ceiling Mount GCSR24...
  • Page 34 5499 Distributed Power Module Installation Manual Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type Chime Chime CHSR 2-Wire Chime/Strobe CHSW 2-Wire Chime/Strobe Horn Horn Horn Horn WHT Wall 4x4 Horn Red Wall 4x4 HGRL Horn Red Wall 2x4...
  • Page 35 151253 UL Listed Notification Appliances Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type P2WH-P 2-Wire Horn/Strobe High Candela PC2WH 2-Wire Horn/Strobe High Candela PC2WH-P 2-Wire Horn/Strobe High Candela P2RK 2-Wire Horn/Strobe PC2RK 2-Wire Horn/Strobe P2RHK 2-Wire Horn/Strobe High Candela PC2RHK 2-Wire Horn/Strobe High Candela 4-Wire Horn/Strobe...
  • Page 36 5499 Distributed Power Module Installation Manual Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type Strobe SCRK Strobe SRHK Strobe High Candela SCRHK Strobe High Candela SRL, SRL-P, SRL-SP* Strobe Red Wall 4x4 SWL, SWL-P, SWL-ALERT Strobe White Wall 4x4...
  • Page 37 151253 UL Listed Notification Appliances Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type AH-12 Horn AH-24 Horn AH-12WP Horn Weatherproof AH-24WP Horn Weatherproof AMT-241575W Multi-Tone Horn Strobe AMT-24MCW Mutli-Tone Horn Strobe AMT-241575W-NYC Multi-Tone Horn Strobe AMT-12/24 Multi-tone Horn AMT-12/24 NYC Multi-tone Horn AS-121575W...
  • Page 38 5499 Distributed Power Module Installation Manual Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type HS-24 Horn HS4-241575W Horn/Strobe HS4-24MCW Horn/Strobe HS4-24MCWH Horn/Strobe HS4-24MCC Horn/Strobe MIZ-24S Mini Horn Strobe MT-121575W MultitoneHorn Strobe MT-241575W Multitone Horn Strobe MT-24MCW Multitone Horn Strobe...
  • Page 39 151253 UL Listed Notification Appliances Table A-1: Compatible Notification Appliances Manufacturer Model Audio Visual Type RSSR-2475W Strobe RSSR-2475C Strobe RSSR-24110C Strobe RSSA-24110W Strobe RSSB-24110W Strobe RSSG-24110W Strobe RSSR-24110W Strobe RSSA-24MCC Multi-Cd Strobe RSSB-24MCC Multi-Cd Strobe RSSG-24MCC Multi-Cd Strobe RSSR-24MCC Multi-Cd Strobe RSSWPA-2475W Strobe Weatherproof RSSWPA-24MCCH...
  • Page 40 5499 Distributed Power Module Installation Manual...

  • Page 41: Fire Product Warranty And Return Policy

    Repair and RMA Procedure • All products that are returned by Silent Knight by Honeywell for credit or repair require a RMA (Return Authorization) number. Call Customer Service at 800-328-0103 or 203-484-7161 between 8:00 A.M. and 5:00 P.M. EST, Monday through Friday to obtain a return authorization number.

  • Page 42: Manufacturer Warranties And Limitation Of Liability

    • Repairs and returns should be sent to: Honeywell Fire Systems Attn: Repair Department / RA Number_______________________ 12 Clintonville Road Northford, CT 06472 USA Manufacturer Warranties and Limitation of Liability Manufacturer Warranties. Subject to the limitations set forth herein, Manufacturer warrants that the Products manufactured by it in its Northford, Connecticut facility and sold by it to its authorized Distributors shall be free, under normal use and service, from defects in material and workmanship for a period of thirty six months (36) months from the date of manufacture (effective Jan.
  • Page 44 Silent Knight 12 Clintonville Road Northford, CT 06472-1610 203-484-7161 Fax: 203-484-7118 www.silentknight.com...
