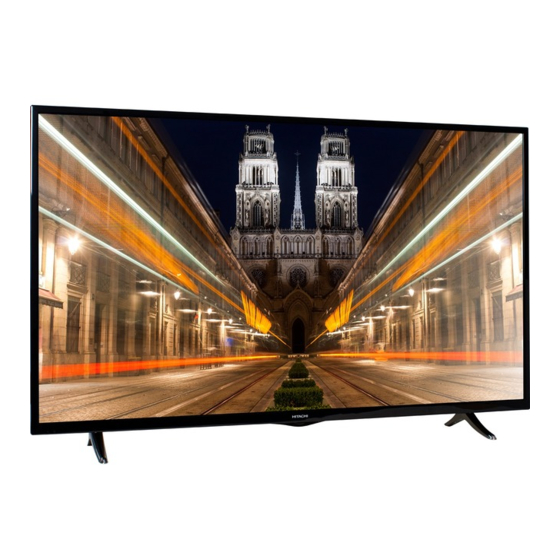

Summary of Contents for Hitachi 50HB6T72U
-
Page 2: Table Of Contents
Contents Important safety precautions ........2 Support ..............7 Environmental Information........8 Features ..............8 Accessories Included..........8 ..........8 TV Control Switch & Operation.......9 Inserting the Batteries into the Remote ....9 Connect Power ............9 Antenna Connection ..........9 ............10 Disposal information ..........10 ............10 Remote Control ............ 11 Connections............12 Switching On/Off ...........13 First Time Installation..........13... -
Page 3: Important Safety Precautions
Important safety precautions CAUTION alert the user to the presence of uninsulated “dangerous voltage” within the product’s RISK OF ELECTRIC SHOCK DO NOT OPEN to constitute a risk of electric shock of persons. The exclamation point within an equilateral CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). -
Page 4: Power Cord And Plug
DON’T obstruct the ventilation openings of the Do not block the ventilation openings. Do not the TV may tip over. shorten the life of the equipment. do not place any DON’T allow electrical equipment to be exposed to Power cord and plug DON’T power cord (mains lead) or pinch the cord. -
Page 5: Replacement Parts
Replacement Parts and sources of intense heat such as an electric heater. Headphone Volume Excessive sound pressure from earphones Taking out of service and storing please take care. Unplug the TV from the mains and pack the TV in an appropriate cardboard box. Remove the batteries Wall Mounting (optional) from the remote control and pack the remote control with the TV set. - Page 6 WARNING WALL MOUNTING WARNINGS Read the instructions before mounting your TV This product or the accessories supplied with the on the wall. product may contain a coin/button cell battery. If The wall mount kit is optional. You can obtain from Do not install the TV on a ceiling or on an inclined lead to death.
- Page 7 Markings on the Product The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons. Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.
-
Page 8: Support
Support Technical experts are available 7 days a week Simple help and advice on setting up your digital equipment (image). Guidance on connecting other devices to your television such as a DVD player, Sky, home cinema system or a games console. Order spare parts, including that lost remote control. -
Page 9: Environmental Information
PC input Environmental Information Game Mode (Optional) This television is designed to be environment friendly. Picture off function steps: Ethernet (LAN) for Internet connectivity and service If you set the Energy Saving to Minimum Medium, 802.11 a/b/g/n built in WIFI Support Maximum or Auto the TV will reduce the energy consumption accordingly. -
Page 10: Tv Control Switch & Operation
Changing Channels and Volume TV Control Switch & Operation by using the Volume +/- and Programme +/- buttons on the remote. Inserting the Batteries into the Remote Lift the cover on the back of the remote gently. Insert two AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). -
Page 11: Disposal Information
Disposal information Instructions for waste disposal: TRADEMARK ACKNOWLEDGMENT Packaging and packaging aids are recyclable and should The terms HDMI and High-Definition Multimedia registered trademarks of HDMI Licensing LLC in the United States and other countries. of with household waste. Please dispose of used battery in an environment friendly manner. -
Page 12: Remote Control
Remote Control Standby: Switches On / Off the TV TV: Displays channel list / Switches to TV Source Volume +/- Menu: Displays TV menu Back/Return: index Internet: many web based applications YouTube: Launches the YouTube application. Freeview Play: Connects to the Freeview Play platform where you can access available catch-up TV services 10. -
Page 13: Connections
Connections NOTE: When connecting Connector Type Cables Device a device via the YPbPr or Side Scart AV input, you must use the Connection connection cables to enable (back) connection. See the illustrations on the left side. | You can use YPbPr to VGA cable to enable YPbPr signal via VGA input. -
Page 14: Switching On/Off
Press OK button on the remote control to continue Switching On/Off and the Network/Internet Settings menu will be To Switch the TV On Connect the power cord to a power source such as a message asking whether you want to do the network settings. -
Page 15: Media Browser Menu
It is recommended to use the TV’s USB input(s) feature can also be enabled or disabled under the Settings>More menu. Note: Media Browser menu The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace USB device. -
Page 16: Tv Menu Contents
TV Menu Contents Picture Menu Contents You can change the picture mode to suit your preference or requirements. Picture mode can Mode be set to one of these options: Cinema Game Sports Dynamic and Natural. Contrast Brightness Sharpness Colour For setting the Energy Saving to Custom, Off, Minimum, Medium, Maximum, Auto, Screen Energy Saving Off. -
Page 17: Sound Menu Contents
Sound Menu Contents Volume Equalizer User mode. Balance Sets headphone volume. Headphone Please ensure before using headphones that the headphone volume is set to a low Sound Mode You can select a sound mode (If the viewed channel supports). AVL (Automatic Volume Limiting) can select this option as Lineout this option as Headphone. -
Page 18: Settings Menu Contents
Settings Menu Contents Conditional Access Controls conditional access modules when available. Language You may set a different language depending on the broadcaster and the country. Menu Lock Maturity Lock Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options. - Page 19 Last State and Standby Power Up Mode options are available. Virtual Remote Enable or disable the virtual remote feature. With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature. This function allows the connected HDMI-CEC compatible device to turn on the TV CEC Auto Power and switch to its input source automatically.
-
Page 20: General Tv Operation
TV. You can change the default PIN of the CI CAM General TV Operation using this option. Using the Channel List Note: 0000 or 1234. If you have The TV sorts all stored stations in the Channel List. selection) during the First Time Installation active stations to be listed by using the Channel List Some options may not be available depending on the country options. -
Page 21: Digital Teletext
Filter (Blue button): Software Upgrade Event Options Use the directional buttons to highlight an event and automatically via the broadcast signal or via Internet. press OK button to display Event Options menu. The Software upgrade search via user interface following options are available. On the main menu select Settings and then More. -
Page 22: Troubleshooting & Tips
Automatic Download (Push) Remote control - no operation The batteries may be exhausted. Replace the upgrade will show after 10 - 20 minutes batteries. 2. Press OK to start upgrading your TV Input sources - can not be selected 3. Please make sure to keep your TV on for the duration of the upgrade –... -
Page 23: Pc Input Typical Display Modes
PC Input Typical Display Modes AV and HDMI Signal Compatibility The following table is an illustration of some of the Source Supported Signals Available typical video display modes. Your TV may not support all resolutions. SECAM Index Resolution Frequency NTSC4.43 640x350 (SCART) NTSC3.58... -
Page 24: Supported Video File Formats For Usb Mode
Supported Video File Formats for USB Mode Extension Video Codec SPEC (Resolution) & Bit Rate MPEG1/2 1080P@30fps - 40 Mbps MPEG4 H.264: MVC: 1080P@30fps - 62.5 Mbps Other: 1080P@30fps - 40Mbps JPEG .avi H.264: Motion JPEG: 640x480@30fps - 10 Mbps Other: 1080P@30fps - 40 Mbps JPEG .mkv Motion JPEG... -
Page 25: Supported Audio File Formats For Usb Mode
Supported Audio File Formats for USB Mode Extension Audio Codec Bit Rate Sample rate MPEG1/2 Layer1 32Kbps ~ 448Kbps MPEG1/2 Layer2 8Kbps ~ 384Kbps MPEG1/2 Layer3 8Kbps ~ 320Kbps MPEG1/2 Layer1 32Kbps ~ 448Kbps MPEG1/2 Layer2 8Kbps ~ 384Kbps MPEG1/2 Layer3 8Kbps ~ 320Kbps 32Kbps ~ 640Kbps 128bps ~ 320Kbps... -
Page 26: Supported Subtitle File Formats For Usb Mode
Extension Audio Codec Bit Rate Sample rate MPEG1/2 Layer1 32Kbps ~ 448Kbps MPEG1/2 Layer2 8Kbps ~ 384Kbps MPEG1/2 Layer3 8Kbps ~ 320Kbps .wav LPCM 64Kbps ~ 1.5Mbps 384Kbps MS-ADPCM G711 A/mu-law 64Kbps ~ 128Kbps MPEG1/2 Layer3 8Kbps ~ 320Kbps 32Kbps ~ 640Kbps EAC3 32Kbps ~ 6Mbps VORBIS... -
Page 27: Supported Dvi Resolutions
Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cable(DVI to HDMI cable - not 72Hz 75Hz 640x400 640x480 800x600 832x624 1024x768 1152x864 1152x870 1280x768 1360x768 1280x960 1280x1024 1400x1050 1440x900 1600x1200 1680x1050 1920x1080 English - 26 - For any help concerning set up and use of your TV please call the Customer Helpline: 0345 604 0105... -
Page 28: Connectivity
and display the result when complete. Connectivity Advanced Settings Highlight Advanced Settings and press the OK Wired Connectivity button. On the next screen you can change the IP To Connect to a Wired Network and DNS settings of the TV. Highlight the desired one You must have a modem/router connected to an and press Left or Right button to change the setting active broadband connection. -
Page 29: Other Information
The location where the transmission is most effective differs depending on the usage environment. via the Media Browser of your TV. Enter the Media Browser menu and the playback & n type modems. It is highly recommended that you device selection OSD will be displayed. Select your should use the IEEE 802.11n communication protocol mobile device and press the OK button to continue. -
Page 30: Connection Is Slow
Connection is Slow “Nero Media Home Installation” section. See the instruction book of your wireless modem to 2. Connect to a Wired or Wireless Network See the Wired/Wireless Connectivity chapters for have a high speed connection for your modem. Distruption during playback or slow 3. -
Page 31: Internet Portal
Nero MediaHome Installation To install Nero MediaHome, please proceed as can view this content without interruption depends follows: on the connection speed provided by your internet service provider. Note: The Audio Video Sharing feature cannot be used if the server programme is not installed onto your PC or if Press the Internet button on your remote control the required media server software is not installed onto the to open internet portal page. -
Page 32: Freeview Play Platform
one and wait until the related videos appear. Select one among the videos using the directional buttons and press the OK button to start the playback. Note: There are also some other BBC applications such as Freeview Play Platform Note: Before connecting to the Freeview Play Connect aerial to the back of TV and carry out digital channel scan 3. -
Page 33: Internet Browser
All sites on the internet might not be supportted. Internet Browser According to the site; content problems may occur. In some circumstances video contents might not be launch the Internet application on the portal. able to be played. (*) The appearance of the internet browser logo may change be displayed as Speed Dial options along with the Edit Speed Dial and the Add to Speed Dial options. -
Page 34: Smart Centre
PORTAL: This tab displays the Portal applications in Smart Centre scrollable view. Unless FollowMeTV (if available) is Smart Centre is a mobile application running on iOS your TV screen. you can easily stream your favourite live shows and Note: Internet connection is required. This tab is enabled if programmes from your smart TV. - Page 35 FollowMe TV Feature (if available) 4. Smart Centre app.(to be found on online application stores based on Android and iOS Tap on the FOLLOW ME TV widget located at the platforms) bottom left of the screen of your mobile device to 5.
-
Page 36: Dvb-T Functionality Information
The content and services available through the SmarTVue portal are provided by third-party providers and Hitachi is not responsible for any of the content or services and does not warrant the availability of or access to such content or services. -
Page 37: Guarantee
Guarantee Product Guarantee This product is guaranteed against manufacturing defects for a period of Year This product is guaranteed for twelve months from the date of original purchase. refunded or repaired free of charge where possible during this period by the dealer from whom you purchased the unit. - Page 38 Product No. 10106745 50HB6T72U 50 inches / 127 cm 71 W 103 kWh 0,5 W 1920x1080 English - 37 - For any help concerning set up and use of your TV please call the Customer Helpline: 0345 604 0105...
- Page 39 Standby Power Consumption (approx.) Screen Resolution 1920 x 1080 Hitachi Europe Ltd. hereby declares that this TV is in compliance with the essential requirements and other elevant provisions of Directive1999/5/EC. Hitachi Europe Ltd. Whitebrook Park, Lower Cookham Road, Maidenhead, Berkshire.
- Page 40 VESA WALL MOUNT MEASUREMENTS min. (mm) max. (mm) English Hole Pattern Sizes (mm) VESA WALL MOUNT MEASUREMENTS Screw Sizes Leng (X) Thread (Y) Deutsch MASSANGABEN FÜR VESA-WANDMONTAGE Lochmustergrößen (mm) Schraubengrößen Länge (X) Gewinde (Y) DIMENSIONS DU SUPPORT DE FIXATION MURALE VESA Dimensions des modèles de trous de montage (mm) Dimensions des vis Longueur (X)
