  • Page 1: User Manual

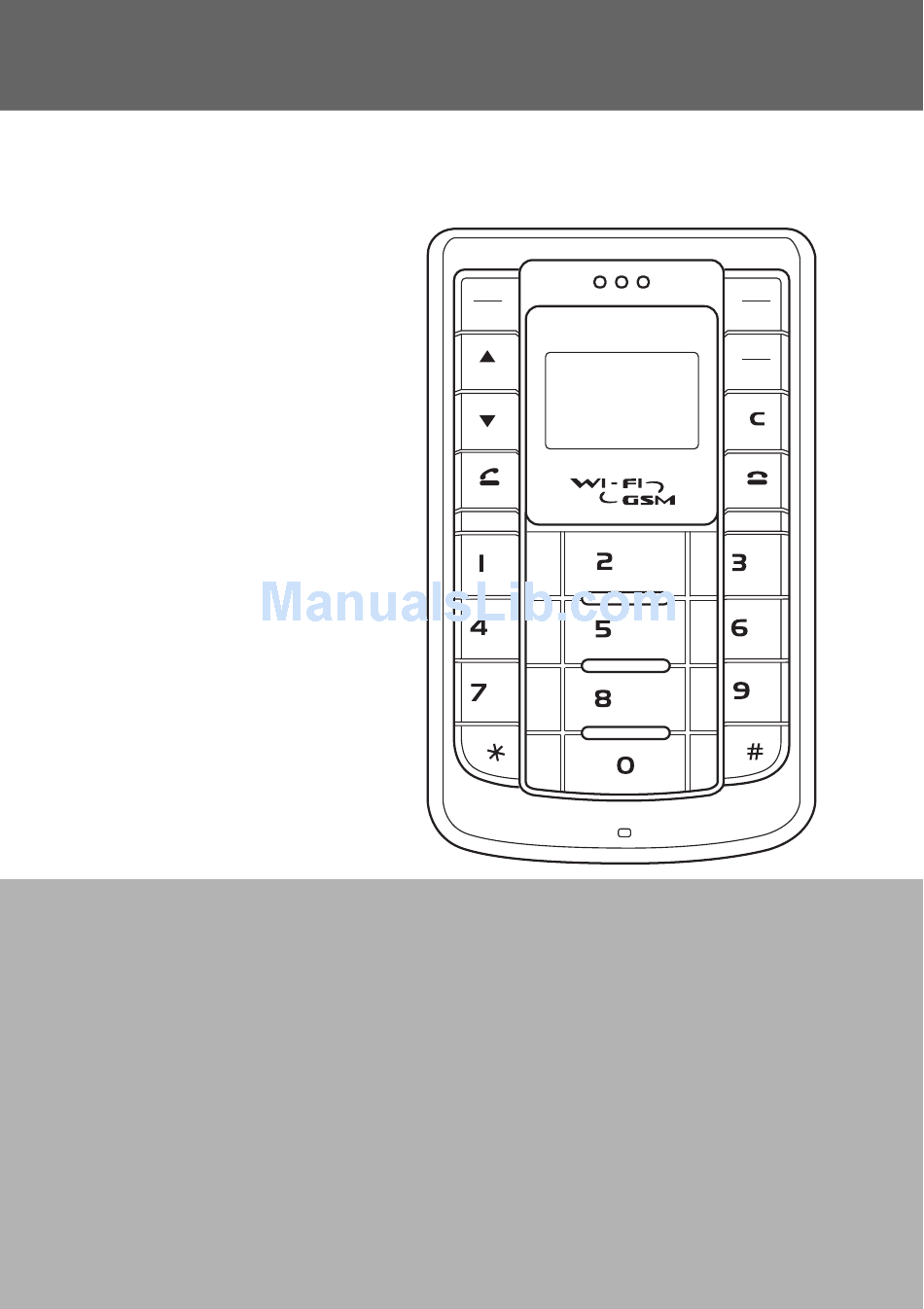

    G-Tek PWG-500 Menu Wi-Fi Select On/Off VoIP PQRS WXYZ User Manual...

  • Page 3: Table Of Contents

    Menu Wi-Fi Select On/Off VoIP PQRS WXYZ Welcome Overview of the PWG-500 ..........1 Features ..............1 Front view ..............2 Side views..............4 Display indicators ............6 Package contents ............. 8 Specifications ..............9 Using the menu.............. 12 Menu map ..............12 Getting started Inserting the SIM cards and battery ........
  • Page 4 Deleting call logs ............30 Call options..............30 Menu Wi-Fi Select On/Off VoIP Using the speaker phone..........31 PQRS WXYZ Putting a call on hold........... 31 Answering/rejecting a waiting call......... 32 Conducting a conference call........32 Transferring a call ............32 Call waiting..............
  • Page 5 Configuring the settings Menu Wi-Fi Select On/Off VoIP General settings ............. 43 PQRS WXYZ Outgoing calls ............43 Language ..............43 Power saving mode ............ 43 Keypad light .............. 44 LCD sleep interval ............44 Backlight ..............44 Alarm clock ............... 44 Wi-Fi settings ..............
  • Page 6 Appendix Menu Wi-Fi Select On/Off VoIP Additional Information ............. 72 PQRS WXYZ FCC Regulations ............. 72 European regulations ............73 RF exposure regulation (SAR) ........... 74 vi --- Table of Contents...

  • Page 7: Overview Of The Pwg-500

    • Connectivity with various networks such as GSM, GPRS, VoIP, Wi-Fi, as well as Bluetooth devices • Standalone mode lets you use the PWG-500 as a GSM phone or as a Wi-Fi phone to make and receive phone calls without using a PDA or porta- ble computer •...

  • Page 8: Front View

    Up arrow key • Press to scroll up through menu items. • From standby mode, press to display the phone book. Down arrow Press to scroll down through menu items. 2 --- Overview of the PWG-500...
  • Page 9 • Press to end a call. • Press to reject an incoming call. • In menu mode, press to can- cel your selection and return to standby mode. Alphanumeric Use these keys to enter keypad phone numbers and text. Overview of the PWG-500 --- 3...

  • Page 10: Side Views

    Volume up key Press to increase the volume. Reset button Use a small pointed object such as a pin to reset the PWG-500 if it locks up. Volume down Press to decrease the volume. 4 --- Overview of the PWG-500...
  • Page 11 Name Description Menu Wi-Fi Select On/Off VoIP Power button Press to turn the PWG-500 on PQRS WXYZ or off. Earphone socket Connect the provided ear- phones here. Power in Connect the power adapter to this socket to charge the bat- tery.

  • Page 12: Display Indicators

    Display indicators Menu Wi-Fi Select On/Off VoIP In standby mode, the PWG-500 screen displays the fol- PQRS WXYZ lowing icons: Chunghwa PTSGI-AP Default0 12:33 AM Name Description Battery Displays the charge level of the charge battery. Five bars indicate that the battery is fully charged or has 100% charge.
  • Page 13 GSM carrier Displays the current GSM carrier service. Wi-Fi access Displays the name of the Wi-Fi point access point. VoIP profile Displays the name of the current VoIP profile. Time Displays the current time. Overview of the PWG-500 --- 7...

  • Page 14: Package Contents

    Package contents Menu Wi-Fi Select On/Off VoIP PQRS WXYZ Menu Wi-Fi Select On/Off VoIP PQRS WXYZ G-Tek PWG-500 AC adapter Desktop charger Li-ion battery Wired headset Pouch Utility CD User manual Quick start guide 8 --- Package contents...

  • Page 15: Specifications

    Specifications Menu Wi-Fi Select On/Off VoIP GSM characteristics PQRS WXYZ • Quad-band GSM 850, GSM 900, DCS 1800, PCS 1900, EGSM • Output power: 2W @GSM 850/GSM 900/EGSM 900; 1W @ DCS 1800/PCS 1900 • GPRS: Mobile station class B, multi-slot class 12 •...
  • Page 16 Network and protocols • SNMP manager Menu Wi-Fi Select On/Off VoIP • DHCP or static configuration option PQRS WXYZ • Alternate TFTP support • SIP (RFC 3261) version 2 • SDP (RFC2327) • RTCP (RFC1890) • Supports outbound proxy for NAT traversal •...
  • Page 17 • Four multi-function soft keys provide easy user operation dynamically Menu Wi-Fi Select On/Off VoIP • Keys: Power, Volume, Menu/Select, Send/End, 12 PQRS WXYZ keys dialer pad • Selection of menu, user profiles, languages, and ring types by soft keys •...

  • Page 18: Using The Menu

    Menu Wi-Fi Select On/Off VoIP The G-Tek PWG-500’s menu lets you access the product PQRS WXYZ settings and set up the device according to the network conditions. The menu is set up in a simple and easy-to- understand manner. Follow these steps to access the menu and menu items.
  • Page 19 • Messages • Create New Menu Wi-Fi Select On/Off VoIP • Inbox PQRS WXYZ • Forward • Delete • Details • Outbox • Forward • Delete • Details • Call Logs • Missed Calls • Received Calls • Dialed Calls •...
  • Page 20 The following submenu options are available for each of the Tones: Menu Wi-Fi Select On/Off VoIP • Activate PQRS WXYZ • Personalize • Ringtone • Ring Volume • Alert Type • Key Beep • Edit Name • Save to Flash •...
  • Page 21 • WEP Key • Advanced Menu Wi-Fi Select On/Off VoIP • Power Saving PQRS WXYZ • RTS/CTS Threshold • Frag. Threshold • Transfer Rate • Use DHCP (If you select No, the following options are available for modifica- tion: IP Address, Subnet Mask, Default Gateway, Primary DNS, Alternate DNS)
  • Page 22 • Activate • Personalize Menu Wi-Fi Select On/Off VoIP • User Number PQRS WXYZ • Password • Registrar • Domain Name • Outbound Proxy • Mail Address • Restore Defaults • Edit Profile Name • GSM • GSM On/Off • SIM Switch •...
  • Page 23 • Save to Flash Menu Wi-Fi Select On/Off VoIP • Status PQRS WXYZ • GSM Status • Wi-Fi Strength • Channel • Transfer Rate • SSID • Wi-Fi Home • Link Quality • Network Mode • Encryption Status • MAC Address •...

  • Page 24: Getting Started

    Refer to this section to learn more about setting up the PWG-500 before you start using it. Inserting the SIM cards and battery The PWG-500 supports dual SIM cards and the slots are placed underneath the battery. One of the SIM cards is used for activating and authenticating your GSM account.
  • Page 25 To insert the SIM cards and battery, do the following: 1. Push down the tab on the Menu Wi-Fi Select On/Off VoIP back to remove the battery PQRS WXYZ cover as shown. 2. Move the SIM card slot in which you want to insert the first SIM card, in the direction shown to unlock it.
  • Page 26 5. Place the SIM card holder back in place. Menu Wi-Fi Select On/Off VoIP PQRS WXYZ 6. Slide the SIM card holder upwards to lock the card in place. 7. Repeat steps 2 through 6 to insert the second SIM card.

  • Page 27: Charging The Battery

    Note: You can also charge the battery using the desktop charger after connecting it to the power outlet. Insert the PWG-500 in the charger making sure that the contacts touch those of the charger. Charging the battery --- 21...

  • Page 28: Connecting The Wired Earphones

    WXYZ enjoy handsfree operation, and answer or place calls with ease. Note: If the G-Tek PWG-500 is paired with a Bluetooth- enabled headset, the wired headset will not work. Turning the phone on/off Press the Power button on the right side of the PWG- 500 to turn the device on or off.

  • Page 29: Locking/Unlocking The Keypad

    Entering text The PWG-500 has an alphanumeric keypad for keying in the numbers you are dialing, typing your text messages, and adding contact information to your phone book. Each key represents a combination of letters and num- bers.
  • Page 30 Characters Menu Wi-Fi Select On/Off VoIP PQRS WXYZ Switch between lower case (abc), upper case (ABC), and numeric (123) characters. To enter text, follow these guidelines: 1. Enter the numbers and characters as desired from the keypad, using the preceding table for your ref- erence.

  • Page 31: Making Calls

    3. M AKING CALLS Now that you are familiar with the PWG-500, you are ready to start making calls and take full benefits of its calling features. Making a call The PWG-500 supports GSM as well as VoIP calls. It can use a GSM network to make/receive calls and can also make use of other services offered by the network.

  • Page 32: Using The Phone Book To Dial

    Note: You can also end a call by pressing Menu/Select and then selecting End. Using the phone book to dial You can call your contacts using the contact information from the phone book. To make a call to a person from the phone book, do the following: 1.

  • Page 33: Adjusting The Volume

    Adjusting the volume While talking on the PWG-500, use the Volume up/down keys to increase or decrease the volume according to your preference. You can also adjust the ring tone using the keys when not talking on the phone. For adjusting microphone or speaker volume separately, see “Wi-Fi...

  • Page 34: Speed Dialing A Number

    Speed dialing a number You can assign a speed dial number from the keypad to the most commonly dialed numbers in your phone book and use that number to dial the number quickly instead of keying in the complete number. See “Assigning a speed dial number”...

  • Page 35: Call Logs

    Repeat the same procedure to initiate the emergency call again. Call logs The PWG-500 stores information about all calls made or received. Your phone keeps lists of the calls you recently received and dialed, even if the calls did not connect.

  • Page 36: Returning A Missed Call

    Select a call from a call log and press the Menu/Select key. Select one of the following options: • Call: call the selected number • Delete: delete the number from the call log. • Save: save the number to your phone book. Returning a missed call If you miss a call, it is indicated on the screen.

  • Page 37: Using The Speaker Phone

    Using the speaker phone For handsfree operation, you can use the built-in speaker to talk on the phone. Do one of the following to use the speaker phone. • Press the Clear/Delete (C) key to enable the speaker phone. Press the key again to disable the speaker phone.

  • Page 38: Answering/Rejecting A Waiting Call

    Conducting a conference call The call waiting and holding functions also help you to conduct a conference call using the PWG-500 as follows: 1. Call the first participant of the conference call as described in “Making a call” on page 25.

  • Page 39: Call Waiting

    Call waiting You can answer a call while you have another call in progress if you activate the call waiting function. To answer the call waiting press the Send/Answer key. The first call is put on hold. To activate the call waiting function, press Menu/Select and then select Settings, VoIP, Call Control, Call Wait- ing, and Enable.

  • Page 40: Caller Id

    Caller ID To enable the display of the number when you receive an incoming call, press Menu/Select and then select Set- tings, VoIP, Call Control, Caller Id, and Enable. The num- ber is displayed on the screen. DTMF You can select DTMF (Dual Tone Multi Frequency) for your outgoing calls depending on the type of network being used by the recipient.

  • Page 41: Using The Phone Book

    4. U SING THE PHONE BOOK The phone book is an important component of the PWG- 500 for storing contact information about your friends, relatives, and colleagues. This eliminates the need for you to memorize important phone numbers. Note: The storage capacity of the phone book depends on the SIM card memory.

  • Page 42: Searching For A Contact

    4. The selected number is displayed again. Make sure that the number is correct or edit it if required and press Menu/Select. The selected number and corresponding contact name is stored in the phone book. Searching for a contact 1. Press Menu/Select and then select Phone Book, Search to start searching for contacts.

  • Page 43: Assigning A Speed Dial Number

    Assigning a speed dial number You can use speed dialing to assign a shortcut or hotkey (2 ~ 9) to the phone numbers that you dial most fre- quently. You can then press the speed dial number to quickly dial a number instead of keying in the entire phone number or searching for the contact number from the phone book.

  • Page 44: Sending Messages

    Reading messages When you receive an SMS message, a new message icon is displayed on the PWG-500’s screen. To read your messages, do the following: 1. Press Menu/Select and then select Messages, Inbox to view a list of messages received. If the message is received from a person in the phone book, the person’s name is displayed.

  • Page 45: Replying To A Message

    Replying to a message To reply to a message, do the following: 1. Select and view the message from the Inbox that you want to reply to, using the Messages menu. 2. Press Menu/Select and select Reply to write a reply to the message.

  • Page 46: Viewing Message Details

    Viewing message details To view details about your received or sent messages, do the following: 1. Using the Messages menu, Select and view a mes- sage from the Inbox (received message) or Outbox (sent message). 2. Press Menu/Select and select Details to view details of the message.

  • Page 47: Setting Tones

    6. S ETTING TONES The PWG-500 has a set of profiles, each customized for different scenarios of usage. For example, you can use the Silent profile when in a movie theatre, the Meeting profile while attending business meetings, or the Out- door profile when travelling outdoors or in a noisy envi- ronment.

  • Page 48: Saving A Profile

    Use the keypad to change the name and press Menu/Select when done. Saving a profile To save a profile to the PWG-500’s internal flash mem- ory, do the following: 1. Press Menu/Select and select Tones to display a list of profiles.

  • Page 49: Configuring The Settings

    7. C ONFIGURING THE SETTINGS The settings menu provides a number of options to con- figure the PWG-500, its mode of operation, network set- tings, and preferences. Read this section carefully to learn how to configure your phone. General settings The general settings provide options to customize the PWG-500 according to your preferences.

  • Page 50: Keypad Light

    Always On option to always keep the backlight enabled. Alarm clock The PWG-500 has a real time clock that keeps track of the time and also lets you set an alarm. To set an alarm, press not in use to conserve power. To disable the back- light, press Menu/Select, and select Settings, General, and Alarm.

  • Page 51: Wi-Fi Settings

    Wi-Fi settings The Wi-Fi settings enable you to set up the PWG-500 for wireless mode. Use this setup to specify and personalize a wireless profile and security settings. General settings The general settings for Wi-Fi mode specify the type of wireless connectivity and enable you to turn on Wi-Fi mode.
  • Page 52 Each profile has the following parameters that can be further set up as desired. Configuration: This option provides various options to set up the basic wireless configuration as follows: • Operating mode: specifies the mode of operation for wireless connectivity. Choose Ad Hoc to con- nect to a wireless node or access point directly.
  • Page 53 This option enables you to make advanced settings for the wireless mode. The following options are available: • Power Saving: Select the On option to enable power saving when the PWG-500 is connected in Wi-Fi mode. • RTS/CTS Threshold: specifies the threshold for RTS and CTS parameters.

  • Page 54: Voip Settings

    See “Call options” on page 30 for details about these options. Profiles The PWG-500 provides ten default profiles for the VoIP mode. Select a profile and press Activate to make the selected profile active. Press Personalize to change the profile settings.

  • Page 55: Gsm Settings

    If you select the Personalize option, the following param- eters can be modified: • User Number: specifies the number used to make VoIP calls. You must enter a number to be able to make calls. • Password: specifies the password for VoIP authen- tication.

  • Page 56: Gprs Settings

    The Bluetooth settings enable you to configure the PWG-500 for Bluetooth operation. Note: If you are pairing a new device with the PWG-500 for the first time, you have to pair it twice consecutively before trying to establish a connection with the device.

  • Page 57: Clock Settings

    Clock settings The clock settings enable you to set the time and date on the PWG-500. The PWG-500 displays the time on the screen after the LCD sleep interval if the power saving mode is set. If the power saving mode is disabled, the screen remains blank.

  • Page 58: Viewing The Status

    Using the status menu The Status menu enables you to view the status of all the PWG-500’s configuration settings at a single glance. To view the PWG-500’s status, press Menu/Select and then select Status. A list of the configuration settings is displayed.
  • Page 59 • Battery Strength: Displays current battery strength. • Auth Status: Displays if he communication channel is authenticated or not. • VoIP Strength: Displays the intensity of the avail- able VoIP signal. • Bluetooth Strength: Displays the strength of the Bluetooth network. •...

  • Page 60: Advanced Features

    GPRS networks. This section pro- vides details about how to use the PWG-500 with your PC or PDA. Connecting to the PC Use a mini USB cable to connect the PWG-500 to the PC as shown. 54 --- Connecting to the PC...

  • Page 61: Installing The Usb Drivers And Wim

    Installing the USB drivers and WIM To use the PWG-500 as a USB modem for your PC, you need to install the drivers for the device. When you con- nect the device to the PC, the PC detects the new hard- ware and starts the New Hardware Found Wizard.

  • Page 62: Using Wim

    Using WIM The WIM application is a useful interface that lets you set up and configure the PWG-500 from your PC or PDA. You can select GSM, VoIP, GPRS, and Wi-Fi pro- files and personalize them according to your network specifications.
  • Page 63 The following screen is displayed when you open the WIM Desktop application. Please wait for a few seconds while the device is being located. You can start using the application once the device is found. If there is a problem connecting to the device the follow- ing screen is displayed.
  • Page 64 Phone book Local Phone book This phonebook is saved on the PC or PPC. Click Phone Book on the WIM start screen. By default, the local phone book is displayed. You can view the local contacts by selecting Local contacts from the View menu.
  • Page 65 • Find: Click Find and enter the name of the contact to be searched. Click the Match whole word check box to search for a specific word. Alternatively, if you type only the first few letters of the name you are looking for, the find operation will display all matching entries.
  • Page 66 Local contacts: Select this option to view the details of contacts saved in the PC memory. SIM 1 contacts: Select this option to view contacts saved on the first SIM card. SIM 2 contacts: Select this option to view contacts saved on the second SIM card.
  • Page 67 Dialer Click the Dialer button on the WIM start screen as shown in Figure 2. The dialer screen is displayed as follows: Scroll buttons Answer key End key VoIP Wi Fi Answer call Transfer call waiting The description of the various keys is given below: •...
  • Page 68 The description of the submenus is as follows: • Ringtones: Select this menu to change the ring tone of PWG-500. You can choose from the given list of ring tones for voice calls and text messages. Click Play to test the selected ring tone.
  • Page 69 Messages Click SMS on the WIM start screen to send and receive SMS messages. The following screen is displayed. Viewing SMS details Select a message and click to view details about the message. The following screen is displayed: • Reply: Click Reply to reply to the message. •...
  • Page 70 Writing an SMS Click Write Message on the Edit menu shown. The fol- lowing screen is shown: • Enter the receiver's number in the To… field. • Type the message (not more than 160 characters) in the field as shown in the screen above. •...

  • Page 71: Browsing The Internet From The Pc

    “Configuring the settings” on page 43. Browsing the Internet from the PC You can use the PWG-500 to browse the Internet or check e-mails using a Wi-Fi network or a GPRS network. If Wi-Fi has been enabled and a wireless hotspot is avail- able in the vicinity, then Internet connectivity is auto- matically achieved through the Wi-Fi network.

  • Page 72: Connecting To A Pda

    To connect to the Internet, follow these steps: 1. Connect the PWG-500 to your PC using a USB cable. Make sure that the device drivers have been installed correctly. See “Installing the USB drivers and WIM” on page 55. 2. Set up a dial-up network connection as follows: –...

  • Page 73: Using Gprs To Browse The Internet

    1. This can be changed using the WIM con- figuration-status utility. Note: If you are pairing a new device with the PWG-500 for the first time, you have to pair it twice consecutively before trying to establish a connection with the device.
  • Page 74 1. To create a dial-up net- work, click Start | Pro- grams | Settings |Connections | Mod- ify | New. 2. A Make New Connec- tion screen is dis- played. Enter the name, modem, and baud rate in the corre- sponding fields.
  • Page 75 3. Click Next. 4. In the My Connection screen, enter the coun- try code, area, code, and phone number to connect to the GPRS number. Consult your service provider for this information. Click Next | Finish to com- plete creating the con- nection.
  • Page 76 6. Open Bluetooth Man- ager and set up a dial- up networking connec- tion to the PWG-500. Select this new con- nection that you just created and click OK to connect. A login screen is displayed. 7. Enter the user name...

  • Page 77: Using Wi-Fi To Browse The Internet

    Using Wi-Fi to browse the Internet In order to browse the Internet using Wi-Fi, you have to set up and enable Wi-Fi on the PWG-500. This can be done directly from the PWG-500 as described under “Wi-Fi settings” on page 45 or from the PDA using the WIM configuration utility.

  • Page 78: Additional Information

    10.A PPENDIX Additional Information The use of this equipment may be subject to local rules and regulations. The following rules and regulations may be relevant in some or all areas. FCC Regulations This model phone complies with part 15 of the FCC Rules.

  • Page 79: European Regulations

    off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit dif- ferent from that to which the receiver is con- nected.

  • Page 80: Rf Exposure Regulation (Sar)

    • Specific Absorption Rate (SAR) Standard: EN 50360, EN 50361 • 73/23/EEC Low Voltage Directive (LVD) Standard: EN 60950:2000 • 89/336/EEC Electromagnetic Compatibility (EMC- Directive) Standard: EN301489-1/7 • The manufacturer cannot be held responsible for modifications made by the user and the conse- quences thereof, which may alter the conformity of the product with the mark.
  • Page 81 While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of tap://www.fcc.gov/oet/fccid after searching on FCC ID:...
