Multiform MULTISPOT G-II-HS5034 User Manual

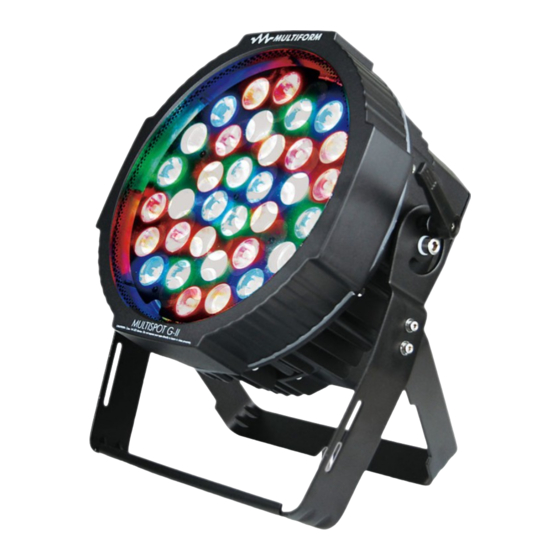

High-power dmx-controlled led light source
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
USER MANUAL
MULTISPOT G-II-HS5034
High-Power DMX-Controlled LED light source
For firmware 50-010-0088-00113-1-03 MS GII HS5034 RevN
Updated versions of this document may be available at
WWW.MULTIFORM-LIGHTING.COM
RevB 08/2013 Order code: 12-010-0083-80101-1-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MULTISPOT G-II-HS5034 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Multiform MULTISPOT G-II-HS5034

Summary of Contents for Multiform MULTISPOT G-II-HS5034

  • Page 1 USER MANUAL MULTISPOT G-II-HS5034 High-Power DMX-Controlled LED light source For firmware 50-010-0088-00113-1-03 MS GII HS5034 RevN Updated versions of this document may be available at WWW.MULTIFORM-LIGHTING.COM RevB 08/2013 Order code: 12-010-0083-80101-1-01...
  • Page 2 Dear customer, congratulations on the purchase of a Multiform-branded item and the trust having been put in us with this decision. Multiform is one of the leading global manufacturers of professional lighting equipment and has decades of experience in design, production and quality assurance.
  • Page 3 User Manual: Multispot GII-HS5034 User Manual: Multispot GII-HS5034 ■ Maintenance WARNING! Shock hazard. Equipment must be properly grounded. This device does not need regular maintenance. It is protected by an internal fuse located on the power supply PCB. If this fuse fails, this usually indicates an internal fault requiring servicing by a qualified engineer.
  • Page 4 User Manual: Multispot GII-HS5034 User Manual: Multispot GII-HS5034 Protection from electric shock: used together to do not exhibit different color behaviour, please make sure that all Only connect this unit to a mains socket outlet with protective earth fixtures used together are calibrated to the same color behaviour. connection, ground-fault (earth-fault) and overload protection.
  • Page 5 User Manual: Multispot GII-HS5034 User Manual: Multispot GII-HS5034 button is pressed the relative settings become active. The display will only show the The surface of the device may get hot during operation, and heat values presently being viewed or changed. After 30 sec. of no alterations or if the sink areas may reach to or exceed the limits of EN60950.
  • Page 6 User Manual: Multispot GII-HS5034 User Manual: Multispot GII-HS5034 ■ LED Lifetime advice SL11 1 loop per 6 seconds SL24 2,8 loops per second SL12 1 loop per 4 seconds SL25 3,2 loops per second LED lifetime is determined by the gradually declining brightness of a LED over time, Once the speed level is set and no changes done the display will return to show with a point of 50% brightness reduction marking the defined end of its lifetime.
  • Page 7 In this mode you will only find soft fade patterns. Press the MODE button until the display shows “FPxx” whereas xx stands for numbers 00 until 07. The available To expedite the connector change, you will need Multiform’s outdoor conversion kit for patterns are defined as follow: this unit, which is available from your distributor.
  • Page 8 User Manual: Multispot GII-HS5034 User Manual: Multispot GII-HS5034 Loosen the 6pcs. of HexInsert screw that hold the rear cover of the power 1 second accelerates the change rate of the displayed value to 3 times. If no further supply compartment, and remove the screws. changes are made to the dimming level by the +/- buttons, the display will automatically Carefully lift the rear cover with the attached electronics assembly from the return to show “C0”…”C225”...
  • Page 9 User Manual: Multispot GII-HS5034 User Manual: Multispot GII-HS5034 Upon the user’s choice, the unit can work in stand-alone automatic mode, or with fixed colors, or it may be controlled by external DMX-controllers. Available modes: ■ STATIC COLOUR Press the MODE button until the display shows “STxx” whereas xx stands for numbers 0 until 25.
  • Page 10 User Manual: Multispot GII-HS5034 User Manual: Multispot GII-HS5034 ■ Operation User interface overview: MODE selection Button LEFT ARROW Button RIGHT ARROW Button – Button + Button DISPLAY: Sound-to-Light Indicator DISPLAY: 4-Digit Message Display Area DISPLAY: + Indicator DISPLAY: - Indicator DISPLAY: ARROW Indicators DISPLAY: DMX Signal Presence Indicator Microphone cover membrane...
  • Page 11 User Manual: Multispot GII-HS5034 User Manual: Multispot GII-HS5034 weight of the device when installing the unit. This secondary safety attachment ■ Getting started: changing the lens panel (only if required) should be installed in a way that no part of the installation can drop more than 20cm if the main attachment fails.
  • Page 12 User Manual: Multispot GII-HS5034 User Manual: Multispot GII-HS5034 Remove the 5 standoffs that define the lens panel distance to the PCB by ■ Getting started: choosing a location unscrewing them with left-turns. Keep these 5 standoffs stored together with the removed lens panel as every specific lens panel has its matching standoff Risk of fire: The MULTISPOT-GII-HS5034 LED has been designed for length.
