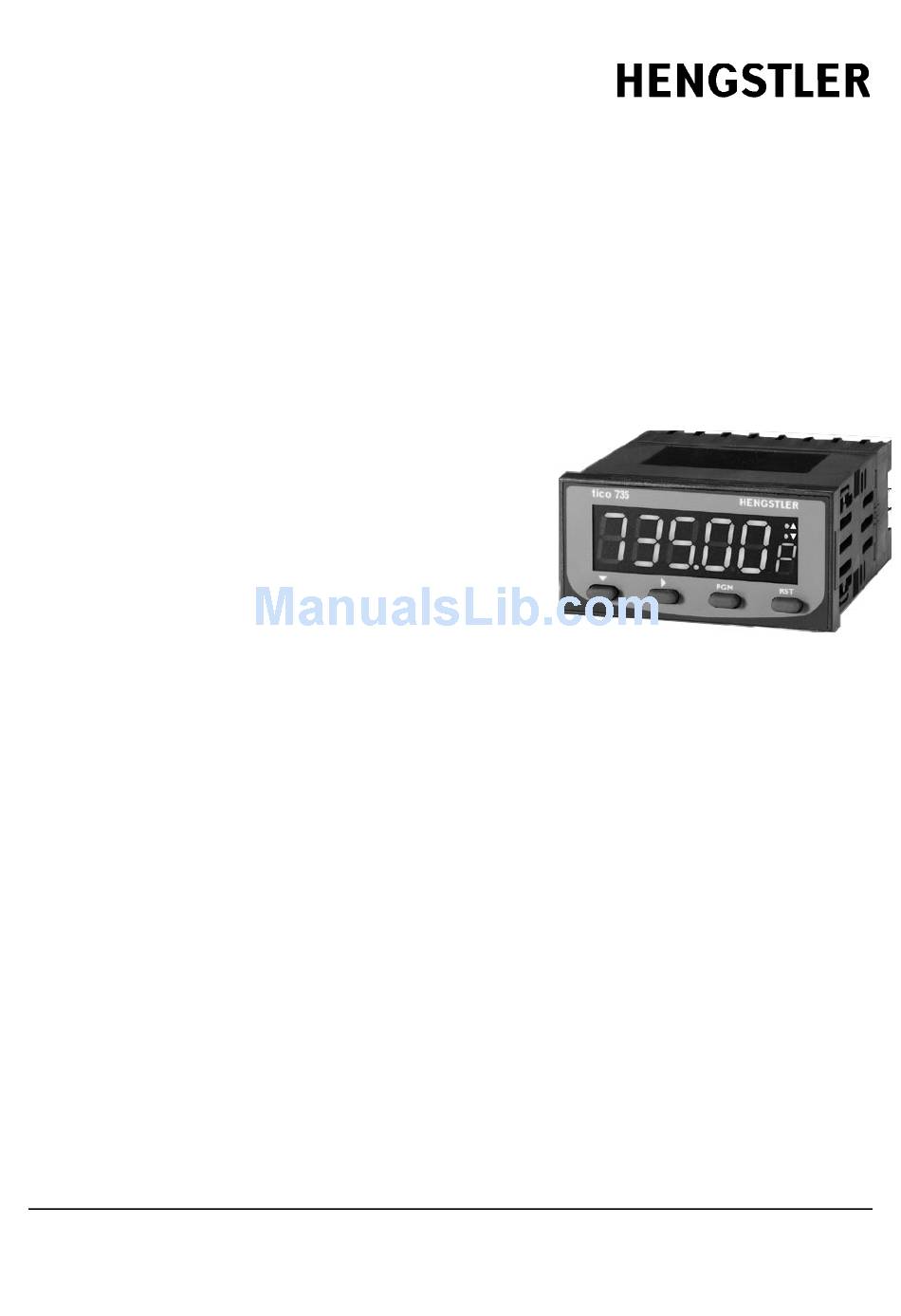

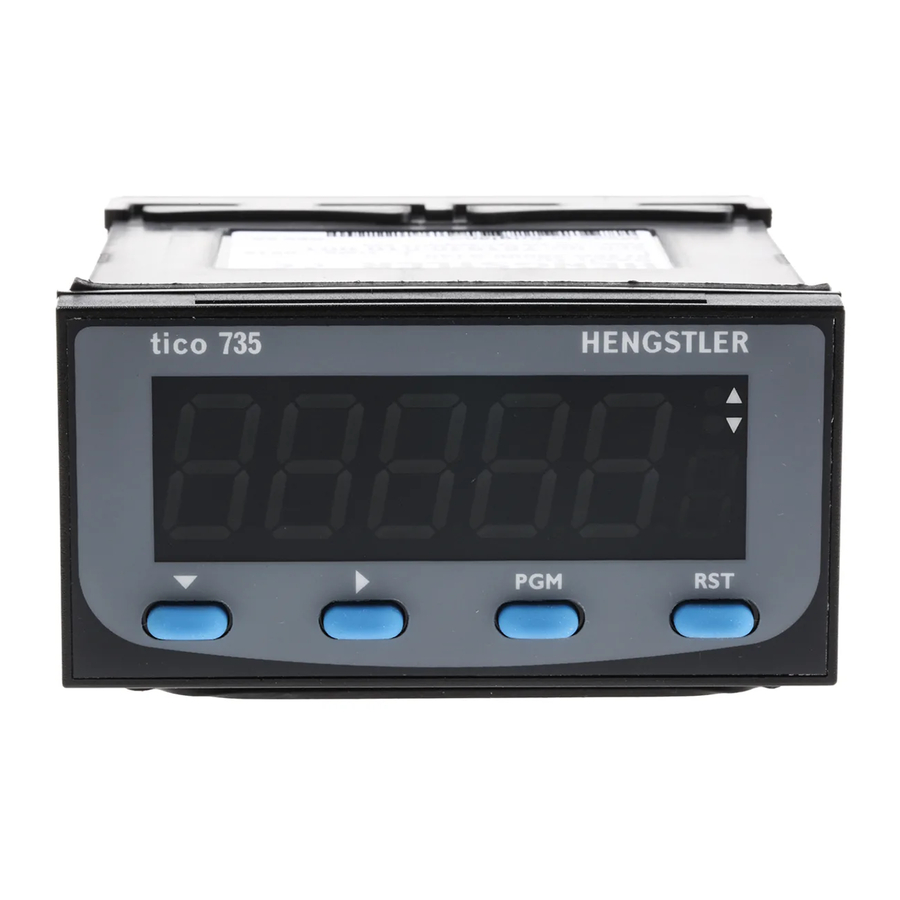

Operating Instructions tico 735 - Position Indicator
Introduction
Your Hengstler tico 735 Position Indicator is one model in a family of 1/8 DIN units which offers
breakthrough display technology as well as easy-to-program single-line parameters.
Designed to provide instant visual feedback regarding an application's key input value, the tico 735 not
only has a 18 mm high LED display, but also the ability to change display colour based on process status
(programmable parameter in Operation Mode). Easy programming is made possible via a help function
and a secondary legend display.
This manual will guide you through the installation and wiring of your tico 735 unit with information on
proper panel mounting and rear terminal layout and wiring instructions. In addition, the instrument's
operation and programming modes are thoroughly explained. The operation mode provides day to day
operation and allows editing of preset values. The Program Mode enables the configuration of various
parameters prior to initial operation. These parameters include
those for basic configuration as well as other settable features
which will enhance the functionality and usability of the device.
This manual also provides information on the tico 735 Position
Indicator's product specifications and ordering information.
Features
• Awesome 18 mm high digit LED display
• Programmable colour change display based on an event
• Programmable help function and secondary legend display
• High and low alarm outputs
• Optional linear output relative to position
• Filter speed settable 20 Hz, 200 Hz, or 10 kHz
• Standard outputs: 2 NPN transistors & 1 relay (optional 2nd relay)
• Front panel reset enable and preset/alarm lockout
• Optional RS-485 plug in card
Index
Safety Instructions ...........................................................................................................................2
Installation........................................................................................................................................3
Panel mounting .........................................................................................................................3
Wiring........................................................................................................................................4
Operation .........................................................................................................................................5
Front Panel ...............................................................................................................................5
Operation Mode ........................................................................................................................6
Program Mode .................................................................................................................................7
Entering Program Mode and basic operation............................................................................7
Program Parameter Sequence .................................................................................................7
Technical Data...............................................................................................................................10
Ordering Information ...............................................................................................................11
2 735 021, Rev. 030798
Operating Instructions tico 735 - Position Indicator
page 1/11
Advertisement
Table of Contents
Related Manuals for Hengstler tico 735
Summary of Contents for Hengstler tico 735
-
Page 1: Table Of Contents
Operating Instructions tico 735 - Position Indicator Introduction Your Hengstler tico 735 Position Indicator is one model in a family of 1/8 DIN units which offers breakthrough display technology as well as easy-to-program single-line parameters. Designed to provide instant visual feedback regarding an application’s key input value, the tico 735 not only has a 18 mm high LED display, but also the ability to change display colour based on process status (programmable parameter in Operation Mode). -
Page 2: Safety Instructions
When putting into operation, the EMC of the whole installation (unit) has to be secured. In particular, the relay outputs are to be protected from high noise radiation by suitable wiring. 2 735 021, Rev. 030798 Operating Instructions tico 735 - Position Indicator page 2/11... -
Page 3: Installation
To remove the components, grip the side edges of the panel and pull the instrument forward. Take note of orientation of the unit for subsequent replacement in the housing. 2 735 021, Rev. 030798 Operating Instructions tico 735 - Position Indicator page 3/11... -
Page 4: Wiring
0-20 mA, 0-10 VDC, 2-10 VDC, 0-5 VDC, or while terminal #18 is connected as the common. 1-5 VDC. Terminals 11 & 15 are not used and must not be connected! 2 735 021, Rev. 030798 Operating Instructions tico 735 - Position Indicator page 4/11... -
Page 5: Operation
Program Mode. In Program Mode: No function Down & In All Modes: Will abort an Edit Operation Scroll and return the preset/parameter to its previous value. 2 735 021, Rev. 030798 Operating Instructions tico 735 - Position Indicator page 5/11... -
Page 6: Operation Mode
$ ' Function : Defines the position value at or above which Alarm 1 will activate. Adjustm. Range : -19999 to 99999 Default Value : 1000 2 735 021, Rev. 030798 Operating Instructions tico 735 - Position Indicator page 6/11... -
Page 7: Program Mode
Function: Defines a home position by selecting a value other than zero or another value within the displayed range of the device to which the counter can reset Adjustment Range: -19999 to 99999 Default Value: 0 2 735 021, Rev. 030798 Operating Instructions tico 735 - Position Indicator page 7/11... - Page 8 Function : Defines the upperer end of the linear scale for the retransmission output by defining the value equated to the maximum output signal. Adjustment Range: -19999 to 99999 Default Value: 100 2 735 021, Rev. 030798 Operating Instructions tico 735 - Position Indicator page 8/11...
- Page 9 The value associated with that parameter can be identified by a single parameter will appear by pressing the digit in the secondary display scroll key or waiting for 3 seconds 2 735 021, Rev. 030798 Operating Instructions tico 735 - Position Indicator page 9/11...
-
Page 10: Technical Data
4 updates per second RS-485 Option 6OFA RS485, serial asynchronous, Open ASCII, Master-Slave, up to 99 zones Parameters 9600...1200 Bd, 1 start, 7 data, 1 stop, even parity 2 735 021, Rev. 030798 Operating Instructions tico 735 - Position Indicator page 10/11... -
Page 11: Ordering Information
9 Batch Counter (only with function 2,4,5) © 1998 HENGSTLER GmbH This documentation may not be changed, amended, or copied without prior written consent of HENGSTLER GmbH, and may not be used in contradiction to this company’s rightful interests. Hengstler GmbH...
