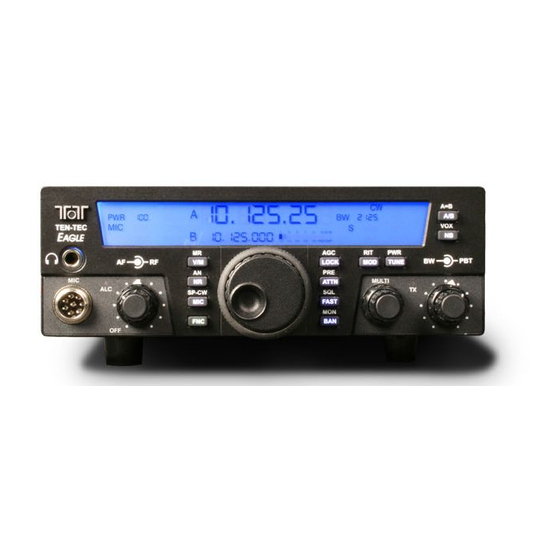

Ten-Tec Eagle 599 Manual

Amateur hf/vhf transceiver
Hide thumbs Also See for Eagle 599:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

Table of Contents

1.
Your new Eagle 599 _________________________________________________________ 3
1.1. Unpacking Eagle 599 _____________________________________________________________ 3
1.2. About this Manual _______________________________________________________________ 3
1.3. Accessory package _______________________________________________________________ 3
1.4. Connection to Antenna & Power Supply _____________________________________________ 4
1.5. A word about grounding __________________________________________________________ 4
1.6. Philosophy of design _____________________________________________________________ 5
1.7. Configuration Menu _____________________________________________________________ 6
2.
Easy Operation Guide _______________________________________________________ 7
2.1. General Operations ______________________________________________________________ 7
2.2. SSB Mode Operation ____________________________________________________________ 14
2.3. CW Mode Operation ____________________________________________________________ 18
2.4. AM Mode Operation ____________________________________________________________ 19
2.5. FM Mode Operation ____________________________________________________________ 19
2.6. Mobile Operation _______________________________________________________________ 19
2.7. Digital Mode Operation__________________________________________________________ 19
2.8. Internal Hardware Noise Blanker _________________________________________________ 19
2.9. Internal Tuner _________________________________________________________________ 20
2.10. Optional Filter Installation ______________________________________________________ 21
3.
Eagle Rear Panel __________________________________________________________ 22
4.
Accessory Devices _________________________________________________________ 24
4.1. Using the 712 USB/Soundcard Interface ____________________________________________ 24
4.2. Interfacing to a computer and firmware updates _____________________________________ 24
4.3. List of Optional Accessories For The Eagle _________________________________________ 26
5.
Specifications _____________________________________________________________ 27
5.1. Transceiver Specifications _______________________________________________________ 27
5.2. Transceiver Block Diagram ______________________________________________________ 30
6.
In Case of Difficulty ________________________________________________________ 32
7.
Warranty & Return Policy ___________________________________________________ 34
8.
Addendum A (Firmware Version 1.682) ________________________________________ 35
9.
Addendum B (added January 13, 2011) ________________________________________ 36
9.1. FM CTCSS Tones ______________________________________________________________ 36
9.2. Retaining User Settings __________________________________________________________ 36
599 / Eagle Users manual
Part #74447
Printed in USA
Release 1.009 CE - April 15, 2015
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eagle 599 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ten-Tec Eagle 599

Summary of Contents for Ten-Tec Eagle 599

  • Page 1: Table Of Contents

    Table of Contents Your new Eagle 599 _________________________________________________________ 3 1.1. Unpacking Eagle 599 _____________________________________________________________ 3 1.2. About this Manual _______________________________________________________________ 3 1.3. Accessory package _______________________________________________________________ 3 1.4. Connection to Antenna & Power Supply _____________________________________________ 4 1.5. A word about grounding __________________________________________________________ 4 1.6.
  • Page 2 9.3. Proper Tuner Operation _________________________________________________________ 37 9.4. High Current Protection _________________________________________________________ 37 9.5. Temperature Protection _________________________________________________________ 37 Addendum C (added February 21, 2011) _____________________________________ 38 10.1. Squelch Clarification ___________________________________________________________ 38 10.2. Utilization of the optional 15k filter for FM Reception _______________________________ 38 10.3.

  • Page 3: Your New Eagle 599

    Dynamic Hand Mic A complete description of the features and 27091 Auto Style Fuse, 25 Amp 32V functions on the Eagle 599 are included 35241 8 PIN DIN Connector Plug – Stereo, 3.5MM (1/8) within the pages of this manual. The latest...

  • Page 4: Connection To Antenna & Power Supply

    1.4. Connection to Antenna & 1.5. A word about grounding Power Supply A good ground system is essential for optimum operation of any HF transmitter. The Eagle is designed for use with any The best solution is to connect all the station antenna system providing a 50 Ohm resistive equipment to a single ground connection.

  • Page 5: Philosophy Of Design

    1.6. Philosophy of design outputs. With the Model 599 Eagle, Ten-Tec has The PIC processor in the CPU module created a transceiver combining simplified executes firmware stored in EEPROM to controls and ease of operation with the...

  • Page 6: Configuration Menu

    1.7. Configuration Menu Item Settings Notes: Upon purchase of your transceiver some Name settings may have already been factory nO / none Refer to Section installed and set into the Eagle. Optional “Optional Filter 15.0/15KHz accessories such as an auto tuner, a specific Installation”...

  • Page 7: Easy Operation Guide

    Eagle functionality for both Primary and Secondary must use an amplifier interface relay such as buttons are described in the following the ARB-704 sold through the Ten-Tec sections. company P/N #R9901 Master Reset (using LOCK (15) button)
  • Page 8 TEN-TEC AGLE LOCK TUNE ATTN SP-CW FAST FNC (12) TUNE (25) The FNC button is a vital portion of this If the auto tuner for the Eagle is not turned on radio. All Secondary Functions of the Eagles or is not installed this button will generate a button set are accomplished by pressing the carrier signal for tuning purposes at 20 watts.
  • Page 9 TEN-TEC AGLE LOCK TUNE ATTN SP-CW FAST Multi (26) A/B (28) Most features on the Eagle are directly This Primary Function allows you to toggle accessible, however, for those that are not the the frequencies between VFO A and VFO B MULTI KNOB is used to adjust specific each time you press the button.
  • Page 10 TEN-TEC AGLE LOCK TUNE ATTN SP-CW FAST Lock (15) Storing a Frequency to Memory (6) To lock the VFO on a frequency so no When the main display holds a frequency you movement to the VFO knob varies the wish to store into memory, Enter Secondary frequency, press the LOCK button once to Function Mode then press V/M.
  • Page 11 TEN-TEC AGLE LOCK TUNE ATTN SP-CW FAST Headphones (1) PBT (32) Headphones using a ¼” mono or stereo Verify that the PBT control is at the top dead connector can be plugged into the jack #1 center of rotation to begin listening in all located on the front of the Eagle.
  • Page 12 TEN-TEC AGLE LOCK TUNE ATTN SP-CW FAST AF Gain Control (4) NR (9) Note: this is a dual concentric knob. The To activate the DSP noise reduction just press inside knob controls the audio volume level the NR button to turn this feature on and off.
  • Page 13 TEN-TEC AGLE LOCK TUNE ATTN SP-CW FAST ATTN (17) You can now adjust the Speech Processor To activate the attenuator just press the level with the MULTI knob. The valid ATTN button to turn this feature on and off. selections are 0 through 9, with 0 being...

  • Page 14: Ssb Mode Operation

    TEN-TEC AGLE LOCK TUNE ATTN SP-CW FAST 2.2. SSB Mode Operation The AUTO-NOTCH feature works in LSB, To begin SSB operation toggle the MOD USB, and AM modes. The AN indicator will button to either the LSB or USB for the band show the state of the AUTO-NOTCH feature, of choice you wish to operate.
  • Page 15 TEN-TEC AGLE LOCK TUNE ATTN SP-CW FAST MIC Connector (2) Front panel jack used for connection of a microphone. The Eagle features the common 8-pin microphone jack used in many amateur radio transceivers. Most dynamic or Electret Microphones can be used. When adapting a microphone, please refer to the wiring diagrams in Figures 2.2-1 and 2.2-2...
  • Page 16 SP-CW FAST Chassis ground and mic signal ground are If other microphones are used with the Eagle, separated to reduce the possibility of which may need more gain, Ten-Tec has introducing stray hum or RFI into transmit provided hardware microphone gain audio signal.
  • Page 17 TEN-TEC AGLE LOCK TUNE ATTN SP-CW FAST VOX (29) PBT Settings (32) To toggle the VOX on and off Enter Rotating the PBT control during heavy QRM Secondary Function Mode, then press the NB plus adjusting the filter Bandwidth setting button and you will see VOX appear on the will greatly reduce close in interference.

  • Page 18: Cw Mode Operation

    TEN-TEC AGLE LOCK TUNE ATTN SP-CW FAST 2.3. CW Mode Operation The internal keyer built into the Eagle can be The rear panel on the Eagle has a 1/8” stereo adjusted select proper speed, jack for connection of a key paddle.

  • Page 19: Am Mode Operation

    With the Noise 2.6. Mobile Operation Blanker activated, press and hold the NB The Eagle 599 will lend itself to be an button for about two seconds. 1 beep will excellent 100-watt mobile transceiver. indicate normal setting, and 2 beeps will mobile bracket P/N 321 is available as an indicate a more aggressive setting.

  • Page 20: Internal Tuner

    2.9. Internal Tuner The Eagle offers an optional Internal Tuner. Once the Auto Tuner is installed, you will need to go into the Configuration Menu and enable it on. CAUTION: Please refer to the section entitled “PROPER TUNER OPERATION” before utilizing the internal tuner. The Eagle provides manual tune method, along with an auto tune/bypass selection.

  • Page 21: Optional Filter Installation

    on the top of the filter will then read 2.10. Optional Filter properly from the rear of the radio. If your Installation filter comes with the vibration barrier The Eagle has three filter slots: Filter Slot 1 attached to the bottom just temporarily (F1), Filter Slot 2 (F2), Filter Slot 3 (F3).

  • Page 22: Eagle Rear Panel

    MODEL 599 TEN-TEC, INC. SEVIERVILLE, TN FUSE MADE IN USA WWW.TENTEC.COM 13.8V FCC ID DJ7-599 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and...
  • Page 23 MODEL 599 TEN-TEC, INC. SEVIERVILLE, TN FUSE MADE IN USA WWW.TENTEC.COM 13.8V FCC ID DJ7-599 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and...

  • Page 24: Accessory Devices

    4. Accessory Devices 4.1. Using the 712 USB/Soundcard Interface To use the 712 soundcard interface for digital modes, connect the 712 device between the ACC-1 connector and the USB port on your Windows computer. Using your favorite audio generated digital programs can now be used with the Eagle.
  • Page 25 If required, you can change the actual port connected, disconnect for a second or number being used to a lower number if two, then reconnect, helps computers that don’t “disconnect” the USB driver unless required. Sometimes the update program on some computers will require a port number it is physically disconnected) lower than 10.

  • Page 26: List Of Optional Accessories For The Eagle

    4.3. List of Optional Accessories For The Eagle The Eagle permits the usage of several optional accessories. At the time this manual was printed, the list includes the following items: Item Part/Model Number 15 KHz Filter 2005 6 KHz Filter 2003 1.8 KHz Filter 2000...

  • Page 27: Specifications

    5. Specifications 5.1. Transceiver Specifications GENERAL Microphone Connector: 8-Pin 1/4 ” Stereo, accepts mono or stereo plug. Headphone Jack: 1/8 “ Stereo External CW Key Jack: 1/8” Mono, accepts mono or stereo plug. External Speaker Jack: Aux DC Output Connector: RCA x2 Frequency Range TX: Ham Bands Only (160-6M)
  • Page 28 RECEIVER SSB Sensitivity: Better than 0.7uV, 2.4khz, 10dB SINAD, preamp off AM Sensitivity: Better than 4uV, 30% Mod, 6kHz BW, 10dB SINAD, preamp off FM Sensitivity: Better than 2.2uV, 5kHz Dev, 16kHz BW, 10dB SINAD, preamp off Selectivity IF1: 2.4khz standard, 9.0015 MHz, 2 options Selectivity IF2: 30 KHz Lowpass filter Selectivity, DSP IF:...
  • Page 29 TRANSMITTER RF Power Output: Adjustable, 5-100 W, +/- 1 dB CW & SSB Duty Cycle: continuous service @ 100W AM,FM,AFSK,PSK Duty Cycle: continuous service @100W, 50% duty cycle (Tx/Rx) CW/SSB TX Bandwidth: 2.4kHz Filter AM TX Bandwidth: 6kHz Optional Filter FM TX Bandwidth: 15kHz Optional Filter Microphone Input Impedance: >10 k-ohms at 1 kHz...

  • Page 30: Transceiver Block Diagram

    5.2. Transceiver Block Diagram Release 1.009 CE – April 15, 2015 599 / Eagle Users manual Part #74447 Printed in USA...

  • Page 31: Fcc Compliance

    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult Ten-Tec service for technical assistance (865) 428-0364 Release 1.009 CE – April 15, 2015 599 / Eagle Users manual...

  • Page 32: In Case Of Difficulty

    6. In Case of Difficulty Problem: Distorted SSB transmit – or – While we cannot cover every possible problem, here are some hints for dealing with Perceived RFI in the shack. some potential difficulties. Check the Be certain the mic gain is set properly. The obvious.
  • Page 33 Manager. It is possible that the USB port was Problem: Transceiver power shuts off while transmitting used previously and for some reason The Eagle is equipped with a silicon- Windows has not released it for use. In this controlled rectifier that opens if the PA instance, disconnect the USB cable at either current draw exceeds an instantaneous power the computer end or the Eagle end, exit the...

  • Page 34: Warranty & Return Policy

    7. Warranty & Return Policy Warranty policy for Ten-Tec products is covered in the gold color page located on the last page of this manual. FOR EQUIPMENT MANUFACTURED BY TEN-TEC: Ten-Tec factory built radio equipment is sold under a 30-day risk-free trial period. Any piece of equipment manufactured by Ten-Tec may be returned, undamaged, within 30 days of purchase for a full purchase price refund, less shipping charges (customer pays shipping both ways).

  • Page 35: Addendum A (Firmware Version 1.682)

    8. Addendum A (Firmware Version 1.682) This section identifies additional features and changes to features that are implemented in firmware versions 1.682. PWR (24) This feature is augmented to permit customer selection of transmit power from 0 to 100 watts. Values below 5 watts are not guaranteed to perform at exactly the power selected, and are not recommended for use with AM.

  • Page 36: Addendum B (Added January 13, 2011)

    9. Addendum B (added January 13, 2011) 9.1. FM CTCSS Tones The Eagle supports the generation of FM TX CTCSS Tones. Available settings: OFF, or any of the 49 standard CTCSS access tones. CTCSS (Continuous Tone Controlled Squelch System) transmits a sub audible tone in the range of 67 to 254 Hz encoded with voice audio.

  • Page 37: Proper Tuner Operation

    9.3. Proper Tuner Operation The Internal Auto Tuner provided by the Eagle is designed to recall the last tuned setting for a given band. This enables the operator to change bands without the requirement of “re tuning” every time the band is changed. While this gives users the ability to quickly change bands and transmit, such as in certain contests, this does require the operator re-tune each band whenever an antenna is changed.

  • Page 38: Addendum C (Added February 21, 2011)

    Addendum C (added February 21, 2011) 10.1. Squelch Clarification SQL (18) – is defined in the section concerning SSB operations. As a clarification to the instructions Squelch level is adjusted as follows:  Enter Secondary Function Mode by pressing the FNC button. ...

  • Page 39: Addendum D (Added March 4, 2011)

    Addendum D (added March 4, 2011) Modified Section “4.2. Interfacing to a computer and firmware updates”. Removed the instructions on how to install the “.inf” file, and instead refer to the instructions on how to install the drivers from the TenTec web site. Release 1.009 CE –...

  • Page 40: Ec Declaration Of Conformity

    Safety. General requirements (Class III SELV equipment) Authorised Signatory: Date of issue Mr. Jack Burchfield, President April 27 2011 For and on behalf of TEN-TEC Inc Sevierville, USA Release 1.009 CE – April 15, 2015 599 / Eagle Users manual Part #74447...
