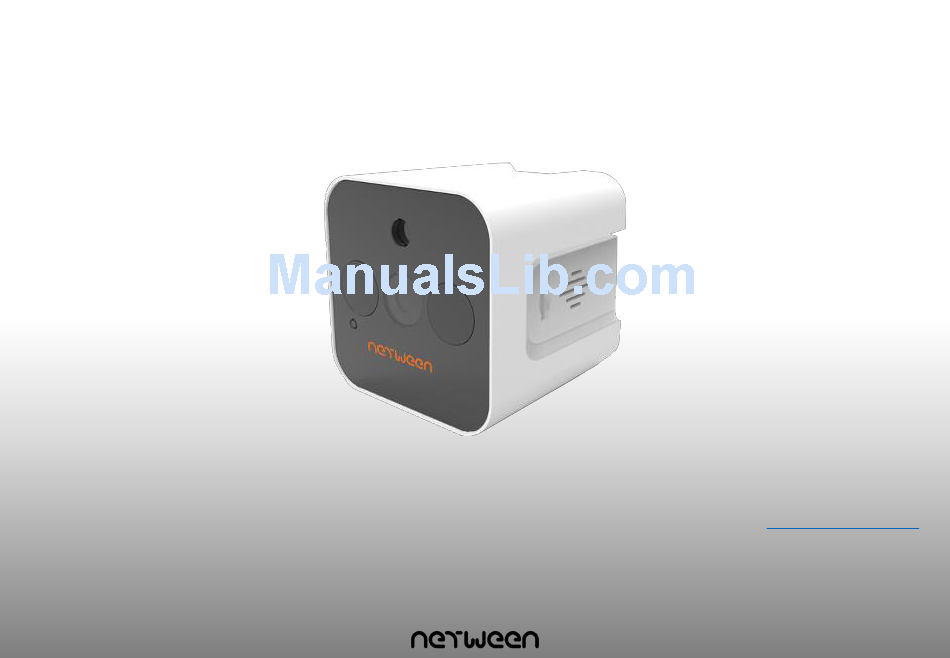

Netween Cube
Netween Cube
Quick Install Guide
Presentation by Netween Inc.
http://www.netween.co.kr
For more information, refer to the detailed manual on the Netween homepage.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cube and is the answer not in the manual?

Questions and answers

Summary of Contents for NETWEEN Cube

  • Page 1 Netween Cube Netween Cube Quick Install Guide Presentation by Netween Inc. http://www.netween.co.kr For more information, refer to the detailed manual on the Netween homepage.
  • Page 2 Index 1. Product Composition / Install App ( i-Phone & Android ) 2. Installation Precautions 3. Product Registration 4. App function 4. App function 4. App function 1) Master registration 5) Motion detection 7) Live streaming 8) Black box 2) Sub-user registration and push alarm (Link transmission, QR code) 6) Snapshot...

  • Page 3: Product Composition

    Types or colors of products may be slightly different depending on the user’s PC environment. Cable (3M) Netween cube Stand Adapter screw Quick install guide Install App ( i-Phone & Android ) ▶ Scanning the QR code, you can install the ‘netween cube’app.

  • Page 4: Installation Precautions

    • Registration method (Station mode): When pressing the reset button for 2 seconds on the back of product, it will sound “ding~ ding~”. At this time, a cube is ready to be registered in the name of “NETWEEN_xxxx.” If “ding~” sounds only once, press for 2 seconds once again and check you hear “ding~ ding~”...
  • Page 5 3. 1) Product Registration- Master Registration Smartphone and product have to be Click the ‘Plus’ button. Click the Online. Search ‘netween cube’ connected same router. at app store or google Before registering on the app, please play store and install.
  • Page 6 3. 1) Product Registration- Master Registration Click the “Setting Netween cube WiFi” . Click the “Setting Netween cube WiFi” . Take a picture of the QR code on the top Enter a camera name, and click the It is second botton.
  • Page 7 3. 1) Product Registration- Master Registration Smartphone find automatically the Netween cube and register. Select “WiFi Settings”. Please wait to finish. Select router that the product will be connected and then enter the WiFi password. ※ If there is no “NETWEEN_xxxx”, please check the AP mode or not.
  • Page 8 After clicking Iphone WiFi set-up, set NETWEEN_XXXX. Select router that the product will be connected and then enter the WiFi password. ※smartphone and router have already connected. Getting back ‘Netween cube’ app. Having connected router’s name router p/w 123456789 • Click ‘iphone WiFi set-up’, appearing the WiFi list screen like this.
  • Page 9 Registration as a Sub-user is white.  Stopping the LED blink: Camera and router connection is right and AP mode. There is ‘Online’ sign on the list. LED On ☞For more information, refer to the detailed manual on the Netween homepage.
  • Page 10 3. 2) Sub-user Registration ; Remote Registration (Link Transmission) • Master = The first cube registrant. He/she can accept all the information • Sub-user = The registrant who can register from master’s URL. He/she can not accept all the information.
  • Page 11 3. 2) Sub-user Registration ; Remote Registration (Link Transmission) Master Sub-user Master user select the messenger app, and send the When recipient touch a link, go to the cube app. message. Register automatically. ※The link can’t be copied and pasted.
  • Page 12 Click the Online. Click the ‘Plus’ button. Take a picture of the QR code on the top of a product, and click the complete button. netween cube Click Enter the product name. Click the Complete. Click the play Icon. Ask master to sharing.
  • Page 13 3. 2) Sub-user Registration ; QR Code Input Recognition, Sharing Request Master Sub-user Sub-user Master gets this message. Master user confirm, sub-user gets Completed registration. Click “confirm”. confirm message. Master only function is limited. Click “confirm”. Click Click...
  • Page 14 4. 1) Watching the video, voice calling By clicking the icon created by the list, it is connected to the camera and you can view the video. If you turn the smartphone, it switches to landscape mode, which enables you to see a large screen. When you zoom with your finger, you can see the enlarged image.
  • Page 15 4. 2) Firmware Upgrade You can upgrade of the Netween cube’s inside. When you upgrade firmware, please do not use other application. If you do that, the upgrading would be failed. Master only can upgrade firmware. Sub-user can’t be allowed.
  • Page 16 3. Setting Page 4. Changing the name Changing the router Delete 2. Click the trash can It can search and 1. Click the edit select the router around the Netween cube. Type the router’s p/w and click the ‘save’ Standard time...
  • Page 17 4. 4) Watching multi screen Installing more than two, watching multi screen is possible. Multi screen is a function as seeing from two to four cameras on your smartphone at once. Click the multi screen icon. Click the cameras what you want Cameras which are you choose Turning the smartphone on the to see at once.

  • Page 18: Motion Detection

    4. 5) Motion detection and Push alarm Only master can control the set-up page. Motion detection 1. Click the edit on the upper 2. Click the set up icon. 3. Turn on the motion detection. right side of the screen. Push Alarm 1.
  • Page 19 4. 6) Snapshot (smartphone storage) Click on the camera icon. Click the set up icon Click the album. Click an image. Save a snapshot. There are snapshots. You can make it big. snapshot (smartphone storage) Install guide video, Install guide, FAQ...
  • Page 20 4. 7) Live Only master registration camera. Ending up time limitation, live will be gone. Being able to check the time left. Master Master Master Master Click the live icon. Click a “start live”. Set up a time limitation. Select a message app and send a URL.
  • Page 21 Put a micro SD card in a Changing mode - Search WiFi and connect Run the app. Click the “IoT” and Netween Cube. Press the reset button for 2 seconds ‘NETWEEN_XXXX’. “Black box”. on the back of product, when you can (Each product has each XXXX) hear “ding~ ding~”...
  • Page 22 4. 8) Black box Click no.1 Click no.2 Click no.3 Connected netween cube is There is a real-time screen. Choose full time record or Check the video. blue color. motion record. You can find preview on the screen. Full time record...
  • Page 23 Presentation by Netween Inc. http://www.netween.co.kr...
