NETWEEN CUBE Quick Install Manual

Hide thumbs Also See for CUBE:

Advertisement

Quick Links

Download this manual See also: Quick Installation Manual

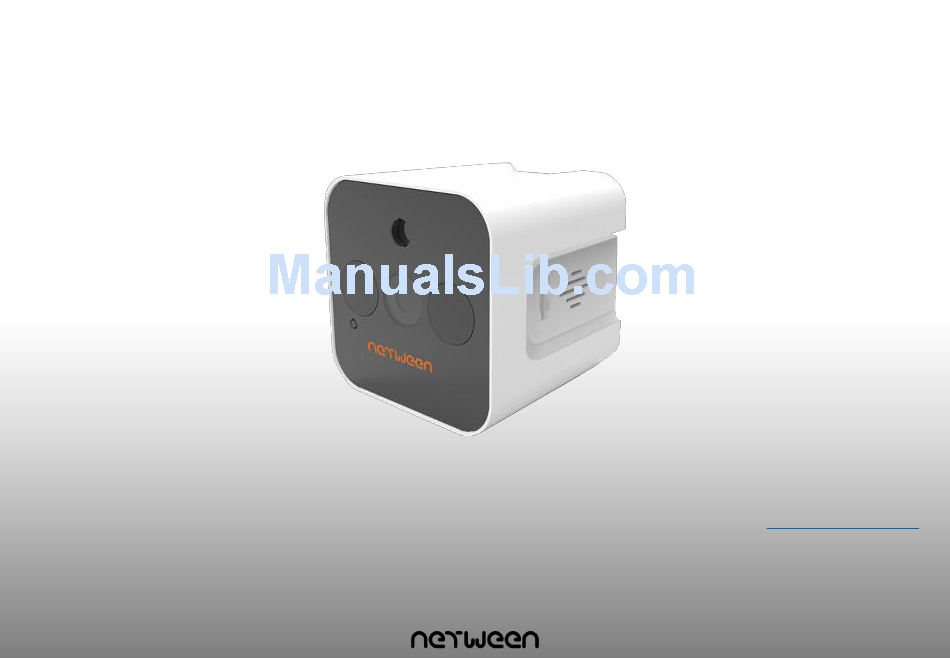

Netween Cube
Netween Cube
Quick Install Guide
Presentation by Netween Inc.
http://www.netween.co.kr
For more information, refer to the detailed manual on the Netween homepage.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CUBE and is the answer not in the manual?

Questions and answers

Related Manuals for NETWEEN CUBE

Summary of Contents for NETWEEN CUBE

  • Page 1 Netween Cube Netween Cube Quick Install Guide Presentation by Netween Inc. http://www.netween.co.kr For more information, refer to the detailed manual on the Netween homepage.

  • Page 2: Product Composition

    Types or colors of products may be slightly different depending on the user’s PC environment. Cable (3M) Netween cube Stand Adopter screw Quick install guide Install App ( i-Phone & Android ) ▶ Scanning the QR code, you can install the ‘netween cube’app.

  • Page 3: Installation Precautions

    • Registration method (Station mode): When pressing the reset button for 2 seconds on the back of product, it will sound “ding~.” At this time, a cube is ready to be registered in the name of “NETWEEN_xxxx.” If “ding~” sounds only once, press for 2 seconds once again and check you hear “ding~ ding~”...
  • Page 4 Method of Use of Smartphone App (Product Registration- Master Registration) Smartphone and product have to be Click the ‘Plus’ button. Click the Online. Search ‘netween cube’ connected same router. at app store or google Before registering on the app, please play store and install.
  • Page 5 Method of Use of Smartphone App (Product Registration- Master Registration) Click the “Setting Netween cube WiFi” . Take a picture of the QR code on the top Enter a camera name, and click the “confirm” It is second botton. of a product, and enter a camera name.
  • Page 6 No.8 is only for android version V6.0.1 and over this version. Below the android version V6.0.1 version, this step is skipped. Smartphone find automatically the Netween cube and register. Select “WiFi Settings”. You can find the ‘NETWEEN_xxxx’ on the list.
  • Page 7 After clicking Iphone WiFi set-up, set NETWEEN_XXXX. Select router that the product will be connected and then enter the WiFi password. ※smartphone and router have already connected. Getting back ‘Netween cube’ app. Having connected router’s name router p/w 123456789 • Click ‘iphone WiFi set-up’, appearing the WiFi list screen like this.
  • Page 8 Registration as a Sub-user is white.  Stopping the LED blink: Camera and router connection is right and AP mode. There is ‘Online’ sign on the list. LED On ☞For more information, refer to the detailed manual on the Netween homepage.
  • Page 9 Sharing Way 1. Remote Registration; Link Transmission(Sub-user Registration) • Master = The first cube registrant. He/she can accept all the information • Sub-user = The registrant who can register from master’s URL. He/she can not accept all the information. Sub-user Master Run the App.
  • Page 10 Sharing Way 1. Remote Registration; Link Transmission(Sub-user Registration) Master Sub-user Master user select the messenger app, and send the When recipient touch a link, go to the cube app. message. Register automatically. ※The link can’t be copied and pasted.
  • Page 11 Click the Online. Click the ‘Plus’ button. Take a picture of the QR code on the top of a product, and click the complete button. netween cube Click Enter the product name. Click the Complete. Click the play Icon. Ask master to sharing.
  • Page 12 The Method of Use of Smartphone (watching the video, voice calling) By clicking the icon created by the list, it is connected to the camera and you can view the video. If you turn the smartphone, it switches to landscape mode, which enables you to see a large screen. When you zoom with your finger, you can see the enlarged image.

  • Page 13: Firmware Upgrade

    Firmware Upgrade You can upgrade of the Netween cube’s inside. When you upgrade firmware, please do not use other application. If you do that, the upgrading would be failed. Master only can upgrade firmware. Sub-user can’t be allowed. Click the edit.
  • Page 14 Firmware Upgrade When you upgrade firmware, please do not use other application. If you do that, the upgrading would be failed. Download firmware from Upgrading the product. Click the OK Setting upgrade. the server. (About 120sec) (About 60sec) (About 20sec) Complete.
  • Page 15 Click the edit Click the set-up icon Setting Page Changing the name Edit Changing the router It can search and select the router around the Netween cube. Type the router’s p/w and click the ‘save’ Standard time Click the trash can Delete...
  • Page 16 Presentation by Netween Inc. http://www.netween.co.kr...
