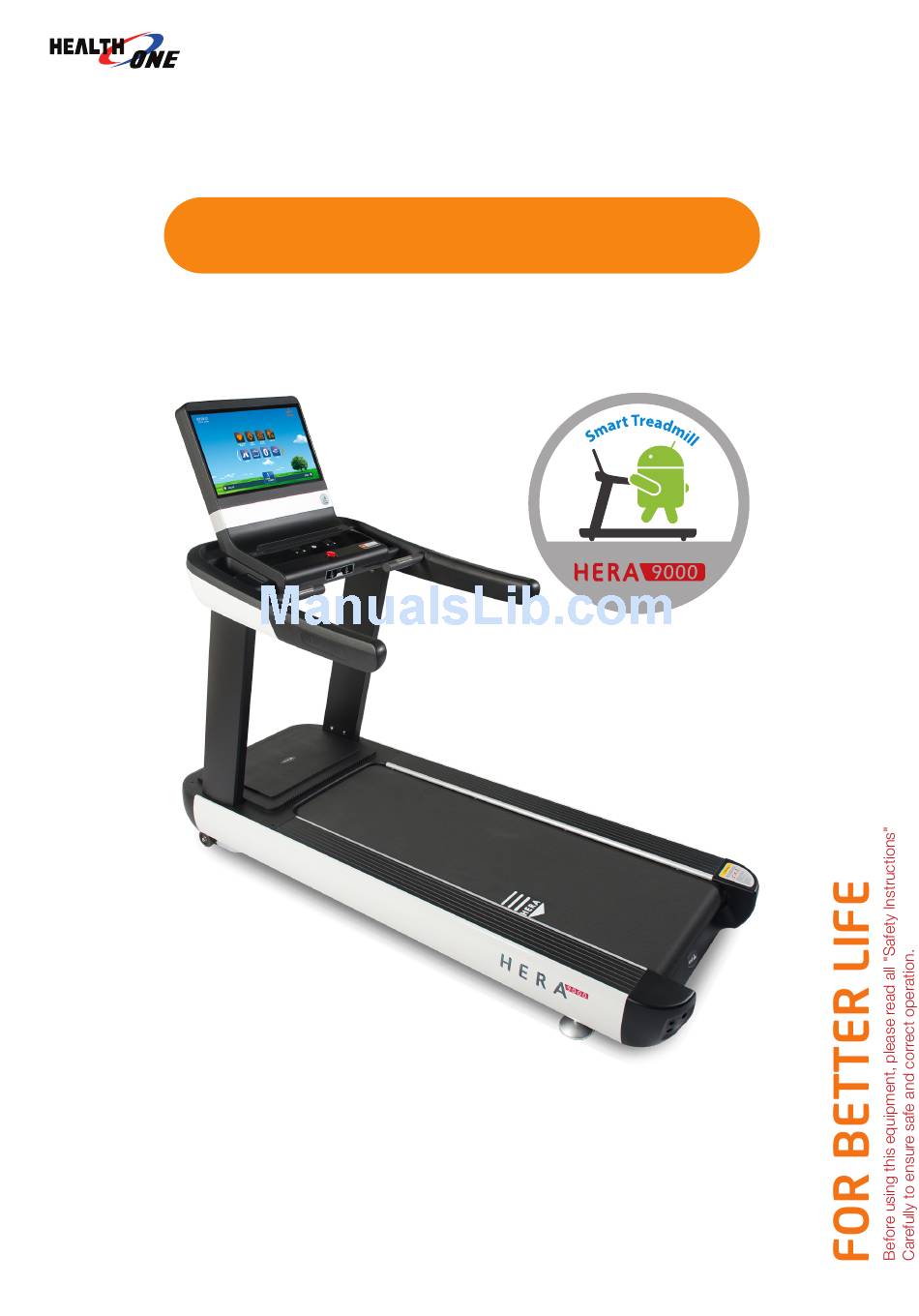

- Page 1 USER MANUAL HERA-9000 ( Android ) For customer service, call +82-(0)-31-949-8010...
-
Page 2: Table Of Contents
E-mail: ceo@eheatlh-one.com Oversea Business Partners B. MANAGEMENT INSTRUCTIONS HEALTH ONE ASIA PTE., LTD 391B Orchard Road, #23-01 Ngee Ann City Tower B, Singapore 238-874 B-1. SYSTEM PARAMETER ...........26 Tel : +65 9337 8030 / Fax : +65 6736 7389 www.healthone.asia / E-mail : info@healthone.asia... -
Page 3: General
A. GENERAL A-1. SPECIFICATIONS Specifications Items HERA 9000 Android Motor AC 3HP (Continuous) Speed 1.0 ~ 20.0 km/h Incline 0-16% INCLINEx1 3 Cardio Programs Programs 6 Profile Programs 3 Target Programs Speed, Distance, Calories, Incline, Display Time, Program, Target, Heart Rate Monitor 23 inch LED FULL HD TV Auto Stop... -
Page 4: A-2.Safety Instructions
A. GENERAL A-2. SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS The following safety instructions are for correct and safe use of the Treadmill and should be followed for your safety and to prevent accident. There are 3types of safety marks PROHIBITION, WARNING, and CAUTION, according to the safety level. This mark calls for your attention to a possible danger. - Page 5 A. GENERAL A-2. SAFETY INSTRUCTIONS Means possible light damage on injury. CAUTION Power must be turned off and plugged removed To avoid possible impact injury from falling of the after use or when not in use for a long period of machine, ensure that solid objects are distance 2 time.
-
Page 6: Component Parts
A. GENERAL A-3. COMPONENT PARTS Components of MainBody This produt is packed and delivered as semi-assembled. Console Post Body R o H p l i a c o m / 9 5/ 20 02 RoHS compliant 2002/95/EC HERA-9000(Android) -
Page 7: A-4. Description

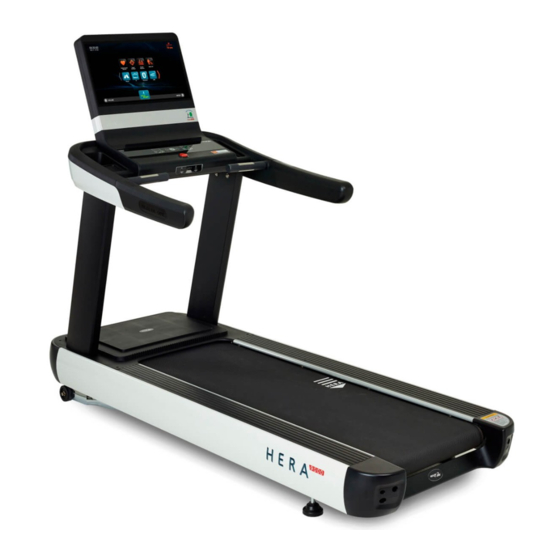

A. GENERAL A-4. DESCRIPTION DESCRIPTION HERA-9000Android is a High Class SMART TREADMILL with a Wide 23 inch LED Monitor at Full HD Resolution. And it is operated by Android OS with touch screen. Not only treadmill's basic functions, but also Body Fat checking, wireless Heart Rate monitoring by Bluetooth functions are possible, and it is very well harmonized with one's customized workout. -
Page 8: A-6. Installation
A. GENERAL A-6. INSTALLATION ASSEMBLY AND INSTALLATION After unpacking all the components, assemble and install the machine as per the following procedure. Power connection should be at standard voltage Treadmill should be mounted on level floor. Avoid uneven surface. After the installation, Treadmill should be grounded. CAUTION Please remove any foreign material from around motor area before the test operation. - Page 9 A. GENERAL A-6. INSTALLATION POST Use bolts and tool Attaching the Posts Assembly 1 : Insert posts (left & right) into the post guides at the front of the main frame body 2 : Loosely tighten 12 bolt washers fasteningthe bottom of the posts (6 each left &...
-
Page 10: Console Assembly
A. GENERAL A-6. INSTALLATION Console Assembly Use bolts and tool Attaching the Console Assembly 1. Insert the legs of Console Assembly into the left and right post 2. pushing 4 cords through the post. 3. Loosely tighten 8 bolts with nuts fastening the bottom of the Console Assembly to the top of the posts (4 bolts each left &... - Page 11 A. GENERAL A-6. INSTALLATION CABLE 1. Left Post 2. Right Post Wiring of Console The Actuator, Motor and Input Cables on the Inverter are assembled to the Socket in the factory in advance 1. Pull A : Audio Cable, B: HDMI, C : TV Antenna Cable from the hole at the lower side of the left post 2.
- Page 12 A. GENERAL A-6. INSTALLATION AC Power connection and TV Antenna Cable 1. Insert the Antenna Cable to the Antenna Socket on the Front Cover -For Video or DVD watching, insert Audio cable or DVD cable. 2. HERA -7000HD should use grounded socket and power cord. Insert ANTENA the power cord provided to the power inlet at the front of main body and connect the power plug to the grounded socket.
- Page 13 A. GENERAL A-6. INSTALLATION Belt tension and side-drift adjustment. Belt tension must be adjusted whenever the machine was first installed or moved. Otherwise, it may cause slipping or damage of belt or worn-down and breakage of other parts. Belt adjustment consists of belt tension adjustment and level adjustment. Note : Turn the belt adjustment screw-heads in end-cover using 8 mm hexagon wrench to adjust the belt as shown in the above Adjustment with T-Wrench and movement change of belt and roller Belt Section...
-
Page 14: A-7. Instructions
A. GENERAL A-7. INSTRUCTIONS PART NAMES Designation Consol Console Cabinet(Front) Display Control Board HR / Body Fat Grip HR / Body Fat Grip Urethane Handgrip(L) Urethane Handgrip(R) Emergency Stop Button Jack Housing(Earphone Connecter) Console Cabinet(Rear) Cover for after-sales service 11a / 11b (11a : Under Console / 11b : Rear monitor) Body Motor Cover... -
Page 15: Name Plate
A. GENERAL A-7. INSTRUCTIONS Front Cover End Cover Wheel Oil Inlet Level Foot In side motor cover Motor Inverter Actuator(Incline Motor) Dust Block Plate Poly Belt Roller Front Name plate Product. TREADMILL. A : Indicates model name Model. CAUTION! Serial number. B : T 0 9 1 2 1 0 0 K Indicates serial number Net weight. - Page 16 A. GENERAL A-7. INSTRUCTIONS Applications and Functions on Screen 23 inch LED Touch Screen : Idle Screen of HERA-9000Android Manual Workout TV Screen during Workout TV Screen during Workout Bluetooth Pairing Input Personal Data...
- Page 17 A. GENERAL A-7. INSTRUCTIONS Displays workout time at seconds & minutes TIME (Min : 1 sec / Max : 99min 59sec) Displays calories consumption. Basic consumption is calculated from CALORIES 70kg weight, and user should input his/her correct weight to calculate real calories consumption hor his/her own workout.
- Page 18 A. GENERAL A-7. INSTRUCTIONS TV CONTROL BUTTON Change the channel and volume on TV Mode TV Volume / Channel To regulate TV Volume and TV Channel. Remote Controller To set detail functions of TV. Message Display Display the message for user Display Workout Information on the top of the screen while utilizing Floating Button internet or video You may move Floating icon to any location by touching...
- Page 19 A. GENERAL A-7. INSTRUCTIONS Other Operation Menu A: Emergency Stop button Please touch the "Emergency Stop" for any emergency purpose. If user click the button "Emergency" will be shown instead of "Workout resume" on the screen. If you want to get off or stop the workout without stopping the machine, please hold both handle and steop on non-slip pad on each side to avoid falling accident.
-
Page 20: Heart Rate Monitoring System
A. GENERAL A-7. INSTRUCTIONS Heart Rate Monitoring System There are two different types of heart rate monitoring system in Health- One;s Treadmill. 1. Wireless weearable device type & 2. Contact Type to check user's heart rate pulse continuously during workout. Contact Type Heart Rate Monitoring There are two heart rate checking sensor on Leaft&Right handle. - Page 21 A. GENERAL A-7. INSTRUCTIONS Body Fat Measurement and Save Healthone treadmill provides Body Fat measurement System to check your body fat and shows the graph that can also save it to own USB by date. Contact Type Body Fat Measurement System There are two handgrip sensor for Body Fat Checking.
-
Page 22: A-8. Operation Instructions
A. GENERAL A-8. OPERATION INSTRUCTIONS H o w Manual Workout 1. Turn on the Power(A.C. Power) Please turn on the Power Switch on Front Cover 2. Press Start Button If you press Start Button, the treadmill start the operation from 1.0km/h. QUICK START START/STOP Button operates both START &... -
Page 23: Target Workout
A. GENERALt A-8. OPERATION INSTRUCTIONS Target Workout Power Switch 1. Turn on the Power(A.C. Power) Please turn on the Power Switch on Front Cover Target Workout Button 2. Click the Target Workout Menu on the screen Choose workout target by Target Button (TIME, DISTANCE, CALORIES). Target Workout Control Button... - Page 24 A. GENERAL A-8. OPERATION INSTRUCTIONS Workout Programs CARDIOVASCULAR WORKOUT CARDIO workout The CARDIO workout is designed to maintain an user’s heart rate at 75 percent of the theoretical maximum for optimal results promoting cardiovascular improvement. This workout makes the treadmill speed and incline automatically adjusted to take the heart rate to the reselected level and keep it CARDIO constantly throughout the workout.
- Page 25 A. GENERAL A-8. OPERATION INSTRUCTIONS FAT BURN WORKOUT BUTTON FAT BURN workout The Fat Burn workout is designed to maintain an user’s heart rate at 65 percent of the theoretical maximum for optimal results. This workout is ideal for maximizing the aerobic benefits of exercise by using the body’ s fat stores for fuel.
- Page 26 A. GENERAL A-8. OPERATION INSTRUCTIONS 심박 목표 운동 버튼 Cardiovascular Workout/HR Goal It is designed to conduct only maximum 90% of user's eart rate in order to prevent excessive exercise. Speed and incline automatically will be controlled during HR GOAL workout based on user's heart rate.
- Page 27 A. GENERAL A-8. OPERATION INSTRUCTIONS Profile Workout 프로파일 운동 버튼 In this workout program, the user can choose one of 6 preset profiles and workout with the following profile pattern. The heart rate monitor is not necessary for this workout. Default value is 30min, 10km/h(max speed), and 0 for incline.
-
Page 28: Management Instructions
B. MANAGEMENT INSTRUCTIONS B-1. SYSTEM PARAMETER S y s t e m P a r a m e t e r A d j u s t m e n t Parameter, CPR The system parameter adjustment is for changing certain default setting or program. - Page 29 B. MANAGEMENT INSTRUCTIONS B-1. SYSTEM PARAMETER Classification Description Defaults Function 1 Trip distance Work-out distance (km) Cumulative Function 2 Total distance Total work-out distance (LSD is 10km) Cumulative Function 3 Operation day Total work- out time (days) Cumulative Function 4 Max frequency (Hz) Inverter output frequency at the max.
-
Page 30: B-2. Tv Setting
B. MANAGEMENT INSTRUCTIONS B-2. TV Setting I n t e r n e t C o n n e c t i o n Internet Access Connect a UTP cable on Ethernet Socket of Front Cover. ANTENA VIDEO ETHERNET HDMI IN AUDIO IN AC IN 220V / 60Hz Wi-Fi(Wireless) connection... - Page 31 B. MANAGEMENT INSTRUCTIONS B-3. External input S e t t i n g Channel setting 1. Connect TV Cable. 2. Input password on Menu of TV Remote Controller (Initial 1234), Press twice of ▶ button to move to channel. And press ▼ button wice to move to 'AutoSearch' and start the channel scan.
-
Page 32: B-4. Replacement Of Parts
B. MANAGEMENT INSTRUCTIONS B-4. REPLACEMENT OF PARTS REPLACEMENT OF PARTS Replacement of Deck, Roller and Running Belt Running belt can be worn out and damaged from friction. In order to prevent it, check the oil condition frequently and ensure the oil is not dried. -
Page 33: B-5. Lubrication
B. MANAGEMENT INSTRUCTIONS B-4. REPLACEMENT OF PARTS STEP 7 : Unscrew the bolt of the rear roller completely. STEP 8 : Detach the rear roller. STEP 9 : Detach the Motor Belt-pulley and front roller. STEP 10 : Detach the belt and the deck by pushing toward back. Assembling is in reverse order. -
Page 34: B-7. Trouble-Shooting
B. MANAGEMENT INSTRUCTIONS B-5. MAINTENANCE maintenance list Your careful and routine maintenance of equipment including lubrication and cleaning is essential for long and problem-free operation. Check point Check method Measure daily weekly monthly Inspection with unaided eye (window, Sweat, dust and oil on 1.Cleaning with dried cloth control board, handgrip, foot rail, motor surface... - Page 35 B. MANAGEMENT INSTRUCTIONS B-6. SELF-CHECK SELF-CHECK Most Treadmill problems can be solved by following the steps below. Before calling the Service Center or our agent, please check first if your problem is one of those listed below. If further assistance is still needed, then please call our Customer Service Department. Symptom Probable Cause Corrective Action...
- Page 36 B. MANAGEMENT INSTRUCTIONS B-7. CUSTOMER SUPPORT SERVICE Customer’s right 2 year Customer is entitled to free warranty services for from the date of purchase. However, if service is required due to force majeure or customer’s misusage, service shall be charged even if it is within the warranty period.
- Page 37 C U S T O M E R C A R D ITEM COMMERCIAL TREADMILL M O D E L HERA-9000I SALES DATE ·Name : ·Tel : ·e-mail : ·Address : Distributor This card is for use by the distributor for customer management. ※ The above information shall be used for better customer service. Remarks C U T WARRANTY CERTIFICATE...
- Page 38 www.ehealth-one.com ⓒ 2016 HEALTH-ONE CO.,LTD. 132, Sannam-ro, Ilsanseo-gu, Goyang-si, Gyeonggi-do, Korea (10201) Tel : +82-31-949-8010 / Fax : +82-31-949-8012 www.eheatlh-one.com / E-mail: ceo@eheatlh-one.com...
