"LOOP" and "RELOOP" are on.
23. USB SELECT BUTTON – This button lets you toggle between USB Port 1 and 2. In other words, you can select which USB port will
be activated and the relational LED will be lit. The function can only be selected under pause mode.
24. SEARCH BUTTONS – These buttons allows you to search fast backward or forward through the current track whether in play mode
or not.
* This search button allows you to quickly scan backwards through a track.
* This search button allows you to quickly scan forwards through a track.
25. TIME BUTTON – You can select different time display by pressing the TIME button to switch between elapsed and remaining time.
26. AUDIO OUTPUTS – The music-signal of these sockets is analogue. Connect the output to the respective input of your mixer.
27. CONTROL START SOCKET – If you are using a mixer with fader start function, connect the player with the fader start of the mixer.
Please note that these sockets must never be connected with any voltage.
28. POWER CONNECTOR – Plug in power adapter here. Please use the power adaptor included.
CONTROLS AND FUNCTIONS
CUE INDICATOR —This indicator will glow when the device is in CUE mode and will flash every time a new CUE POINT is set.
1.
FOLDER INDICATOR —indicates the number of the currently playing folder.
2.
TIME BAR INDICATOR —Shows either time remaining or elapsed depending on the setting of the SETUP MODE. This bar will
3.
begin to flash shortly before the end of a track.. The flashing bar is a great visual reminder a track is about to end regardless of which
time mode the unit is.
BPM STATUS —This will indicate that the AUTO BPM counter is active
4.
BPM METER —Indicates the BPM value of the currently playing track.
5.
PITCH METER —Indicates the percentage of a track's pitch
6.
TEMPO LOCK —Indicates if the tempo lock is activated (lock symbol)
7.
LOOP INDICATOR —The indicator will blink if LOOP function is activated, the indicator will remain if a loop has been set.
8.
RELOOP INDICATOR —Indicates if a loop has been set which can be activated with the Reloop function
9.
10. AUTO CUE STATUS —Indicates if Auto Cue is activated
11. TIME DISPLAY —Indicates the time of the chosen Time mode in minutes, seconds and frames.
12. ALPHANUMERIC DISPLAY —Indicates the current name of the track, of the folder and the sampling rate. For VBR recorded MP3
tracks the display only show "VBR". All kinds of other interactive information is also shown
13. TIME MODE —Indicates the elapsed time of a track ("ELAPSED") or the remaining time of a track ("REMAIN").
14. REPEAT INDICATOR —Indicates whether the unit is in REPEATED mode
15. SINGLE INDICATOR —Indicates whether the play mode is set to single ("SINGLE") or continuous mode (no display)
16. TRACK INDICATOR —Indicates the number of the currently playing track.
17. PLAY/PAUSE INDICATOR —Indicates the device is in play mode (:
BASIC OPERATION
1. MUSIC SOURCE DEVICE SELECT
There is a USB SELECT BUTTON to select the music source playback in each PLAYER by your desires.
You have two different choices as below:
(a) THE SAME USB PLAYBACK
To play the same USB in both player A and player B, insert the USB device into either USB 1 or USB 2 port. Press the USB SELECT
button and both USB 1 LEDs glow when USB device is in USB 1 port; either does when USB device is in USB 2 port.
(b) TWO USB devices PLAYBACK
Each USB port inserts a USB device to play. And each player select different USB port to play.
Note: To disconnect a USB drive, stop playback and "pull out" the USB connection.
2. HANGE MUSIC SOURCE DEVICE
It must be in the pause mode, to press the USB SELECT BUTTON you can select the other USB port, it will be no function when in
the play mode.

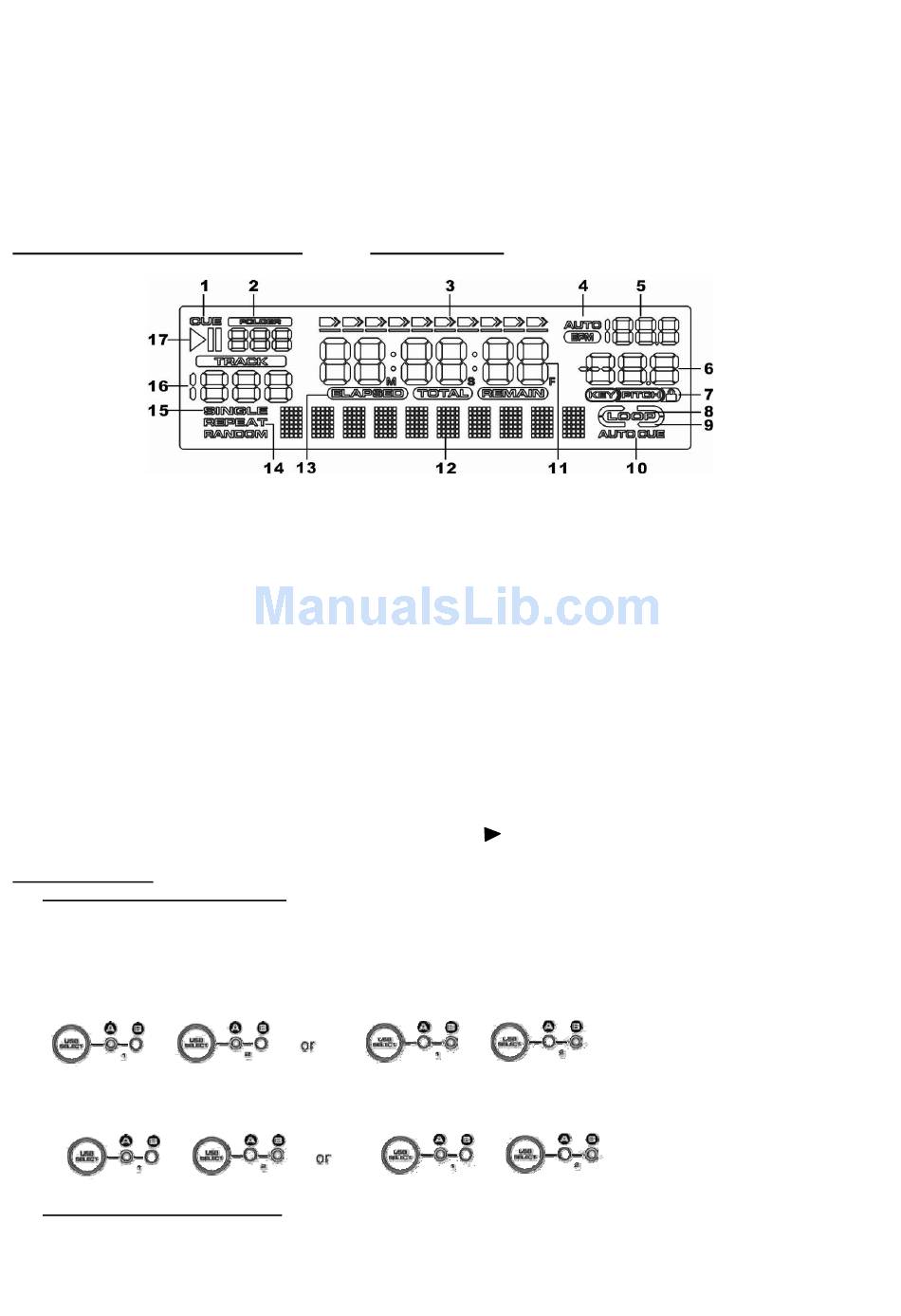

LCD DISPLAY

:). Or the player is in pause mode ("Ⅱ").
