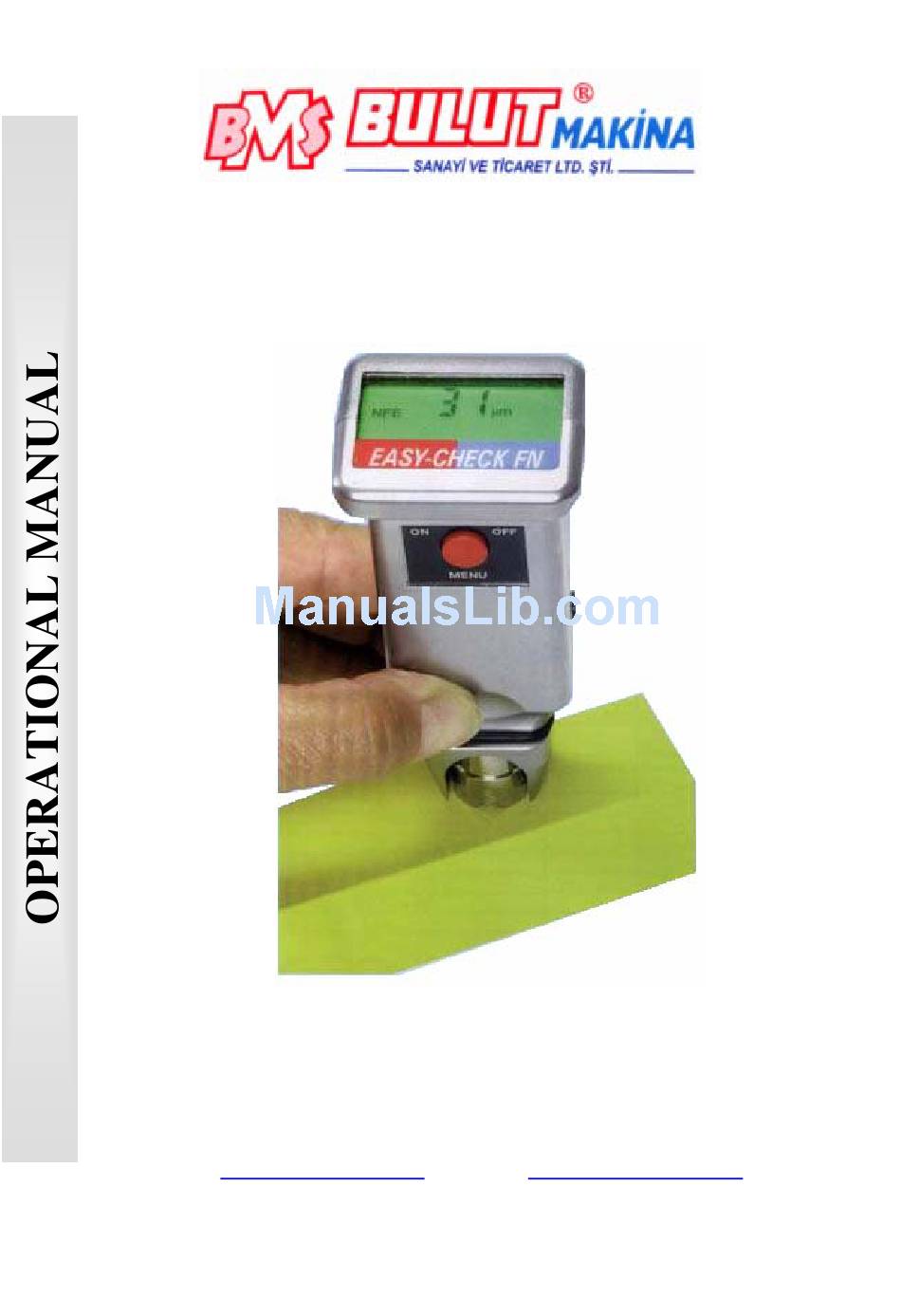

- Page 1 EASY-CHECK FN COATING THICKNESS METER Bms Bulut Makina Sanayi Ve Ticaret Ltd. Şti. İkitelli Organize Sanayi Bölgesi Dolapdere Sanayi Sitesi Ada 4 No : 7-9 İkitelli / İSTANBUL-TÜRKİYE Phone : +90 212 671 02 24 / 671 02 25 Fax : +90 212 671 02 26 web : www.bulutmak.com...
-
Page 2: Table Of Contents
Introduction .......................3 Easy-Check FN ......................3 And This Is Really Unique ....................3 Short Instructions ......................3 Function Modes ......................4 Operation Of The Function Modes ................4 <Sto> Store readings in the Data Memory..............4 <StA> Display Statistics ...................4 <Prn> Print or activate the RADIO CONTROL function..........5 <IcL>... -
Page 3: Introduction
(FE) or on non-ferrous metal (NFE) and displays the symbol with each reading. EASY-CHECK FN can measure up to 80 hours with only one 1.5V Mignon battery. Worldwide the only device with a swinging measuring probe allowing to measure inside pipes and in other inaccessible places. -
Page 4: Function Modes
Function Modes Switch on the device by pressing the key until <on> is displayed. Release the key. While switching on and pressing the key for a longer time the software version and the status of the Lock Function for calibration (from software 13.1) are displayed. When you now press the key once again for a longer time the following functions will ap- pear one after another: Store readings in the Data Memory... -
Page 5: Prn> Print Or Activate The Radio Control Function
<Prn> Print or activate the RADIO CONTROL function When EASY-CHECK FN is connected to the printer MEGA-PRINT or operated with the RADIO CONTROL module, press the key until <Prn> is displayed and wait until <Prn> is flashing. Start the data transfer by pressing the key. -
Page 6: Res> Resolution
<rES> Resolution From factory the device is adjusted to the resolution 1.0 µm. To switch over to the resolution 0.1 µm press the key until <rES> is displayed. Release the key and wait until <r 1µm> is flashing. Press the key again to switch over to 0.1 µm. -
Page 7: General Remarks
With the device switched off the charging connector is inserted into the interface plug of EASY-CHECK FN. The device switches on by itself and a bar diagram with the battery symbol is displayed. With the charger connected you can go on taking measurements. -
Page 8: Technical Data
Technical Data Measuring Technique : Magnetic induction on iron and steel (ISO 2178) Eddy current on non-ferrous metals and non-magnetic steels (ISO 2360) Switch over Measuring Technique : Automatic or manual (NFE) Measuring Range : Magnetic Induction: 0 – 5000 µm (FE) Eddy current: 0 –... -
Page 9: Radio-Control
2. When the printer MEGA-PRINT is connected to the Coating Thickness Meter EASY- CHECK FN, MEGA-PRINT switches on automatically (the green LED flashes every 2 sec). When switching off EASY-CHECK FN, the printer is switched off automatically (the green LED remains switched off). -
Page 10: Insert A New Paper Roll
Insert a new paper roll • Open the lid • Insert the paper roll • Pull out the end of the paper • Close the lid Operation EASY- CHECK FN 10 / 10 Rev:00 Manual...
