Summary of Contents for BMS ETA-0832

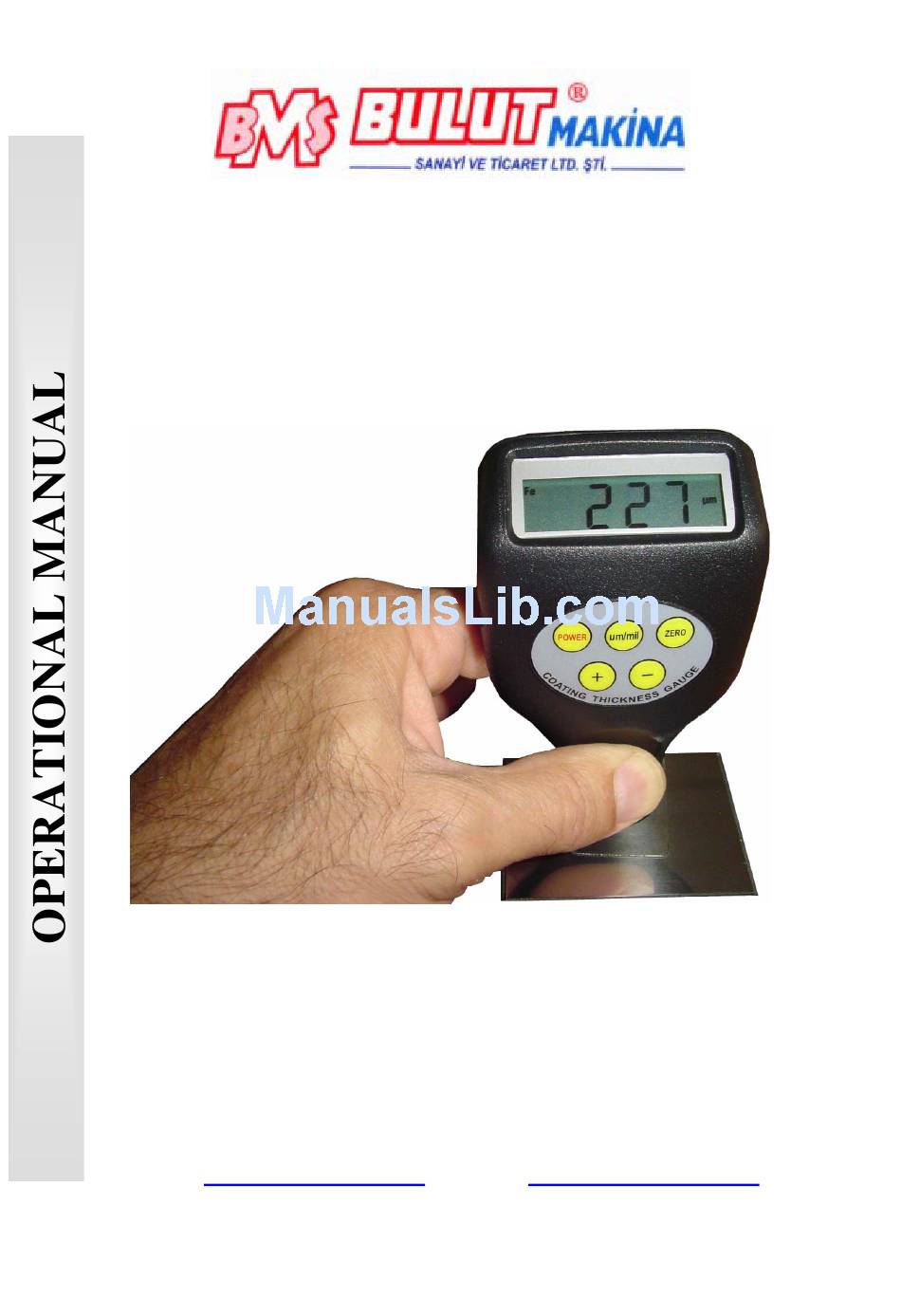

- Page 1 ETA-0832 COATING THICKNESS METER BMS Bulut Makina Sanayi Ve Ticaret Ltd. Şti. İkitelli Organize Sanayi Bölgesi Dolapdere Sanayi Sitesi Ada 4 No : 7-9 İkitelli / İSTANBUL-TÜRKİYE Phone : +90 212 671 02 24 / 671 02 25 Fax : +90 212 671 02 26 web : www.bulutmak.com...
-
Page 2: Table Of Contents
3.Display Instruction ................... 3 4.Technology Parameter ..................3 4.1 Standard Delivery..................3 5.Measuring Procedure ..................5 6.Calibration ....................... 5 7.Battery Replacement ..................5 8.Considerations ....................6 9.Restore Factory Setting..................6 10.Notes ......................6 Operation 2 / 6 ETA-0832 Rev:00 Manual... -
Page 3: Brief Introduction
* Relative humidity : ≤85% * Power supply : 1.5V×2 * Weight : 98g * Dimension : 102×66×24mm 4.1 Standard Delivery Main unit(1000um) 1pc Instruction manual 1pc Substrate Carrying case Measuring foil set 1set Operation 3 / 6 ETA-0832 Rev:00 Manual... - Page 4 KEYPAD SUBSTRATE (NFE) MEASURING FOIL DIGITAL SCREEN MAIN UNIT CARRYING CASE PROBE SUBSSTRATE (FE) …Figure 1… ON-OFF KEY MICRON-MICROINCH UNIT TRANSFORM KEY ZEROING KEY VALUE INCREASING KEY VALUE DECREASING KEY Operation 4 / 6 ETA-0832 Rev:00 Manual...
-
Page 5: Measuring Procedure
7.2 Slide the Battery Cover away from the gauge and remove the batteries. 7.3 Install the batteries (2*1.5V) correctly into the case. 7.4 If the gauge will not to be used for a long time, remove batteries. Operation 5 / 6 ETA-0832 Rev:00 Manual... -
Page 6: Restore Factory Setting
(e.g. at 51 um) is ok but reading at high end (e.g. at 388um) is too small. C. Repeat procedures from A to B till the readings on the every standard foil are satifying the accuracy. Operation 6 / 6 ETA-0832 Rev:00 Manual...
