- Page 1 CH-8733 Eschenbach Gublenstrasse 1 Operating instruction Performax Easy Performax Easy Speed...
-
Page 2: Table Of Contents
Performax Easy and Easy Speed CONTENTS Page 1. Introduction 2. Description and Operation 3. Safety 4. Technical specifications 5. Installation 6. Commissioning 7. Functional check 8. Maintenance 9. Faults 10. Repair 11. Disposal 12. Spare parts www.relstatic.ch Page 2... -
Page 3: Introduction

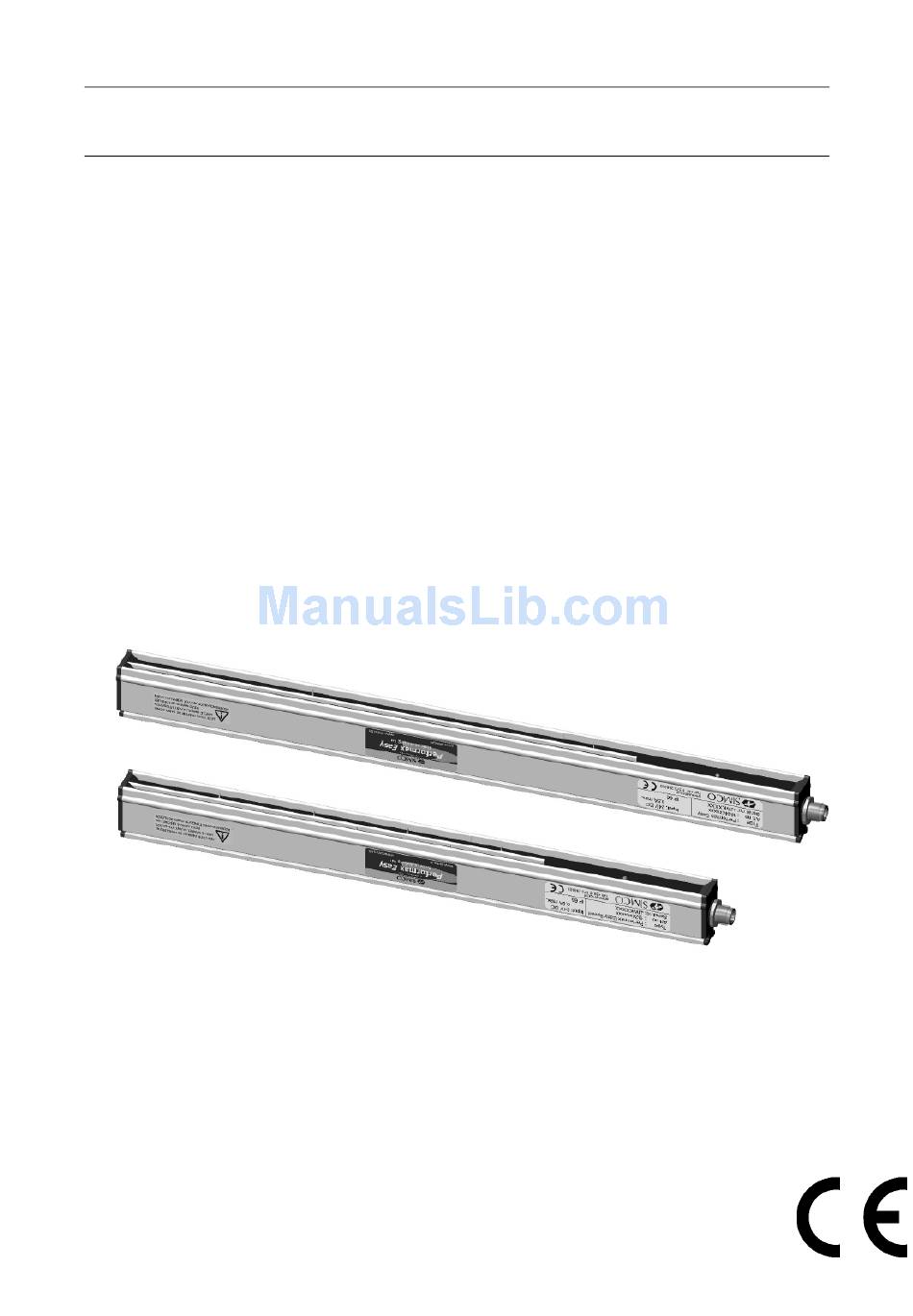

Both anti-static bars are equipped with an integrated high-voltage power unit, emitters and a status LED. The Performax Easy and Performax Easy Speed are supplied with a 24 V DC supply voltage via a standard M12 connector. The Performax Easy performs at its optimum between a distance of 100 mm and 500 mm, at material speeds below 500 metres per minute and is available in effective lengths of 270 mm to 3690 mm, in increments of 180 mm. -
Page 4: Safety
Performax Easy and Easy Speed 3. Safety The following safety guidelines must be observed in order to prevent physical injury and damage to objects or to the anti-static bar itself. Warning: - The anti-static bar is only designed for neutralising electrostatically charged surfaces. -
Page 5: Technical Specifications
90 - 3810 mm (Performax Easy Speed) Dimensions Length: Effective length + 180 mm Width: 24 mm Height: 38.5 mm Weight 1.25 kg/m Housing Glass fibre reinforced plastic Mounting material Brackets Figure 2: Performax Easy Speed dimensions and optional connectors www.relstatic.ch Page 5... -
Page 6: Installation
• Directly in front of the place where static electricity causes problems. • At an optimum distance from the material to be neutralised: o 50 – 500 mm (Performax Easy Speed) o 100 – 500 mm (Performax Easy) • With the emitters facing in the direction of the material to be neutralised. - Page 7 Performax Easy and Easy Speed "R" = operating distance + 40 mm Figure 3: Optimum position of the Performax Easy and Performax Easy Speed Bracket Screws Figure 4: Attaching the Performax Easy and Performax Easy Speed - Attach the anti-static bar using the fasteners supplied. See Figures 3 and 4.
-
Page 8: Commissioning
Black Blue Blue Figure 5: Wiring, Performax Easy and Performax Easy Speed For personal protection and to ensure proper functioning, the grey and the blue wire must both be connected to earth. In the Simco Desktop power supply, these connections have already been made. -
Page 9: Functional Check
Performax Easy and Easy Speed 7. Functional check The colour of the status LED on the anti-static bar can be used to determined the status of the anti-static bar. Operation colour Green Operation Overloaded Possible causes of overload are: - Fouling of the anti-static bar. -
Page 10: Faults
- Electrical installation and repairs must be carried out by a skilled electrical engineer according to the applicable national and local regulations. Performax Easy and Performax Easy Speed parts cannot be repaired. To order parts, see the spares list. Please contact Relstatic AG in case of problems. -
Page 11: Spare Parts
Performax Easy and Easy Speed 12. Spare parts Figure 6: Optional connectors No. Part number Description 7519000120 Bracket 4524485100 Mounting strip 7519020350 5-pin straight M12 connector 7519020355 5-pin right-angled M12 connector 7519020360 5-core cable with straight M12 connector, 2 m...
