Mercedes-Benz SLS AMG Service Manual

Series 197
Hide thumbs Also See for SLS AMG:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
Introduction of the New SLS AMG

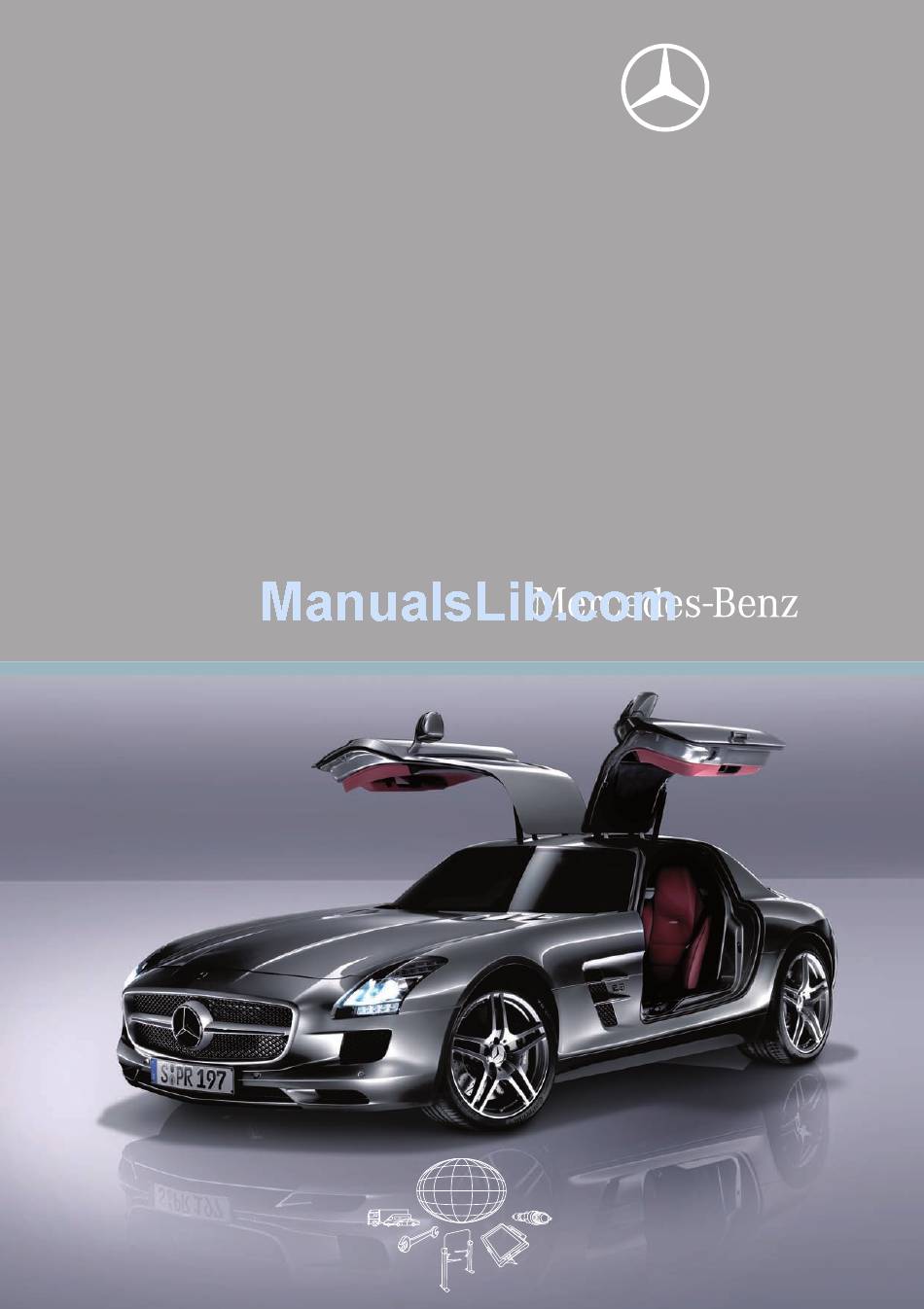

Introduction into Service Manual for Model Series 197
– This printout will not be recorded by the update service. Status: 11 / 2009 –
