Response AR-3129 User Manual

Response AR-3129 User Manual

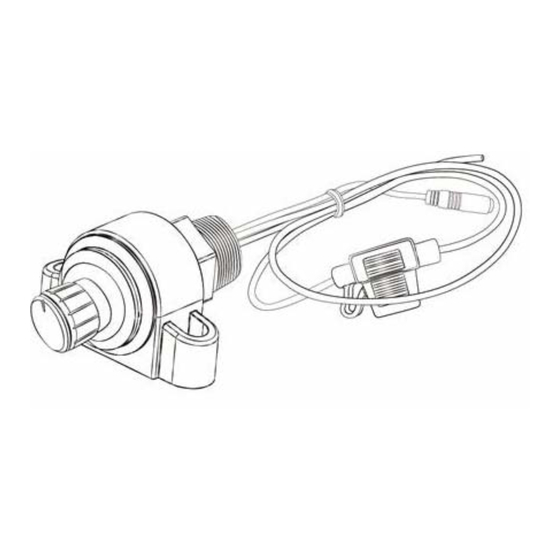

Bluetooth handsfree panel mount with microphone

Advertisement

Quick Links

Bluetooth® Handsfree


















User Manual
Panel Mount
With Microphone
AR‐3129




Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR-3129 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Response AR-3129

  • Page 1   User Manual    Bluetooth® Handsfree  Panel Mount  With Microphone    AR‐3129                                     ...
  • Page 2 Instruction  Duration  Tap  Press once briefly  Turn  Turn knob once briefly  Turn and Hold  Turn knob and hold it for 3 seconds  Press and Hold  Press the knob and keep it pressed in for  3 seconds    Pairing  ‐ Press and Hold the knob until you see red and blue LED lights blinking. This puts the  device into pairing mode.  ‐ Turn your phone Bluetooth® on and set it to search for the device (AR‐3129).  ‐ On your phone, click on AR‐3129 and set to pair.    Connection Diagram:                          Microphone  ‐ Connect the supplied microphone (or another microphone of your choice with  3.5mm jack) to the auxiliary input at the back.  ‐ Mount the microphone somewhere in the vehicle.    Speakers  ‐ Insert a 3.5mm auxiliary cable into the back of the device to connect it to your  source speakers or amplifier.     Installation Instructions ...
  • Page 3 Flush Mount Instructions  ‐ Drill a 22mm diameter hole.  ‐ Unscrew the locking nut on the back   of the device and pull the surface mount   bracket off.  ‐ Slide the device through the hole and   screw the nut on the back side.      Adjustment:  ‐ The orientation of the unit can be adjusted in either of the mounting positions  simply by loosening the nut at the back and rotating the device.    Operating Instructions  Play music  Tap knob once  Pause music  Tap knob once to pause, tab again to resume  playing  Skip one track forward  Turn the knob clockwise  Skip one track back  Turn the knob counter‐clockwise  Adjust volume up  Turn and Hold the knob clockwise  Adjust volume down  Turn and Hold the knob counter‐clockwise  Answer a call  Tap the knob to answer a call when phone rings  Answer a call when playing music  Tap the knob and the music will pause and call  will be answered. When the call is ended the  music will resume  End a call  Tap the knob to end an active call  Reject a call  Press and Hold the knob when the phone rings  to reject a call  Redial a call  Tap the knob twice to redial the last call   ...
  • Page 4                                                                               Distributed by:  TechBrands by Electus Distribution Pty. Ltd. ...
