Summary of Contents for Life Fitness 15 inch ATTACHABLE TV

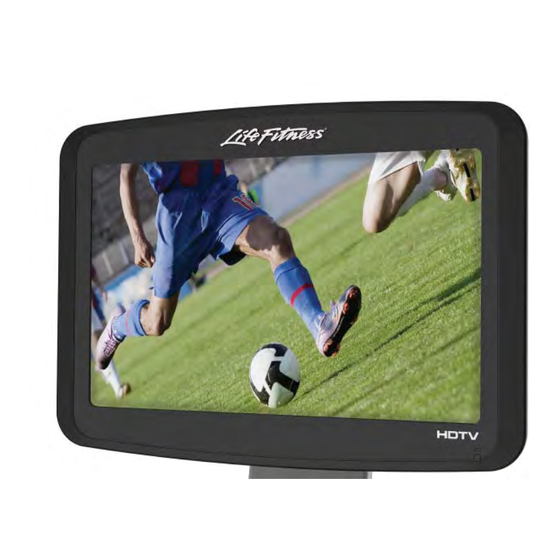

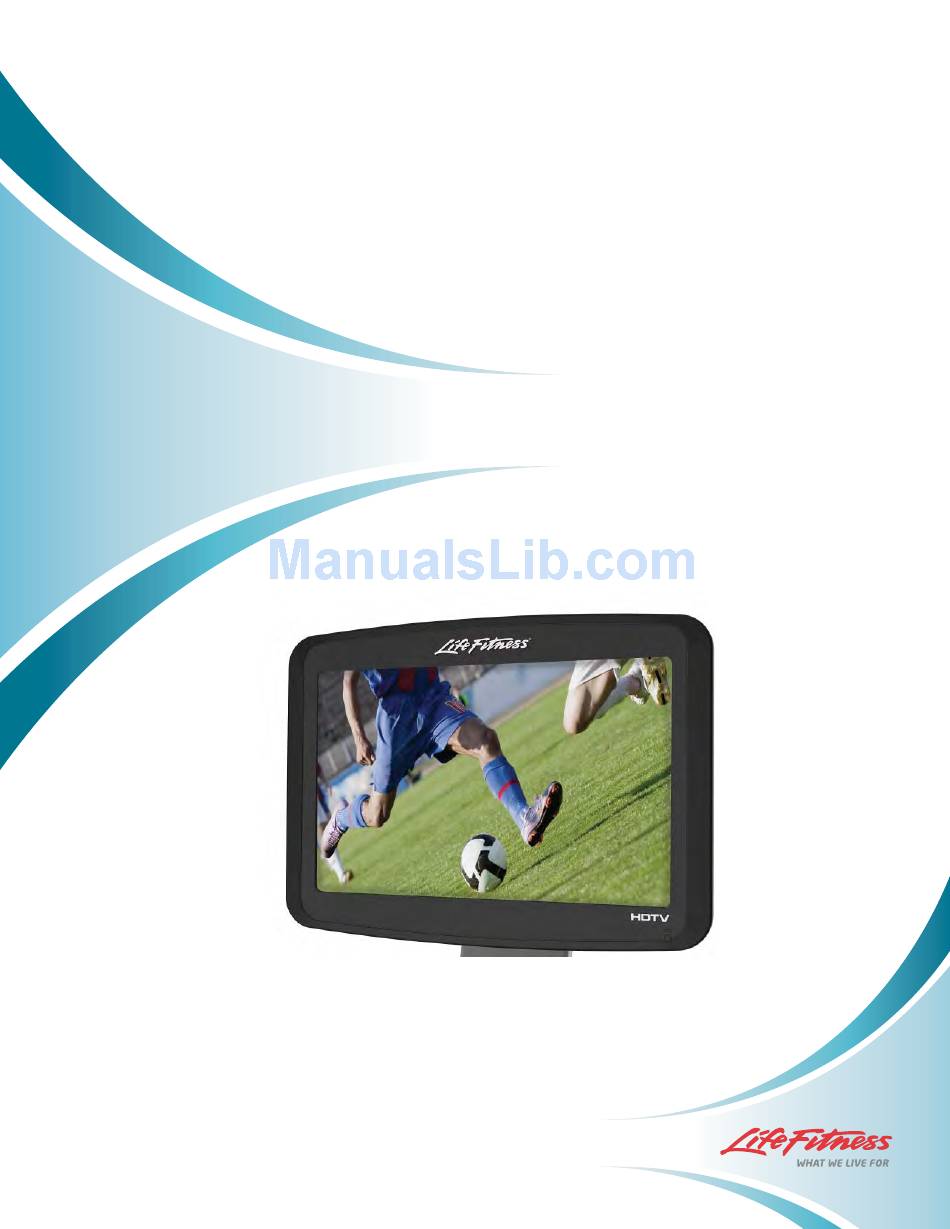

- Page 1 LIFE FITNESS 15” ATTACHABLE TV (PAL / SECAM / DVB-T2) OPERATION MANUAL M051-00K96-0009...
- Page 2 Fax: (847) 288 3703 kundenberatung@lifefi tness.com Service Email: customersupport@lifefi tness.com China and Hong Kong Operating Hours: 08:30-16.30.h (MEZ) Sales/Marketing Email: Life Fitness Asia Pacifi c LTD commercialsales@lifefi tness.com Spain Room 2610, Miramar Tower Operating Hours: 7:00am-6:00pm (CST) Life Fitness IBERIA...
-
Page 3: Table Of Contents
ABLE OF ONTENTS Important Safety Instructions Media Connections Specifi cations Quick Access - TV Menu Access Basic Functions of LF TV Remote Basic Functions of IR TV Remote TV Menu Access - Console Controls Basic Function - LCD Console Controls for Exerciser Basic Function - Front Panel Controls Getting Started Select Input Source... -
Page 4: Important Safety Instructions
To prevent injury, this product must be securely attached in accordance with the installation instructions. Never operate a Life Fitness product if it has a damaged power cord or electrical plug, or if it has been dropped, damaged, or even partially immersed in water. If this occurs, contact Life Fitness Customer Support Services as outlined on page one of this manual. - Page 5 Pour prévenir les blessures, ce produit doit être solidement fi xé, conformément aux instructions d’installation. Ne jamais faire fonctionner un produit Life Fitness dont la fi che ou le cordon d’alimentation est endommagé, ni aucun appareil qui serait tombé ou aurait été endommagé ou même partiellement plongé...
- Page 6 MPORTANT AFETY NSTRUCTIONS Note to the CATV Installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guide- lines for proper grounding and, in particular, specifi es that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.
-
Page 7: Media Connections
EDIA ONNECTIONS Description Connector Type Power In 12 Volt DC Power In Power Jack USB Flash Drive USB Type A High-Defi nition Input High-Defi nition Audio & Video Connection High-Defi nition VGA In PC-Video Connection Video In Video In RCA (yellow) Audio In Stereo Line In RCA (red and white) -
Page 8: Specifi Cations
PECIFICATIONS 15.4” Diagonal Wide Screen Format Aspect Ratio: 16:10 Viewing Angle: 140 degrees horizontal x 120 degrees diagonal HD Channel Ready: High-defi nition television will accept content up to 1080p Visible Screen Size: 13” L x 8.15” H (33cm L X 20cm H) Brightness: 330nits (cd/m Display Color: 26.2 million Resolution: 5.3 million pixels, 1680(H) X 1050(V)WSXGA+... -
Page 9: Quick Access - Tv Menu Access
EFERENCE CCESS LIFE FITNESS recommends programming the 15” Attachable TV by using an IR TV Remote. The TV can also be programmed by using an attachable LF TV REMOTE if on the order (for Achieve consoles) and through an Integrity, Inspire or Discover SI console. Please follow the guidelines below to program the TV. The password key on Life Fitness TVs is always “0000”. -
Page 10: Basic Functions Of Lf Tv Remote
Use the CC key (7) as the ENTER function when selecting channels. Note: The Achieve™ console with Attachable TV includes the LF TV Remote. The Attachable TV System for new or previ- ously purchased Life Fitness silver/gray commercial cardio machines includes the LF TV Remote. -
Page 11: Basic Functions Of Ir Tv Remote
UNCTIONS EMOTE IR TV R EMOTE IR TV Remote - Programming is easier with the optional IR TV Remote. Contact Life Fitness (see page one for information) to order one or more IR TV Remote controls if desired. Mute Power Press to mute the sound. -
Page 12: Installing Batteries
- IR TV R ASIC UNCTIONS EMOTE IR TV R EMOTE 1.5V-AAA BATTERIES ARE INCLUDED AND NECESSARY FOR OPERATION Installing Batteries Open the battery compartment cover on the back side. Insert two 1.5V AAA size batteries in correct polarity. Don’ t mix old or used Point the remote towards the remote batteries with new ones. -
Page 13: Tv Menu Access - Console Controls
TV M CCESS ONSOLE ONTROLS TV C NSPIRE ONTROLS Inspire TV controls include: Power Channel Up / Down Volume Up / Down Input SI TV C ISCOVER ONTROLS Discover SI TV controls include: TV Off ... -
Page 14: Basic Function - Lcd Console Controls For Exerciser
ONTROLS FOR XERCISER The Life Fitness Elevation™ Series with the Inspire™ Console and the Elevation™ Series with Discover SI Console have the TV controls built-in the integrated LCD touch screen. Inspire TV controls include power, channel up/down, numeric keypad, mute, and previous channel. Discover SI controls include TV Off, channel up/down, numeric keypad, previous channel, Aspect Ratio, and Input. -
Page 15: Basic Function - Front Panel Controls
ASIC UNCTION RONT ANEL ONTROLS TV F RONT ANEL HDTV HDTV TV On - Blue LED On TV Off - Blue LED Off Sleep Mode - Blue LED Blinks... -
Page 16: Getting Started
ETTING TARTED ELECT NPUT OURCE Press INPUT button on IR TV Remote Control. Use to select desired input source (TV, AV, S-Video, PC, HDMI). Press ENTER. -
Page 17: First Time Installation
ETTING TARTED IRST NSTALLATION Connect an RF cable from the “RF-IN” to your TV aerial socket. Press the MENU button on the IR TV Remote Control. to select SETUP menu. Use to select FIRST TIME INSTALLATION. to select OSD Language menu. to select the language to be used for OSD Menus and Messages. - Page 18 IRST NSTALLATION CONTINUED Scan analog channels Press MENU and on the IR TV Remote control to exit analog tuning. Auto Tuning Scan digital channels Status Press MENU and on the IR TV Remote control to exit digital tuning.
-
Page 19: Main On Screen Display Menus
(OSD) M CREEN ISPLAY ENUS Main Menus Sub-Menus Auto Tuning Edit Channel ATV Manual Tuning Schedule List Channel DTV Manual Tuning Signal Information Picture Mode Tint Contrast Sharpness Picture Brightness ... -
Page 20: Channel Menu (Dvb-T)
(DVB-T) HANNEL On Screen Display (OSD) Menu Navigation Scroll through menu options. Adjust values of selected menu option. Press ENTER to enter sub-menus and make selections. Press ENTER on the IR TV Remote Control to start auto search. Auto Tuning Current CH ... - Page 21 (DVB-T) HANNEL CONTINUED On Screen Display (OSD) Menu Navigation Scroll through menu options. Adjust values of selected menu option. Press ENTER to enter sub-menus and make selections. to select channel. Press ENTER to search for signal. DTV Manual Tuning Use the red, green, yellow and blue buttons on the bottom of the IR TV Remote Control to edit channel...
- Page 22 (DVB-T) HANNEL CONTINUED On Screen Display (OSD) Menu Navigation Scroll through menu options. Adjust values of selected menu option. Press ENTER to enter sub-menus and make selections. Pre-set programs. Add programs to the list by pressing the yellow button the the IR TV Remote Control.
-
Page 23: Channel Menu (Dvb-C)
(DVB-C) HANNEL On Screen Display (OSD) Menu Navigation Scroll through menu options. Adjust values of selected menu option. Press ENTER to enter sub-menus and make selections. to adjust the values of the following options: Scan type (Quick or Full) Auto Tuning ... -
Page 24: Picture Menu
ICTURE On Screen Display (OSD) Menu Navigation Scroll through menu options. Adjust values of selected menu option. Press ENTER to enter sub-menus and make selections. Select desired picture mode: Dynamic (produces a high defi ned image in a brightly lit room) ... - Page 25 ICTURE ENU ( CONTINUED On Screen Display (OSD) Menu Navigation Scroll through menu options. Adjust values of selected menu option. Press ENTER to enter sub-menus and make selections. Color temperature increases or decreases the warm and cool colors of the picture. Select desired color temp: Color Temp ...
-
Page 26: Sound Menu
OUND On Screen Display (OSD) Menu Navigation Scroll through menu options. Adjust values of selected menu option. Press ENTER to enter sub-menus and make selections. Select desired sound mode: Standard (produces a balanced sound in all environments) Music (preserves the original sound; good choice for musical programs) ... -
Page 27: Time Menu
On Screen Display (OSD) Menu Navigation Scroll through menu options. Adjust values of selected menu option. Press ENTER to enter sub-menus and make selections. Clock This setting cannot be adjusted. Time Zone to select desired time zone. Select the time in minutes for the TV to automatically shut down. Available options are: ... - Page 28 ENU ( CONTINUED On Screen Display (OSD) Menu Navigation Scroll through menu options. Adjust values of selected menu option. Press ENTER to enter sub-menus and make selections. Select the desired time in hours for the TV to remain on after your last operation. Auto Standby Available options are: ...
-
Page 29: Lock Menu
On Screen Display (OSD) Menu Navigation Scroll through menu options. Adjust values of selected menu option. Press ENTER to enter sub-menus and make selections. Select ON to lock the system. Lock System Default password is 0000. Input a new 4-digit password. ... -
Page 30: Hotel Menu
OTEL On Screen Display (OSD) Menu Navigation Scroll through menu options. Adjust values of selected menu option. Press ENTER to enter sub-menus and make selections. Hotel Mode to select ON or OFF. to select the source you want to lock. Source Lock ... -
Page 31: Setup Menu
ETUP On Screen Display (OSD) Menu Navigation Scroll through menu options. Adjust values of selected menu option. Press ENTER to enter sub-menus and make selections. to select OSD Menu language. OSD Language Default setting is English. TT Language Choose teletext language (West, East, Russian, Arabic or Farsi). -
Page 32: Pc Screen Menu
- PC I CREEN NPUT OURCE On Screen Display (OSD) Menu Navigation Scroll through menu options. Adjust values of selected menu option. Press ENTER to enter sub-menus and make selections. Press ENTER or use to automatically adjust the screen to the optimal position of the Auto Adjust picture. -
Page 33: Maintenance & Troubleshooting
LEANING Regularly (at least once a week) clean the Life Fitness Attachable TV and cardio equipment using mild soap and water. Lightly dampen a soft clean cloth with the mild soap and water solution and wipe the product. Do not use too much solu- tion on the cloth and do not spray or pour any solution directly on the products. - Page 34 & T AINTENANCE ROUBLESHOOTING Problem Possible Solutions Only snow appears on the screen Check the antenna and/or cable connections. Make sure the channel selected is currently broadcasting. Confi rm the correct Air/Cable option is selected. Refer to the Channel Menu. Dotted lines or stripes Adjust the antenna.
- Page 35 & T AINTENANCE ROUBLESHOOTING Problem Possible Solutions Snow and noise appear on screen. Follow the install and setup procedures in the Installation Instructions. Replace Coax Cable (75 Ohms). Replace TV. Some channels, or no channels, found after a channel Check connections at wall plugs and where cables con- scan.
- Page 36 & T AINTENANCE ROUBLESHOOTING DVANCED ROUBLESHOOTING If the picture regularly breaks up, then the signal received may be too weak or too strong to allow the digital TV receiver to generate a stable picture. Have your service provider confi rm that the signal level at the machine is 72 dBuV + / - 25 dB. This is equivalent to +12 dBmV, and includes the range of -13 dBmV to +37dBmV.
- Page 37 QUIPMENT TO ITNESS To return equipment to Life Fitness for any reason, you must contact Life Fitness to obtain a return maintenance authori- zation (RMA) number (see page one for contact information).When you request an RMA number, please explain why you are returning the equipment.
-
Page 38: Warranty Information
If the Product or any covered part must be returned to a service of your Product (consoles and frames may have separate serial facility for repairs, We, LIFE FITNESS, will pay all transportation numbers). They will tell you how to get a replacement part, or, if and insurance charges for the fi...
