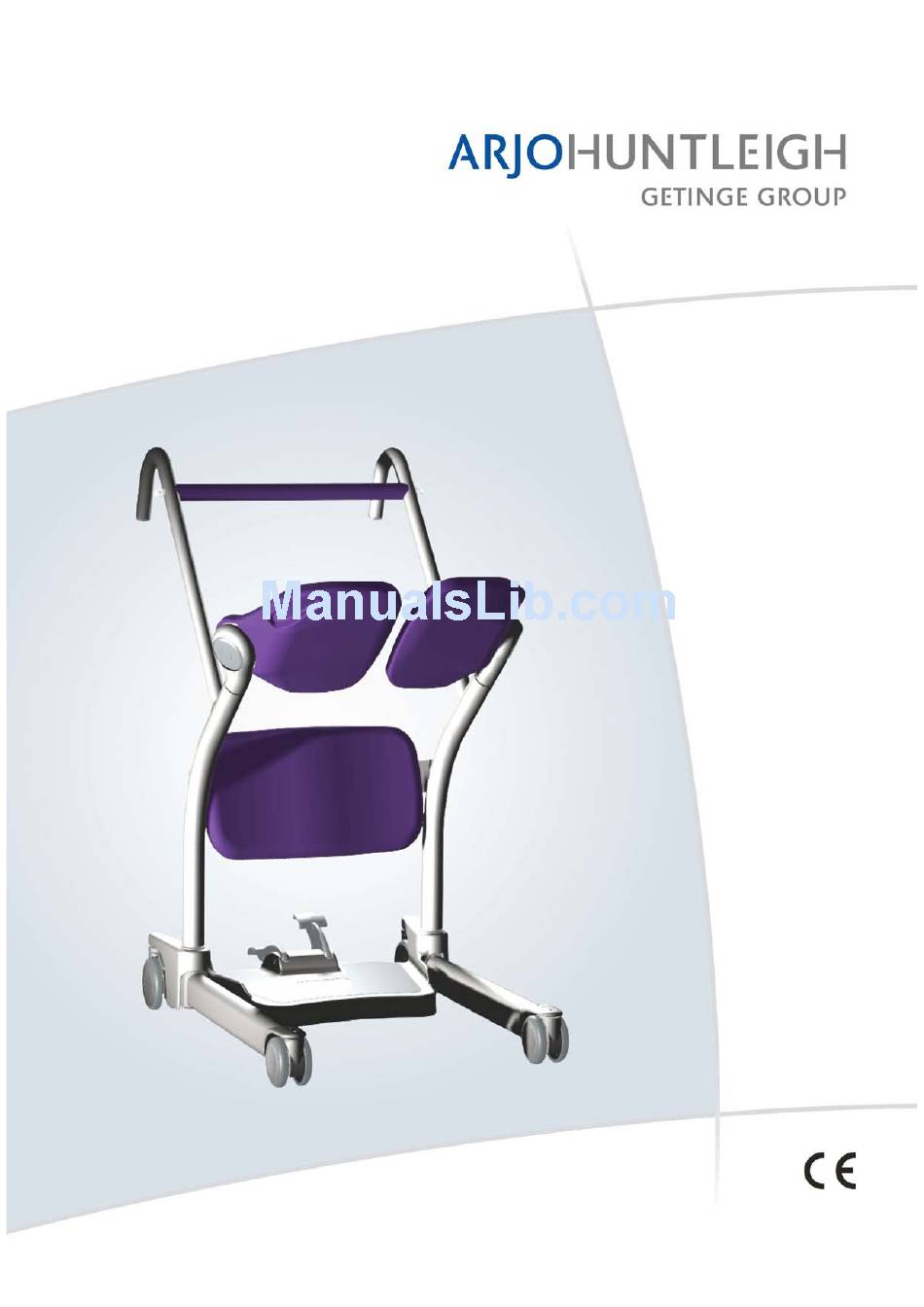

- Page 1 Sara Stedy Instructions for Use ...with people in mind 001-12325-EN rev. 3• February 2014...
- Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh 2014. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.The content of this publication may not be copied either whole or in part...
-
Page 3: Table Of Contents
Important Safety Directions ................9 Equipment Warning Labels ................10 Slings......................... 12 Compatible Slings ..................12 How to Use the Sara Stedy..................13 Using the Sling Attachment Lugs ..............13 Pivoting the Cushions ..................13 Opening and Closing the Legs ................ 14 Applying and Releasing the Brakes on the Rear castors ........ - Page 4 Table of Contents Troubleshooting....................... 28 Labels on the Sara Stedy..................29 Technical Specifications..................30 Lift Dimensions ....................31...
-
Page 5: General Information
Sara Stedy floor lift Please read this manual in its entirety before using from ArjoHuntleigh. your Sara Stedy. The information in this manual is crucial to the proper operation and maintenance of Your Sara Stedy is part of a the equipment, and will help protect your product... -
Page 6: Manufacturer Information
Right Intended Use The Sara Stedy is a mobile active lift with a safe working load (SWL) of 182 kg (400 lb). It is intended to be operated on horizontal surfaces for transferring patients and residents in hospitals, nursing homes or other health care facilities. -
Page 7: Operational Life
ArjoHuntleigh’s passive and active series of Operational Life lifts are designed for safe usage with one The expected operational life of your caregiver. There are circumstances, such as ArjoHuntleigh lift is ten (10) years from the combativness, obesity, contractures, etc., of date manufacture, providing... -
Page 8: Symbols Used
General Information Symbols Used Symbol Key to symbols This symbol is accompanied by a date to indicate the date of manufacture and by the address of the manufacturer. This symbol indicates the products comply with the medical device directive 93/42/EEC. This symbol is accompanied by the manufacturer's catalogue number. -
Page 9: Safety Instructions
Failure to do so may result in injuries to you or to others. Safe Working Load The Sara Stedy has been designed with a capacity of 182 kg (400 lb). WARNING: The Sara Stedy is intended to be used for patients whose weight is within a specified safe working load. -
Page 10: Equipment Warning Labels
Safety Instructions Equipment Warning Labels WARNING: Before attempting Inspect all precautionary labels on the transfer, a clinical assessment of the equipment. Order and replace all labels that patient’s suitability for transfer should cannot be easily read. be carried out by a qualified health professional considering that, among other things, the transfer may induce substantial pressure on the patient’s... - Page 11 Part Designation Sara Stedy Fig. 3 7) Front castor Legend 8) Footboard / Base 1) Manoeuvring handles 9) Rear castor with brake 2) Crossbar / Handle bar 10) Leg pivot footlever / Pedal 3) Sling attachment lugs 4) Pivoting seat halves / Seat pads...
-
Page 12: Slings
Slings Compatible Slings Fleece cover MAA3071-M Back support strap Waist strap Attachment clips Buckle TSS.500 (S) / TSS.501 (M) / TSS.502 (L) / TSS.503 (XL) / TSS.504 (XXL) Back support strap Attachment clips Waist strap Attachment clips Back support strap MFA3000 Waist strap Fig. -
Page 13: How To Use The Sara Stedy
How to Use the Sara Stedy NOTE: Use of sling is optional and dependent on patient assessment. Using the Sling Attachment Lugs 1) Pass the sling’s attachment clip hole and 2) Pull sideways on the strap to ensure that allow the attachment lug to pass through it. -
Page 14: Opening And Closing The Legs
How to Use the Sara Stedy Opening and Closing the Legs 1) To open the legs, press down the left 2) To close the legs, press down the right pedal. pedal. Fig. 7 Applying and Releasing the Brakes on the Rear Castors 1) Lock brake. -
Page 15: Approaching The Patient
1) Pivot the two seat halves up. 2) Open the chassis legs if needed; approach the patient. 3) Position the Sara Stedy so that the patient’s 4) Apply both castor brakes. feet are placed on the footrest with knees comfortably against kneepad. -
Page 16: Transferring The Patient
How to Use the Sara Stedy Transferring the Patient Transferring the Patient from a Chair • Help or encourage the patient to achieve the standing position. • The patient’s knees should stay in contact with the kneepad, and the patient should sit back on the seat halves during the transfer. -
Page 17: Transferring The Patient To A Chair
How to Use the Sara Stedy Transferring the Patient to a Chair • Help or encourage the patient to achieve the sitting position. • The patient’s knees should stay in contact with the kneepad, and the patient should sit back on the seat halves during the transfer. -
Page 18: Transferring The Patient From A Wheelchair
How to Use the Sara Stedy Transferring the Patient from a Wheelchair • Make sure to apply the wheelchair brakes. • Help or encourage the patient to achieve the standing position. • The patient’s knees should stay in contact with the kneepad, and the patient should sit back on the seat halves during the transfer. -
Page 19: Transferring The Patient To A Wheelchair
How to Use the Sara Stedy Transferring the Patient to a Wheelchair • Make sure to apply the wheelchair brakes. • Help or encourage the patient to achieve the sitting position. • The patient’s knees should stay in contact with the kneepad, and the patient should sit back on the seat halves during the transfer. -
Page 20: Transferring The Patient From A Bed
How to Use the Sara Stedy Transferring the Patient from a Bed • Help or encourage the patient to achieve the standing position. • The patient’s knees should stay in contact with the kneepad, and the patient should sit back on the seat halves during the transfer. -
Page 21: Transferring The Patient To A Bed
How to Use the Sara Stedy Transferring the Patient to a Bed • Help or encourage the patient to achieve the sitting position. • The patient’s knees should stay in contact with the kneepad, and the patient should sit back on the seat halves during the transfer. -
Page 22: Transferring The Patient From A Toilet
How to Use the Sara Stedy Transferring the Patient from a Toilet • Help or encourage the patient to achieve the standing position. • The patient’s knees should stay in contact with the kneepad, and the patient should sit back on the seat halves during the transfer. -
Page 23: Transferring The Patient To A Toilet
Once the patient is in place, apply the castor brakes and ask the patient to stand. • Remove the patient’s clothing as necessary, then pivot the seat halves upwards to allow the patient to lower herself/himself onto the toilet seat. The Sara Stedy can thus function as a support frame, improv- ing the patient’s confidence. -
Page 24: Back Support Strap
How to Use the Sara Stedy Back Support Strap Using the Back Support Strap Use of this accessory is recommended where the patient would benefit from extra confidence and support. To use the back support strap: • Position the strap at around 50 mm (2”) above the waistline. -
Page 25: Care And Maintenance
WARNING: Safety related maintenance and authorized service must be carried out by qualified personnel, fully trained in servicing procedures by ArjoHuntleigh, and equipped with correct tools. Failure to meet these requirements could result in personal injuries and/or unsafe equipment. User Inspections... - Page 26 ArjoHuntleigh. Unauthorized modifications on any ArjoHuntleigh equipment may affect its safety. ArjoHuntleigh will not be held responsible for any accidents, incidents or lack of performance that occur as a result of any unauthorized modification to its products.
-
Page 27: Inspection And Cleaning
To clean the Sara Stedy, wipe it down with a damp cloth using warm water and a disinfectant cleaner. Disinfectant... -
Page 28: Troubleshooting
• Remove hair and debris from castor. Legs do not open or close • Check legs opening mechanism for damage. Call ArjoHuntleigh for replacement if needed. Legs difficult to open or close • Check legs opening mechanism for damage. Call ArjoHuntleigh for replacement if needed. -
Page 29: Labels On The Sara Stedy
Labels on the Sara Stedy 1) Serial number label 2) Product label 3) Product name 4) Sling attachment clip instruction label Fig. 19... -
Page 30: Technical Specifications
Technical Specifications Sara Stedy PRODUCT INFORMATION Weight, complete 29.4 kg (64.82 lb) Lifting capacity 182 kg (400 lb) Turning radius 1168 mm (46 in) Minimum door requirement 630 mm (24.80 in) Pedal operating force < 300 N OPERATION AND STORAGE CONDITIONS Ambient temperature range Operation: 10 °... -
Page 31: Lift Dimensions
Technical Specifications Lift Dimensions 117 cm 104 cm 77 cm MAXIMUM OPEN LEGS 59 cm WIDTH LIFT KNOBS 33 cm MINIMUM CLOSED LEGS 63 cm 55 cm 90 cm MAXIMUM WIDTH OPEN LEGS WIDTH 92 cm 85 cm 105 cm 97 cm 85 cm 10 cm... - Page 33 AUSTRALIA FRANCE POLSKA ArjoHuntleigh Pty Ltd ArjoHuntleigh SAS ArjoHuntleigh Polska Sp. z o.o. 78, Forsyth street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL-62-052 KOMORNIKI (Poznan) AU-6163 Western Australia FR-59436 RONCQ CEDEX Tel: +48 61 662 15 50...
- Page 34 GETINGE GROUP is a leading global provider of products and systems that contribute to quality enhancement and cost efficiency within healthcare and life sciences. We operate under the three brands of ArjoHuntleigh, GETINGE and MAQUET. ArjoHuntleigh focuses on patient mobility and wound management solutions.
