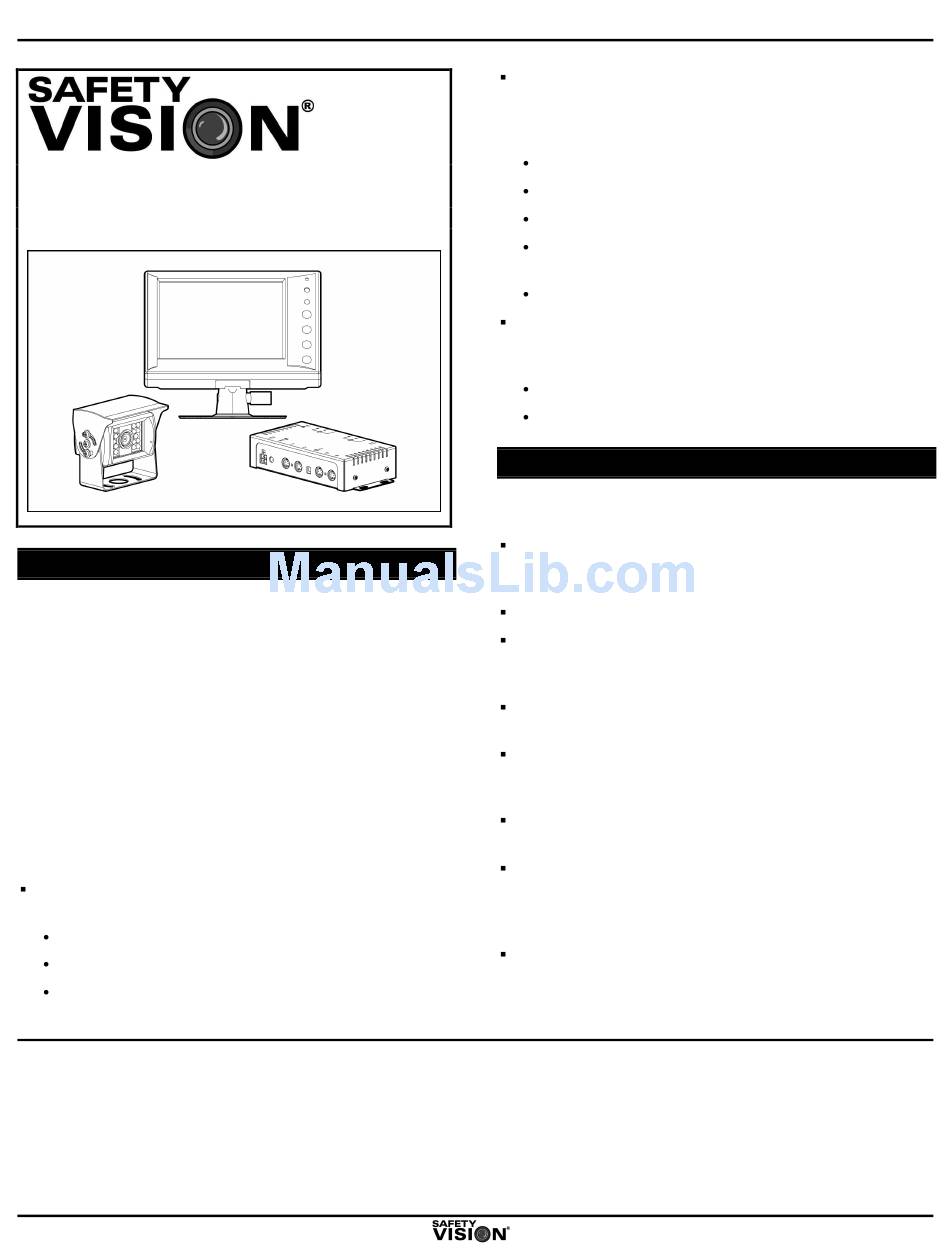

SV-CLCD56B/70B Quick Installation Guide
Safety Vision SV-CLCD56B
Safety Vision SV-CLCD70B
Color TFT LCD Collision Avoidance System
Quick Installation Guide

Overview

The Safety Vision SV-CLCD56B and SV-CLCD70B Color
TFT LCD Collision Avoidance Systems are designed for
rugged, mobile environments and turn on automatically
when the vehicle transmission is in reverse gear. Each
system includes a monitor, camera, and control box. (The
SV-CLCD56B system includes a 5.6-inch monitor, and
the and SV-CLCD70B system includes a 7.0-inch
monitor.) The system monitor has an integrated speaker,
and the system camera has an integrated microphone,
permitting the driver to both see and hear activity within
the camera's range. Although two cameras can be
connected to the SV-CLCD56B/70B system, only one
camera is provided with the system.

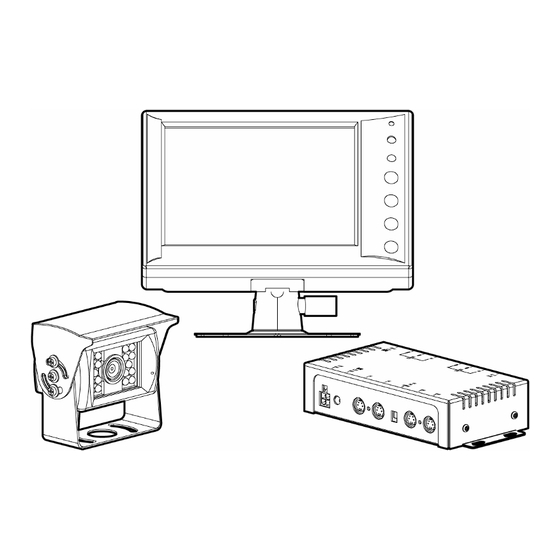

Components of the SV-CLCD56B/70B system include:
Safety Vision SV-LCD56B or SV-LCD70B Monitor,
which features:
Either a 5.6-inch or 7-0-inch TFT LCD screen
Wide field of view
Integrated speaker
Copyright © 2007 Safety Vision, L.P.
Safety Vision and the Safety Vision logo are trademarks of Safety Vision, L.P.
Notice to Users: This document is confidential and contains proprietary information belonging to Safety Vision, L.P. This document and the information
contained herein cannot be distributed, communicated, reproduced, altered, or disseminated by any means, in whole or in part, without the express
written consent of Safety Vision, L.P. Possession of this document constitutes the user's acceptance of these nondisclosure covenants. The information
in this document is believed to be accurate in all respects. However, Safety Vision cannot assume responsibility for any consequences resulting from the
use thereof. The information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to
incorporate such changes.
Safety Vision ▪ 6100 West Sam Houston Parkway North ▪ Houston, Texas 77041 ▪ USA
SV-CLCD56B_70B QIG Ver.1.0.doc
Safety Vision SV-625B-KIT, which includes the
camera (Part Number SV-625B) and a 65-foot
extension cable (Part Number SV-523B) and has the
following features:
Rugged, water-resistant housing
CCD image sensor for improved image quality
Wide field of view (135° diagonal, 108° horizontal)
LEDs that generate infrared light for improved
image quality in low-light situations
Integrated microphone
Safety Vision SV-CBB-56-70 Control Box, which
provides DC power to the monitor and camera(s) and
features:
2 audio/video inputs
1 audio/video output

Important Safety Precautions

Install and operate the SV-CLCD56B/70B system with
the following safety precautions in mind:
The ground (black) wire of the control box system
power cable must be connected directly to the vehicle
chassis.
Use only the correct voltage (12 to 24 VDC).
To reduce the risk of electrical shock, disconnect the
battery from the electrical system of the vehicle before
starting the installation.
Do not expose the monitor or control box to water or
other liquids.
To avoid the risk of electric shock, do not disassemble
the system components, and keep cables away from
sharp objects.
Do not block the ventilation holes in the monitor
housing.
This system is designed to assist the vehicle driver
with rear vision only. Do not attempt to view the
monitor while driving forward. Do not attempt to
operate the control box while driving.
Select inconspicuous cable routes that do not interfere
with normal driver or passenger mobility.
March 2007
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SV-CLCD56B and is the answer not in the manual?

Questions and answers

Summary of Contents for Safety Vision SV-CLCD56B

  • Page 1 Safety Vision, L.P. Possession of this document constitutes the user’s acceptance of these nondisclosure covenants. The information in this document is believed to be accurate in all respects. However, Safety Vision cannot assume responsibility for any consequences resulting from the use thereof.
  • Page 2 SV-CLCD56B/70B Quick Installation Guide March 2007 C MENU BUTTON—initiates display of onscreen user Supplied Hardware controls for image contrast and brightness and speaker volume The following hardware is supplied for installation with each SV-CLCD56B/70B system: D + BUTTON—UP button—increases the value for...
  • Page 3 K POWER IN—accepts the 4-pin Molex connector of the control box system power cable Optional Components Optional components for the SV-CLCD56B/70B system include a remote control device (Part Number SV-LCDB- CP) for the monitor. In addition, devices other than the...
  • Page 4 SV-CLCD56B/70B Quick Installation Guide March 2007 SV-625B Camera SV-CBB-56-70 Control Box 1. Select an appropriate mounting location for the 1. Select a discreet location for the control box, such as camera, which should be mounted on a solid, flat under the vehicle dashboard. Use the provided screws surface at the highest possible point on the vehicle.
  • Page 5 SV-CLCD56B/70B Quick Installation Guide March 2007 Contrast Ratio 300:1 System Operation Automatic Brightness Light sensor, Day/Night switch Control Initial Setup On-Screen Display Brightness, Contrast, Volume Color, Controls Languages To initiate display of the main menu, press the MENU Operating Temperature 5°F to 149°F (-15°C to 65°C)
  • Page 6 LIMITED 1-YEAR NEW PRODUCT WARRANTY caused by burglary, fire, flood, war, riot, civil Safety Vision, L.P. (“SV”) makes the following limited warranty, commotion, Acts of God, or any other condition which is effective at the time of the original end-user purchase.
