Scully 280B Series Instruction And Maintenance Manual

-ADDENDUM
p
MODEL : __ M _ o_ d_ e_ I _ 2_ 8_ 0_ B _ S_ e_ r _ ie _ s _ R_ e_ c_ o_ r _ d _ e _ r _ / _ R . . : !, . e__ r _ o_ d_ u _ c_ e r _ _ _ _ _ _
Date :
May 18, 1978
PUBLICATION AFFECTED : Instruction and Maintenance Manual 02
ADDENDUM NO. - ­
REASON FOR ADDENDUM __ Pr _ ovide instructions for decoding CODE block on system
labels (name plate),
The following information is provided on how to "decode" the CODE block on system label
for Model 280B Series Recorder/Reproducer . The purpose of these instructions is to en ­
sure that the user supplies the factory with the correct information, on his particular re ­
corder/reproducer, from the name plate affixed to the recorder. This is of utmost impor

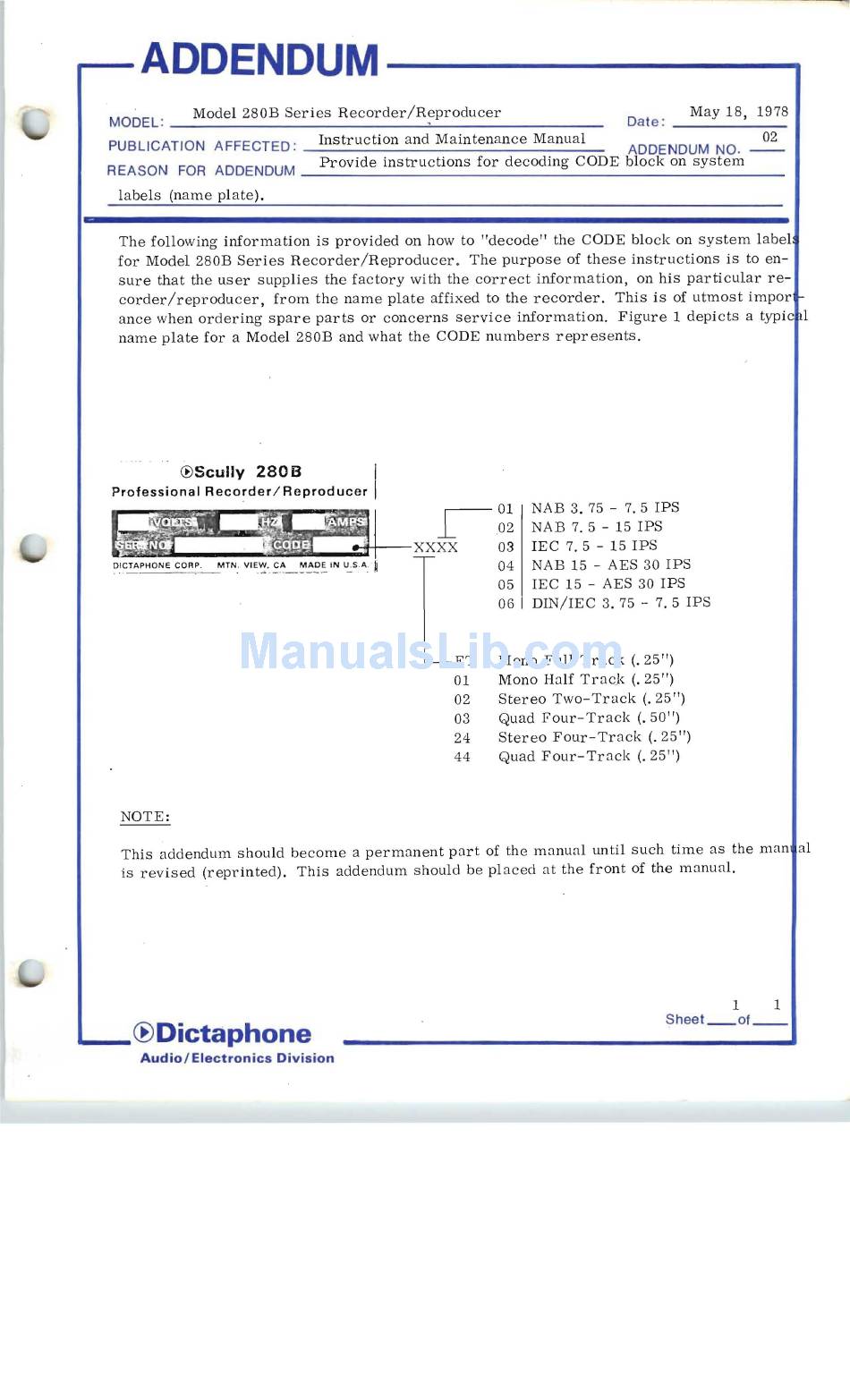

ance when ordering spare parts or concerns service information. Figure 1 depicts a typic
name plate for a Model 280B and what the CODE numbers represents.
®Scully 280 B
I
Professional Recorder/Reproducer
I~~~~~~~~
~
r
01
02
~~~~ ______ ~~~ __ ~~---~~XX
03
DICTAPHONE CORP . MTN . VIEW. CA MADE IN U .S . A .
04
05
06
NAB 3. 75 - 7.5 IPS
NAB 7. 5 - 15 IPS
IE C 7. 5 - 15 IPS
NAB 15 - AES 30 IPS
IEC 15 - AES 30 IPS
DIN/IEC 3.75 - 7.5 IPS
- F T
Mono Full Track (.25")
01
Mono Half Trac};: (.25")
02
Stereo Two-Track (.25")
03
Quad Four-Track (.50")
24
Stereo Four-Track (.25")
44
Quad Four-Track (.25")
NOTE:
This addendum should become a permanent part of the manual until such time as the man a
is revised (reprinted). This addendum should be placed at the front of the manual.
1 1
Sheet __ of _ _
........_®Dictaphone
Audiol Electronics Division
