Page 1: Electric Grill

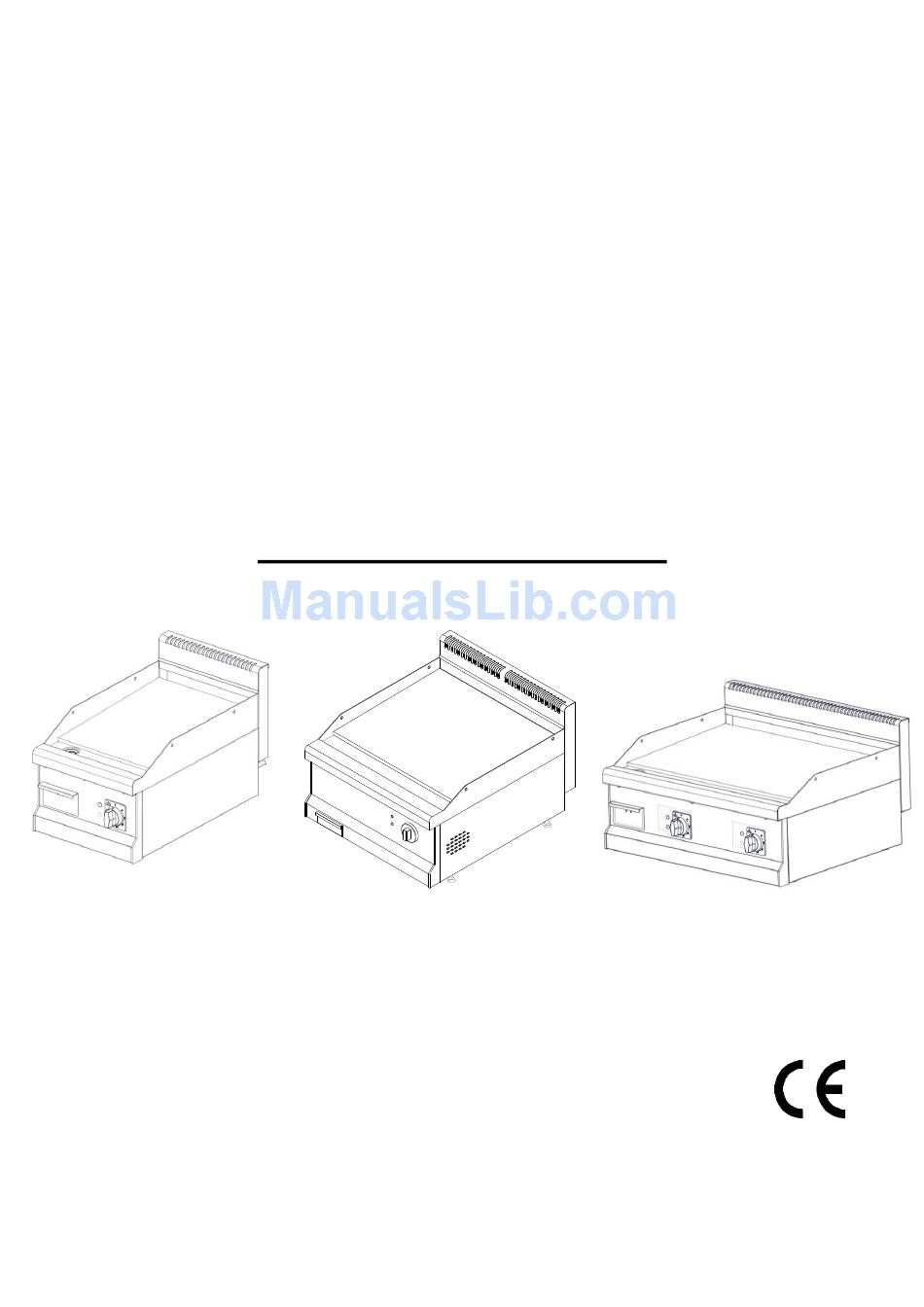

ELECTRIC GRILL USER MANUAL BEFORE OPERATING ELECTRIC GRILL PLEASE READ CAREFULLY AEI – 470 AEI – 670 AEI – 870 AEI – 470 / N AEI – 670 / N AEI – 870 / N AEI – 670 / ND AEI –... - Page 2 CONTENTS I – Description and Intended Use of the Electric Grill II- General Warnings and Safety Precautions III – Technical Specifications IV – First Operation V – Assembly VI – Operation VII – Maintenance VIII – Electrical Connection 6-7-8 IX – Pre-Assembly Instructions I- DESCRIPTION &...
- Page 3 General Dimensions *Dimensions of AEI–470 / AEI–470/N models *Dimensions of AEI-670 / AEI-670/N / AEI-670/ND models *Dimensions of models AEI-870 / AEI-870/N / AEI-870/ND...
- Page 4 II- GENERAL WARNINGS & SAFETY MEASURES This user manual contains technical specifications, operating guidelines, operating principles and other information about the device. Before starting the device check whether the electrical mains is compatible with the device settings and make proper cable connection. ...
- Page 5 V – ASSEMBLY Device; Should be mounted and adjusted by experienced technical personnel. In order to eliminate smoke and odor that may form during cooking the filter should be located under the hood. Should be balanced on four adjustable pillars and located on a level surface. (If there a under- counter set purchased with the device (these under-counter sets are manufactured according to the device dimensions), fixing pins should be fixed on the under-counter sets on the device) See Page 5 (Image -2)
- Page 6 Operation You may adjust the temperature from 50Cº (lowest temperature) to 300Cº (highest temperature) by turning the heat adjustment switch clockwise. See Page 6 (Image -2 and Image -3) When the yellow signal lamp turns off it shows that the tray of the device has reached to the desired level.
- Page 7 Electric circuit diagrams Electric circuit diagrams of AEI-470 / AEI-470/N models *Electric circuit diagrams of AEI-670 / AEI-670/N / AEI-670/ND models...
- Page 8 *Electric circuit diagrams of AEI-870 / AEI-870/N / AEI-870/ND models IX – PRE-ASSEMBLY INSTRUCTIONS If assembly is Ensure that the following considerations are fully and properly performed before the assembly. not possible as one of the following is missing; transportation fees and hourly wage shall be charged from the customer.
