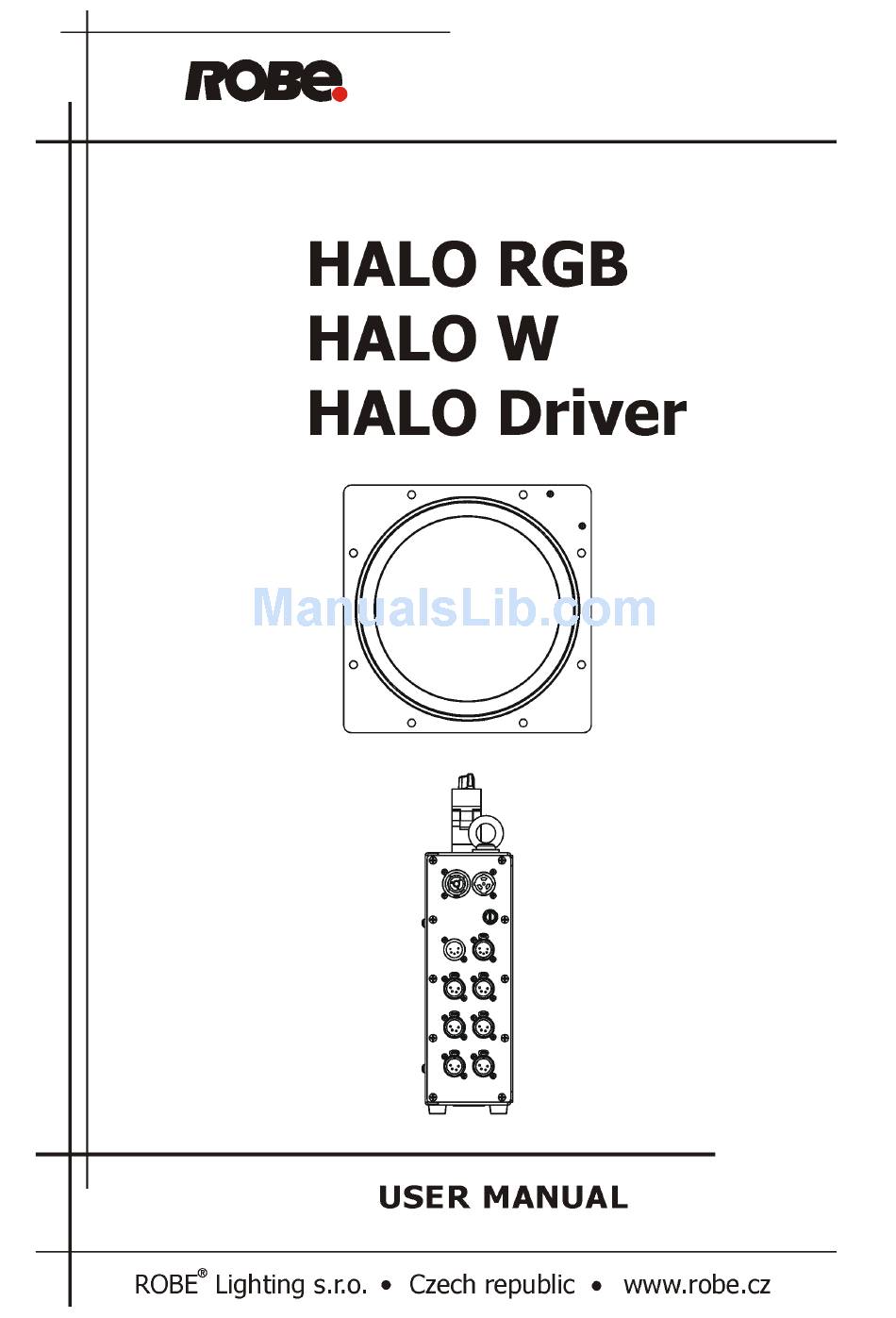

  • Page 1 Preliminary version...
  • Page 2 Table of contents 1. Safety instructions ..................3 1. Description....................3 2. Installation....................4 3. Technical specifications................6...

  • Page 3: Safety Instructions

    The HALO RGB (W) is a LED ring mountable on a stage reflector PAR 64. The HALO Driver is a control unit for the Halo RGB (W). Up to 6 HALO RGB (W) units can be connected to the HALO Driver.
  • Page 4 2. Installation Design of the HALO Driver allows to connect several fixtures to AC mains power in one interconnected daisy chain using power input and throughput connectors.The max. number of connected fixtures depends on the AC mains power voltage and fixture version: EU version (CE) US version (cETLus) 10 fixtures at power supply= 230V...
  • Page 5 DMX start address setting The DMX start address, is the first channel used to receive instructions from the DMX controller. The address may be any channel from 1 to 510 and is set on the Address DIP switch. Examples Control mode setting The last three DIP switches define control modes.

  • Page 6: Technical Specifications

    3. Technical specifications HALO RGB Input voltage: Max. power consumption : Light source: 96 x RGB LEDs Number of pixels: 24 (4 LEDs per pixel) Control input: 4-pin XLR (male) Ingress protection: IP 2X Weight: 0.8 kg Dimensions (mm):...
  • Page 7 HALO Driver Input voltage range: 100-240V, 50-60Hz Max. power consumption : 330W@230V �use: T 4A/250V ~ Mains input: 16A max. (CE ), 10A max. (cETLus) Mains output: 15A max. (CE ), 9A max. (cETLus) Control modes: 24 CH Intelli�lex mode (24 channels per port) 3 CH Strobe mode (3 channels per port) 3 CH RGB mode (3 channels per port) Direct Mapping mode (72 channels per port)
  • Page 8 HALO Driver - DMX protocol, version 1.0 24 CH IntelliFlex Mode Port/Channel Function Type of Value control Layer 1 Intensity 0 - 255 Intensity 0% -> 100% proportional Red 1 - Background or 2nd FX colour 0 - 255 Colour saturation control 0 ->100% proportional Green 1 - Background or 2nd FX colour 0 - 255...
  • Page 9 Port/Channel Function Type of Value control Layer 1 0 - 255 Colour saturation control 0 ->100% proportional Green 2 - Main FX colour 0 - 255 Colour saturation control 0 ->100% proportional Blue 2 - Main FX colour 0 - 255 Colour saturation control 0 ->100% proportional FX Select...
  • Page 10 Port/Channel Function Type of Value control Layer 1 Slow- low density step Slow - medium density step Slow - high density step Slow - linear step Medium - low density step Medium - medium density step Medium - high density step Medium - linear step...
  • Page 11 Port/Channel Function Type of Value control Layer 1 Fast - short tail step Fast - medium tail step Fast - long tail step Trace 2-Uniform Decay (colour mix with base) Example Effect step Slow - short tail step Slow - medium tail step Slow- long tail step...
  • Page 12 Port/Channel Function Type of Value control Layer 1 Example effects step 1/2's step 1/4's step 1/8's step 1/16's step 1/32's step 1/64's step Rotating 1/4's step Rotating 1/16's step Rotating 1/32's step Colour Merge Example Effect step Full step Three Quarter step Half step...
  • Page 13 HALO Driver - DMX protocol, version 1.0 3 CH Strobe Mode Port/Channel Function Type of Value control Strobe Intensity 0 - 255 Intensity 0% -> 100% proportional Flash Rate 0 - 255 Flash rate per second proportional Flash Duration 0 - 255 Duration of flash proportional 3 CH RGB Mode...
  • Page 14 HALO Driver - DMX protocol, version 1.0 Direct Mapping Mode Port/Channel Function Type of Value control Red pixel 1 0 - 255 Colour saturation control 0 ->100% proportional Blue pixel 1 0 - 255 Colour saturation control 0 ->100% proportional Green pixel 1 0 - 255 Colour saturation control 0 ->100%...
  • Page 15 HALO Driver - DMX protocol, version 1.0 Intelli-Mapping Mode Port/Channel Function Type of Value control Layer 1 Intensity 0 - 255 Intensity 0% -> 100% proportional Red 1 - Background or 2nd FX colour 0 - 255 Colour saturation control 0 ->100% proportional Green 1 - Background or 2nd FX colour 0 - 255...
  • Page 16 Port/Channel Function Type of Value control Layer 1 0 - 255 Colour saturation control 0 ->100% proportional Green 2 - Main FX colour 0 - 255 Colour saturation control 0 ->100% proportional Blue 2 - Main FX colour 0 - 255 Colour saturation control 0 ->100% proportional FX Select...
  • Page 17 Port/Channel Function Type of Value control Layer 1 Slow- low density step Slow - medium density step Slow - high density step Slow - linear step Medium - low density step Medium - medium density step Medium - high density step Medium - linear step...
  • Page 18 Port/Channel Function Type of Value control Layer 1 Medium - high density step Medium - linear step Fast - low density step Fast- medium density step Fast - high density step Fast - linear step Trace 1-Uniform Decay Example Effect step Slow - short tail step...
  • Page 19 Port/Channel Function Type of Value control Layer 1 Fast - medium tail step Fast - long tail step Jockey Example Effect step Smallest step step step step step step step step Biggest step Checkers Example effects step 1/2's step 1/4's step 1/8's step...
  • Page 20 Port/Channel Function Type of Value control Layer 1 Sweep Random V. Slow step Slow step Medium step Fast step Unused 137-240 step Pixel MAP Mix with other Layer 241-245 proportional Underneath other Layer 246-250 proportional Above other Layer 251-255 proportional...
