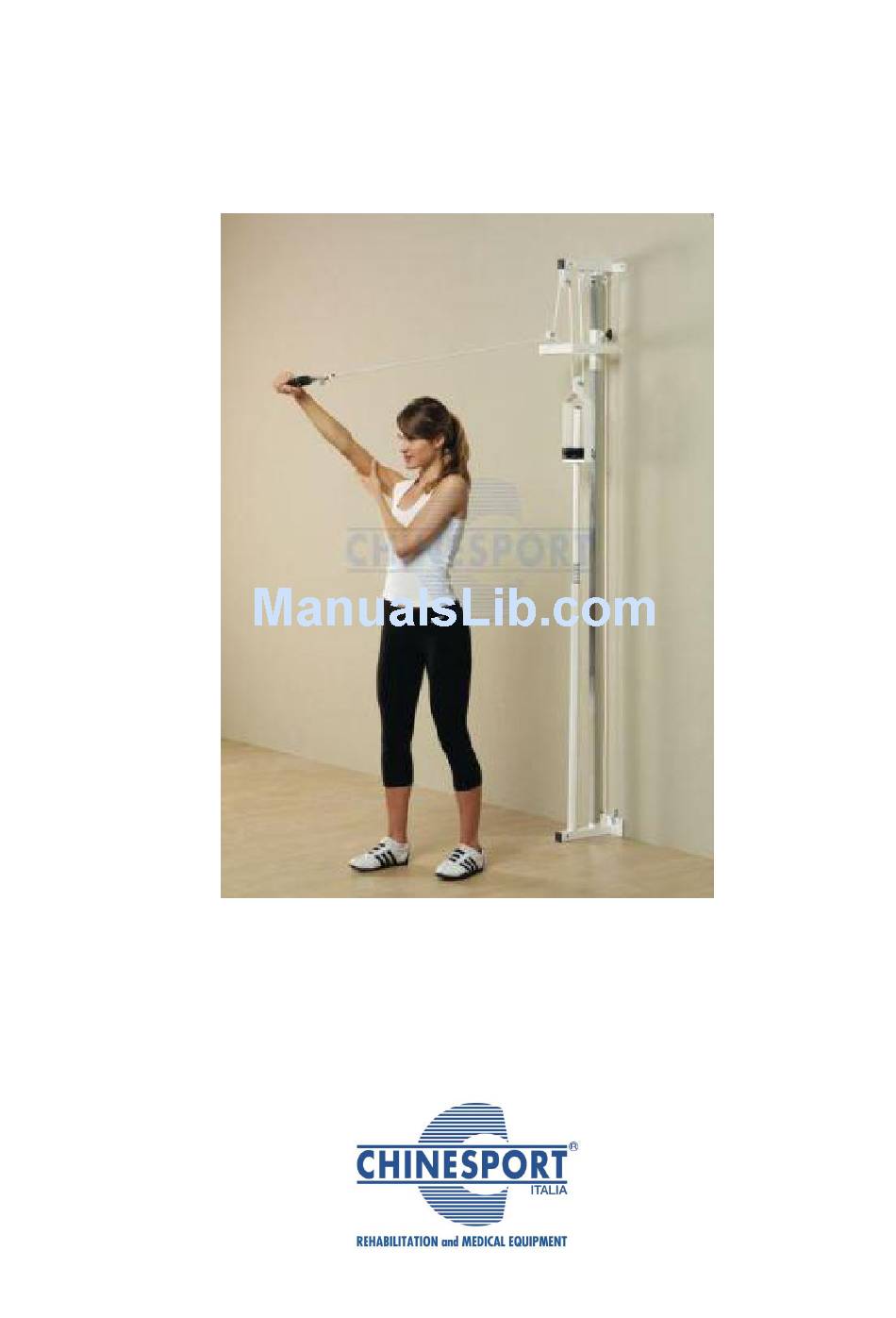

Ercolina and Poliercolina Pulley System
User Manual
Edited by Giancarlo Pellis

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ercolina and is the answer not in the manual?

Questions and answers

Summary of Contents for chinesport Ercolina

  • Page 1 Ercolina and Poliercolina Pulley System User Manual Edited by Giancarlo Pellis...

  • Page 2: Table Of Contents

    CONTENTS Assembly - Basic Ercolina Pulley System 07405 Assembly - Poliercolina Pulley System 07415 A description of our Ercolina Pulley System Accessories Exercises recommended by Chinesport How to use this information to prepare rehabilitation protocols Definitions List of exercises by accessory...
  • Page 3 Summary table of accessories/exercises Bibliography...

  • Page 4: Assembly - Basic Ercolina Pulley System 07405

    Assembly Basic Ercolina 07405 Ercolina needs to be secured to the wall using the 4 screws included in the Assembly Kit. Assembly Kit 4 screws Ø 6 x 85 mm 4 Screw covers Main components Exercise handle Weight stack cage...
  • Page 5 6 cheese-head screws to attach the ladder to the top pole 4 self-threading screws to attach the ladder to the bottom pole 1 - Securing the poles/ladder 2 - Securing the Ercolina ladder 2 x M8 cheese-head screws 4 wood self-threading screws...

  • Page 6: Assembly - Poliercolina Pulley System 07415

    Weight: 12 kg  Max load 10 kg (10 discs x 1 kg) Ercolina can be divided into 3 areas (top, middle, bottom) where the “exercise handle” can be attached The “adjustment knob” allows you to slide...

  • Page 7: Accessories

    Ginny Bench 4840 Ab bench 04720 Using the bar This bar can either be used with the basic Ercolina or with Poliercolina by fitting it to the appropriate ropes with one or two snap hooks. Snap hook eyelet for Poli Ercolina...
  • Page 8 Exercises recommended by Chinesport One of the most recurring factors in the onset of any back conditions is no doubt to do with a micro trauma resulting from an incorrect load distribution on the lumbosacral junction. To understand how this condition arises, we need to understand the biomechanics of how forces spread through the spine;...

  • Page 9: Exercises Recommended By Chinesport

    In order for exercises to be more easily applied when using Ercolina and Poliercolina, even if Chinesport equipment involves very small loads, we have chosen to identify them as “recommended exercises” in this manual when, performed in combination with the appropriate accessory, they can minimize body postures and behaviors that might cause stress to the system in some way, leading to microtraumas in the long term.

  • Page 10: How To Use This Information To Prepare Rehabilitation Protocols

    How to use this information to prepare rehabilitation protocols Details about the MAIN MECHANICAL ACTION can be found in the description of each exercise. Please note that this is to identify the motor activity performed by the muscle ridge (undergoing rehabilitation); This means that the MAIN MECHANICAL ACTION involves a muscular effort that is the same regardless of the condition (as a result of trauma or illness) which is addressed by the activity itself.

  • Page 11: Definitions

    Definitions SAGITTAL PLANE FRONTAL PLANE Axes and Planes axis z Axes are straight lines that intersect a body following three axis x Cartesian directions: sagittal x – transverse axis axis TRANSVERSE PLANE y – longitudinal axis transverse z – anteroposterior or sagittal axis. axis Planes are determined by axes intersecting on: frontal plane (intersection between transverse axis and...
  • Page 12 Lateral arm abduction 4, 7, 21, 27, 29 Lifting the scapulohumeral girdle Frontal arm abduction 5, 25, 26 Lifting the scapulohumeral girdle Arm abduction on transverse plane Lifting the scapulohumeral girdle at the back Lifting the arm at the back 3, 6, 22 Lifting the arm at the front 17, 24...
  • Page 13 External rotation on the transverse plane Upper body lateral flexion 16, 17, 49, 50 Cervical rachis lateral flexion Cervical rachis forward flexion Cervical rachis backward flexion Lumbosacral rachis forward flexion 44, 45, 47 Upper body twist 17, 46, 47 Lumbosacral rachis extension Leg curl over thigh 34, 40 Thigh extension at the pelvis...
  • Page 14 Thigh adduction Thigh internal rotation Thigh external rotation Position in relation to Ercolina FRONT SIDE (hip) BACK...

  • Page 15: List Of Exercises By Accessory

    Exercises Below is a list of exercises that can be performed with a basic Ercolina or a Poliercolina. Each exercise comes with details on  handle set-up  starting position  execution  main mechanical action  key muscles involved (with pictures included) ...
  • Page 16 Exercises that may also involve accessories: Ginny Bench 4840 Snap Hook AC0094 Exercise Bar AC0302...

  • Page 17: Exercise 1 Frontal Adduction

    BASIC ERCOLINA MODE standing straight facing Ercolina, upper limb is stretched forwards and 1 - Starting position: upwards, holding the handle fitted in the top section; pull the handle downwards keeping the limb in exactly the same position.

  • Page 18: Exercise 2: Lateral Adduction

    BASIC ERCOLINA MODE standing beside Ercolina, upper limb is stretched outwards and 1 - Starting position: upwards, holding the handle fitted in the top section; lower the limb until bringing it to touch the trunk, keeping it in 2 - How to do it exactly the same position.

  • Page 19: Exercise 3: Back Pull

    BASIC ERCOLINA MODE standing facing Ercolina, arm is stretched downwards and backwards, holding 1 - Starting position: the handle fitted in the bottom section; flex the arm until it is bent. 2 - How to do it...

  • Page 20: Exercise 4: Lateral Raise

    BASIC ERCOLINA MODE standing beside Ercolina, upper limb is stretched downwards at the back, 1 - Starting position: holding the handle fitted in the bottom section; raise the arm outwards and upwards without changing its position.

  • Page 21: Exercise 5 : Frontal Raise

    BASIC ERCOLINA MODE standing with the back towards Ercolina, arm is stretched downwards, holding 1 - Starting position: the handle fitted in the bottom section; lift the handle forwards and upwards without changing the arm position.

  • Page 22: Exercise 6: Back Push

    BASIC ERCOLINA MODE standing facing Ercolina, arm is stretched downwards and backwards, holding 1 - Starting position: the handle fitted in the bottom section lift the equipment backwards and upwards keeping it exactly in the same 2 - How to do it position.

  • Page 23: Exercise 7: Shoulder - Lift

    BASIC ERCOLINA MODE standing beside Ercolina, arm on the outside is stretched downwards, holding 1 - Starting position: the handle fitted in the bottom section; lift the shoulder upwards 2 - How to do it...

  • Page 24: Exercise 8: Downward Push

    BASIC ERCOLINA MODE standing facing Ercolina, arm is bent and touching the trunk, holding the 1 - Starting position: handle fitted in the top section; stretch the forearm out keeping the arm in the same position in relation to the 2 - How to do it trunk.

  • Page 25: Exercise 9: Arm Extension

    BASIC ERCOLINA MODE standing with the back towards Ercolina, arm is up and curled, holding the 1 - Starting position: handle fitted in the middle-top section; stretch the forearm out keeping the arm in the same position in relation to the 2 - How to do it trunk.

  • Page 26: Exercise 10: Arm Flexion

    BASIC ERCOLINA MODE standing straight facing Ercolina, arm is stretched, holding the handle fitted in 1 - Starting position: the bottom section; arm touching the trunk, flex the forearm over the arm to the maximum, keeping the arm in touch with 2 - How to do it the trunk.

  • Page 27: Exercise 11 Downward Traction

    BASIC ERCOLINA MODE lying supine on the bench, head towards Ercolina, arms stretched back, holding 1 - Starting position: the handle fitted to the pole in the middle section Pull the handle down to a maximum flexion position between arm and forearm.

  • Page 28: Exercise 12: Arm Internal Rotation On Transverse Plane

    BASIC ERCOLINA MODE standing beside Ercolina, arm is bent and touching the trunk, forearm is flexed 1 - Starting position: towards the equipment holding the handle fitted to the pole in the middle section; rotate the arm internally until the handle touches the abdomen.

  • Page 29: Exercise 13: Arm External Rotation On Transverse Plane

    BASIC ERCOLINA MODE standing beside Ercolina, arm is bent and touching the trunk, forearm is flexed 1 - Starting position: and touching the abdomen, holding the handle fitted to the pole in the middle section;...

  • Page 30: Exercise 14: Arm Internal Rotation

    BASIC ERCOLINA MODE lying on the floor, head towards Ercolina, arms out and bent (elbow at 90 degree 1 - Starting position: angle with forearm upwards), holding the handle fitted to the pole in the bottom section;...

  • Page 31: Exercise 15 Arm External Rotation

    BASIC ERCOLINA MODE lying supine on the floor, feet towards Ercolina, arms out and bent (elbow at 90 1 - Starting position: degree angle with forearm towards the equipment), holding the handle fitted to the pole in the bottom section;...

  • Page 32: Exercise 16: Lateral Tilt

    BASIC ERCOLINA MODE standing straight beside Ercolina with the chest tilted towards the equipment, 1 - Starting position: arm on the inside is stretched, holding the handle fitted to the pole in the bottom section...

  • Page 33: Exercise 17: Upper Body Twist

    BASIC ERCOLINA MODE standing with the back towards Ercolina, legs in a split stance, upper body bent 1 - Starting position: backwards and turned, one arm raised backwards and upwards, holding the handle fitted to the pole in the bottom section;...

  • Page 34: Exercise 18: Hand - Dorsal Flexion

    BASIC ERCOLINA MODE sitting facing Ercolina, forearm rested, hand pronated and pushed downwards 1 - Starting position: holding the handle fitted to the pole in the bottom section; flex the hand dorsally 2 - How to do it...

  • Page 35: Exercise 19: Hand - Palmar Flexion

    BASIC ERCOLINA MODE sitting facing Ercolina, forearm rested, hand supinated and pushed downwards 1 - Starting position: holding the handle fitted to the pole in the bottom section; flex the hand upwards. 2 - How to do it...

  • Page 36: Exercise 20: Opening On Transverse Plane

    BASIC ERCOLINA MODE standing facing Ercolina, arm is stretched forwards, holding the handle 1 - Starting position: fitted in the middle section bring the arm outwards and backwards, maintaining the same angle 2 - How to do it between arm and forearm.

  • Page 37: Exercise 21: Pulling To The Chin

    BASIC ERCOLINA MODE standing facing Ercolina, arm is stretched downwards, holding the handle 1 - Starting position: fitted in the bottom section bring the elbow outwards and upwards to a maximum curl position between 2 - How to do it arm and forearm.

  • Page 38: Exercise 22: Traction With Pulley Machine

    BASIC ERCOLINA MODE standing facing Ercolina, upper body is straight, arm is stretched, holding the 1 - Starting position: handle fitted in the middle section flex the arm until the equipment touches the abdomen.

  • Page 39: Exercise 23: Closing On Transverse Plane

    BASIC ERCOLINA MODE standing with the back towards Ercolina, arms are stretched out, holding the 1 - Starting position: handle fitted in the upper section; bring the arm forwards, maintaining the same angle between arm and 2 - How to do it forearm.

  • Page 40: Exercise 24: Arm Stretch

    BASIC ERCOLINA MODE sitting on the bench facing Ercolina, arm is bent, holding the handle fitted in the 1 - Starting position: middle section; stretch the arm pushing the handle forwards. 2 - How to do it POLIERCOLINA OPTION Starting position: sitting, back towards Ercolina ...

  • Page 41: Exercise 25: Upward Stretch On Reclined Bench

    BASIC ERCOLINA MODE sitting on the reclined bench placed beside Ercolina, arm is bent, holding the 1 - Starting position: handle fitted in the bottom section stretch the arm pushing the handle forwards and upwards.

  • Page 42: Exercise 26 Upward Stretch From Chest

    BASIC ERCOLINA MODE sitting on the bench placed beside Ercolina, arm is bent, holding the handle 1 - Starting position: fitted in the bottom section stretch the arm pushing the handle upwards. 2 - How to do it POLIERCOLINA OPTION Starting position: sitting, back towards Ercolina ...

  • Page 43: Exercise 27: Upward Stretch From Behind The Head

    BASIC ERCOLINA MODE sitting on the bench with the back towards Ercolina, arms curled, hands by the 1 - Starting position: back of the head, holding the handle fitted to the pole in the bottom section;...

  • Page 44: Exercise 28: Frontal Adduction With Stretch

    BASIC ERCOLINA MODE lying supine on the bench, head towards Ercolina, arm raised and bent (elbow at 1 - Starting position: 90 degree angle between arm and forearm), holding the handle fitted in the bottom section;...

  • Page 45: Exercise 29: Closing On Reclined Bench

    BASIC ERCOLINA MODE sitting on the reclined bench placed beside Ercolina, arm is stretched out, 1 - Starting position: holding the handle fitted in the bottom section; bring the arm from the side to the front and outwards, maintaining the same 2 - How to do it angle between arm and forearm.

  • Page 46: Exercise 30: Arm Extension

    BASIC ERCOLINA MODE lying supine on the bench, back towards Ercolina, arms curled, holding the handle 1 - Starting position: fitted in the bottom section extend the forearm on the arm until it is stretched, bringing the handle to the front.

  • Page 47: Exercise 31: Arm Kickback

    BASIC ERCOLINA MODE facing Ercolina, one knee on the bench, chest is bent forward with one hand 1 - Starting position: on the bench; other arm is down and bent with the arm touching the trunk, holding the handle fitted in the bottom section;...

  • Page 48: Exercise 32: Arm Flexion

    BASIC ERCOLINA MODE sitting on the bench placed facing Ercolina, arms are stretched, holding the 1 - Starting position: handle fitted in the bottom section; flex the forearm on the arm until closing the angle at the elbow completely.
  • Page 49 Exercises that may also involve accessories: Ankle strap AC0059 Snap Hook AC0094 Corona Mat 185 11000 Bench 04820...

  • Page 50: Exercise 33: Backward Leg Raise

    BASIC ERCOLINA MODE standing straight facing Ercolina, ankle strap fitted to the pole in the bottom 1 - Starting position: section kick the leg backwards, keeping it straight. 2 - How to do it...

  • Page 51: Exercise 34: Forward Pull

    BASIC ERCOLINA MODE sitting on the floor facing Ercolina, legs straight, ankle fitted on the pole in the 1 - Starting position: bottom section; flex the leg bringing the knee to the chest 2 - How to do it...

  • Page 52: Exercise 35: Lateral Leg Raise

    BASIC ERCOLINA MODE standing straight beside Ercolina, ankle strap on the outer leg and attached to 1 - Starting position: the pole in the bottom section; raise the leg sideways. 2 - How to do it...

  • Page 53: Exercise 36: Inward Leg Raise

    BASIC ERCOLINA MODE standing straight beside Ercolina, ankle strap on the outer leg which is raised 1 - Starting position: sideways, and fitted to the pole in the bottom section; kick the leg inwards crossing it at the front.

  • Page 54: Exercise 37: Thigh Internal Rotation

    BASIC ERCOLINA MODE Sitting beside Ercolina with feet on the floor, ankle strap on the instep of the foot 1 - Starting position: that is nearer the equipment and fitted to the pole in the bottom section;...

  • Page 55: Exercise 38: Thigh External Rotation

    BASIC ERCOLINA MODE Sitting beside Ercolina with inner foot on the floor, outer leg is bent over the other 1 - Starting position: knee, ankle strap on the instep of the foot that is facing the equipment and attached to the pole in the bottom section;...

  • Page 56: Exercise 39: Lex Extension Over The Thigh

    BASIC ERCOLINA MODE Sitting on the bench with the back towards Ercolina, leg crossed over the knee 1 - Starting position: with ankle strap attached to the bottom section; extend the leg on the thigh.

  • Page 57: Exercise 40 : Leg Flexion Over The Thigh

    BASIC ERCOLINA MODE lying prone with the back towards Ercolina, ankle strap on the straight leg and 1 - Starting position: fitted to the pole in the bottom section flex the leg over the thigh until closing the angle at the knee.
  • Page 58 Exercises that may also involve accessories: Accessory: Ab bench N.B. should you wish to make the exercise more difficult for the muscles, you can place the end of the bench on a higher step...

  • Page 59: Exercise 41: Sit-Ups With Flexed Legs

    Resting on the second or third step of the wall bar BASIC ERCOLINA MODE supine on the bench, head towards Ercolina, arms stretched upwards holding the 1 - Starting position: third or fourth step of the wall bar, legs flexed raise the legs forwards and upwards, lifting the pelvis off the surface.

  • Page 60: Exercise 42: Sit-Ups With Bent Legs

    Resting on the second or third step of the wall bar BASIC ERCOLINA MODE lying supine on the bench with feet towards Ercolina, legs bent and feet locked 1 - Starting position: by the foot support, hands behind the head flex the upper body forwards.

  • Page 61: Exercise 43 : Pelvis Twist

    Resting on the second or third step of the wall bar BASIC ERCOLINA MODE supine on the bench, head towards Ercolina, arms stretched upwards holding 1 - Starting position: the third or fourth step of the wall bar, legs straight;...

  • Page 62: Exercise 44: Twisting Sit-Ups

    Bench set-up Resting on the first or second step of the wall bar BASIC ERCOLINA MODE sitting on the bench with feet towards Ercolina, legs bent and feet locked by the 1 - Starting position: foot support, hands behind the head...

  • Page 63: Exercise 45 : Dorsal Muscle Exercises

    Bench set-up Resting on the first step of the wall bar BASIC ERCOLINA MODE lying prone on the bench, head towards Ercolina, arms stretched upwards 1 - Starting position: holding the second step of the wall bar, legs straight raise the legs backwards.

  • Page 64: Exercise 46 : Oblique Muscles Exercises

    Bench set-up Resting on the first step of the wall bar BASIC ERCOLINA MODE lying on the bench on one side, head towards Ercolina, arms stretched upwards, 1 - Starting position: holding the pole on the wall bar flex the upper body to the side, lifting the pelvis off the bench...

  • Page 65: Exercise 47 : Lateral Flexion

    Resting on the first step of the wall bar BASIC ERCOLINA MODE lying on the bench on one side, feet towards Ercolina, legs stretched and feet 1 - Starting position: secured under the second and third step of the wall bar, hands at the back of the...
  • Page 66 Summary table of accessories/exercises The following table provides a summary of the exercises previously described for each accessory that must or may be used Corona Mat Ginny Bench Wrist-Ankle Strap Exercise Bar AC0302 Bench 04820 4840 AC0299 11000 16, 17, 334, 1, 2, 3, 4, 5, 6, 8, 9, 33, 34, 35, 36, 1, 3, 5, 8, 9, 10, 11,...
  • Page 67 Bibliography Pellis G.: Allenamento per la forza, Nuova Atletica dal Friuli, Udine, Associazione Sport e Cultura, 1988; Pellis G.: TOP3 - Systemes hardware et software pour l'evaluation des caracteristiques mecaniques musculaires et d'elaboration de planning de travail pour la reeducation post-traumatique et pour l'entrainement sportif, atti del convegno "Pour une preparation physique scientifique", Universite de Borgogne, Dijon, 08.12.96;...
