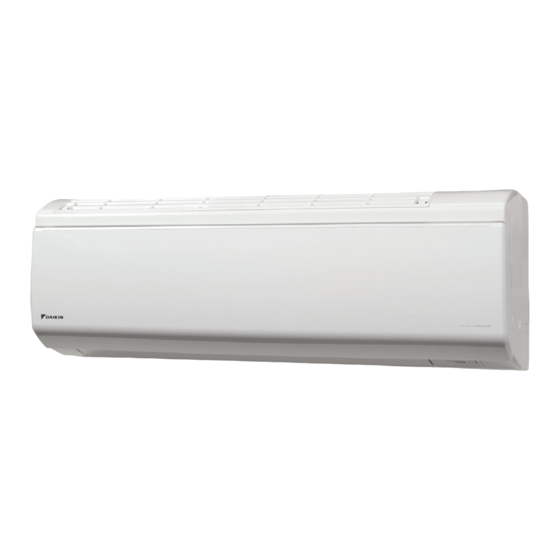

Page 1: Technical Data
Air Conditioners Technical Data W a l l m o u n t e d u n i t E E D E N 1 2 - 1 0 0 FTXR-E... -
Page 2: Table Of Contents
• Indoor Unit • Wall mounted unit • FTXR-E TABLE OF CONTENTS FTXR-E Features ............. 2 Specifications . -
Page 3: Features
• Titanium apatite photocatalytic air purification filter removes airborne • Powerful air purification increases indoor air quality with Daikin Flash microscopic particles, powerfully decomposes odours and helps to Streamer technology prevent the propagation of bacteria, viruses, microbes to ensure a steady supply of clean air •... -
Page 4: Specifications
• Indoor Unit • Wall mounted unit • FTXR-E Specifications 2-1 Technical Specifications FTXR28E FTXR42E FTXR50E Power input - 50Hz Cooling Nom. 0.030 0.035 0.040 Heating Nom. 0.030 0.035 0.040 Casing Colour White Dimensions Unit Height/Width/Depth 305/890/209 Packed unit Height/Width/Depth... -
Page 5: Electrical Specifications
• Indoor Unit • Wall mounted unit • FTXR-E Specifications 2-2 Electrical Specifications FTXR28E FTXR42E FTXR50E Power supply Name Phase Frequency Voltage 220-240 Current Nominal running current Cooling 0.14 0.16 0.19 (RLA) - 50Hz Heating 0.14 0.16 0.19 Current - 60Hz... -
Page 6: Dimensional Drawings
• Indoor Unit • Wall mounted unit • FTXR-E Dimensional drawings 3 - 1 Dimensional Drawings FTXR28-50E unit (mm) Required space The mark (Y) shows piping direction Air flow (indoor) Including mounting plate Left Right 50 Min. 50 Min. (Space for (Space for Gear case unit fixed screws operation) -
Page 7: Centre Of Gravity
• Indoor Unit • Wall mounted unit • FTXR-E Centre of gravity 4 - 1 Centre of Gravity FTXR28-50E 4D054060 • Split - Sky Air • Indoor Unit... -
Page 8: Piping Diagrams
• Indoor Unit • Wall mounted unit • FTXR-E Piping diagrams 5 - 1 Piping Diagrams Indoor unit FTXR28-50E Heat exchanger Thermistor on heat Solenoid valve exchanger At rated voltage: closed (under dehumidification operation) Cross flow fan Heat exchanger Fan motor Field piping Single union joint Field piping... -
Page 9: Wiring Diagrams
• Indoor Unit • Wall mounted unit • FTXR-E Wiring diagrams 6 - 1 Wiring Diagrams - Single Phase ∼ ∼ ∼ • Split - Sky Air • Indoor Unit... -
Page 10: Sound Data
• Indoor Unit • Wall mounted unit • FTXR-E Sound data 7 - 1 Sound Pressure Spectrum - Cooling FTXR28E (Cooling) FTXR42E (Cooling) approximate threshold approximate threshold hearing for continuous hearing for continuous noise noise Octave band center frequency (Hz) -
Page 11: Sound Pressure Spectrum - Heating
• Indoor Unit • Wall mounted unit • FTXR-E Sound data 7 - 2 Sound Pressure Spectrum - Heating FTXR42E (Heating) FTXR28E (Heating) approximate threshold approximate threshold hearing for continuous hearing for continuous noise noise 3D054042A Octave band center frequency (Hz) - Page 12 EEDEN1 2 - 1 0 0 leaflet. All content is copyrighted by Daikin Europe N.V. Naamloze Vennootschap - Zandvoordestraat 300, B-8400 Oostende - Belgium - www.daikin.eu - BE 0412 120 336 - RPR Oostende...
