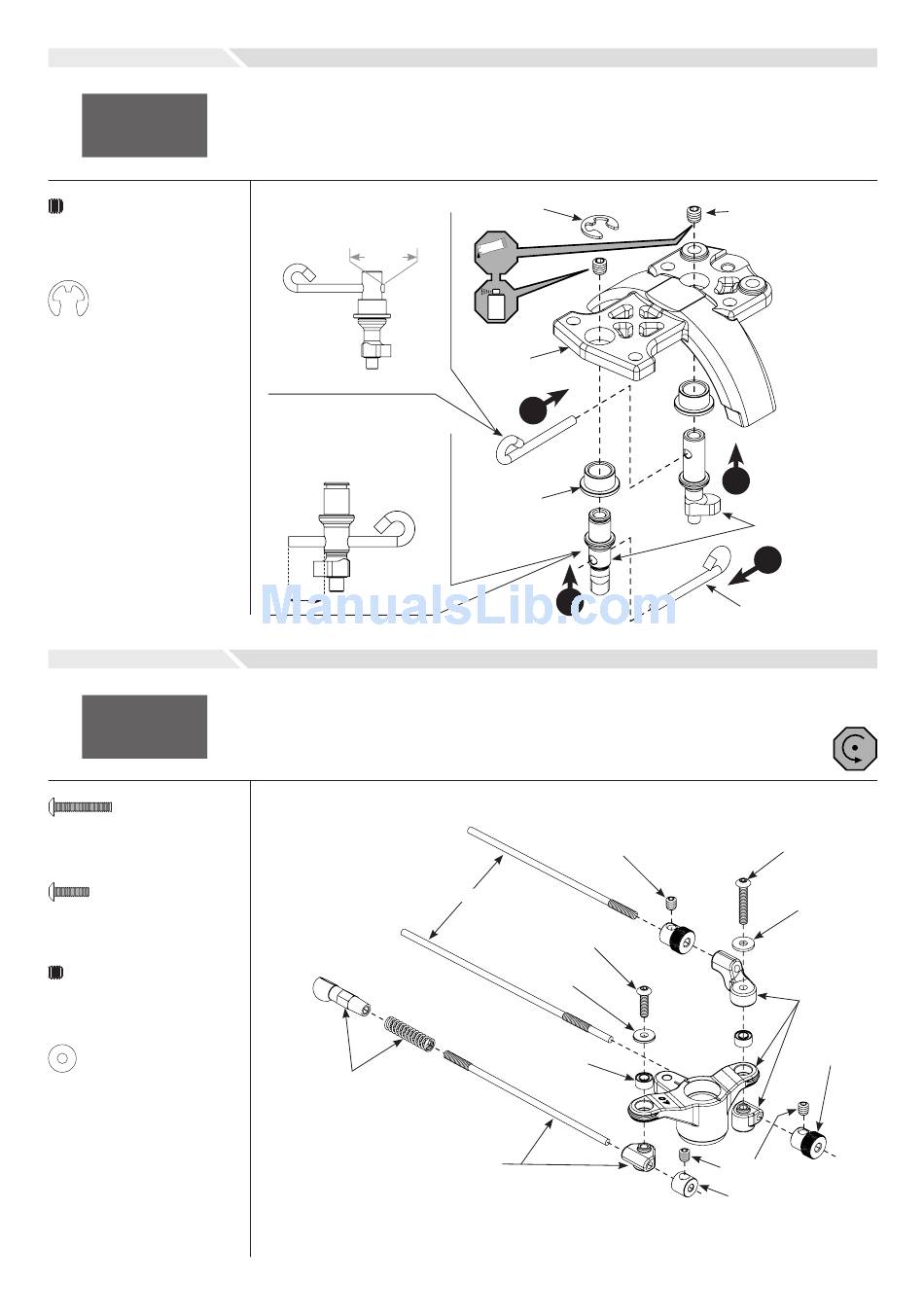

TLR EIGHT 4.0 User Manual page 25

C-4
LOSA6297 x 2
F 5-40 x 1/8"
LOSA6109 x 1
5mm E-clip
C-5
LOSA6236 x 1
2-56 x 1/2"
LOSA6225 x 1
2-56 x 5/16"
LOSA6227 x 3
C 4-40 x 1/8"
LOSA9168 x 1
.250 x .094 x .020"
EN Center Top Brace Assembly
DE Zusammenbau des mittleren oberen Halters
FR Assemblage du renfort central supérieur
IT Assemblaggio supporto centrale superiore
ES Montaje del brazo central superior
0.5mm
7mm
EN Linkage Assembly
DE Zusammenbau des Gestänges
FR Assemblage des tringleries
IT Assemblaggio barrette comandi
ES Montaje del varillaje
LOSA9168
LOSA6109
TLR-LOK
LOSA4420
2
LOSA3544
1
LOSA6227
TLR241018
LOSA6225
TLR241018
TLR247000
TLR241018
LOSA6297
1
LOSA3544
2
LOSA9168
LOSA6236
LOSA9168
TLR241018
LOSA9168
LOSA6227
LOSA9168
25
