Page 1: Table Of Contents

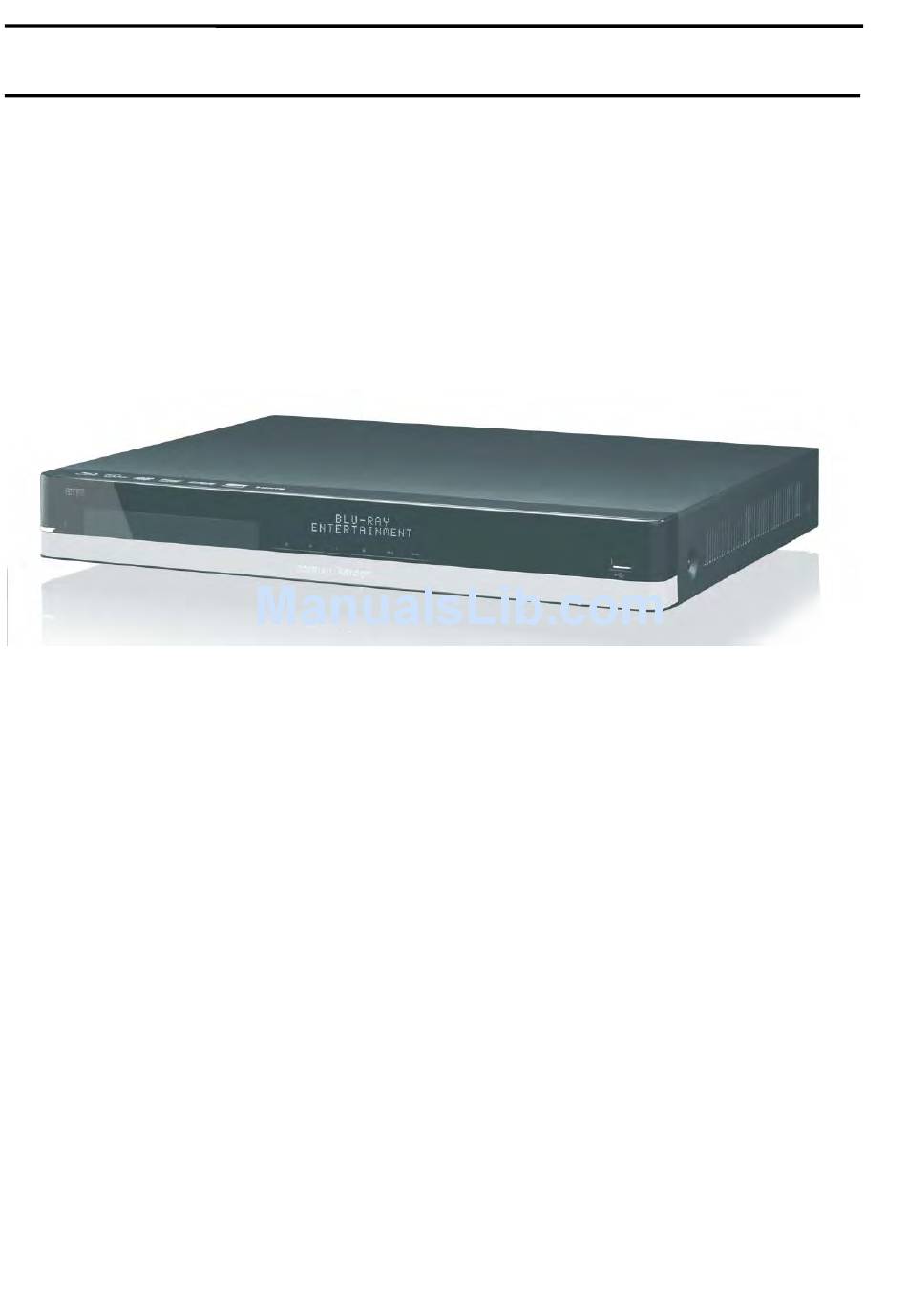

Service Manual BDT 30/230 BDT 3/120 Blu-ray player CONTENTS ESD WARNING SPECIFICATIONS OWNER’S MANUAL FRONT PAGE EXPLODED VIEW REGION CODES BDT 3 PARTS LIST FEATURES BDT 30 PARTS LIST FRONT PANEL CONTROLS SOFTWARE UPGRADE INSTRUCTIONS 14 REAR-PANEL CONNECTIONS TROUBLESHOOTING CHARTS... -
Page 2: Esd Warning
Harman Kardon BDT 3/120V and BDT 30/240V Service Manual Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and semiconductor "chip"... -
Page 3: Owner's Manual
Harman Kardon BDT 3/120V and BDT 30/240V Service Manual BDT 3/BDT 30 Blu-ray Disc player ™ Owner’s Manual Page 3 of 35... -
Page 4: Region Codes
The carton and shipping materials used to protect your new player during shipment were for more than fifty years, harman kardon products have been at the cutting edge of audio specially designed to cushion it from shock and vibration. We suggest that you save the and home theater technology. -
Page 5: Features
BDT 3/BDT 30 Features BDT 3/BDT 30 Features Supplied Accessories Connectivity If any of these items are missing, please contact harman kardon customer service via www.harmankardon.com. • One hdMI connector • One coaxial digital audio output connector • left and right analog audio output connectors •... -
Page 6: Front Panel Controls
Harman Kardon BDT 3/120V and BDT 30/240V Service Manual BDT 3/BDT 30 Front-Panel Controls Front-Panel Controls Power disc Information Indicator Port drawer display Open/close Pause Power Previous/ Button Button Button step Button Play stop Next/step Button Button Button Power Indicator: When the BdT 3/BdT 30 is plugged into Ac power and its rear-panel throughout this manual. -
Page 7: Rear-Panel Connections
Harman Kardon BDT 3/120V and BDT 30/240V Service Manual BDT 3/BDT 30 Rear-Panel Connectors/Remote Control Functions Rear-Panel Connectors Main Power Analog Audio Output hdMI Output switch connectors vents connector BLU-RAY DISC PLAYER ON OFF 110V-240V –50/60Hz 25W Network Power cord... - Page 8 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual BDT 3/BDT 30 Remote Control Functions Power On button: Press this button when the BdT 3/BdT 30 is in the standby mode to Search/Slow Reverse button: Press this button to reverse through the current disc turn it on.
-
Page 9: Troubleshooting
BDT 3/BDT 30 Troubleshooting Troubleshooting If your BdT 3/BdT 30 isn’t performing the way you think it should, check to see if the problem is covered in this section before calling your dealer or contacting harman kardon customer service. Problem Solution The player won’t power up (the Power indicator is not lit):... -
Page 10: Safety Instructions
Harman Kardon BDT 3/120V and BDT 30/240V Service Manual BDT 3/BDT 30 BDT 3/BDT 30 Safety Instructions Specifications supported disc formats: 5-inch (12cm) or 3-inch (8cm) Bd-video (single-layer or double-layer), Bd-R, Bd-Re, dvd-video, dvd+R/+RW, dvd-R/-RW, cddA (cd digital audio), cd-R/RW discs Region code (Bd/dvd): A/1 (BdT 3);... -
Page 11: Exploded View
Harman Kardon BDT 3/120V and BDT 30/240V Service Manual EXPLODED VIEW FOR BDT3/BDT30: ASSY1 This is general mechanical exploded view for BDT3_30. Please refer to the model set for detailed information. ASSY1 includes components:1,2,3,4,5,6,7,8,9,10,12,38,39,40,41,42 Page 11 of 35... -
Page 12: Bdt 3 Parts List
Harman Kardon BDT 3/120V and BDT 30/240V Service Manual BDT3 SERVICE PARTS Location No. TCL P/N Description 08-0BDT30-MA0 ASSY-MAIN BOARD 08-0BDT30-PWY ASSY-POWER BOARD 08-0BDT30-VFD 08-0BDT30-VFD ASSY-FRONT CONTROL BOARD ASSY-FRONT CONTROL BOARD 08-BL2000-LD3 ASSY-LOADER 08-0BDT30-AV0 ASSY-AUDIO/VEDIO BOARD ASSY1 08-BDT3F1-001 ASSY-FRONT PANEL BOARD... -
Page 13: Bdt 30 Parts List
Harman Kardon BDT 3/120V and BDT 30/240V Service Manual BDT30 SERVICE PARTS Location No. TCL P/N Description 08-0BDT30-MA0 ASSY-MAIN BOARD 08-0BDT30-PWY ASSY-POWER BOARD 08-0BDT30-VFD 08-0BDT30-VFD ASSY-FRONT CONTROL BOARD ASSY-FRONT CONTROL BOARD 08-BL2000-LD3 ASSY-LOADER 08-0BDT30-AV0 ASSY-AUDIO/VEDIO BOARD ASSY1 08-BDT3F2-002 ASSY-FRONT PANEL BOARD... -
Page 14: Software Upgrade Instructions
Harman Kardon BDT 3/120V and BDT 30/240V Service Manual Software upgrade Preparation to upgrade software 1.Power on the set and press “settings” button on the remote. 2.Press left cursor to select "Information". Check the Software Version. 3. Check that the software version is correct in the UPG folder. -
Page 15: Troubleshooting Charts
Harman Kardon BDT 3/120V and BDT 30/240V Service Manual Trouble shooting chart No display on VFD, and buttons do not work No display on VFD, and buttons do not work Check every supply voltage on main board is Refer to Power supply board part... - Page 16 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual Trouble shooting chart Remote control does not work Remote control does not work Check whether the remote Replace the battery for remote controller’s battery controller exhausted or not. Check power Check the VCC net no the front board...
- Page 17 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual Trouble shooting chart Can’t read disc or can’t open the disk door Can’t read disc or can’t open the disk door Check whether Check the co nnection 4pin cable from the...
- Page 18 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual Trouble shooting chart Can not connect to network Can not connect to network Check if U7 is oK In main board Fix U2 in mainboard Check R12 5 is on in...
-
Page 19: Pcb Drawings
Harman Kardon BDT 3/120V and BDT 30/240V Service Manual 7-13 7-13 Front Control Board Print Lay-out: Page 19 of 35... - Page 20 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual 7-14 7-14 Power Supply Print Lay-out: Page 20 of 35...
- Page 21 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual 7-15 7-15 Main Board Print Lay-out(top side): Page 21 of 35...
- Page 22 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual 7-16 7-16 Main Board Print Lay-out(bottom side): Page 22 of 35...
-
Page 23: Wiring Diagram
Harman Kardon BDT 3/120V and BDT 30/240V Service Manual BDT3&BDT30 WIRING DIAGRAM COMPONENT COAX L.R,CVBS AV BOARD 40-BD3200-AVX1G LOADER RJ45 HDMI MA BOARD AK4430ET Signal manage(45PIN) VIDEO ,SFDIF connect board NAND FLASH 2Gbit 8PIN U100 MOTOR DRIVE MTK8555 A. R2A30209SP B. -
Page 24: Schematic Diagrams
Harman Kardon BDT 3/120V and BDT 30/240V Service Manual Front Control Board Circuit Diagram:VFD PNP_MMBT8550CLT1 PNP_MMBT8550CLT1 LED1 LED1 PNP_MMBT8550CLT1 PNP_MMBT8550CLT1 LED_K 4.7K 4.7K LED2 LED2 NPN_MMBT8050C NPN_MMBT8050C 4.7K 4.7K IRM_16mm IRM_16mm +12V_D 2.2K 2.2K 0.1uF/50V/Y5V 0.1uF/50V/Y5V V12V 47uF/50V 47uF/50V L601... - Page 25 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual Power Supply Board Circuit Diagram L501 L501 680uH 680uH CY503 CY503 470PF/250Vac 470PF/250Vac C501 C501 D501 D501 D503 D503 R505A R505A R505B R505B R505C R505C R505D R505D 103/1KV 103/1KV 470PF/250Vac 470PF/250Vac...
- Page 26 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual Main Board Circuit Diagram:power +12V 135MA R296 R296 1.1V GND1 GND1 1.1V POWER VCC1 VCC1 behind of Caps 1.1V R295 R295 100K 100K 0.1uF/25V/Y5V 0.1uF/25V/Y5V R294 R294 Close to DC-DC 2D BD...
- Page 27 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual Main Board Circuit Diagram:DDR Part I 1.5V A_DQ3 A_RA0 A_DQ18 A_RA0_2R AA25 A_DQ7 A_RA1 A_DQ23 A_RA1_2R DVCC18_IO_1 AE10 A_DQ1 A_RA2 A_DQ19 A_RA2_2R DVCC18_IO_1 AF14 A_DQ6 A_RA3 A_DQ21 A_RA3_2R DVCC18_IO_1 AE17 AG17...
- Page 28 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual Main Board Circuit Diagram:DDR Part II 1.1V 1.1V B_DQ0 DVCC10_K RDQ0_B B_DQ1 DVCC10_K RDQ1_B B_DQ2 DVCC10_K RDQ2_B B_DQ3 B_DQ1 B_RA0 B_DQ19 B_RA0_2R C212 C212 DVCC10_K RDQ3_B B_DQ4 B_DQ6 B_RA1 B_DQ23 B_RA1_2R...
- Page 29 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual Main Board Circuit Diagram:HDMI HDMI Port AVDD33_VDAC_R AOMCLK PESD_TPD4S010B/NC PESD_TPD4S010B/NC AVDD33_VDAC_R AOMCLK AOMCLK HDMI TX AOBCK TX2+ AVSS33_VDAC_R AOBCK AOBCK 3.3V Analog Power AOLRCK AOLRCK AOLRCK 3.3V AVDD33_VDAC_X AOSDATA0 TX2- AOSDATA0...
- Page 30 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual 3.3V NAND Flash Main Board Circuit Diagram:FLASH 3.3V 3.3V 3.3V DVCC33_IO_5 STXN DVCC33_IO_5 STXP R402 R402 DVCC33_IO_2 DVCC33_IO_2 SRXP DVCC33_IO_3 SRXN C146 C146 C147 C147 DVCC33_IO_3 0.1uF/16V/X7R 0.1uF/16V/X7R 4.7uF/10V/Y5V 4.7uF/10V/Y5V NFD7...
- Page 31 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual Main Board Circuit Diagram:VFD/IR 3.3V_STBY DVCC33_IO_STB GPIO8_AO2LRCK TP35 TP35 DVCC33_IO_STB GPIO8 4.7K 4.7K DVCC33_IO_STB ETCOL ETCRS_AO2SDATA2 VSTB TP36 TP36 ETCRS ETMDC_AO2BCK VCLK TP37 TP37 ETMDC ETMDIO_AO2MCK VDATA TP38 TP38 ETMDIO KEY1...
- Page 32 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual Main Board Circuit Diagram:AUDIO AOMCLK AOMCLK AOBCK AOBCK AOSDATA0 AOSDATA0 AOLRCK AOLRCK SPDIF SPDIF 3.3V FB25 FB25 FB120/0.2A FB120/0.2A 59MA? 50MA? FB26 FB26 FB120/0.2A FB120/0.2A CVDD TM39 TM39 3.3V R310 R310...
- Page 33 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual 7-10 7-10 Main Board Circuit Diagram:VIDEO 1.2V VDIN3 R193 R193 R189 R189 AVDD12_HDMI_RX VOUT_HSYNC TP43 TP43 TEST POINT SMD1.0 TEST POINT SMD1.0 VDD12_HDMI_RX VDINHSYNC VOUT_SYNC TEST POINT SMD1.0 TEST POINT SMD1.0...
- Page 34 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual 7-11 7-11 FE RS232 Port Main Board Circuit Diagram:FE 3.3V A1.2V NC1206/SMD NC1206/SMD TRINA TRINA TRINA TRINB TRINB TRINB FE_GND 0603-R 0603-R URXD C227 C227 TRINC TRINC TRINC TP804 TP804 NC1206/SMD...
- Page 35 Harman Kardon BDT 3/120V and BDT 30/240V Service Manual 7-12 7-12 Main Board Circuit Diagram:Motor Drive M12V_T V14REF_R 90MA GAINSW3 GAINSW3 C262 C262 4.7uF/10V/Y5V 4.7uF/10V/Y5V VCC_D C263 C263 0.1uF/25V/Y5V 0.1uF/25V/Y5V C19V SLED2_N FB15 FB15 FB10/2A FB10/2A C265 C265 FOC1- MVCC_R...
