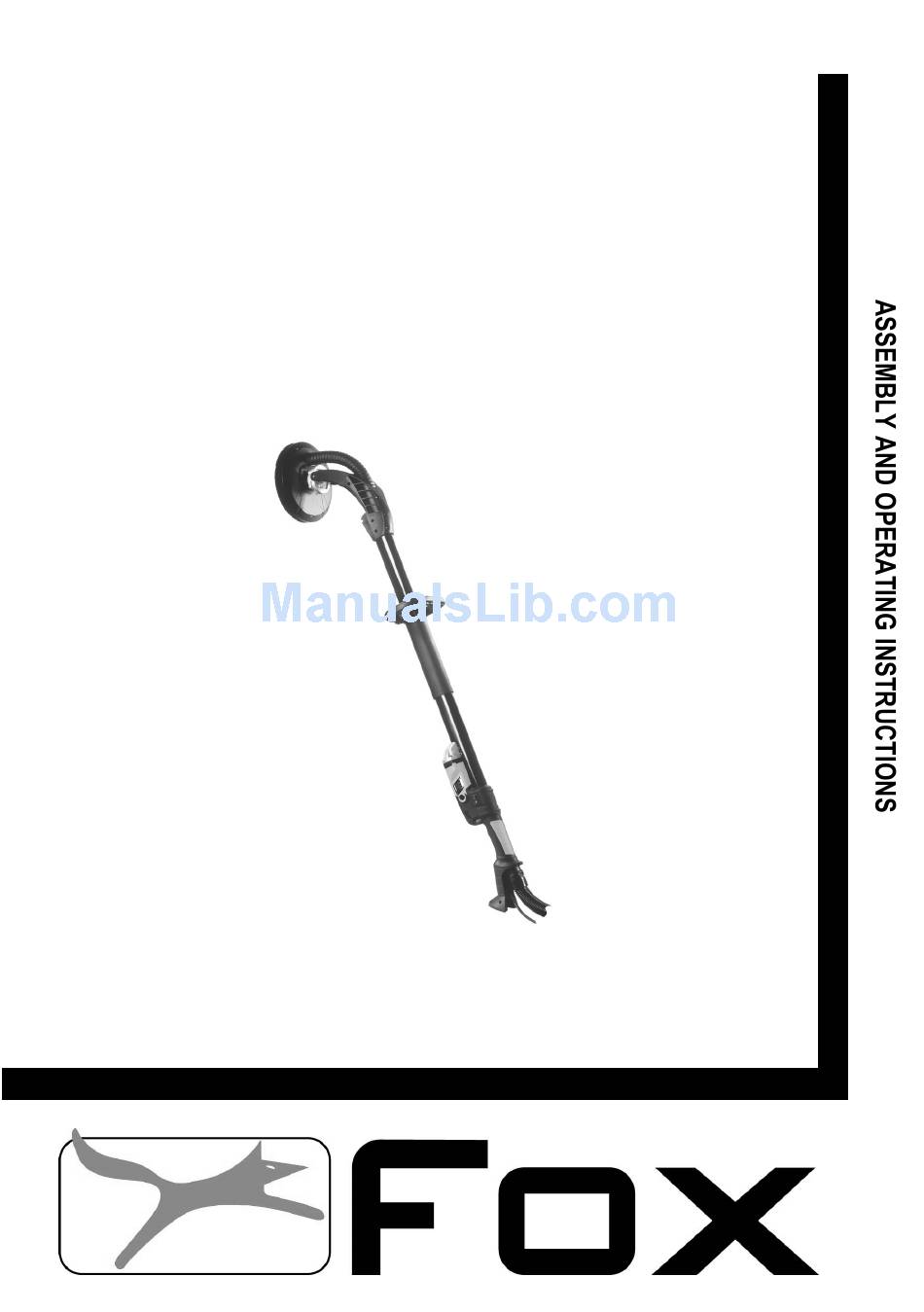

- Page 1 DRYWALL SANDER 110V FOX Model FDW-550...
-
Page 2: Table Of Contents
Drywall Sander 110V FOX MODEL FDW-550 TABLE OF CONTENTS Safety instructions…………………………………………………………………………………………… Page 3 Specific safety instructions for drywall sanders.…………………………………………………………. Page 5 Specifications………………………………………………………………………………………………… Page 6 Noise information……………………………………………………………………………………………. Page 6 Vibration information………………………………………………………………………………………… Page 6 Electrical connections………………………………………………………………………………………. Page 7 ... -
Page 3: Safety Instructions
ATTENTION : - Read the instructions for use carefully before using the machine - This device meets current safety standards for electrical machines. - Incorrect use may result in injury. Anyone not familiar with the instructions for use should not use the machine. - Page 4 8. Wear appropriate clothing. Avoid loose clothing, and remove jewellery which could become caught in moving parts. Non-slip shoes are particularly recommended when working outside. Keep long hair tied up. 9. Always wear safety glasses. Also wear a mask if operating the machine creates dust. 10.
-
Page 5: Specific Safety Instructions For Drywall Sanders
SPECIFIC SAFETY INSTRUCTIONS FOR DRYWALL SANDERS Keep hands away from rotating sanding head area at all times. Prolonged breathing of airborne dust from drywall sanding may affect respiratory function. Always use a vacuum cleaner with a bag approved for drywall dust installed. Always wear a respirator approved for dust and mist. Sanding LEAD-BASED paint is extremely toxic and should not be attempted. -
Page 6: Specifications
SPECIFICATIONS Motor : 550W – 110V (0.75hp) No load speed : 650-1600rpm Full load speed : 280-950rpm Sanding disc diameter : 225mm Dimensions (h x l x d) : 1530x250x370mm Weight : 4.7kg NOISE INFORMATION The noise level of the machine is measured according to the standard DIN IN ISO 3744; 11/95, E DIN IN 31201; 6/93, Annex A ISO 7960;... -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS EXTENSION CORDS Before using an extension cord, ensure the insulation is not cut or worn. Immediately repair or replace a damaged or frayed cord. Length of the extension cord: up to 15m Dimension of the wire: 3 x 2.5mm ATTENTION : Extension cords must be removed from the work area or located so that they will not get caught in parts, tools or other objects while using the tool. -
Page 8: Environmental Protection
ENVIRONMENTAL PROTECTION The crossed-out wheeled bin means that within the European Union the product must be taken to separate collection at the product tend-of life. This applies to your device but also to any enhancements marked with this symbol. Do not dispose of these products as unsorted municipal waste. -
Page 9: Machine Identification
MACHINE IDENTIFICATION... -
Page 10: Product Description
PRODUCT DESCRIPTION This electric drywall sander is specially designed for the most efficient sanding of drywall or plaster walls and ceiling for both new construction and renovation work. It is designed to work in conjunction with a vacuum cleaner for minimum dust and best sanding results. - Page 11 Hold the sanding plate in one hand and with the other, using the L-hex wrench (supplied), first break free the centre bolt clockwise (1/8 turn only!). Then use only the L-hex wrench to hold the centre bolt from turning and spin off the sanding plate anti-clockwise. Next, press the cover down against the spring and, using snap-ring pliers, remove the circlip which holds the sanding plate cover to the bracket.
-
Page 12: Starting And Stopping The Tool
To install the vacuum cleaner hose: 1. Unplug the machine. 2. Plug the vacuum cleaner hose bayonet mount into the swivel mount in the back of the machine. Once the tangs of the bayonet mount are fully inserted in the slots, hold the swivel mount from turning and turn the hose bayonet mount clockwise to lock. -
Page 13: How To Use The Tool
HOW TO USE THE TOOL Effective control of this powerful sander requires two-handed operation for maximum safety and control. The proper hold is to keep one hand on the main handle and the other hand on the sponge grip on the column. It is vitally important to keep a stable footing at all times, especially when standing on scaffolding or stilts. -
Page 14: Maintenance
MAINTENANCE Keep the Tool Clean Periodically blow out all air passages with dry compressed air. All plastic parts should be cleaned with a soft, damp cloth. NEVER use solvents to clean plastic parts. They could possibly dissolve or otherwise damage the material. Wear Safety Glasses While Using Compressed Air Clean the vacuum swivel connector as too much dust will keep it from turning freely. -
Page 15: Wiring Diagram
WIRING DIAGRAM... -
Page 16: Exploded View
EXPLODED VIEW... -
Page 17: Parts List
PARTS LIST... -
Page 18: Dart Tool Group Guarantee
Power Tools and accessories which, upon examination, prove to be defective in workmanship or material. The warranty period for the FOX branded products is one year for parts and labour and three years for parts only. The guarantee does not include repair, labour or parts requiring replacement because of misuse, abuse, or normal wear and tear. -
Page 19: Declaration Of Conformity
KIRKCALDY, UK, KY1 3PD Tel. +44 (0) 1592 652946 Fax: +44 (0) 1592 654854 Declares that the: DRYWALL SANDER 110V (FDW-550) is in compliance with the regulations included in the Directives: CEE 2006/42-2004/108-2006/95 Person authorized to create the technical file: Robert Paterson 06.05.2011...
