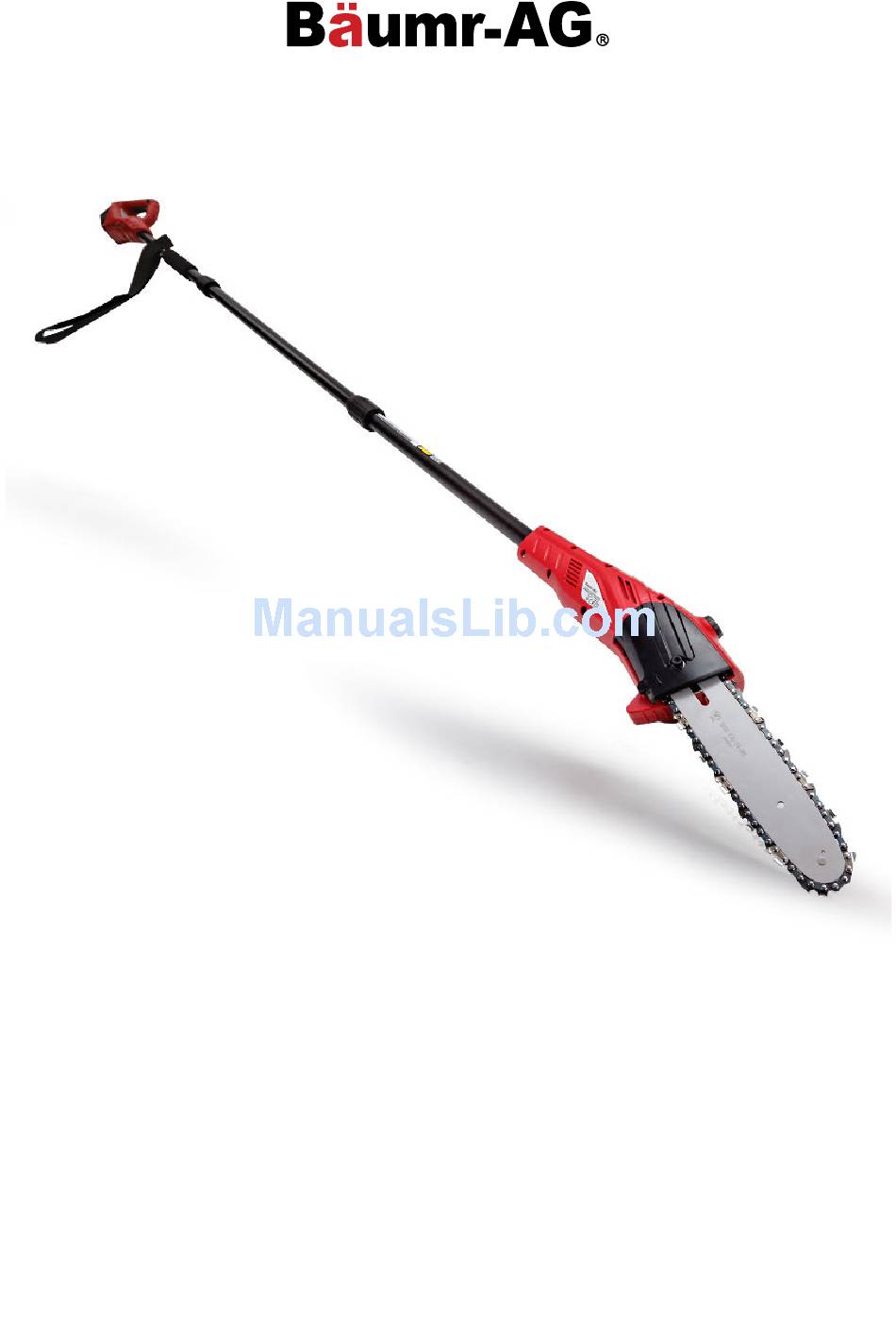

- Page 1 Cordless Pole Chainsaw User Manual RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE...
-
Page 2: Table Of Contents
Cordless Pole Chainsaw Table of Contents Safety ..................................1 General Safety Precautions ........................... 1 Trimming Precautions ........................... 3 Components................................4 Set-Up ..................................5 Charging the Battery ............................. 5 Important Charging Information ........................5 Pole Chainsaw Assembly ..........................6 Saw Chain Tension ............................8 Saw Chain Tension Adjustment ....................... -
Page 3: Safety
Cordless Pole Chainsaw Safety General Safety Precautions WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. • Save all warnings and instructions for future reference. •... - Page 4 Cordless Pole Chainsaw − Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. − If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 5: Trimming Precautions
Cordless Pole Chainsaw Trimming Precautions Never stand directly under the limb you are trimming. Always position yourself out of the path of falling debris. Never stand on a ladder or other type of unstable support while using the Pole saw. Always use both hands to operate pole saw. -
Page 6: Components
Cordless Pole Chainsaw Components No. Part No. Part Saw chain Grip area Guide bar Buckle Scabbard Strap Trigger lockout Power head Handle Top tube Trigger Locking knob Battery Battery release Under tube button... -
Page 7: Set-Up
Cordless Pole Chainsaw Set-Up Charging the Battery Before attempting to charge the battery pack, thoroughly read all Safety Instructions. The battery needs to be charged before first use and whenever it fails to produce sufficient power on jobs that were easily done before. The battery may become warm while charging;... -
Page 8: Pole Chainsaw Assembly
Cordless Pole Chainsaw Pole Chainsaw Assembly IMPORTANT! The chainsaw may come with plastic spacers over or around the bar studs - the spacer is for shipping purposes only and must be removed before mounting the chain bar. After removing the chain brake cover, remove any spacers, then mount the chain bar as described. - Page 9 Cordless Pole Chainsaw 4. Insert the strap into the buckle. 5. Add high-quality bar oil into the pole saw's bar oil tank. IMPORTANT: After filling the bar oil tank up, close the cap tightly. 6. To insert the battery pack, insert it in the handle’s groove until the Battery Release Button (#16 in the image below) bounces back to its normal position.
-
Page 10: Saw Chain Tension
Cordless Pole Chainsaw Saw Chain Tension WARNING! • Remove battery from pole saw before servicing. Severe injury or death could occur from body contact with moving chain. • Cutting edges on chain are sharp. Use protective gloves when handling chain. •... - Page 11 Cordless Pole Chainsaw 2. Turn the adjusting screw on the front of the power head clockwise until slack has been removed from the chain (see image below). 3. While wearing protective gloves, pull down on the chain to check the chain tension. 4.
-
Page 12: Operation
Cordless Pole Chainsaw Operation Cutting with the Cordless Pole Chainsaw It is important you read and understand Always wear ear protection. Loud noises the instruction manual before first use for an extended period of time may and keep the manual in a safe place for damage your hearing. -
Page 13: Maintenance
Cordless Pole Chainsaw Maintenance Cleaning the Saw Body Keep the saw body clean. Use a soft cloth dampened with a mixture of mild soap and water, then wipe saw body clean. Guide Bar Maintenance Uneven bar wear causes most guide bar problems. Incorrect sharpening of chain cutter and depth gauge settings often cause this. -
Page 14: Sharpening The Saw Chain
Cordless Pole Chainsaw Sharpening the Saw Chain Keep the chain sharp at all times. Your saw will cut faster and more safely. A dull chain will cause undue wear on the sprocket, guide bar, chain, and motor. If you force the chain into the wood and cutting creates only sawdust with a few large chips, the chain is dull. -
Page 15: Filing Cutter Depth Gauges
Cordless Pole Chainsaw Filing Cutter Depth Gauges The cutter depth gauge clearance is reduced as cutters are sharpened. After every second or third sharpening, reset the cutter depth gauges. 1. Place the depth gauge tool (.025") firmly across the top of the two cutters. Make sure that the depth gauge enters the slot in the depth gauge tool (see image below). -
Page 16: Replacing The Saw Chain
Cordless Pole Chainsaw Replacing the Saw Chain IMPORTANT: Do not clamp down the chainsaw in a vise to replace the saw chain or guide bar. Replace the chain when the cutters are too worn out to sharpen or when the chain breaks. Only use a chain that is approved by the manufacturer. -
Page 17: Storage
Cordless Pole Chainsaw 5. Before placing the sprocket cover into the positioning groove, verify that the adjusting nib is in the adjusting hole on the guide bar. 6. Place the sprocket cover into the positioning groove. 7. Lock the sprocket cover with a guide bar screw. IMPORTANT: Tighten with fingers only. 8. -
Page 18: Technical Specifications
Cordless Pole Chainsaw Technical Specifications Model Battery 20V 1300mAh Lithium Chainsaw 8 Inch Shaft Aluminium Chain Speed 2.9 metres per second Bar and Chain Lubrication Automatic Oil Pot Capacity 80ml Throttle Control Handle Rubber Over Moulded Charger 240V Length 1.9-2.7m Note: Minimal Assembly required... - Page 19 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult thepoints below and additionall y , the information available at www.datastreamserver.com/safety - Consult all documentation, packaging and - The product has been supplied by a general merchandise...
