BBK bbk940S Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

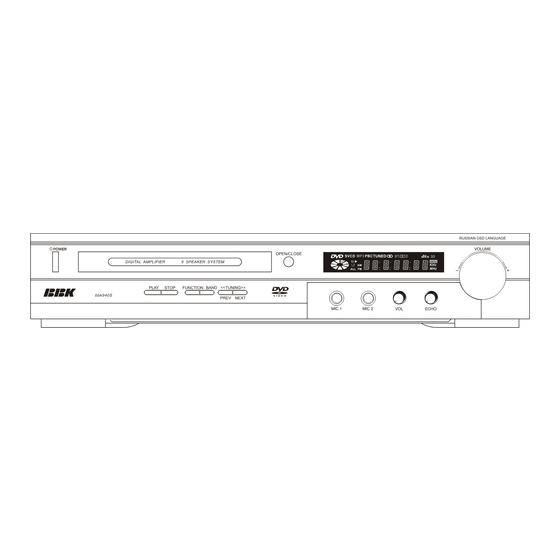

SERVICE MANUAL
bbk940S
TUNED
ST.
3D
MEM
AM
ALL FM
Downloaded From TheatreSystem-Manual.com Manuals

Advertisement

Table of Contents
loading

Related Manuals for BBK bbk940S

Summary of Contents for BBK bbk940S

  • Page 1 SERVICE MANUAL bbk940S TUNED ALL FM Downloaded From TheatreSystem-Manual.com Manuals...

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRICAUTIONS PREVENTION OF ELECTRO STATIC DISCHARGE(ESD)TO ELECTROSTATICALLY SENSITIVE(ES)DEVICES CONTROL BUTTON LOCATIONS AND EXPLANATIONS PREVERTION OF STATIC ELECTRICITY DISCHARGE ASSEMBLING AND DISASSEMBLING THE MECHANISM UNIT OPTICAL PICKUP UNIT EXPLOSED VIEW AND PART LIST BRACKET EXPLOSED VIEW AND PART LIST MISCELLANEOUS ELECTRICAL CONFIRMATION VIDEO OUTPUT (LUMINANCE SIGNAL) CONFIRMATION...

  • Page 3: Front Panel Illustration

    3.Control Button Locations and Explanations Front Panel Illustration TUNED ALL FM 9 10 11 DVD MODE: NEXT button POWER switch PLAY button TUNER MODE: TUNING button Disc tray MIC 1 jack STOP button OPEN/CLOSE button MIC 2 jack FUNCTION button VFD display window DVD MODE: PAUSE button MIC VOLUME knob...

  • Page 4: Prevertion Of Static Electricity Discharge

    Control Button Locations and Explanations (Continued) STANDBY button Remote Control Illustration Enter or exit the standby mode. AUDIO button Change the audio language. SUBTITLE button EJECT STANDBY Change subtitle languages/Switch JPEG display modes. NUMBERED buttons AUDIO SUBTITLE ANGLE FUNCTION L/R button Switch audio channel.

  • Page 5: Assembling And Disassembling The Mechanism Unit

    5. Assembling and disassembling the mechanism unit 5.1 Optical pickup Unit Explosed View and Part List Pic (1) Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 6 Materials to Pic (1) PARTS CODE PARTS NAME Q ty 14692200 SF-HD60 1EA0311A06300 ASSY, CHASSIS, COMPLETE 1EA0M10A15500 ASSY, MOTOR, SLED 1EA0M10A15501 ASSY, MOTOR, SLED 1EA2451A24700 HOLDER, SHAFT 1EA2511A29100 GEAR, RACK 1EA2511A29200 GEAR, DRIVE 1EA2511A29300 GEAR, MIDDLE, A 1EA2511A29400 GEAR, MIDDLE, B 1EA2744A03000 SHAFT, SLIDE 1EA2744A03100...

  • Page 7: Bracket Explosed View And Part List

    5.2 Bracket Explosed View and Part List Pic (2) Materials to Pic(2) 1.bracket 14. front silicon rubber 2.belt 15. Back silicon rubber 3.screw 16. Pick-up 4.belt wheel 17. Pick-up 5.gearwheel 18. switch 6.iron chip 19. Five-pin flat plug 7. Immobility mechanism equipment 20.

  • Page 8: Miscellaneous

    5.3 MISCELLANEOUS 5.3.1 Protection of the LD(Laser diode) Short the parts of LD circuit pattern by soldering. 5.3.2 Cautions on assembly and adjustment Make sure that the workbenches,jigs,tips,tips of soldering irons and measuring instruments are grounded,and that personnel wear wrist straps for ground. Open the LD short lands quickly with a soldering iron after a circuit is connected.

  • Page 9: Electrical Confirmation

    6.Electrical Confirmation 6.1. Video Output (Luminance Signal) Confirmation DO this confirmation after replacing a P.C.B. Measurement point Mode Disc Color bar 75% DVDT-S15 Video output terminal PLAY(Title 46):DVDT-S15 PLAY(Title 12):DVDT-S01 DVDT-S01 Measuring equipment,tools Confirmation value 200mV/dir,10 sec/dir 1000mVp-p±30mV Purpose:To maintain video signal output compatibility. 1.Connect the oscilloscope to the video output terminal and terminate at 75 ohms.

  • Page 10: Video Output(Chrominance Signal) Confirmation

    6.2 Video Output(Chrominance Signal) Confirmation Do the confirmation after replacing P.C.B. Measurement point Mode Disc Color bar 75% DVDT-S15 Video output terminal PLAY(Title 46):DVDT-S15 PLAY(Title 12):DVDT-S01 DVDT-S01 Measuring equipment,tools Confirmation value Screwdriver,Oscilloscope 200mV/dir,10 sec/dir 621mVp-p±30mV Purpose:To maintain video signal output compatibility. 1.Connect the oscilloscope to the video output terminal and terminate at 75 ohme.

  • Page 11: Mpeg Board Check Waveform

    7.MPEG BOARD CHECK WAVEFORM 7.1 27MHz WAVEFORM DIAGRAM 7.2 IC5L0380R PIN.2 WAVEFORM DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...

  • Page 12: Ic Block Diagram & Description

    MT1336 PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE 8. IC BLOCK DIAGRAM & DESCRIPTION 8.1 MT1336 GENERAL DESCRIPTION M T 1 3 3 6 i s a h i g h p e r f o r m a n c e C M O S a n a l o g f r o n t -e n d I C f o r b o t h C D _ R O M d r i v e r u p t o 4 8 X S a n d D V D - R O M d r i v e r u p t o 1 6 X S .
  • Page 13 MT1336 PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE DVDA RFOP DVDB ATTENUATOR INPUT MUX RFON DVDC LRFRP DEFECT DVDD HRFRP CRTP DVDRFIN ENVELOP ENVELOP CRTPLP DETECTOR DETECTOR DVDRFIP REFCOS HALLCOS SBAD COSPHI DPFN REFSIN DPFO HALLSIN SINPHI DPDMUTE MDI2...
  • Page 14 MT1336 PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE WOBSO WVDD AGNDX DVDA AGNDX DVDB AVDDO DVDC RFOP DVDD RFON DVDRFIP AGNDO DVDRFIN AGNDT MT1336 AVDDT V2REFO RFGC VREFO DVD-ROM RFGCU RFGCI CEQP With CEQN AGNDX DVD_RAM AGNDX VDDP Read...
  • Page 15 MT1336 PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE MT1336 PIN DESCRIPTIONS Pin Numbers Symbol Type Description LQFP128 RF Flag Interface DEFECT Digital Output Flag of bad data output status RF SIO interface SCLK Digital Input RF serial clock input SDEN Digital Input RF serial data enable...
  • Page 16 MT1336 PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE RFGCU Analog RF AGC loop capacitor connecting for DVD -RAM RFGCI Analog RF AGC loop capacitor connecting for DVD -RAM Analog Input DC coupled DVD-RAM main-beam RF signal input A Analog Input DC coupled DVD-RAM main-beam RF signal input B Analog Input...
  • Page 17 MT1336 PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Analog Input MDI1 Laser power monitor input LDO1 Analog Ou tput Laser driver output Analog Input MDI2 Laser power monitor input LDO2 Analog Output Laser driver output RF RIPPLE CRTP Analog RF top envelop filter capacitor connecting...
  • Page 18 MT1336 PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE ALPC TRIMMING Analog input Trimming pin for ALPC1 Analog input Trimming pin for ALPC1 Analog input Trimming pin for ALPC2 Analog input Trimming pin for ALPC2 HIGH SPEED TRACK COUNTING TRLP Analog Low-pass filter capacitor connecting...
  • Page 19 MT1336 PRELIMINARY, SUBJ ECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Downloaded From TheatreSystem-Manual.com Manuals...

  • Page 20: Mt1369

    MT1369 DVD Player Combo Chip Specifications are subject to change without notice 8.2 MT1369 EATURES § Built-in 8032 micro controller Super Integration DVD player single chip § Built-in internal 373 and 8-bit programmable § Servo controller and data channel processing lower address port §...
  • Page 21 MT1369 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Video Decode - MLP decoding for DVD -Audio § Decodes MPEG1 video and MPEG2 main level, - MPEG-1 layer 1/layer 2 audio decoding main profile video (720/480 and 720x576) - MPEG-2 layer1/layer2 2 -channel audio decoding §...
  • Page 22 MT1369 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE EFINITIONS Symbol Type Description IREF Analog Input Current reference input. It generate reference current for data PLL. Connect an external 100K resistor to this pin and PLLVSS. PLLVSS Ground Ground for data PLL and related analog circuitry LPIOP Analog Output...
  • Page 23 MT1369 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Symbol Type Description IOA2 Inout, Pull Up Microcontroller address 2 / GPIO2 IOA3 Inout, Pull Up Microcontroller address 3 / GPIO3 IOA4 Inout, Pull Up Microcontroller address 4 / GPIO4 IOA5 Inout, Pull Up Microcontroller address 5 / GPIO5...
  • Page 24 MT1369 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Symbol Type Description RWE# Output DRAM write enable, active low CAS# Output DRAM column address strobe, active low RAS# Output DRAM row address strobe, active low RCS# Output DRAM chip select, active low Output DRAM bank address 0 DVDD3...
  • Page 25 MT1369 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Symbol Type Description RD27 Inout, Pull Up/Down DRAM data 27 RD26 Inout, Pull Up/Down DRAM data 26 RD25 Inout, Pull Up/Down DRAM data 25 RD24 Inout, Pull Up/Down DRAM data 24 DVSS Ground Ground...
  • Page 26 MT1369 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE Symbol Type Description VFO13 Output The 1st, 3rd VFO pulse output of DVD-RAM ID header IDGATE Output DVD-RAM ID header detect signal output DVDD3 Power 3.3V power UDGATE Output DVD-RAM recording data gate signal output WOBSI Input...
  • Page 27 MT1369 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE IREF APVDD3 PLLVSS ACLK LPIOP ASDATA2 LPION ASDATA1 LPFON ASDATA0 LPFIP DVDD3 LPFIN ALRCK LPFOP ABCK JITFO RD16 JITFN RD17 PLLVDD3 DVSS RD18 RD19 TROPENPWM RD20 PWMOUT2 RD21 DVDD2 DVDD2 RD22 RD23...
  • Page 28 MT1369 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE UNCTIONAL LOCK T V e n c o d e r D V D m o d u l e S e r v o A n a l o g S p i n d l e D e b u g S y s t e m...
  • Page 29 MT1369 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE The spindle controller is used to control disc spindle motor. It includes a varipitch CLV clock generator, a CLV/CAV controller, and a PWM generator. The varipitch CLV clock enerator generates a reference colck for the speed of operation. The CLV/CAV controller changes the mode and speed of operation according to servo register setting.
  • Page 30 MT1369 PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE The Video Processor unit integrates two separate horizontal postprocessing filter, a simple 2-tap linear horizontal filter and an 8-tap programmable filter. These filters are prov ided for scaling images horizontally along the scan line. These two filters is capable of generating up to eight, unique subpixel values between two consecutive pixels on a scan line.

  • Page 31: U214 Hy29F800

    IC BLOCK DIAGRAM & DESCRIPTION 8.3 U214 HY29F800 KEY FEATURES n 5 Volt Read, Program, and Erase n Sector Protection – Minimizes system-level power requirements – Any combination of sectors may be n High Performance locked to prevent program or erase operations within those sectors –...

  • Page 32: Block Diagram

    IC BLOCK DIAGRAM & DESCRIPTION BLOCK DIAGRAM DQ[15:0] A[18:0], A-1 STATE C O N T R O L ERASE VOLTAGE I/O BUFFERS G E N E R A T O R A N D DQ[15:0] S E C T O R S W I T C H E S C O M M A N D W E # REGISTER...
  • Page 33 IC BLOCK DIAGRAM & DESCRIPTION PIN CONFIGURATIONS RY/BY# RESET# W E # BYTE# DQ15/A-1 DQ14 DQ13 DQ12 W E # Standard BYTE# RESET# DQ11 TSOP48 DQ15/A-1 RY/BY# DQ10 DQ14 DQ13 DQ10 DQ12 DQ11 BYTE# DQ15/A-1 DQ14 DQ13 DQ12 W E # Reverse RESET# DQ11...

  • Page 34: U203 Sdram-Hy57V1610D

    IC BLOCK DIAGRAM & DESCRIPTION U203 SDRAM-HY57V1610D 2 Banks x 512k x 16 Bit Synchronous DRAM D E S C R I P T I O N T H E H y n i x H Y 5 7 V 1 6 1 6 1 0 D i s a 1 6 , 7 7 7 , 2 1 6 - b i t s C M O S S y n c h r o n o u s D R A M , i d e a l l y s u i t e d f o r t h e M o b i l e a p p l i c a t i o n s w h i c h r e q u i r e l o w p o w e r c o n s u m p t i o n a n d i n d u s t r i a l t e m p e r a t u r e r a n g e .

  • Page 35: Lx1722

    AudioMAX™ LX1721 / 1722 Class-D Stereo Power Amplifier Controller L I N F I N I T Y D I V I S I O N RELIMINARY 8.5 LX1722 K E Y F E A T U R E S K E Y F E A T U R E S D E S C R I P T I O N D E S C R I P T I O N...
  • Page 36 AudioMAX™ LX1721 / 1722 Class-D Stereo Power Amplifier Controller L I N F I N I T Y D I V I S I O N RELIMINARY T H E R M A L D A T A T H E R M A L D A T A P A C K A G E P I N O U T P A C K A G E P I N O U T T H E R M A L D A T A...
  • Page 37 AudioMAX™ LX1721 / 1722 Class-D Stereo Power Amplifier Controller L I N F I N I T Y D I V I S I O N RELIMINARY F U N C T I O N A L P I N F U N C T I O N A L P I N F U N C T I O N A L P I N F U N C T I O N A L P I N D E S C R I P T I O N...
  • Page 38 AudioMAX™ LX1721 / 1722 Class-D Stereo Power Amplifier Controller L I N F I N I T Y D I V I S I O N RELIMINARY B L O C K D I A G R A M B L O C K D I A G R A M B L O C K D I A G R A M B L O C K D I A G R A M SLEEP...

  • Page 39: Si4558Dy

    Si4558DY Vishay Siliconix 8.6 Si4558DY N- and P-Channel 30-V (D-S) MOSFET DS(on) 0.040 @ V = 10 V N-Channel N-Channel 0.060 @ V = 4.5 V 0.040 @ V = –10 V P-Channel P-Channel –30 –30 0.070 @ V = –4.5 V SO-8 Top View Parameter...
  • Page 40 IC BLOCK DIAGRAM & DESRIPTION P I N C O N F I G U R A T I O N V D D V S S D Q 0 D Q 1 5 D Q 1 D Q 1 4 V S S Q V S S Q D Q 2...
  • Page 41 IC BLOCK DIAGRAM & DESRIPTION F U N C T I O N A L B L O C K D I A G R A M 1 M x 1 6 S y n c h r o n o u s D R A M S e l f R e f r e s h C o u n t e r R e f r e s h R e f r e s h...
  • Page 42 IC BLOCK DIAGRAM & DESRIPTION A B S O L U T E M A X I M U M R A T I N G S P a r a m e t e r S y m b o l R a t i n g U n i t °...

  • Page 43: Schematic & Pcb Wiring Diagram

    9.SCHEMATIC & P.C.B WIRING DIAGRAM FRONT SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 44 SUBSIDIARY FRONT SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 45 POWER SOURCE/AMPLIFIER BOARD SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 46 POWER SOURCE/AMPLIFIER BOARD SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 47 POWER SOURCE/AMPLIFIER BOARD SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 48 POWER SOURCE/AMPLIFIER BOARD SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 49 POWER SOURCE/AMPLIFIER BOARD SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 50 POWER SOURCE/AMPLIFIER BOARD SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 51 POWER SOURCE/AMPLIFIER BOARD SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 52 OK SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 53 MIAN SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 54 MIAN SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 55 MIAN SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 56 MIAN SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 57 MIAN SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 58 MIAN SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 59 MIAN SCHEMATIC DIAGRAM Downloaded From TheatreSystem-Manual.com Manuals...
  • Page 60 10.bbk940S(RU) MATERIAL LIST 1 DECODE BOARD MATERIAL SPECIFICATIONS/PART NUMBER QUANTITY LOCATION CARBON FILM 1/4W2.2 ±5% R341 RESISTOR R205,R219,R222,R223,R226,R282,R297, SMD RESISTOR 1/16W 0 ±5% R299,R332,L243~L248,R2162,C2131,C2 132,C2134,R2163,R220,R2232,R2235 SMD RESISTOR 1/16W1 ±5% R312,R313,R317,R318,R336 SMD RESISTOR 1/16W 4.7 ±5% R212~R214,R298 SMD RESISTOR 1/16W 10 ±5%...
  • Page 61 PRECISION SMD 1/16W 330K ±1% R333,R334 RESISTOR PRECISION SMD 1/16W 750K ±1% R202,R331,R335 RESISTOR SMD RESISTOR 1/16W 1M ±5% R255 SMD RESISTOR R254 1/16W 10M ±5% CD11 50V4.7U±20%5×11 2 TC277 TC201,TC203,TC209,TC221~TC23 3,TC236,TC240,TC241,TC306,TC3 CD11 16V10U±20%5×11 2 07,TC250~TC261,TC264~TC272,T C289,TC290,TC278,TC279,TC281, TC285,TC286,TC217,TC238 TC205,TC206,TC215,TC237,TC302 CD11C 16V47U±20%5×7 2 ~TC305,TC308,TC309,TC287,TC28 8,TC234 TC205,TC206,TC215,TC237,TC302...
  • Page 62 C201~C211,C221,C224,C227,C230, C231,C240~C242,C245~C252,C278 ~C283,C289~C298,C301~C303,C31 1~C313,C320~C330,C332,C335~C3 SMD CAPACITOR 50V 104 +80%-20% 0603 39,C343~C346,C2113,C2137,C2139 ~2141,C2143,C2145,C2146,C2150~ C2154,C341,C2230,C2231,C2241,C 2258,C2259,C2235~C2238,C2193,C 2194,C2211,C2232,C272~C274 C201~C211,C221,C224,C227,C230, C231,C240~C242,C245~C252,C278 ~C283,C289~C298,C301~C303,C31 1~C313,C320~C330,C332,C335~C3 58.1 SMD CAPACITOR 25V 104 +80%-20% 0603 39,C343~C346,C2113,C2137,C2139 ~2141,C2143,C2145,C2146,C2150~ C2154,C341,C2230,C2231,C2241,C 2258,C2259,C2235~C2238,C2193,C 2194,C2211,C2232.C272~C274 SMD CAPACITOR 16V 105 +80%-20% 0603 C226,C228,C229,C315~C318, SMD INDUCTOR 1.8UH ±10% 1608 L210~L215 SMD INDUCTOR...
  • Page 63 MT1336E QFP U301 MT1369EE QFP U201 BA5954FP HSOP U302 CS4955-CQ TQFP U206 CRYSTAL 27.00MHz 49-S X201 OSCILLATOR 2937-2 SOCKET 5P 2.0mm XS302 SOCKET 6P 2.0mm XS303,XS201 SOCKET 10P 2.5mm XS203 SOCKET 6P 2.5mm XS204 CABLE SOCKET 9P 1.0mm STRAIGHT DUAL LINE PLUG XS207 10/9P 1.0mm STRAIGHT DUAL LINE CABLE SOCKET...
  • Page 64 PORCELAIN 1000V 101 +80%-20% 7.5mm C503 CAPACITOR PORCELAIN 15.1 1000V 101 ±10% 7.5mm C503 CAPACITOR PORCELAIN 1000V 103 +80%-20% 7.5mm C502,C521 CAPACITOR CERAMIC CT81 400V 221±20% 10mm BC503,BC504 CAPACITOR CERAMIC 17.1 CT81 400V221±10% 10mm BC503,BC504 CAPACITOR TERYLENE 100V 223 ±10% 5mm C506 CAPACITOR TERYLENE...

  • Page 65: Spare Parts List

    KA1M0880BTU TO-3P-5L U505 FFAU20U40DN TO-3P D516 QUICK RESTORE 40.1 STPR2010CT TO-220 D516 DIODE 5L0380R YDTU U501 LM431ACZ TO-92 U503,U507 42.1 IC TL431C TO-226AA(LP) U503,U507 42.2 IC 431L TO-92 U503,U507 42.3 IC KA431AZ TO-92 U503,U507 POWER GRID JBL2822 30mH±20% L501,L502 FILTER PHOTOELECTRIC HS817 U502,U506...
  • Page 66 TC273,TC283,TC284,TC211,TC203 CD11 16V10U±20%5×11 2 ~TC206 MAGNETIC BEADS RH354708 L223,L503 INDUCTOR CABLE SOCKET XS207 9P 1.0mm STRAIGHT DUAL LINE PLUG 10/9P 1.0mm STRAIGHT DUAL LINE CABLE SOCKET XS206 PLUG PHOTOELECTRIC TX179AT JK204 CONVERTER CS-09 JK202 TERMINAL SOCKET SOCKET FOR WP12-1 JB02 EXTERNAL CABLES SCREEN GRILLE DV937...
  • Page 67 QB01,QB02,QB05,QB06,QB07,QB0 SI4558DY SO8 8,QB09,QB10,QB11,QB12,QB13,Q SMD RESISTOR R255 1/16W 0 ±5% SMD RESISTOR 1/16W 1K ±5% R278,R279 SMD RESISTOR 1/16W 3.3K ±5% R2247 SMD RESISTOR 1/16W 3.9K ±5% R2189 R260,R268,R269,R282,R283,R288, SMD RESISTOR 1/16W 4.7K ±5% R289,R261,R285,R290 SMD RESISTOR 1/16W 6.8K ±5% R259,R267 SMD RESISTOR 1/16W 20K ±5%...
  • Page 68 CARBON FILM 1/6W22K±5% SHAPED 7.5 R601,R602 RESISTOR CARBON FILM R632,R633 1/6W10 ±5% SHAPED 7.5 RESISTOR CARBON FILM 1/6W22 ±5% SHAPED 7.5 R620 RESISTOR CARBON FILM 1/6W33 ±5% SHAPED 7.5 R621 RESISTOR CARBON FILM 1/6W3K±5% SHAPED 7.5 R624 RESISTOR CARBON FILM 1/6W1M ±5% SHAPED 7.5 R636 RESISTOR...
  • Page 69 CONNECTION 0.6 SHAPED 7.5mm JP601~JP605,JP608 CORDS 6P 260 2.5 2 PLUG 1P SCREEN WITH KARAOKE AND DECODER FLAT CABLE L NEEDLE BOARD 6P 240 2.5 2 PLUG 2P SCREEN WITH KARAOKE AND DECODER 36.1 FLAT CABLE L NEEDLE BOARD 6937-2 GROUND CHIP OF AB903 G601,G602...
  • Page 70 4937-2 5 SUBSIDIARY FRONT PANEL MATERIAL SPECIFICATIONS/PART NUMBER QUANTITY LOCATION 9937-0 MAIN FRONT PANEL AND FLAT CABLE 6P 40mm 2.0mm SUBSIDIARY MAIN FRONT PANEL LIGHT TOUCH HORIZONTAL 6×6×1 K901~K903,K905~K907 RESTORE SWITCH Downloaded From TheatreSystem-Manual.com Manuals...
