Operating Instructions

Light - easy to handle - compact - balanced
Pneumatic carton stapler for the fast and stable blind stapling of filled folding boxes made of
Before the first commissioning read this manual thoroughly and completely and keep it in a safe place.
Observe and follow the safety instructions and only use the machine if you are sure that you have
Page 1 of 10
18.10.11
P:\Technik\TOP\Bedienungsanleitung\Englisch\Operation Instructions TOP P 0711.DOC

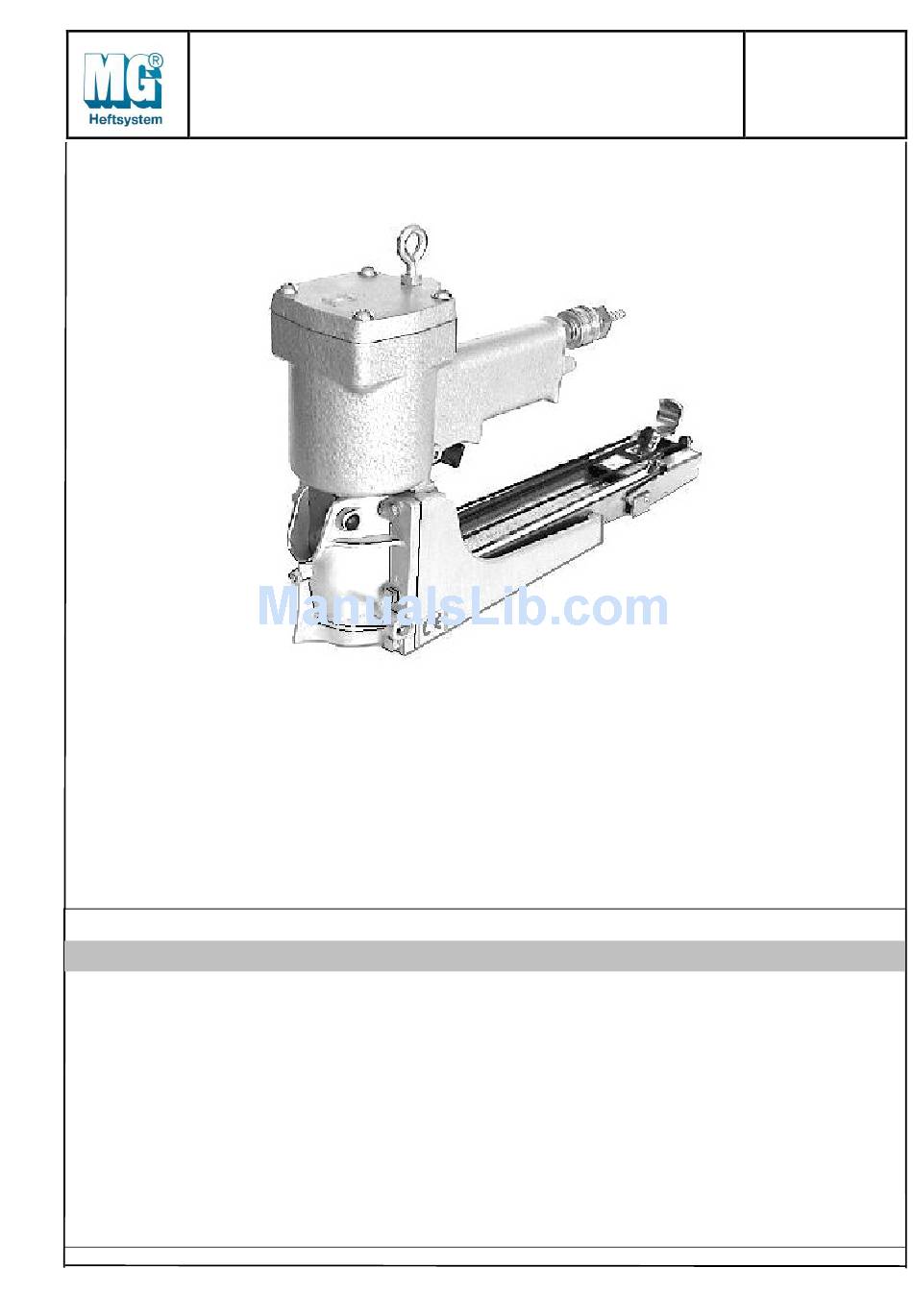

USER GUIDE
Pneumatic Blind Stapler
TOP SP P, TOP B P
Pneumatic Blind Stapler
Type TOP SP P, TOP B P
Series V04/ 1096
corrugated cardboard. Loading capacity 120 TOP-staples
IMPORTANT
completely understood all the instructions.
Failure to comply can lead to injuries!
If you have any questions, contact the manufacturer
MEZGER Heftsysteme GmbH
Saganer Straße 24
90475 Nürnberg
Germany
Page: 1
Version: 0711
ET 572
