QUICK START GUIDE

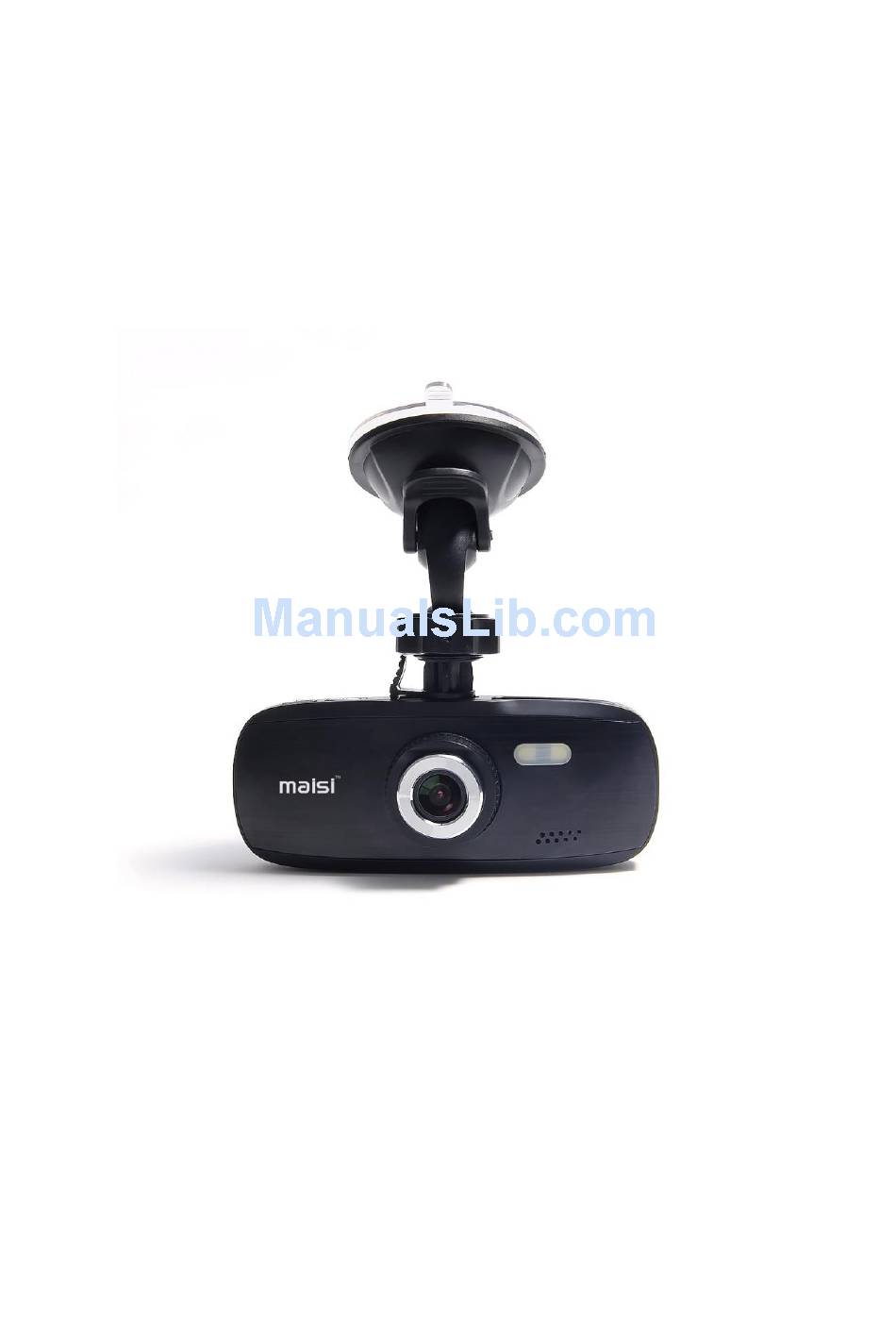

MAISI Smart Dashcam

Advertisement

loading
Need help?

Need help?

Do you have a question about the Smart Dashcam and is the answer not in the manual?

Questions and answers

Related Manuals for Maisi Smart Dashcam

Summary of Contents for Maisi Smart Dashcam

  • Page 1 QUICK START GUIDE MAISI Smart Dashcam...
  • Page 2 PRIOR TO USE Install the device near the rear-view mirror to obtain the best open-field view. Do NOT install it in a location that will obstruct your required driving view. * Make sure that the lens is within the wiping range of the windscreen wiper to ensure a clear view even when it rains.
  • Page 3 1 Introduction Thank you for purchasing this MAISI camcorder. This camcorder is specifically designed for real time video and audio recording when driving. 1.1 Features * Wide Dynamic Range Imaging (WDR) * HD Image 1920*1080 * Up to 150 Degree Wide Angle Glass Lens &IR-Filter...

  • Page 4: Getting Started

    ITEM ITEM USB: Power/Mass Storage TF Card Slot AV Output: 3.5mm connector Up Button ( GPS: NOT included Down Button ( : Record / Pause / OK Power Button MODE: : Menu / emergency recording Button Recording/Picture/Playback Wide Angle Lens HDMI Output Speaker Reset...
  • Page 5 speed of the memory card is too slow. Please replace it with a higher-speed memory card. 2.2 Installing in Vehicles 2.2.1 Mount to windshield A. Attach the bracket to the camcorder. Slide it into the bracket holder. B. Before installing the bracket, please use alcohol to clean the windshield and suction cup of the bracket.
  • Page 6 vehicle. Once the vehicle engine is started, the camcorder automatically turns on. Car charger input: DC 12 / 24V. Note: 1. Use the product with the supplier charger only, please do not use other power chargers to avoid camera burn or cause the battery explosion. 2.
  • Page 7 Power on delay: Off/10s/20s/30s. If it is set at 10s, the camera will power on 10 seconds after you connect it to the power charger. Power off delay: Off/10s/20s/30s. If it is set at 10s, the camera will power off 10 seconds after you disconnect the power charger.
  • Page 8 This refers to the sound when you press the button (on the camera), or the sound when the camera is powered up or shut down. You can turn them on or off. When beep sound is turned on, you can adjust the volume as well. Language You can choose the language from English, French, Spanish, Portuguese, German, Italian, Simplified Chinese, Traditional Chinese, Russian, or...
  • Page 9 Note: we set each camera at its optimal value so you do not actually need to adjust it unless otherwise advised. White Balance Auto, Daylight, Cloudy, Tungsten or Fluorescent. In Auto mode, settings will adjust themselves to changes in lighting. In Daylight mode, settings will allow greater clarity for footage taken in daylight as with Cloudy settings for cloudy conditions.
  • Page 10 4 To Use the Camera for Taking Pictures ONLY If you want to use the camera to take pictures only (not record), then you can change it to the Picture Mode. To enter the Picture Mode, press MODE to change, in Picture Mode, you can see a camera icon like this located to the top left corner of the screen.
  • Page 11 Color: To change the color of images, use button to choose among Normal, Black & White, or Sepia (reddish brown effect), and press the REC button to confirm. Date Stamp: Off, Date, Date/Time This function decides whether the date/time will show up on your pictures or not.
  • Page 12 5 Accessing, Lock, Unlock and Deleting Files How to Access Files? To view files on the camera, press MODE to enter the Playback Mode. Use button to navigate among videos and pictures, press REC to confirm. Press it again to play the file. How to delete a file? Press REC to stop the playback first, and then Press to bring on the...
  • Page 13 below: 1 Delete 2 Protect 3 Slide Show Choose Slide Show and press REC to confirm and bring on the next menu: 2 seconds, 5 seconds, 8 seconds Choose any of the desired option above and press REC to confirm. How to Access the Files on Computer? To access the files through a computer, connect the Dash Camera to a computer via a USB cable (provided in the package).

  • Page 14: Specifications

    6 Specifications Sensor: 3M CMOS Sensor Solution: NOVATEK 96650 Lens: Fixed focus lens Zoom: 4 x digital zoom LCD Display: 2.7 inch 16:9 TFT LCD Lens Angle: 150 degree wide angle lens Night Video: Enhanced led lights Video Output AV (SVBS): 1 Composite TV signal output NTSC/PAL.

  • Page 15: Frequently Asked Questions (Faqs)

    7 Frequently Asked Questions (FAQs) What is the maximum allowed memory capacity for the camera? While up to 64GB may be functional, we guarantees only up to 32GB micro SD Card “Class 10” rating as the maximum allowed capacity for the moment. Why my camera freezes a lot? If the camera freezes, you can use a pin to press on the reset button.
  • Page 16 * Check if the Power On Delay is turned on, you should turn if off * Disable the motion detection Is there an “Emergency” button to start recording and save on demand on the dash cam? Yes. Just press once (when the camera is recording) to achieve this function.
