INSPECTION AND MAINTENANCE
Fuses
Your vehicle has three types of fuses, as
described below:
Main fuse
The main fuse takes current directly from
the battery.
Primary fuses
These fuses are between the main fuse
and individual fuses, and are for electrical
load groups.
Individual fuses
These fuses are for individual electrical cir-
cuits.
To remove a fuse, use the fuse puller pro-
vided in the fuse box.
7-23

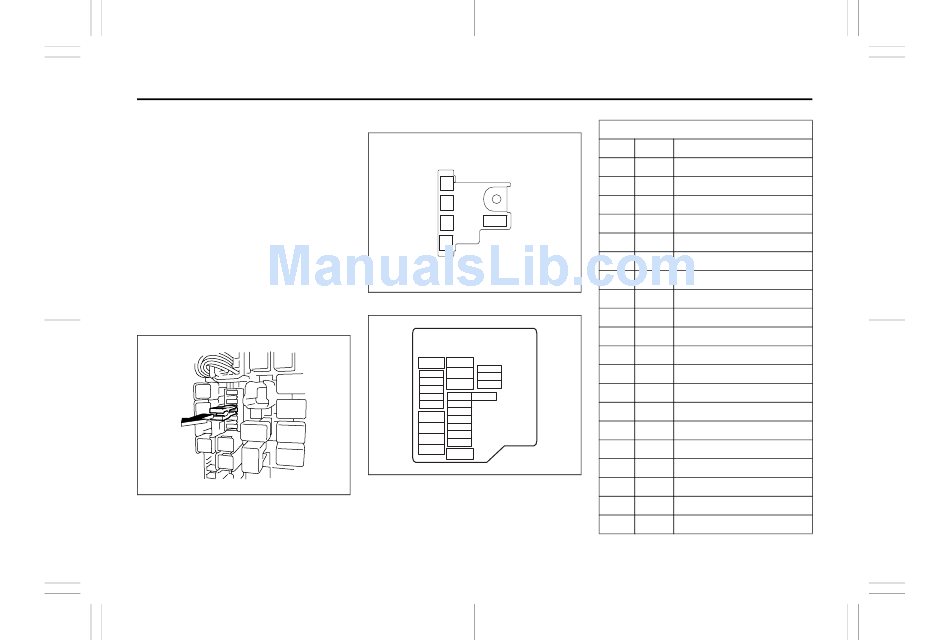

Fuses in the Engine Compartment
(5)
(4)
(1)
(3)
(2)
(6)
(16)
(28)
(17)
(7)
(29)
(8)
(18)
(30)
(9)
(10)
(19)
(27)
(11)
(20)
(21)
(12)
(22)
(13)
(23)
(24)
(14)
(25)
(15)
(26)
63J095
MAIN FUSE / PRIMARY FUSE
(1)
100 A
FL1
(2)
100 A
FL2
(3)
100 A
FL3
(4)
50 A
FL4
(5)
80 A
FL5
(6)
50 A
Ignition switch -2
(7)
–
Blank
(8)
15 A
A/T controller
60MK008
(9)
–
Blank
(10)
10 A
Air compressor
(11)
15 A
FI
(12)
–
Blank
(13)
60 A
Power steering
(14)
30 A
Radiator fan
(15)
40 A
ABS motor
(16)
40 A
Blower fan
(17)
30 A
Starting motor
(18)
–
Blank
60MK009
(19)
30 A
Back up
(20)
–
Blank
(21)
15 A
Head light (Left)
60MK0-14E
