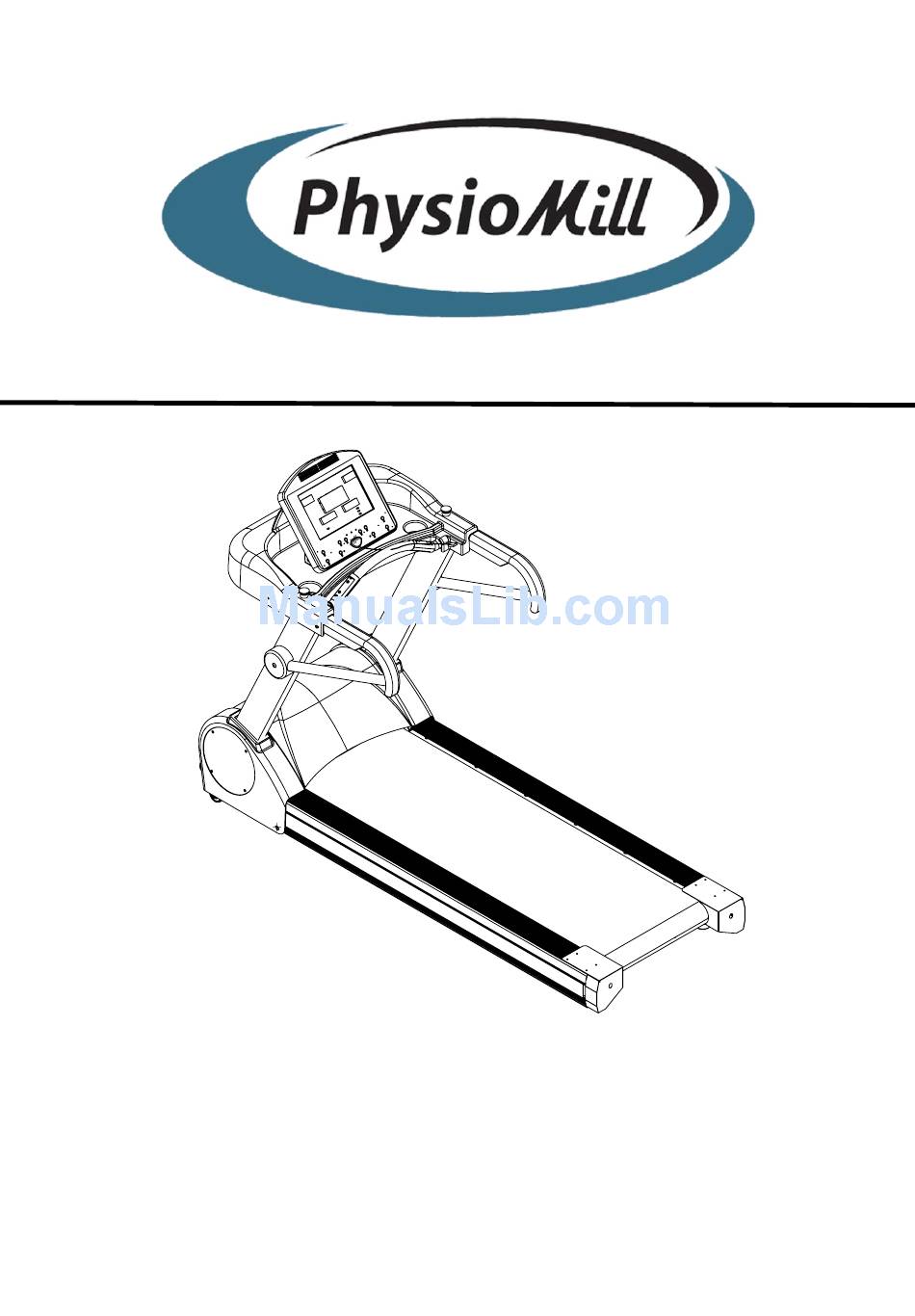

- Page 1 Owner’s Manual V.2 HealthCare International, Inc. PO Box 1509, Langley, WA 98260 www.HCIFitness.com – sales@hcifitness.com P: (360) 321-7090 or (800) 398-9121...
-
Page 2: Table Of Contents
Table of Contents Safety Precautions ....................2 Warranty Information .................... 3 Assembly Instructions ..................4 PhysioMill Display Console .................. 8 Button Functions ....................9 General Maintenance ..................9 Exploded Diagram ....................10 Parts List ......................11... -
Page 3: Safety Precautions
10. Keep clothes, jewelry and loose items away from moving parts. NOTE: MAXIMUM WEIGHT CAPACITY FOR THE PHYSIOMILL IS 500 LBS. (227 KGS) WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PEOPLE WITH PRE-EXISTING HEALTH PROBLEMS. -
Page 4: Warranty Information
Dear Valued Customer, Thank you for your recent purchase of the PhysioMill from HCI Fitness. We believe that you have purchased one of the highest quality and affordable rehabilitation treadmills on the market today. Prior to using your new PhysioMill please review the owner’s manual and product tips to maximize your experience. -
Page 5: Assembly Instructions
Assembly Instructions STEP 1: Take off the side motor covers as shown in drawing. STEP 2: Wire Pinch Point: Inset the Upright Posts (13) (14) to the main base, tighten with the Hexagon Head Bolts (42)(43) and Flat Washer (28). - Page 6 STEP 3: 1. Place Computer Rack (15) on top of Upright poles and screw it tightly with Cross Hexagonal Bolt (40)(41). 2. Take hold of Middle Sensor Cable Wire (67) connect with the Upper Sensor Cable Wire (66) firmly. STEP 4: Using Nut and Washer to connect the Hand Rail - short type (73) to the Frame and assemble with side caps (22) as drawing to use Hexagon Head Bolt (58) and Washer (31) and secure tightly.
- Page 7 STEP 5: Attach the Curve Hand Pulse Set (68) to the computer rack and tighten using the Hexagonal Bolt (59) (60). STEP 6: Wire Pinch Point: Place the display rack cover (17) as per drawing. Use Cross Screw (47) to screw it firmly. Make sure not to pinch any electrical wires.
- Page 8 Before use please read the safety precautions carefully. Periodically retighten screws and bolts as needed. AC Adaptor The PhysioMill does need to be plugged into a standard electrical outlet. The AC adaptor connects at the front of the unit. The power switch must be on for operation.
-
Page 9: Physiomill Display Console
PhysioMill Display Console INCREASE / ENTER START PAUSE STOP DECREASE SCROLL REVERSE... -
Page 10: Button Functions
Button Functions 1. START BUTTON 1.1. Pressing the START button starts the treadmill. 2. STOP BUTTON 2.1. Pressing the STOP button strops the treadmill. 3. PAUSE BUTTON 3.1. Pressing the PAUSE button pauses your session. 4. [+] BUTTON 4.1. Press the [+] button to increase values. 4.2. -
Page 11: Exploded Diagram
Exploded Diagram... -
Page 12: Parts List
Parts List Description l l o 004 Running l l o 006 Side Rail( 007 25 tapping 008 Side Rail(L) n i l 010 Acry c i l s l i 012 AC Servo Motor 013 Upright Pole( 014 Upright Pole(L) 016 Frame Tubing 018 Motor Cover 019 Running Belt with log... - Page 13 Description 042 Mushroom Hexagonal Bolt M8*50L 043 Mushroom Hexagonal Bolt M8*20L 046 Mushroom Hexagonal Bolt M8*25L 048 Mushroom Hexagonal Bolt M8*16L 049 Hexag 051 Hexag c i t 053 Mushroom Hexagonal Bolt M8*115L 054 Ny 057 ON/OFF Light Switch-larg 058 Mushroom Hexagonal Bolt M8*65L 059 Hexag 060 Hexag 063 Safety Key...
