Neox CROSSER User Manual

Hide thumbs Also See for CROSSER:
Table of Contents

Advertisement

Quick Links

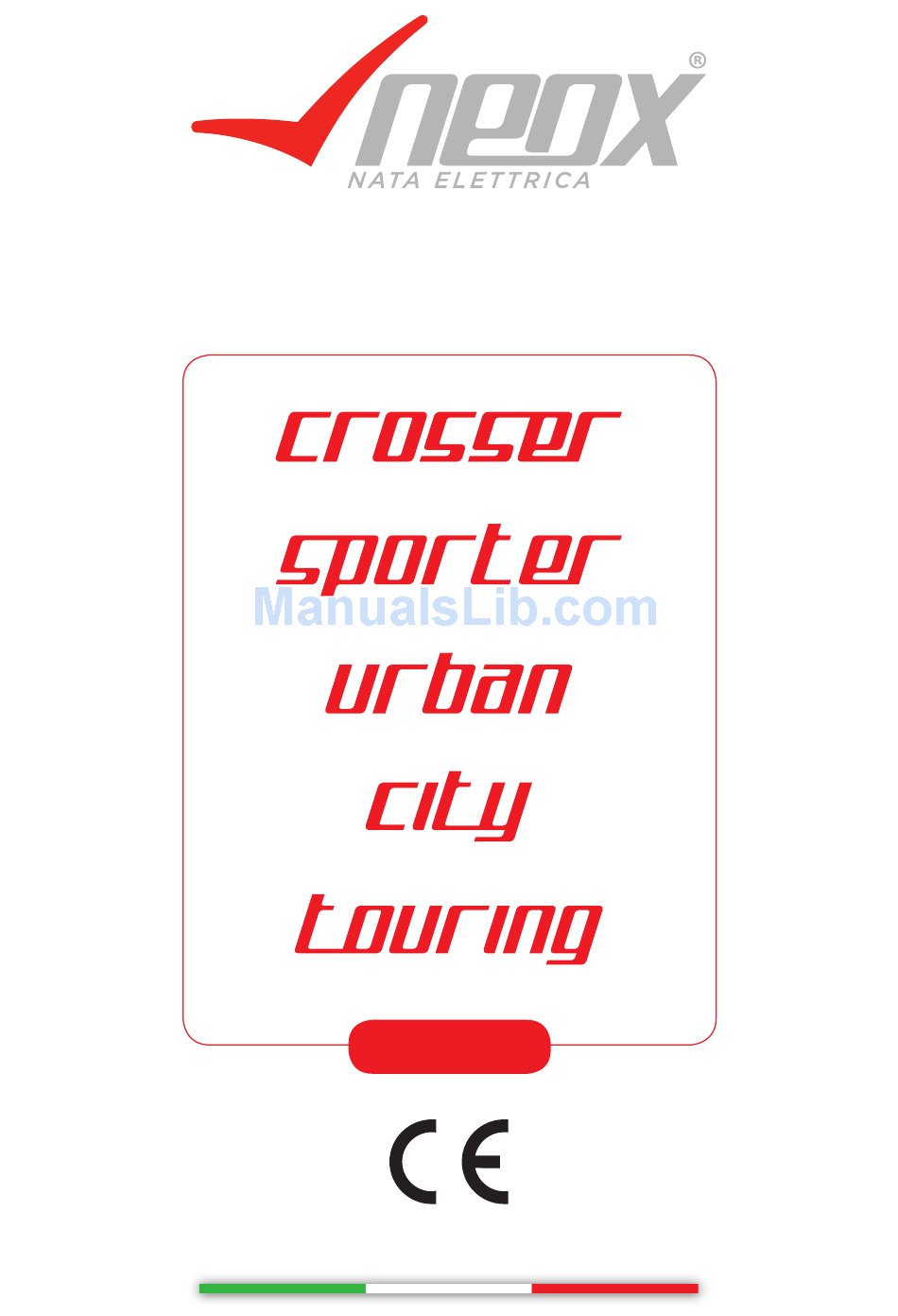

USER MANUAL
2016
Edition 03-2016
pensata, progettata e prodotta in Italia

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CROSSER and is the answer not in the manual?

Questions and answers

Related Manuals for Neox CROSSER

Summary of Contents for Neox CROSSER

  • Page 1 USER MANUAL 2016 Edition 03-2016 pensata, progettata e prodotta in Italia...

  • Page 2: Table Of Contents

    NEOX User manual - Edition 03-2016 INDICE ..........................4 arnings ? ...................... 5 hat is assisted pedalling ........................6 asic information Description of the supply ......................... 6 Legal requirements ..........................6 For your safety ............................6 10 rules for riding safely ........................6 Warranty terms ............................7...
  • Page 3 ......................28 oW to turn on your neoX ....................29 oW to turn off your Turning Off 1 (standard) ........................29 Turning Off 2 (protected with Neox Pin anti-theft system) ..........29 ................. 30 oW to activate the eoX anti theft system Locking the rear wheel ........................30...

  • Page 4: Warnings

    NEOX User manual - Edition 03-2016 Dear Customers, we congratulate you for choosing us and we thank you for your trust. WARNINGS Read this manual carefully and follow the instructions below. • This is a pedal assisted cycle. • It is not a toy, do not allow it to be used by children.
  • Page 5 It is therefore possible to use it as a normal bicycle, even when the battery is low, provided it is switched on, as Neox is equipped with electronic gears. By law, assisted pedalling should not exceed a speed of 25 km/h and, therefore, once 23 km/h has been reached, the assisted pedalling decreases gradually before completely turning off at 25 km/h.

  • Page 6: Basic Information

    NEOX User manual - Edition 03-2016 BASIC INFORMATION escription of the supply • E-bike complete with pedals and wheels • Support for transport, which can be used in the boot of your car • Battery charger • Instruction manual. egal reQuirements Every road user must follow the traffic regulations in force in their country.

  • Page 7: Warranty Terms

    NEOX User manual - Edition 03-2016 arranty terms The durability and reliability of the bicycle, as well as the warranty coverage against any manufacturing defects, are valid only if the customer complies with some basic rules: • The use of the e-bike for anything other than that envisaged by the design may result in dangerous riding situations, falls and accidents.

  • Page 8: Travelling Autonomy Of A Pedal Assisted Cycle

    NEOX User manual - Edition 03-2016 ravelling autonomy of a pedal assisted cycle The travelling autonomy of the bicycle with the aid of the assisted pedalling PAS, can vary depending on the different conditions of use and the different weights being transported, up to a maximum of 80/100 Km (ECO and NO ASSIST cycle) according to the model.

  • Page 9: Electric Assisted Pedalling

    NEOX User manual - Edition 03-2016 lectric assisted pedalling NEOX is equipped with an electric assisted pedalling system. Assistance may be set to one of 4 positions (Fig. 1): • No Assist • Eco • Standard • High The adjustment can be carried out at any time and situation of use by pressing the M button directly on the display (Fig.

  • Page 10: Fire

    NEOX User manual - Edition 03-2016 RESIDUAL RISKS Only keep the e-bike in rooms with ambient temperatures between -10°C and +45°C. KEEP THE E-BIKE AWAY FROM HEAT SOURCES SUCH AS RADIATORS, HEATERS, STOVES, ETC. IN THE EVENT FLAMES OR SMOKE EMERGE FROM THE ACCUMULATOR PACK, IM- MEDIATELY STOP THE BIKE.

  • Page 11: Technical Data

    Electrical with a microswitch on the handlebars Gears 4/8 sequential (depending on model) Motor NEOX FL80S 36 V 500 Watts limited to 250 Watts Torque sensor NEOX technology for detection of torque on the gearing Battery NEOX 36 Volt 10.5 Ah (375 W/H) lithium-ion battery Display NEOX 3.5”...

  • Page 12: Ain Components

    NEOX User manual - Edition 03-2016 MAIN COMPONENTS Monitor Battery closing Battery Battery charger socket Electronic control unit box Gears and motor Single arm fork Kickstand Saddle 10. Seatpost 11. Saddle lock 12. Crank 13. Pedal 14. Wheels 15. Frame 16.

  • Page 13: U Seful Tips For Better Use Of Your

    Swimming in a river in the same direction as the current: - The effort required is reduced but the distance travelled is greater. Tips to get maximum satisfaction from using your NEOX. edalling freQuency A pedalling frequency which is greater than 50 revolutions per minute optimises the efficiency of the motor unit.

  • Page 14: Changing Gears

    NEOX User manual - Edition 03-2016 hanging gears The correct use of the gears makes NEOX more efficient. When setting off and riding uphill, you should use lower gears. Only use a higher gear if the route and speed permit it.

  • Page 15: Emoving And Installing The Support

    REMOVING AND INSTALLING THE SUPPORT This special support for your NEOX is contained in each package and can be used for easy transport of your NEOX by car. For further information see the video on the website www.myneox.it BEFORE SETTING OFF...

  • Page 16: Checklist Of Controls To Perform Before Each Use

    NEOX User manual - Edition 03-2016 • Stop and inspect the proper set up of your newly purchased bike, so as to more easily recognize any anomalies at a later time • If any defects are detected during these inspections, immediately contact your dealer.

  • Page 17: Checking The Seat And The Seat Post

    NEOX User manual - Edition 03-2016 The greater the body weight and the load, the higher the tyre pressure must be. Do not exceed the maximum pressure marked on the tyre. hecking the seat and the seat post If the seat post is not inserted deep enough into the frame, it could separate from the frame while riding and lead to dangerous riding conditions, falls and accidents.

  • Page 18: Checking The Brakes

    A side stand which is bent, too short or too long can not guarantee the stability of your bike which could later fall, injuring you or other people. • Repair or replace the stand at a Neox Service Centre, if it is bent. • For side stands with adjustable length: please adjust them to the right length so that your e-bike is stable.
  • Page 19 NEOX User manual - Edition 03-2016 • Before setting off, always raise the stand. The stand will not lower by itself. • Apply gentle force with your hands, making sure that the extractable part does not shift. • Make sure the stand is firmly secured to the frame and does not move when you move it with your hands CHECK FOR ANY DAMAGE ON ALL THE COMPONENTS.

  • Page 20: General Use

    • Put your foot on the pedal only when you are actually setting off. • Release the brakes only when you are actually setting off. • Ride with caution, respect the envisaged maintenance intervals and immediately seek your Authorized Neox Service Centre if defects are detected.

  • Page 21: Event Of Unlocking The Speed Limiter

    Your e-bike has a device fitted to limit the maximum travelling speed. It ensures that the maximum assisted speed (eco-standard-high) is kept below 25km/h as per the European Directives in force. The user can exceed this limit but there will be NO electric assistance from your Neox e-bike.

  • Page 22: Ideal Height Of The Saddle

    NEOX User manual - Edition 03-2016 ADJUSTMENTS deal height of the saddle For ideal height of the saddle is the dis- tance between the seat of the saddle and the pedal in the lowest position. The ide- al height of the saddle is when, with your...

  • Page 23: Adjusting The Saddle Height - Fig. 02 (Previous Page)

    Move the saddle with the seat post to the desired position being careful not to exceed the maximum height line marked on the post. • Re-lock the seat post (B). djusting the suspension forks if present See the operating instructions inside the Neox packaging (only if your Neox has sus- pension forks).

  • Page 24: Handlebar Adjustment

    NEOX User manual - Edition 03-2016 andleBar adjustment Handlebar - Fig 01 1. Loosen the screws in area (A) until the rotational movement of the handlebar is achieved. 2. Rotate and/or position the handlebars to the desired position B. 3. Check that the handlebars are in a centred horizontal position C.

  • Page 25: Adjusting The Brake Levers

    NEOX User manual - Edition 03-2016 Adjustable handlebar stem (if available) - Fig 01 On some models it is also possible to verti- cally adjust the handlebar stem. 1. Loosen the screw (A) (Fig. 1) locking the vertical movement of the handlebar stem.

  • Page 26: The Display

    NEOX User manual - Edition 03-2016 THE DISPLAY Assistance setted up Power string Gear Speed Battery state string Hour – Daily Km – Total Km – Autonomy Km Button ON-OFF Button UP Button DOWN 10. Button enter/confirmation 11. Red Led 12.

  • Page 27: Esetting Of Daily Km

    NEOX User manual - Edition 03-2016 RESETTING OF DAILY KM By the button i (general informations) placed on the right side of the handlebars, get the display in DAILY KM section. Once here, keep pushed the button Enter for some seconds and the computer will reset the displayed KM.

  • Page 28: Ow To Turn On Your Neox

    After 3 seconds from the insertion of the code, the bike will turn on and will get in the following gear position: 2nd gear URBAN | 3rd gear SPORTER | 4th gear CROSSER, CITY e TOURING CAUTION: Do not press on the pedals during the start-up phase !!!

  • Page 29: Turning Off 1 (Standard)

    Push the switching off button on the display (1) to activate the mechanical inhibition cycle. Now your Neox is protected and the pedals will turn free to the right and to the left without transmit the motion to the rear wheel.

  • Page 30: H Ow To Activate The

    HOW TO ACTIVATE THE NEOX ANTI-THEFT SYSTEM The bike has two anti-theft systems. • The first inhibits transmission and can only be reactivated by entering the Neox Pin code. • The second system consists of the mechanical locking of the rear wheel.

  • Page 31: The Battery

    The battery does not require maintenance, in the event of failure or a significant reduc- tion in performance or autonomy contact your Authorised Neox Service Centre. If the battery emits a bad smell, unplug it from the electrical outlet and contact an Authorised Neox Service Centre.

  • Page 32: The Neox Battery

    Do not store the e-bike for long stops with the battery uncharged. eoX Battery The NEOX battery (Fig 1) is a battery pack constructed with Samsung cylindrical cells. The lithium-ion batteries have a high energy density and are perfect for cyclic applica- tions.

  • Page 33: Battery Technical Data

    0 lights on, low battery or faulty fuses emoving and installing the Battery The NEOX battery has been designed to be inserted into the main tube of the frame. This “disguises it” and makes it invisible to the eye, hence improving the design of your Neox, but above all to provide it with increased protection, inside a hydroformed alu- minium shell to prevent damage due to accidental knocks or falls.

  • Page 34: Lock For Assembly And Taking Apart Of The Battery

    NEOX User manual - Edition 03-2016 ock for assemBly and taking apart of the Battery Features: The key can be turned on two positions and it can be ex- Close tracted only in OPEN position. 1 CLOSE position: the battery is inserted and hooked in Open the right position.

  • Page 35: Installing The Battery

    Push (peremptorily, until the “clack” of the closure) the battery uopwards until the complete insertion, in order that it is fitted together with the frame pipe. (Fig. 4) Now the battery is properly inserted and blocked inside his compartment and your Neox is ready to be used. CLACK...

  • Page 36: How Does The Neox Battery Perform During Use

    The BMS controls each single cell, after the first few recharges it balances the cells and thereby prolongs the battery life. The interval between the date of first use and the date on which it will be necessary to replace your Neox battery is therefore very long.

  • Page 37: Battery Life

    NEOX User manual - Edition 03-2016 attery life The duration of a PowerPack depends mainly on the type of use employed. Like any other lithium-ion battery, the PowerPack ages naturally, even when not in use. Factors that shorten the life span: •...

  • Page 38: Charging The Battery

    NEOX User manual - Edition 03-2016 harging the Battery The NEOX battery can be charged both while installed on the bike (Fig. 1) and when removed from its housing (Fig. 2) by inserting the charging connector plug into the front of the battery.
  • Page 39 Do not clean your bike with water during the battery charging procedure. For longer battery life, use only original NEOX equipment for the charging pro- cedure, making sure that there is sufficient ventilation to avoid overheating the charger.

  • Page 40: How To Use The Battery Charger

    NEOX User manual - Edition 03-2016 oW to use the Battery charger 1. Be sure that connections are in good conditions and not damaged by improper strength or use. 2. Insert the plug (1) of the power set in a socket AC 220 Volt. If the plug is inserted in the socket at 220 Volt AC without the battery connected with the power set, the two leds Power Red and Charge Green will turn on as the unit is in stand by.

  • Page 41: Introduction

    NEOX User manual - Edition 03-2016 GEARBOX F8.11 Your Neox is equipped with a gearbox that is more similar to that found on a motorcy- cle/car than a normal bicycle gear system. IT is equipped with an innovative gearbox, with rotary engagement and with electric controls on the handlebars.

  • Page 42: Change (Or Increase In Gear)

    NEOX User manual - Edition 03-2016 Gear Gear hange or increase in gear THIS is the change from one gear to a higher gear, i.e. from gear 1 to 4 or 8, depending on the model. This may be carried out in any situation and dynamics of use without any problem, ap- plying either minimum or maximum pressure on the pedal cranks (added to the thrust torque of the motor).

  • Page 43: F8.11 Gearbox

    For the user, it will be very hard to detect any problems during use of intermediate gears, if not when engaging the highest gear (gear 4 or 8 depending on the model): Neox does not change to the gear chosen and shown on the display, but remains in the lowest gear (Gear 1).

  • Page 44: Caution

    NEOX User manual - Edition 03-2016 MOTOR NEOX has an assistance motor integrated in the gearbox unit and the whole assembly is contained in a die-cast aluminium box. Model: Brushless NEOX FL80S 36 V 500 Watts, limited to 250 Watts The motor does not need any maintenance.

  • Page 45: Operation Of The Pedal Assistance Mode

    NEOX User manual - Edition 03-2016 peration of the pedal assistance mode The pedal assistance mode has 4 levels (including the no assist mode). To move with the different levels the user must make sure that the e-bike is ON.

  • Page 46: Aintenance And Care

    Cleaning agents, lubricants and protective agents are chemical products. Some of these products can damage your Neox e-bike. Only use products specifically designed for bicycles. Make sure the products do not attack paint or rubber parts, plastic, metal, etc.

  • Page 47: Ashing

    For washing do not use steam jets/high pressure cleaners. A strong jet of water can damage your e- bike or result in a short circuit (fire hazard). The Neox is an e-bike is easy to clean as there are no exposed motors or batteries and has a very linear and rounded structure.

  • Page 48: Putting The Bicycle Out Of Service

    OUT OF SERVICE reparation of the Bicycle for a long period of disuse Keep the Neox e-bike in an enclosed environment or otherwise protected from the sun, possibly off the ground, regularly check the tyre pressure, disconnect the battery and charge it every 2-3 months, cover the bicycle with a cloth.

  • Page 49: Q Isposal Of Your

    Question: Are NEOX bicycles very heavy? Answer: No. In fact, given that the weight of the NEOX bicycle is between 20 kg and 24 kg depending on the model, it is considered to be among the lightest electric bikes on the market.
  • Page 50 Question: Can I make copies of the keys to lock the battery? Answer: Yes, it is a flat key. Just ask your Neox dealer for the base key and have it copied at any hardware store.
  • Page 51 NEOX User manual - Edition 03-2016...
  • Page 52 SIRAL SRL Località Fornace 13 z.a. - 36076 Recoaro Terme Vi Italy Tel +39 0445 780795/+39 0445 780290 - Fax +39 0445 792508 www.myneox.it - info@siral.it...

This manual is also suitable for:

SporterUrbanCityTouring
