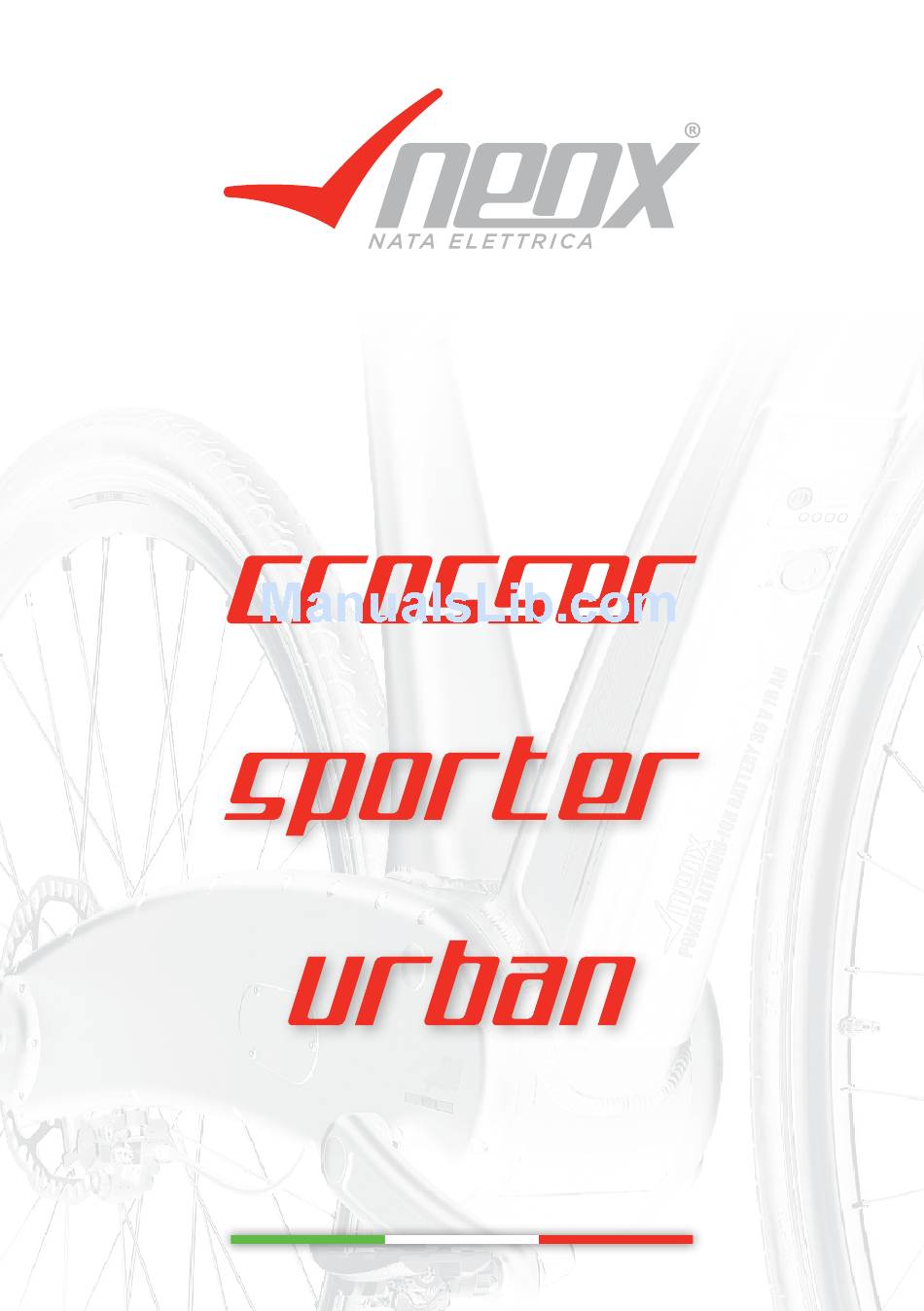

- Page 1 USER MANUAL pensata, progettata e prodotta in Italia...
-
Page 3: Travelling Autonomy Of A Pedal Assisted Cycle
NEOX User manual - Edition 01-2015 Travelling autonomy of a pedal assisted cycle The travelling autonomy of the bicycle with the aid of the assisted pedalling PAS, can vary depending on the different conditions of use and the different weights being transported, up to a maximum of 80/100 Km (ECO and NO ASSIST cycle) according to the model. -
Page 4: Electric Assisted Pedalling
NEOX User manual - Edition 01-2015 Electric assisted pedalling NEOX is equipped with an electric assisted pedalling system. Assistance may be set to one of 4 positions (Fig. 1): • No Assist • Eco • Standard • High No ASSiSt Eco StANdArd HigH... -
Page 5: The Display
NEOX User manual - Edition 01-2015 The Display Power level Batter status gear Speed Total Km Assistance level set Button for the lights and/or display backlight Estimation of distance in kilometres at that particular moment Off button 10. Assistance mode change button 11. - Page 6 NEOX User manual - Edition 01-2015 How to turn on your Neox Turn the switch clockwise to the ON position. The three LEDs A - B - C will light up. When the monitor turns on a "0" will appear and 4 lines in the lower right corner.
- Page 7 Press and hold down the off button on the monitor (9) for 3 seconds to activate the mechanical restraint. Now your Neox is protected and the pedals will rotate freely to the right and the left without transmitting any motion to the rear wheel.
- Page 8 How to activate the Neox anti-theft system The bike has two anti-theft systems. • The first inhibits transmission and can only be reactivated by entering the Neox Pin code. • The second system consists of the mechanical locking of the rear wheel.
-
Page 9: The Battery
The battery does not require maintenance, in the event of failure or a significant re- duction in performance or autonomy contact your Authorised Neox Service Centre. If the battery emits a bad smell, unplug it from the electrical outlet and contact an Authorised Neox Service Centre. -
Page 10: The Neox Battery
Do not store the e-bike for long stops with the battery uncharged. • The Neox battery The NEOX battery (Fig 1) is a battery pack constructed with Samsung cylindrical cells. The lithium-ion batteries have a high energy density and are perfect for cyclic ap- plications. - Page 11 Open 1. “OFF”: with the key in this position power to the Neox is cut, the motor is off but the battery pack is locked on the bike. 2. “ON”: the power is on, the motor is running and the battery pack is locked on the bike.
- Page 12 OFF position. (Fig. 5 Part. C) At this point the battery is properly inserted and locked inside its housing and your Neox is ready for use. Open...
- Page 13 STANDARD mode, then change again to ECO mode until all of the available energy in the battery has been used before changing to NO ASSIST mode. At this point, with all the energy used, NEOX becomes a normal bicycle, with full use of the gears despite the fact they are electronically controlled.
- Page 14 NEOX User manual - Edition 01-2015 harging The baTTery The NEOX battery can be charged both while installed on the bike (Fig. 1) and when removed from its housing (Fig. 2) by inserting the charging connector plug into the front of the battery.
- Page 15 NEOX User manual - Edition 01-2015 Ow TO use The baTTery charger Make sure the connections are in good condition and have not been damaged by excessive force or misuse. Insert the plug (1) of the battery charger into a 220 volt AC outlet. If the plug is in- serted into the 220 volt AC outlet without the battery connected to the charger, a green LED will light up, indicating that the unit is on stand-by.
- Page 16 NEOX User manual - Edition 01-2015 Gearbox F8.11 Your Neox is equipped with a gearbox that is more similar to that found on a mo- torcycle/car than a normal bicycle gear system. IT is equipped with an innovative gearbox, with rotary engagement and with electric controls on the handlebars.
- Page 17 NEOX User manual - Edition 01-2015 Gear Gear hange Or increase in gear tHiS is the change from one gear to a higher gear, i.e. from gear 1 to 4 or 8, depend- ing on the model. This may be carried out in any situation and dynamics of use without any problem, applying either minimum or maximum pressure on the pedal cranks (added to the thrust torque of the motor).
- Page 18 For the user, it will be very hard to detect any problems during use of intermediate gears, if not when engaging the highest gear (gear 4 or 8 depending on the model): Neox does not change to the gear chosen and shown on the display, but remains in the lowest gear (gear 1).
- Page 19 NEOX User manual - Edition 01-2015 peraTiOn Of The pedaL assisTance mOde The pedal assistance mode has 4 levels (including the no assist mode). To move with the different levels the user must make sure that the e-bike is ON.
- Page 20 SIRAL SRL Località Fornace 13 z.a. - 36076 Recoaro Terme Vi Italy Tel +39 0445 780795/+39 0445 780290 - Fax +39 0445 792508 www.myneox.it - info@siral.it...
