Wiring the I/O connectors

Wiring the I/O connectors
A 5-pin terminal female connector is included for wiring.

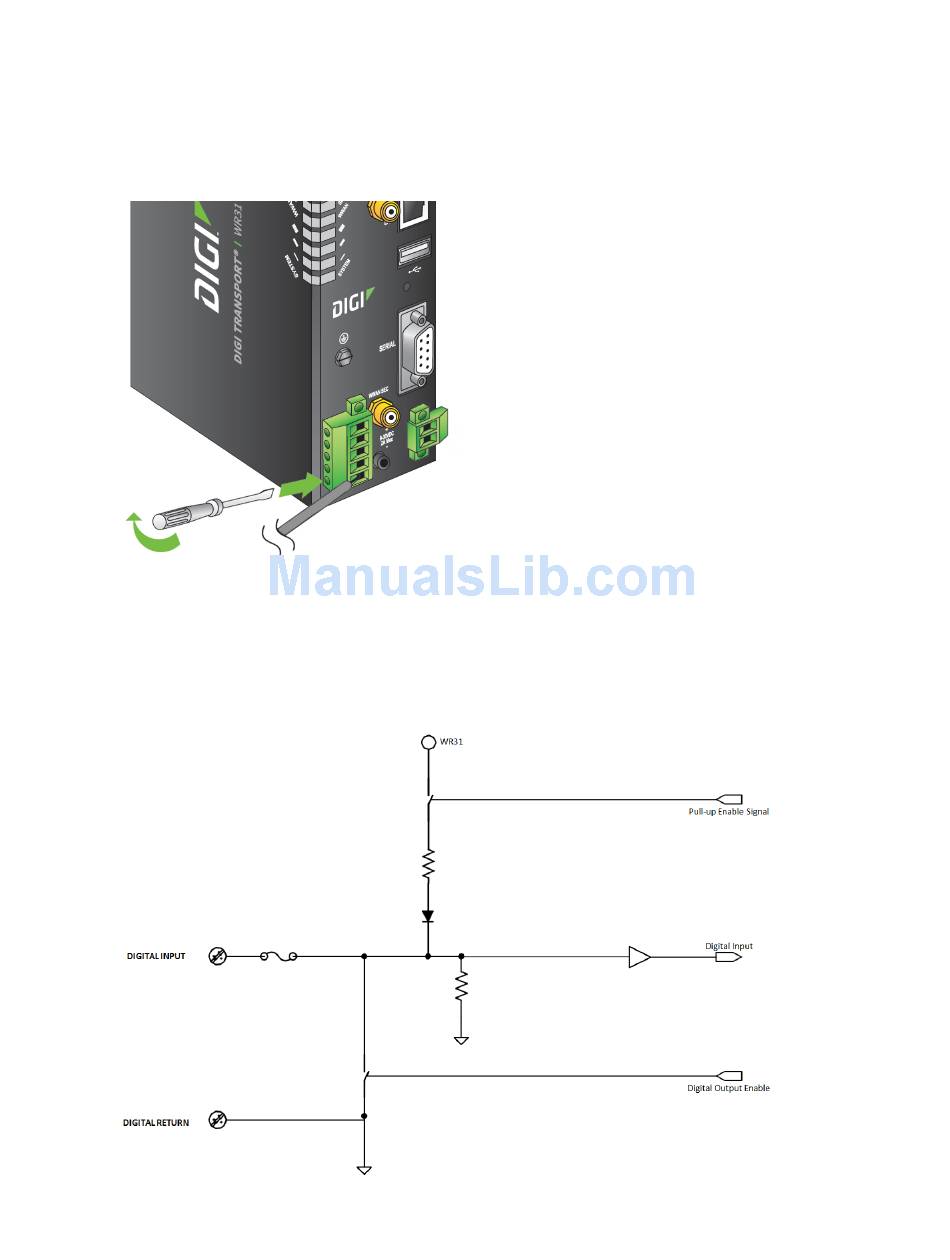

The following image shows how to secure the wires using the screw-down clamps. The connector is attached to the
TransPort WR31 with the screw flanges. We recommend using the wire size 16-26 AWG for the 5-pin terminal.

Hardware specifications and configuration

The following section provides the specifications and configurations of the TransPort WR31 I/O Interface.

Digital I/O schematic
