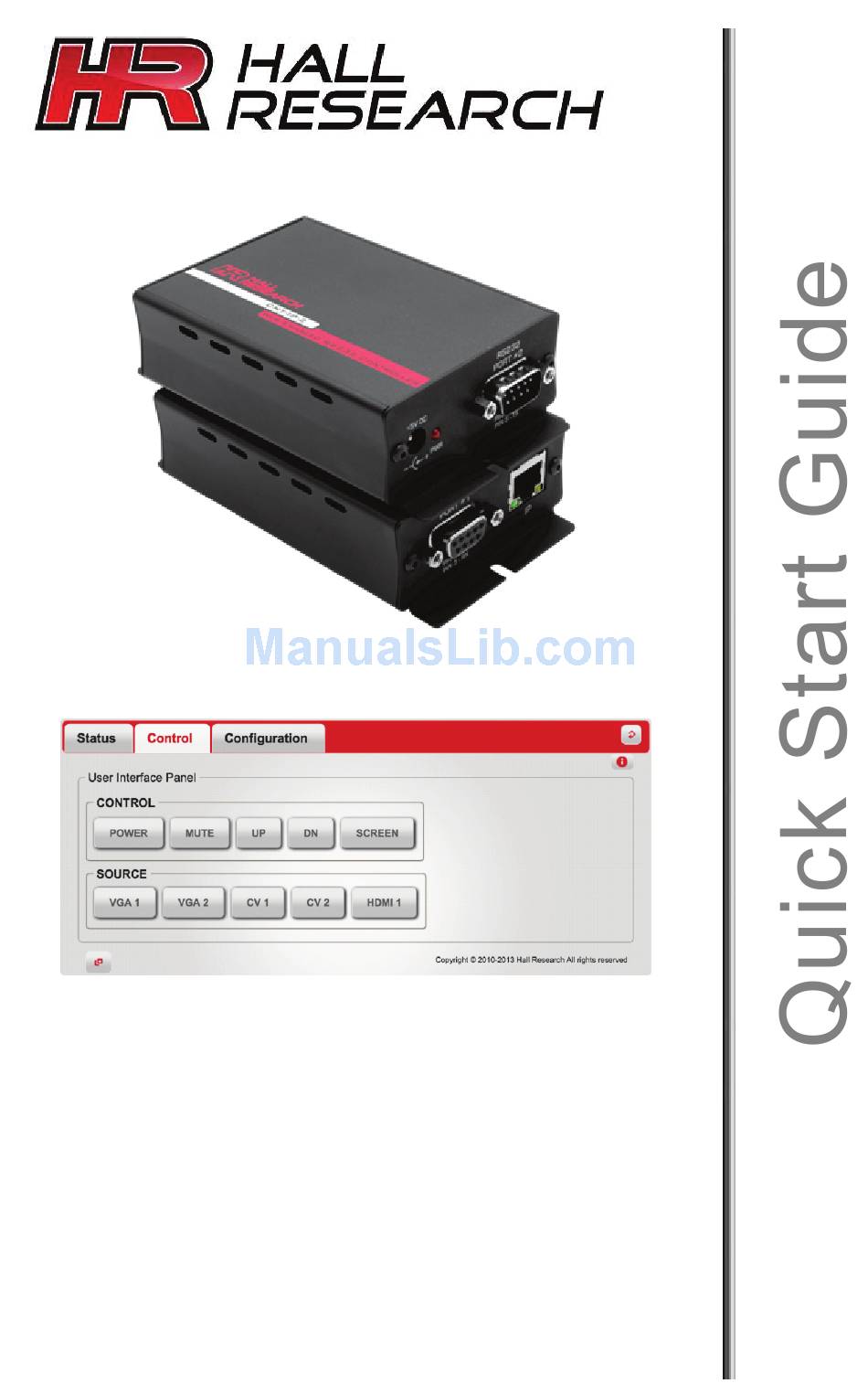

- Page 1 CNT-IP-2 Web Enabled Serial Controller Order toll-free in the U.S. 800-959-6439 For technical support, call 714-641-6607 Hall Research, 1163 Warner Ave. Tustin, CA 92780 www.hallresearch.com info@hallresearch.com QSG1212 Rev 1.0...
- Page 2 CNT- IP-2 devices in your facility via the LAN. First and foremost you need to identify the CNT-IP-2 device's IP address in order to program and configure it. Please read the following sections, and refer to the full user manual on the our website: http://www.hallresearch.com/page/Products/CNT-IP-2...
- Page 3 The either configuration. Dual-Port (Default) In dual port mode, the CNT-IP-2 device can be used to control 2 serial devices independently. Both serial ports will communicate with only IP interface on CNT-IP-2 as shown in Figure-1. No information will be passed between Serial port1 and Serial port 2.
- Page 4 Connect the LAN cable from your network router or switch (which is • connected to router) to the CNT-IP-2 device IP connector. Connect the power supply to the CNT-IP-2 device. (The power LED • shall illuminate when power is applied).
- Page 5 (printed on the back side) of your unit to get an IP address of that particular unit. NOTE CNT-IP-2 uses multiple ports on LAN to offer different services. For unit to be fully functional LAN should allow network traffic on following network ports.
- Page 6 Web Manger and Control Access the CNT-IP-2 device from its web interface via a browser • Type the IP address of the CNT-IP-2 device in the address bar of the • browser. For example, http://192.168.123.221 and press ENTER. When presented with a LOGIN dialog box, type in the following •...
- Page 7 Web Enabled RS232 Controllers The CONFIGURATION Tab contains all the user configurable • controls and settings. From these screens, the user programs the CNT-IP Serial device. At this point, if desired, change the IP configuration to a STATIC address that matches your network settings. The network settings are available on the following tab: Configuration ->...
- Page 8 © Copyright 2013. Hall Research, Inc. All rights reserved.
