Summary of Contents for Hall Research Technologies VSA-31-IP
Page 1

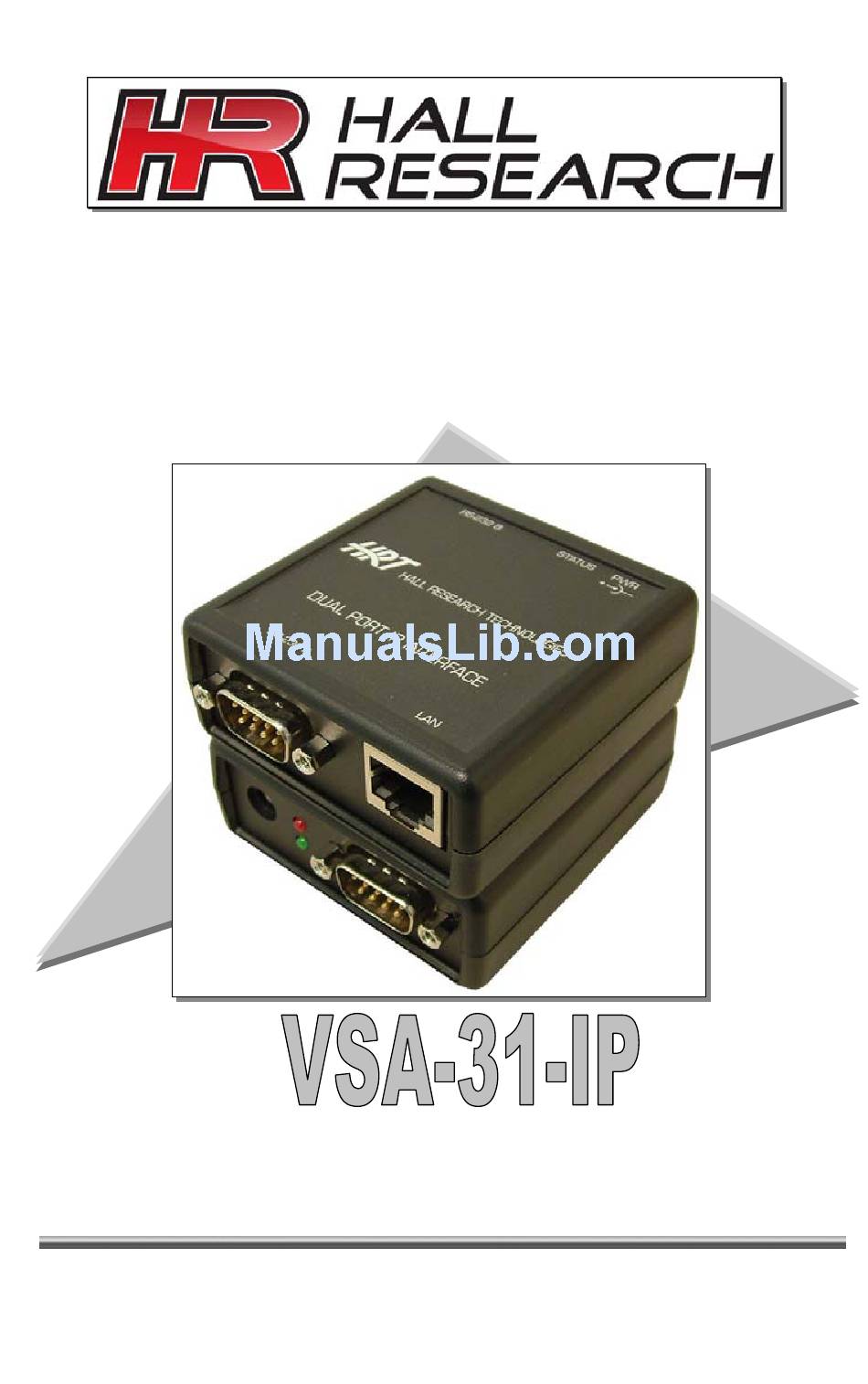

Model VSA-31-IP IP to Dual RS232 Controller For use with Hall Research Switch-Cat® products For technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT & Order by phone: toll-free in the U.S. 800-959-6439 UMA 1166 Rev. B ORDERING Web site: www.hallresearch.com INFORMATION Hall Research 1163 Warner Ave.
Page 3
Model VSA-31-IP TRADEMARKS USED IN THIS MANUAL Hall Research, HR, and the logo are trademarks of Hall Research Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s...
Detect connection to RS232-A port from a remote LAN connection without disturbing the communication between RS232-A and RS232-B When the VSA-31-IP is used to add IP capability to a classroom equipped with Hall Research Switch-Cat® system, it is inserted in the RS-232 path between the VSA-31 Receiver and the Projector.
IP DUAL PORT CONTROLLER 1.2 Features Dual RS232 Ports Supports all Serial baud rates, parity and data bits 10/100 Base-T Ethernet ready User selectable IP Address, MAC, Gateway and Net Mask 2 LED’s for indication of Power, IP-to Serial Routing, and/or Ethernet Status Detect serial device connected to RS232-A port without disturbing the serial communication.
Model VSA-31-IP 2. Installation 2.1 Connecting the Unit Refer to Figure 1 and 2 below for connector identification. Connect the “RS232-A” and the “RS232-B” ports to the serial devices using appropriate cables (for example, since the VSA-31 Receiver has a DB9 Male connector, a Female/Female RS-232 NULL Modem cable should be used).
RS-232-B Connector: This 9-pin D-sub connector is normally used to connect to the “Controller” device, such as a VSA-31 Receiver (though any serial device is acceptable). This connector can also be used to power the VSA-31-IP unit. The power source must be capable of 12-15 vDC @ 250 mADC minimum.
Model VSA-31-IP 2.3 Indicators The VSA-31-IP has one RED and one GREEN LED. The function of each LED is changed depending on the mode of operation, Ethernet connection status and power status. 10/100 (GREEN) Status (RED) RS232 Path Time Limit...
RS-232-A to/from RS-232-B path. The time limit starts whenever the VSA-31-IP units P1 line is set from “0” to “1”. If more than 3 minutes is required to communicate on the LAN port, the end-user is responsible for toggling the VSA-31-IP unit P1 line from “0”...
Address of the VSA-31-IP on Port 1001. This communication can be monitored using a HyperTerminal TCP connection. The baud rate, parity, data bits and stop bits of the VSA-31-IP unit must match the settings of the devices communicating on the RS-232-A and RS-232-B ports.
LAN must have the same settings for the communication to be meaningful. There is a 3 minute time limitation in this state before the VSA-31-IP unit will change automatically to the default (RS-232-A to/from RS-232-B) path. 4.3 RS-232-B to/from LAN...
Page 13
Model VSA-31-IP The following table shows the different configurations possible using the VSA- 31-IP unit’s P0, P1 and P8 lines. RS232 10/100 & Notes Connection Status LED’s At POWER Both Red & ─ B Green communication possible, NO IP LED’s Flash but none thru IP.
To change a parameter, click on the field next to the parameter’s name and enter the appropriate information. Click the OK button when finished and the information will be uploaded into the VSA-31- IP module. There will be a short time delay while the VSA-31-IP module reboots.
31-IP modules IP Address then you will not be able to control or monitor the modules status. The software GUI contains a list of the VSA-31-IP MAC and IP Addresses so that it can communicate with each module and ultimately control the devices connected to the RS- 232-A and RS-232-B ports.
Page 16
IP DUAL PORT CONTROLLER The figures below show screens that could be only similar to the actual Software GUI screens. Refer to http://www.hallresearch.com/page/Products/VSA-31-SP for the latest updates concerning the VSA-31-IP Software GUI List of Refreshes Buildings list List of Devices...
A and RS-232-B ports. The LAN connection Baud Rate must match the speed being used by the RS232 ports for meaningful communication to occur. Port 23 is used to change specific parameters in the VSA-31-IP module such as its IP Address, Gateway Address, Baud Rate…etc.
Page 18
IP DUAL PORT CONTROLLER Command Purpose Reply Notes <^B>SFExxx.xxx.xxx.xxx.xxx.xxx<CR> Set Modules MAC <^B>A<CR> Digit must Where xxx.xxx.xxx.xxx.xxx.xxx represents the Address be EVEN. MAC Address Must REBOOT for changes to take effect It is recommende d that the MAC address not be changed <^B>GIP<CR>...
Page 19
Model VSA-31-IP Command Purpose Reply Notes <^B>GBB<CR> Get Modules <^B>Aaa <CR> Serial Data Bits Where aa represents the Data Bits per Per Byte Byte as follows: 0 = 7 1 = 8 <^B>SBBaa<CR> Set Modules <^B>A<CR> Must Where aa represents the Data Bits per Byte as...
192.168.123.150). Contact your IT Administrator for assistance. 5.1 Contacting Hall Research If you determine that your VSA-31-IP is malfunctioning, do not attempt to repair the unit. There are no user serviceable parts inside the unit. Opening the unit will void the warranty.
Model VSA-31-IP 6. Specifications Dimensions: 2.6 inch (Wide) x 2.6 inch (Deep) x 1.10 inch (High) Weight: 0.26 Pounds (120 g) Input Power: 12-15 vDC, 200 mADC max via RS232 Port “B” or 2.5 mm PWR connector Enclosure: Black Plastic ABS-94VO, UL File#56070 Temperature: Operating: 32 to 122 Deg F (0 to 50 Deg C);...
