Page 1: User Manual

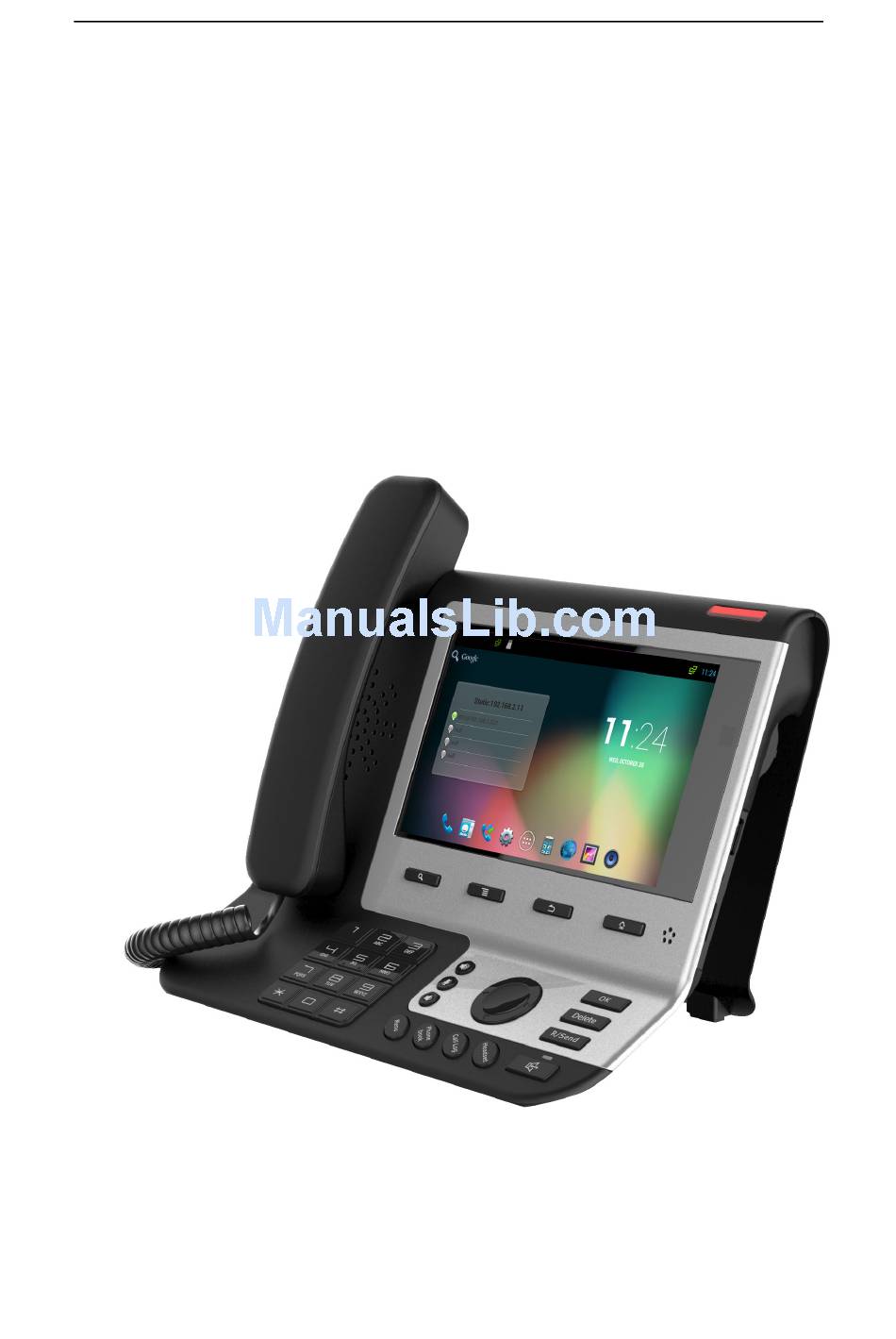

Multi-media Video Phone UTT-990 User Manual Multi-media Video Phone UTT-990 User Manual...
Page 2: Safety Notices
Multi-media Video Phone UTT-990 User Manual Safety Notices Please read the following safety notices before installing or using this phone. They are crucial for the safe and reliable operation of the device.  Please use the external power supply that is included in the package.
Page 3 Multi-media Video Phone UTT-990 User Manual  Do not use harsh chemicals, cleaning solvents, or strong detergents to clean it. Wipe it with a soft cloth that has been slightly dampened in a mild soap and water solution.  When lightning, do not touch power plug or phone line, it may cause an electric shock.
Page 4: Table Of Contents
Multi-media Video Phone UTT-990 User Manual Contents INTRODUCTION ................6 UTT-990 ULTI MEDIA IDEO HONE UTT-990 VERVIEW ............6 TTACHMENT ..................... 6 HONE COMPONENT DESCRIPTIONS ................7 NTERFACE INTRODUCTION ..................9 OUCH CREEN ESCRIPTION ................... 11 PDATE OF THE PHONE ....................
Page 5 Multi-media Video Phone UTT-990 User Manual Service port ........................... 63 Password ..........................64 CWMP set ..........................64 Backup ........................... 66 Update ........................... 67 UDIO ........................67 Audio ............................. 67 Audio param .......................... 68 IDEO ........................69 Video param .......................... 69 Bandwidth ..........................
Page 6 Multi-media Video Phone UTT-990 User Manual Ethernet configuration ......................122 QUIPMENT ......................123 Voice ............................ 124 Display ..........................124 Store ............................ 124 Application .......................... 124 ERSONAL ....................... 125 Security ..........................125 Language and input method ....................126 Backup and reset ......................... 126 WEB PAGE CONFIGURATION DESCRIPTION ........
Page 7: Introduction

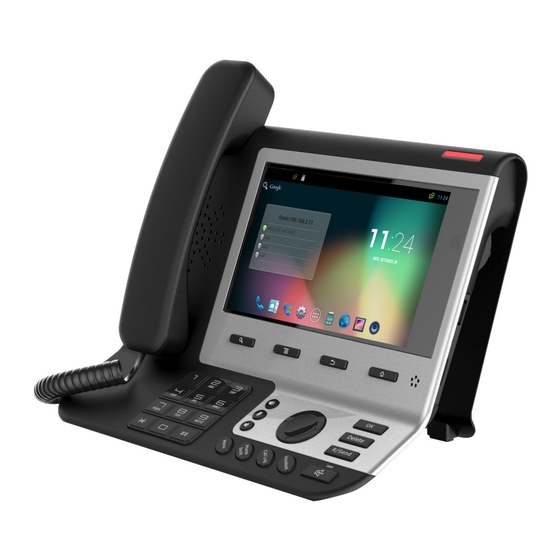

Multi-media Video Phone UTT-990 User Manual Introduction Multi-media Video Phone UTT-990 Overview D900 With Attachment Item Function Power Adapt Power supply for telephone. Network Cab Used to access network for the phone. Hands Make phone calls with the phone’s basic functions.
Page 8: Phone Component Descriptions
Multi-media Video Phone UTT-990 User Manual Phone component descriptions Phone elements icon Function Search key. Tap the key and you can enter the search interface. Option key. You can browse and accomplish all functions of the phone through pressing this key.
Page 9 Multi-media Video Phone UTT-990 User Manual Volume control key. Turn down or turn up all kinds of volume by pressing these two keys. Mute key. In the call mode, press this key in calling mode, you can hear the other side, and the other side cannot hear you;...
Page 10: Interface Introduction
Multi-media Video Phone UTT-990 User Manual The hands-free key. Interface introduction Interface illustration picture 1 Name Meaning Connect SD Card for SD Card interface saving data. （Left first） Input: 220V AC DC Power Interface Output: 12V DC （Left second） Specification RJ45, connect it LAN Network interface computer.
Page 11 Multi-media Video Phone UTT-990 User Manual （Left third） Specification RJ45, connect it WAN Internet interface to network. (Right second） Specification RJ9, used to Handset interface connect the Handset to the （Right first） phone. Interface illustration picture 2 Name Meaning USB interface.
Page 12: Touch Screen Description
Multi-media Video Phone UTT-990 User Manual Interface for high-definition HDMI interface. audio and video. A-A interface, (Right) A to A interface.  Note: 1. Put the handset line into the handset interface according to the interface illustration picture 1. 2. Install the backplane to the bottom of the phone with any of the above two methods.
Page 13 Multi-media Video Phone UTT-990 User Manual Long press:  Long press the standby will pop-up choice wallpaper desktop option box, you can according to the prompt to change the wallpaper Figure: Slide: Slide your finger on the screen upward or downward slowly to move the interface on the screen.
Page 14: Update Of The Phone
Multi-media Video Phone UTT-990 User Manual by moving your fingers on the screen to left or right. Dragging your finger to slide will not select or activate anything on the screen. You can just wait or gently press any place of the screen to stop the sliding after your finger rapidly sliding on the screen.
Page 15 Multi-media Video Phone UTT-990 User Manual Through the hard on the keyboard "navigation button", "backspace", "enter", to operate on the Recovery menu. Select “apply update from udisk” or “apply update from external storage” (SD card), enter the subdirectory and select the upgrade packages, click on “OK”...
Page 16: Basic Function
Multi-media Video Phone UTT-990 User Manual Basic Function Screen Keyboard If you need to input, click on the input box. A screen keyboard will automatically be displayed. (Every input method has its own unique screen keyboard).For instance: Press the “return key” to close the screen keyboard after finishing the input.
Page 17: Status Bar
Enter Status Bar All of the status information about UTT-990 is displayed on the top of the screen. You can click on the notification icon in the left of the status bar or drag down the drop-down list with your fingers to enter the notification panel to further review and deal with all of the information.
Page 18: Call Forward
Multi-media Video Phone UTT-990 User Manual the network settings. Shows that the network connected Network status failed. You need to check the network is properly connected and the parameters (failed) are configured correctly. Displays that the phone successfully identifies the USB device. Tap the icon...
Page 19: Main Screen
Main Screen UTT-990 will go directly to the main screen after rebooting. The main screen contains five idle interfaces. Each one can display some programs shortcuts. You can switch the desktop just by moving your fingers on the screen to left or right.
Page 20 Multi-media Video Phone UTT-990 User Manual application program. The application program interface If you want to delete application shortcuts on the idle interface, you can long press the shortcut, and then put it into the dustbin at the bottom of the interface.
Page 21: Functional Applications
Multi-media Video Phone UTT-990 User Manual Functional applications: Click this icon, and it will switch to pre-dial interface. You can make some phone calls through the screen or keyboard. Phone Has the function of sending and receiving e-mail. When an...
Page 22 Multi-media Video Phone UTT-990 User Manual It contains the Call settings, Basic settings,Advanced settings, VOIP and so on, you can configure some settings in the Android corresponding menu.(Android system settings) settings View photos stored on the phone, or through the USB storage device storing photos or videos, you can enter the photo gallery for dynamic playing.
Page 23: Desktop Widgets
Multi-media Video Phone UTT-990 User Manual Have export contacts, add blacklists and outgoing call barring Import and Export functions. Managemen Through pictures, videos, sounds to make your own DIY film. Movie studio Customize a variety of shortcut keys. Function Keys Can search for local applications, contacts, etc., and network...
Page 24 Multi-media Video Phone UTT-990 User Manual destroyed. indicator： If power light is turned on, like the second picture. As this time when the telephone is called or it has missed calls, the power light will twinkle；when the telephone is calling or in the idle status, the power light have been always light；when the...
Page 25 Multi-media Video Phone UTT-990 User Manual With this component you can directly call the selected contac Call directly Desktop display： Direct access via the component selected contact SMS edit page Send text messages Desktop display： directly Can generate a sound, display, application shortcuts, user...
Page 26 Multi-media Video Phone UTT-990 User Manual Clock The default is the Google search bar for quick search box, you can enter any URL for browsing. Desktop display： Search Click to play the selected music playlists inside Playlists Desktop display： Phone status widget displays the phone network connection status and registration status of each line.
Page 27 Multi-media Video Phone UTT-990 User Manual light Server Address on the backup server Desktop display： You can photograph an arbitrary one of your favorite pictures on the desktopDesktop display： Photo You can use this widget fast playback of music stored in your phone, ready to enjoy the joy of music.
Page 28: Settings
Multi-media Video Phone UTT-990 User Manual Settings System info Tapping "Settings" can directly enter the default window "System info". It displays the current system information state. System info interface Configuration item Meaning Displays the connection status of the PPPoE, there PPPoE are three display states : Disabled、Connecting and...
Page 29: Network
Multi-media Video Phone UTT-990 User Manual Displays the primary DNS server address of the Primary DNS current network model. Displays the standby DNS server address of the Secondary DNS current use of the network model. MAC address Displays the current MAC address.
Page 30: Pppoe
Multi-media Video Phone UTT-990 User Manual Static IP interface Configuration Meaning You can select to use DHCP, which means whether DHCP Use the DNS to connect network assigned by the DHCP server. IP address: Input your assigned IP address. Subnet mask: Input your assigned subnet mask.
Page 31 Multi-media Video Phone UTT-990 User Manual PPPoE interface Configuration Meaning User name: Input your assigned PPPoE Username. Password: Input your assigned PPPoE Password. Auto connect on power up: Whether to automatically connect PPPoE on power up. Auto reconnect: When connecting failed whether to automatically connect PPPoE.
Page 32: Qos
Multi-media Video Phone UTT-990 User Manual configuration parameters which have been set, not to enable PPPoE connection. Tap "Network"----> "QoS", after selecting or modifying the default settings click the "Save" button to save. QoS-DSCP Settings DSCP is one standard of QoS. It can set the priority of Voice, Video and Signal.
Page 33 Multi-media Video Phone UTT-990 User Manual QoS-WAN VLAN interface VLAN is Virtual Local Area Network. Enable VLAN, then you can set VLAN ID, the range of ID number is 0~4095; you can also set the priority of 802.1p, the range is 0~7.
Page 34: Port
Multi-media Video Phone UTT-990 User Manual Port VLAN interface Port VLAN is based on port VLAN, in the same VLAN port to communicate with each other. Configuration item Meaning Port VLAN mode: Select the status of LAN Port VLAN.  Disable: Disable Port VLAN.
Page 35: Stun
Multi-media Video Phone UTT-990 User Manual Port Settings Configuration item Meaning RTP port range start(10000-60000): Set the telephone’s RTP start port. This port is distributed Port to dynamic allocation. RTP port quantity: Set the maximum number of allocated RTP port. The default is 200.
Page 36: Account
Multi-media Video Phone UTT-990 User Manual STUN interface Configuration item Meaning Server address: Configure the SIP STUN server address. STUN Server port: Configure the SIP STUN server port .The default is 3478. Account Tap "Account"---->"Account1", after setting the parameters you can click the "More"...
Page 37 Multi-media Video Phone UTT-990 User Manual Account page 1 Configuration item Meaning Enable registration: Enable/Disable registration. Disable register, Enable register. Server address: Set your SIP server address. It supports the address in the form of domain name. SIP user: Input the phone number assigned by your VoIP service provider.
Page 38 Multi-media Video Phone UTT-990 User Manual Account page 2 Display name: Configure the display name, it allows the English alphabet input (does not support Chinese). Server name: Configure the SIP register server name. Server port: Configure the SIP register server port.
Page 39 Multi-media Video Phone UTT-990 User Manual Different server vendors can provide different models. RFC protocol edition: Configure the protocol version of the phone. When your phone needs to communicate with gateway which uses SIP1.0, such as CISCO5300, you need to configure to RFC2543 to conduct normal communication.
Page 40 Multi-media Video Phone UTT-990 User Manual SIP-PRACK function (used by "Color Ring Back Tone") Recommend：Use the default configuration. Convert URI: When you send URI it will convert # to %23. Enable DNS SRV: Configure whether to enable RFC2782 protocol edition.
Page 41: Call
Multi-media Video Phone UTT-990 User Manual Call Tap "Call" enter the interface, after configuring the parameters of each interface, you can click "Save" button to save. General Tap “Call” ——>”General” interface, after configuring the parameters, you can click "Save" button to save.
Page 42 Multi-media Video Phone UTT-990 User Manual Default answering mode：Set the default answer mode of the phone, there has two choices: Audio and Video. Tap “Next”，enter the second page The second page of General Enable password dial ： Whether enable the password dial.
Page 43 Multi-media Video Phone UTT-990 User Manual Default answer mode ： You choose “Handsfree” or “Headset”. Tap “Next”, enter the third page The third page of General Hide local code：Enable /disenable the function, if enable the function it will hide the local number.
Page 44 Multi-media Video Phone UTT-990 User Manual the fourth page of General Accept video mode：You can choose “Manual accept video”, “Auto accept video” or “Auto reject video”. Manual accept video ： If there has a video the fourth page of invitation call you need to receive the video General manually.
Page 45 Multi-media Video Phone UTT-990 User Manual Ban outgoing: if you enable the function, it will play busy tone while off hook and prompt hang up . Enable call transfer： You can do transfer if you enable the function. Semi-attended transfer: Semi-attended transfer if you enable the function.
Page 46 Multi-media Video Phone UTT-990 User Manual Tap “Next”, entered the sixth page the sixth page of General Enable conference：Enable the function you can set up conference. Enable silent ring：Enable the function, there will no ring when there has call. Enable call completion: Enable Call Completion by selecting it, If the callee is busy, the sip server will inspect the callee status at intervals.
Page 47 Multi-media Video Phone UTT-990 User Manual the seventh page of General Enable intercom ： Enable Intercom Mode by selecting it. Then you can set up connection to the operator or the secretary quickly, and it widely used in office environments.
Page 48 Multi-media Video Phone UTT-990 User Manual the eighth page of General Ring from headset：Enable Ring From Handset by selecting it, the phone plays ring tone from handset Press # for blind transfer：Input the number you want to transfer to, then press“#” you can transfer the current call to the number.
Page 49: Dial Plan
Multi-media Video Phone UTT-990 User Manual Enable call barring：Enable the function, you cannot call the number in the limited list. Dial plan Tap "Call"----> "Dial plan" interface. After configuring the parameters, you can click "Save" button to save. Dial interface...
Page 50: Account
Multi-media Video Phone UTT-990 User Manual Dial with fixed length (1-30): Enable/Disable. After enabling the function, inputting the number of specified length in the non-pre-dial mode will make the call directly. Dial timeout (3-99): Enable/Disable. After enabling the function, input the number in the non-pre-dial mode, it will dial the phone number in the specified time.
Page 51 Multi-media Video Phone UTT-990 User Manual Account 1 Configuration item Meaning Call forward：Whether enable the call forward (there have four choices: Always, No answer, Busy or Off). Forward number：Specify the number you want to forward. No Ans. Fwd wait time（0-120）：Specify the No Answer Forward Delay Time，if the Forward Type is...
Page 52 Multi-media Video Phone UTT-990 User Manual will call the hot number over the time, if you in the mode, off hook, speaker or headset. The default value is 0. Tap “Next”, enter the second page the second page Enable auto answer：Setting whether enable auto answer.
Page 53: Display
Multi-media Video Phone UTT-990 User Manual phone will save the missed call log into the call history record and display the missed calls on the idle screen, or won’t save the missed call log into the call history record and display the missed calls on the idle screen.
Page 54 Multi-media Video Phone UTT-990 User Manual Screen saver interface Configuration item Meaning Use screen saver: Select screen saver mode， There are third types of screen saver mode("Disabled", "LCD power off"and "Start screen saver") for you to choose. Timeout: Input the waiting time after enabling the screen saver mode, the default unit is minute.
Page 55: Power Indicator
Multi-media Video Phone UTT-990 User Manual Power indicator Tap "Display settings"----> "Power indicator" interface. After configuring the parameters, you can click "Save" button to save successfully. Power indicator interface Configuration item Meaning Whether to open the power indicator Power Status：...
Page 56: Volume
Multi-media Video Phone UTT-990 User Manual you can click "Save" button to save successfully. Tone interface Configuration item Meaning Phone ringtone: Set telephone ringtone of incoming calls. Notification ringtone: Set notification ringtone of the telephone. Audible touch tones: Enable/Disable. After...
Page 57: Tone Profile
Multi-media Video Phone UTT-990 User Manual Volume interface Configuration item Meaning Ring volume: Adjust the volume size of ring volume. Alarm volume: Adjust the volume size of alarm. Media volume: Adjust the volume size of media. Volume Enable silent mode: Set whether to enable Silent mode.
Page 58: Date Time
Multi-media Video Phone UTT-990 User Manual Tone profile Interface Configuration item Meaning Select the Tone of different countries. Select your tone Date time Tap "Settings" ----> "Date time" interface. After configuring the parameters, you can click "Save" button to save successfully.
Page 59: Maintain
Multi-media Video Phone UTT-990 User Manual Use DHCP time: Enable/Disable NTP time. After enabling, the phone will automatically synchronize the network time in a certain period of time . NTP server: Configure SNTP server address of the phone to get the current time.
Page 60 Multi-media Video Phone UTT-990 User Manual DHCP option   Tap "Upgrade", enter the PNP interface: Plug and Play interface Support Common CFG file and MAC-Oriented CFG file and ID-Oriented CFG file auto provision. The endpoints download Common CFG file firstly, and then download MAC-Oriented CFG file or ID-Oriented file.
Page 61 Multi-media Video Phone UTT-990 User Manual PNP port: Input the PNP port number. PNP transport: Select the transport protocol, “TCP” or “UDP” PNP Iiterval (h): Input automatic update interval. Unit is hour. Update-DHCP custom Support Common CFG file and MAC-Oriented CFG file and ID-Oriented CFG file auto provision.
Page 62 Multi-media Video Phone UTT-990 User Manual Update-Phone flash Support Common CFG file and MAC-Oriented CFG file or Custom CFG file. If customer deploys Custom CFG file name in the web page, the endpoint will download Custom CFG file. If customer doesn’t deploy Custom CFG file name, the endpoint will download MAC-Oriented.
Page 63 Multi-media Video Phone UTT-990 User Manual Update--Phone flash 2 Config file name: Input MAC-Oriented configuration file or defined configuration name of user. Commen cfg encrypt key: Input the Common Encrypt Key, if the Common Configuration file is encrypted. The keys must be 64 characters and the supported characters are: 0 ~ 9, A ~ F, a ~ f.
Page 64: Service Port
Multi-media Video Phone UTT-990 User Manual Service port Tap "Maintain"---->"Service port" interface. After configured the parameters, you can click "Save" button to save successfully. Service port interface Configuration Meaning Enable telnet: Open telnet function. Telnet is a common method of remote control of...
Page 65: Password
Multi-media Video Phone UTT-990 User Manual Password Tap "Maintain"---->" Password" interface. After configured the parameters, you can click "Save" button to save successfully. Password interface Configuration Meaning Current Password: Default password: 123456. New password: Input your new password. Password Confirm password: Input your new password again.
Page 66 Multi-media Video Phone UTT-990 User Manual CWMP set Interface 1 CWMP set Interface 2 Configuration Meaning Enter the password to access the network menu landing configuration interface 。 Enable TR069 Enable network mode ：， select China Telecom CWMP set or Normal。...
Page 67: Backup
Multi-media Video Phone UTT-990 User Manual Password：Input the account corresponding password 。 Serial Number： Input the Serial number。 Auto connect：When enabled, you can fill out the account and password。 Backup Tap "Maintain"---->" Backup" , enter the backup interface 。 Backup Interface...
Page 68: Update
Multi-media Video Phone UTT-990 User Manual Update Tap "Maintain"---->" Update", enter the update interface Update Interface Configuration Meaning For ACS certification, authentication is successful System update you can check the system updates Audio Touch "Settings" ----> "Audio", enter the detailed view.
Page 69: Audio Param
Multi-media Video Phone UTT-990 User Manual Audio interface Configuration item Meaning First codec: Set the first priority in the use of voice coding. Second codec: Set the second priority in the use of voice coding. Third codec: Set the third priority in the use of voice coding.
Page 70: Video
Multi-media Video Phone UTT-990 User Manual Audio param interface Configuration item Meaning G729 payload length: Set G729 codec payload length. DTMF payload type: Set DTMF payload type, values between 96 and 127. ILBC payload type: Set ILBC payload type, Audio param values between 96 and 127.
Page 71: Bandwidth
Multi-media Video Phone UTT-990 User Manual you can click "Save" button to save successfully. Video param interface Configuration item Meaning First video codec:Set the first priority in the use of video coding. Second video codec: Set the second priority in the Video param use of video coding.
Page 72: Reboot
Multi-media Video Phone UTT-990 User Manual Bandwidth interface Configuration item Meaning Video bit rate: Set receiving video bandwidth in video calls. You can choose 11 kinds of video bandwidth types ("64Kbps", "192Kbps", "256Kbps", "384Kbps", "512Kbps", "768Kbps", "1Mbps", "1.6Mbps", Bandwidth "2Mbps","3Mbps"or"4Mbps").
Page 73: Phone Application
Multi-media Video Phone UTT-990 User Manual Reboot interface Phone Application Phone This terminal support VoIP to communicate with each other. Dialing Dialing on the dialer view  Directly dial a phone number. 1. Press the phone icon in the launcher；...
Page 74 Multi-media Video Phone UTT-990 User Manual 4. To make a call, perform the following steps： Enter the full number, tap the "Audio" or "Video" button; In the  talking state, the icon will be shown. 2. Direct the other IP address.
Page 75 Multi-media Video Phone UTT-990 User Manual keys storage keys），Click the OK button； function 4. Click on the function key interface directly edit the speed dial button can just call set up good numbers. Editing interface Editted interface Make a call using the call log ...
Page 76 Multi-media Video Phone UTT-990 User Manual R/send key will dial the call log number in the last breath Make a call using the contacts  Touch the Contacts icon in the launcher, or enter the dialer view tap the "Contacts" tab, select a contact you want to call, a context menu will be shown, select the "Call contact"...
Page 77 Multi-media Video Phone UTT-990 User Manual Ringing view (Unknown contact) Call options  Video call You can make a video call by the following way:  If the remote terminal supports video calls, you can tap the "Video" button to enter the video call.
Page 78 Multi-media Video Phone UTT-990 User Manual Video talking interface Tap the video button to start a video invite in the audio talking,  waiting for the "Accept" of the others to enter the video call.  When you receive a remote video invite in the audio talking, tap the "Accept"...
Page 79: Attended Transfer
Multi-media Video Phone UTT-990 User Manual remote cannot hear your voice, but you can hear the others’. The button will turn in the mute state; tap again will recover the talking.  Attended transfer You can complete the Attended transfer by the following ways: 1.
Page 80: Contacts
Multi-media Video Phone UTT-990 User Manual 2. Notepad: click Notepad application, you can call, write down important information, the default title name to the current date, click OK to save the memo, notepad application can view notes. 3. Call parameters: Parameters button click to call, the call will be displayed in a number of parameters, including: speech coding, speech codec rate, video encoding, video codec rate, video resolution.
Page 81 Multi-media Video Phone UTT-990 User Manual As you type, contacts with matching names appear below the search box. For example, the contact name is Kobe, and number is 123456, then input K in the search box, you will see Kobe in the search box. When more than one message matches your input, all will be displayed.
Page 82 Multi-media Video Phone UTT-990 User Manual Contacts interface 2 Delete a contact Tap "Contacts" button. 2. Select the contact you want to delete, and then tap the "Picture Trash" to delete or you can bulk delete, by tapping the right button of the contact you want to delete 3.
Page 83 Multi-media Video Phone UTT-990 User Manual contact them. 1.Tap "Contacts" button. 2.Tap the contact you want to add favorite, enter the contact details interface; 3.You can add the contact to your favorite just by tapping the star icon the right until it turns to .
Page 84 Multi-media Video Phone UTT-990 User Manual All calls to MWI 1. Tap "Contacts" button. 2. Click to set the contact name, enter the contact details interface; Press "Option " and tap "Options"； Set up a shortcut for a contact 1. Tap "Contacts" button.
Page 85: Call Logs
Multi-media Video Phone UTT-990 User Manual box. Call logs The Call logs is a list of all the calls you’ve dialed, received, or missed. It offers a convenient way for you to R/send a number, call back, or add a number to your contacts.
Page 86: Network Phonebook
Network Phonebook Multi-media Video Phone UTT-990 terminal can download contacts the from the Internet where the information stored by the users . If you use Network Phonebook, you can follow these steps ：...
Page 87 Multi-media Video Phone UTT-990 User Manual Configuration Meaning Account The name of your network phonebook. It will display on the screen. Protocol Type Support HTTP/FTP/TFTP/LDAP server. The time required to complete configuration of the FTP server username and password. LDAP...
Page 88: Mwi
Multi-media Video Phone UTT-990 User Manual the configured network phone. Terminal server will be configured to download a specified file to the / external directory (in the FileManager can be found), and display relevant information (group name, contact name, number). At this...
Page 89: Multi Line Operation
Multi-media Video Phone UTT-990 User Manual Voice Mail Interface Multi-line operation Multi-line is to satisfy the multi-way call queuing of some enterprise, that is a SIP line can accommodate multiple calls, the user can have the option of a call to operate.
Page 90: Other Application
Multi-media Video Phone UTT-990 User Manual Other Application Email Press the E-mail, the phone will skip to the email interface. If you use it for the first time, you need to configure a valid user name and password to it.
Page 91 Multi-media Video Phone UTT-990 User Manual Input your user name and password, and then click on the "Next"; Domain\Username: gmail.com\username (**@gmail.com); Password: Input your password; Exchange server: m.google.com. QQ account Log on QQ mailbox in web page, you can click "Settings" ----> "experience room"...
Page 92 Multi-media Video Phone UTT-990 User Manual After the completion of the configuration, you can click "Next" to the interface of account options; In the interface you can choose "Email checking frequency". It contains "Automatic (Push)", "Never", "Every 5 minutes", " Every 10 minutes"," Every 15 minutes","...
Page 93: Calculator
Multi-media Video Phone UTT-990 User Manual Long press an email, it will pop up a tip box in which you can choose "Open", "Delete", "Forward", "Reply all" or "Reply" for operation; "Account settings" which has been mentioned groups all the Settings together.
Page 94 Multi-media Video Phone UTT-990 User Manual Figure: In the basic panel, you can enter the "advanced panel" either by selecting the "advanced panel" after touching the "Option " button, or sliding your single finger from right to left; In the advanced panel, you can return to the "basic panel"...
Page 95: Note Pad
Multi-media Video Phone UTT-990 User Manual After opening the calculator, you can press the "Option” button and then select "clear history" to clear all of the historical data saved before. Edit text When entering text, you can select one input method after long pressing the input box.
Page 96 Multi-media Video Phone UTT-990 User Manual View a memo You can check a memo by touching it after opening the notepad. Edit a memo Touch "Note pad", select the memo needed to be modified, touch the "Option” button and choose "edit text" to enter the notepad editing screen, after modification completion, press the return key to be saved, or press the "Option "...
Page 97: Browser
Multi-media Video Phone UTT-990 User Manual after long-pressing on the memo. Closed notepad By touching the return key, you can exit the notepad. Browser You can surf and browse web with the terminal just like using a computer. The default home page is Google search home page; you can change it by setting.
Page 98: Recorder
Multi-media Video Phone UTT-990 User Manual If the contents of the webpage are too many, you can quickly click the screen twice, and then it will zoom in or zoom out. When you press the button on the phone, it will show you all functions of the browser.
Page 99: Clock
Multi-media Video Phone UTT-990 User Manual is finished, you can tap the "Stop" button to stop. The user can choose "Yes" to save it or choose "Cancel" to discard it in the pop-up dialog box. As shown in the following figure:...
Page 100 Multi-media Video Phone UTT-990 User Manual World Time: Click the "clock" application, you can choose to display different time of some countries when you click the icon of address. World time interface Timer: You should first click the "Clock" application, and then press the first icon in the upper right corner to enter the timer interface, finally, enter a time and some countries when you click the icon of address.
Page 101 Multi-media Video Phone UTT-990 User Manual Stopwatch: You should first click the "clock" application, and then click on the third icon which located on the top right corner to enter the Stopwatch interface; it will work when you click the“start”...
Page 102: Gallery
Multi-media Video Phone UTT-990 User Manual Alarm clock interface Gallery You can browse photos and videos easily. Browse Pictures Tap "Gallery" application, open a gallery album, press "Option" key, select "Slideshow", then the screen will display the pictures in the form of slide mode.
Page 103 Multi-media Video Phone UTT-990 User Manual video. Slideshow settings Configuration item Meaning Slideshow interval Select how long each slide displays in the show. Select the effect used when moving from one slide Slideshow transition to the next. Repeat Slideshow Play slideshow more than once.
Page 104: File Manager
Multi-media Video Phone UTT-990 User Manual "Rotate", "Delete", "Crop", "Set as", "Details", "More" to operate the picture. File Manager You can easily organize multiple files. The view of the File Manager as the Figure 1 and Figure 2 are as follows...
Page 105 Multi-media Video Phone UTT-990 User Manual "Delete", "Rename", "Select/Cancel" and "Properties" to operate. By taping the "Multiple" button, multiple files can be selected. After your taping on the "Up" button, it can return to the previous page. After your taping on the "History" button, it can show the resent historical of operations.
Page 106: Function-Key
Multi-media Video Phone UTT-990 User Manual Function—key This application can be mapped to a variety of buttons, number, address and so on， and can realize a lot of speed operation. Tap "function key", the terminal will display sixteen function buttons of the current interface;...
Page 107 Multi-media Video Phone UTT-990 User Manual Management of the function-key Function-key edition  You could click an empty button, then tap "edit" to enter the editing interface. Type Meaning Clicking on the button you can dial the mapped number directly 。...
Page 108 Multi-media Video Phone UTT-990 User Manual feature is convenient for you to dial the number which you frequently dialed. Intercom：This feature allows the operator or the secretary to connect the phone quickly; it is widely used in office environments. The button map the sip line, it enter the dial pad and light the default sip line when you click the button.
Page 109 Multi-media Video Phone UTT-990 User Manual Function-key setting interface Delete function-key Press the function-key button you want to delete for one second, and then click the "Delete" option. Function-key edition Press the function-key button you want to edit for one second, and then click the...
Page 110: Exportmanager
Multi-media Video Phone UTT-990 User Manual Function-key edition interface ExportManager You can use this software to export contacts in the different format, add blacklist and call barring。 Import/Export Export： You can click the "Import/Export Management", enter the Import / Export interface.
Page 111 Multi-media Video Phone UTT-990 User Manual Import / Export interface Blacklist Add blacklist：You can click the "Import/Export Management", enter the Import / Export interface. Then you can click on the "blacklist" button (slide your finger touches the screen from right to left to switch to the blacklist interface).
Page 112 Multi-media Video Phone UTT-990 User Manual Blacklist interface Callbarring Add callbarring：You can click the "Import/Export Management", enter the Import / Export interface, and click on the "callbarring" button (slide your finger touches the screen from right to left to switch to the callbarring interface).
Page 113: Camera
Multi-media Video Phone UTT-990 User Manual Callbarring interface Camera You can take pictures at any time and share them with your friends. Photograph Tap "camera", the phone screen will show camera interface, then tap the photo button in the lower right corner to take picture; you can also enlarge on the image before taking pictures, in order to achieve better shooting effect In the photo window, you can also tap the "Option"...
Page 114 Multi-media Video Phone UTT-990 User Manual Shooting Setting The user can tap the "Option" button, select "Settings", enter the camera settings interface, and then you can save photos and conduct the picture quality settings. Browse photos After taking the picture, you can tap the small photo icon of the upper right corner to view photos.
Page 115: Sms
Multi-media Video Phone UTT-990 User Manual Turn off the camera In the camera window, you can tap the "Back" button to exit and close the camera application. Pressing on the screen "message" to enter write information interface，and pressing “NEW MESSAGE”，the phone will appear as shown below：...
Page 116: Music
Multi-media Video Phone UTT-990 User Manual Select Add contact number interface Delete SMS：In the SMS interface, long press a text messages, then the title bar will appear delete options. You can click on the message to delete, and click the Delete button to delete the selected message.
Page 117 Multi-media Video Phone UTT-990 User Manual Play music files Press Option button in the "Songs" interface; you can choose "Party shuffle", "Shuffle all" or "Play all" according to the different pop-up box. Long press an artist in the "Artists" interface, then select "Play" in the pop-up box, you can play all the songs of this artist.
Page 118 Multi-media Video Phone UTT-990 User Manual will set the song as the ringtone of phone. New playlist Tap "Now playing" to open the music player, then tap the playlist icon to enter the playing list. You can choose a song and long press it, choose "Add to playlist"...
Page 119: Calendar
Multi-media Video Phone UTT-990 User Manual Calendar You can view the current "year, month, day" and "day of week" through the calendar, so it is convenient for you to arrange your daily routine. And you can also create one or more new events to remind you doing sth.
Page 120: Movie Studio
Multi-media Video Phone UTT-990 User Manual Click to enter a day and select Add Event interface point in time to enter, Figure: In the reminder time in a calendar reminder notification bar icon and have a ring tone. Movie Studio You can use this software to make your own DIY film。...
Page 121: Pppoe
Multi-media Video Phone UTT-990 User Manual movie studio interface Press the "Options" button, Select Export Movie, then you can export the movie to “/ sdcard / movies “directory。 PPPoE PPPoE is point-to-point protocol over Ethernet abbreviation，it can make the host connect to a remote access concentrator via a simple Ethernet bridging device。...
Page 122: Downloads
Multi-media Video Phone UTT-990 User Manual PPPoE interface Downloads Click the "download" ,you can view the application from the webpage Downloads. Downloads interface...
Page 123: Android System Setting
Multi-media Video Phone UTT-990 User Manual Android system setting You can enter the "APPS", press "Settings", and you will go into the Settings interface。 Wireless&Networks WIRELESS&NETWORKS interface Ethernet configuration Click "Settings", select " Ethernet configuration" switch to the Ethernet configuration interface。...
Page 124: Equipment
Multi-media Video Phone UTT-990 User Manual Ethernet Devices：The select list click the pop-up physical network card, the default eth0. DHCP：The use of dynamic IP network connection。 Use Static DNS：Whether to use the DHCP server DNS network Ethernet connection。 configurati Static IP：Use static IP network connection。...
Page 125: Voice
Multi-media Video Phone UTT-990 User Manual Voice configuration item meaning Adjust the media, ringtones and notifications, and the volume voice of the alarm clock. phone ringtone Select call bell. default notification When selecting text messages to prompt. sound Dial-up touch keyboard After open click to dial a beep .
Page 126: Personal
Multi-media Video Phone UTT-990 User Manual According to the running program. Running According to the unit to install all the applications. Personal Personal Settings interface Security configuration item meaning By sliding, custom design, input the PIN code to unlock the Screen lock screen, enter the password that was set up.
Page 127: Language And Input Method
Erase all data on phone. Web page configuration description When both of the UTT-990 phone and your PC are successfully connected to the network, enter the IP address and the web browser port about your phone as the URL such as "http://xxx.xxx.xxx.xxx:8080/" (8080 is the web browser port.
Page 128: Basic
Multi-media Video Phone UTT-990 User Manual Login page Enter the user name and password and click "Logon" button to the detailed interface. Field name Explanation User name： 1. Administrator：admin User name Ordinary users：guest Password ： Password 1. Administrator：admin Ordinary users：guest Basic ...
Page 129: Network
Multi-media Video Phone UTT-990 User Manual STATUS interface The following table shows some of the basic settings of the specific meaning of parameters and their representatives： Field name Explanation Shows the MAC address and IP address of the Network telephone.
Page 130 Multi-media Video Phone UTT-990 User Manual QOS&VLAN interface Field name Explanation QoS Settings Enable DSCP Enable/Disable DSCP Set the number of DSCP. Audio RTP DSCP Audio Set the number of Video DSCP. Video RTP DSCP Set the number of Signal DSCP.
Page 131 Multi-media Video Phone UTT-990 User Manual  Enable: Enable Port VLAN and set the Port VLAN ID different from WAN. Set the number of Port VLAN ID different from LAN Port VLAN ID WAN. Range is 0~4095.  SERVER PORT...
Page 132: Voip
Multi-media Video Phone UTT-990 User Manual http://192.168.1.70:8090 HTTPS Port Set HTTPS web browser port. Set the RTP Initial Port. RTP Start Port It is dynamic allocation. Set the maximum quantity of RTP Port, RTP Port Numbers the default is 200.
Page 133 Multi-media Video Phone UTT-990 User Manual Advanced SIP Setting interface The following table shows some of the basic settings of the specific meaning of parameters and their representatives： Field name Explanation Choose line to set info about SIP, there are 4 lines to choose. You can switch by [Load] button.
Page 134 Multi-media Video Phone UTT-990 User Manual Set the sip domain if needed, otherwise this VoIP phone will use the Register server address as sip Domain Realm domain automatically. (Usually it is same with registered server and proxy server IP address).
Page 135 Multi-media Video Phone UTT-990 User Manual mode. Local Port Set sip port of each line. RFC Privacy Set Anonymous call out safely; Support RFC3323 Edition and RFC3325. Enable or disable system to support RFC3581. Via Enable Via rport rport is a special way to realize SIP NAT.
Page 136 Multi-media Video Phone UTT-990 User Manual request packet. It will decrease the server’s repeated authorization work Click to talk Set click to Talk (need practical software support). Enable/Disable the function. When call is incoming, Answer With a phone replies SIP message with just one codec which Single Codec phone supports.
Page 137: Phone
Multi-media Video Phone UTT-990 User Manual STUN Server Set your SIP STUN Server IP address. Address STUN Server Set your SIP STUN Server IP port. Port Set STUN Binding Period . If NAT server finds that a STUN Binding NAT mapping is idle after time out, it will release the...
Page 138 Multi-media Video Phone UTT-990 User Manual Voice Configuration The first preferential DSP codec: First Codec G.711A/u,G.722,G.723,G.729,iLBC,ARM The second preferential DSP codec: Second Codec G.711A/u,G.722,G.723,G.729,iLBC,ARM The third preferential DSP codec: Third Codec G.711A/u,G.722,G.723,G.729,iLBC,ARM The fourth preferential DSP codec: Fourth Codec G.711A/u,G.722,G.723,G.729,iLBC,ARM...
Page 139: Maintenance
Multi-media Video Phone UTT-990 User Manual video resolution: QCIF(176*144),CIF(352*288) ， Video Resolution VGA(640*480),4CIF(704*576),720P(1280x720).  FEATURE FEATURE interface Field name Explanation Feature Setting Reject Return 603, server reject the invite. Code Busy Return 486, server is busy. Code DND Return 480, do not disturb.
Page 140 Multi-media Video Phone UTT-990 User Manual AUTO PROVISON interface Field name explanation Auto Update Setting Show the current config file’s version. If the version of the configuration downloaded is higher than the Current Config version of the running configurations, the auto Version provision would upgrade, or stop here.
Page 141 Multi-media Video Phone UTT-990 User Manual method, the endpoints wouldn’t upgrade configuration unless the configuration in the server is different with the running configuration. Common Config Show the common config file’s version. If the Version configuration downloaded running configurations are the same, the auto provision would stop here.
Page 142 Multi-media Video Phone UTT-990 User Manual Server Address Set FTP/TFTP/HTTP/HTTPS server IP address for auto update. The address can be IP address or Domain name with subdirectory. Config File Name Set configuration file’s name which need to update. System will use MAC as config file name if config file name keep blank.
Page 143 Multi-media Video Phone UTT-990 User Manual Server Address Set Syslog server IP address. Server Port Set Syslog server port. MGR Log Level Set the level of MGR log. SIP Log Level Set the level of SIP log. Enable Syslog Select it or not to enable or disable syslog.
Page 144 Multi-media Video Phone UTT-990 User Manual configurations and restore factory default; if you login as Guest, the phone will reset all configurations except for VoIP accounts (SIP1-4) and version number.  UPDATE UPDATE interface Field name Explanation Web Update Click the browse button, find out the config file...
Page 145 Multi-media Video Phone UTT-990 User Manual ACCOUNT interface Field name Explanation User Settings admin：Administrator User Name: User Level guest：Ordinary users Adding User User Name Set account user name. Password Set the password. Confirm Confirm the password. Set user level. Root user has the right to User Level modify configuration, General can only read.
Page 146: Security
Multi-media Video Phone UTT-990 User Manual REBOOT interface Field name explanation Reboot Phone Press the "Reboot" button to reboot Phone! Security  WEB FILTER WEB FILTER interface Field name Explanation WEB Filter Table Settings Start IP End IP Options Web filtering rules set up table Start IP: Enter the starting IP address, such as 192.168.0.12...
Page 147: Logout
Multi-media Video Phone UTT-990 User Manual WEB Filter Settings WEB Filter Enable/Disable WEB Filter. SECURITY interface Field name explanation Update Security File Select Security File Select the security file you want to update, then click Update button to update Delete Security File...
Page 148 Multi-media Video Phone UTT-990 User Manual Logout interface Field name Explanation Click "logout" and you will exit web page. If you want to enter it next time, you need input user name and password again. Note: For third-party software on the phone, users can directly through the phone's electronic market directly download and install the software and use, does not describe here.

Ultrative UTT-990 User Manual

Introduction

Basic Function

Settings

Phone Application

Other Application

Android System Setting

Web Page Configuration Description

Quick Links

User Manual

Need help?

Questions and answers

Related Manuals for Ultrative UTT-990

Summary of Contents for Ultrative UTT-990

Table of Contents
