4-Port PoE+ Hardened Switches
Installation Manual
NetWay4EWP
- Includes Fiber Optic SFP 1G Link, 4-port PoE+ switch and power supply
- NEMA4/4X, IP66 rated Outdoor enclosure
NetWay4EWPX
- Includes Fiber Optic SFP 1G Link, 4-port PoE+ switch
and power supply
- NEMA4/4X, IP66 rated Outdoor enclosure
- Accommodates up to four (4) 12VDC/4AH batteries
NetWay4EX
- Includes Fiber Optic SFP 1G Link, 4-port PoE+ switch and power supply
- NEMA1 rated Indoor enclosure
NetWay4EWPN
- Includes Fiber Optic SFP 1G Link and 4-port PoE+ switch
(uses external power supply)
- NEMA4/4X, IP66 rated Outdoor enclosure
I.T.E. 43KC
DOC#: NetWay4EWP Rev. 090616
®
NetWay4EPL
- Includes Fiber Optic SFP 1G Link, 4-port PoE+ switch and power supply
- Backplane version
(Not currently evaluated by UL)
NetWay4EB
- Fiber Optic SFP 1G Link and 4-port PoE+ switch, board only
(Not currently evaluated by UL)
More than just power.™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetWay4EWP and is the answer not in the manual?

Questions and answers

Related Manuals for Netway NetWay4EWP

Summary of Contents for Netway NetWay4EWP

  • Page 1 - Includes Fiber Optic SFP 1G Link, 4-port PoE+ switch and power supply - NEMA1 rated Indoor enclosure NetWay4EWPN - Includes Fiber Optic SFP 1G Link and 4-port PoE+ switch (uses external power supply) - NEMA4/4X, IP66 rated Outdoor enclosure I.T.E. 43KC More than just power.™ DOC#: NetWay4EWP Rev. 090616...

  • Page 2: Installation Instructions

    Overview: Altronix NetWay Indoor/Outdoor PoE+ Hardened Switches provide a 1Gb SFP port and four (4) PoE+ (30W) ports or up to two (2) Hi-PoE (60W) ports, passing data and power to PoE/PoE+ compliant devices. Cameras/edge devices may be located up to 100m from the unit. Features also include an integral battery charger for ap- plications requiring backup and embedded LINQ Technology to monitor, control and report power and diagnostics from anywhere.
  • Page 3 Note: All interconnected devices must be UL Listed. 5. Insert SFP module into port marked [SFP] then connect cable to the SFP module on NetWay to the corresponding input of an SFP switch (Fig. 1, pg. 6). 6. Battery Backup (if desired): Connect four (4) 12VDC batteries wired in series to terminals marked [+ BAT --- ] (Fig. 1, pg. 6), carefully observing polarity.

  • Page 4: Technical Specifications

    7. Please ensure that the cover is secured with: key lock and screws for NetWay4EX, security bolt for NetWay4EWP/NetWay4EWPN, screw lock down for NetWay4EWPX. Technical Specifications: Parameter Description Number of Ports Four (4) - IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant or two (2) Hi-PoE (60W). One (1) - Gigabit SFP Port.
  • Page 5 Click OK. Next, click on the button labeled Reboot Server. After rebooting the Netway4E will be set in the DHCP mode. The IP address will be assigned by the router when the Netway4EWP is connected to the network. It is recommended to have the assigned IP Address reserved to ensure continued access.

  • Page 6: Typical Applications

    Cable Guide Selection Switch Batteries NetWay4EWP board Separate Inlets 115/230VAC IP PoE/PoE+ IP PoE/PoE+ Fiber to Input Device Device Switch IP PoE/PoE+ IP PoE/PoE+ Device Device www.altronix.com - 6 - NetWay4EWP / 4EWPN / 4EWPX / 4EX / 4EPL / 4EB...
  • Page 7 IP Hi-PoE IP Hi-PoE 48-55V UL Listed configurable for 60W (120W max) Device Device ITE Power Supply (Refer to Fig.1b, pg. 6) Carefully observe polarity www.altronix.com - 7 - NetWay4EWP / 4EWPN / 4EWPX / 4EX / 4EPL / 4EB...

  • Page 8: Wall Mount Installation

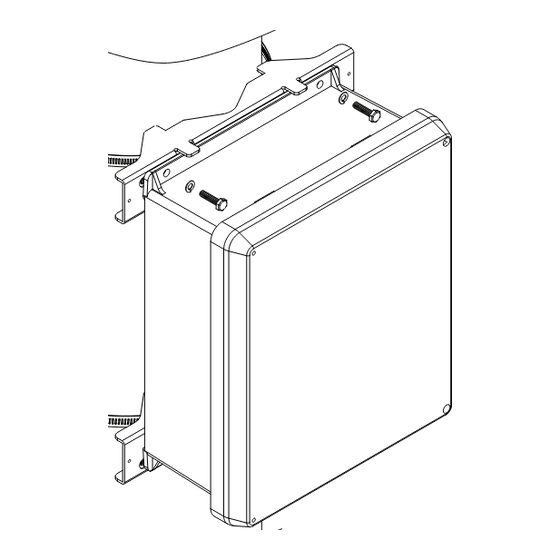

    5/16” hex socket driver (Figs. 8 and 9, pg. 8). 7. Clip excess straps. Fig. 8: 2” to 8” Fig. 9: 5” (127mm) square pole (50.8mm to 203.2mm) diameter round pole www.altronix.com - 8 - NetWay4EWP / 4EWPN / 4EWPX / 4EX / 4EPL / 4EB...
  • Page 9 0.75” 0.75” (31mm) 11.0” (279mm) (19mm) (19mm) 0.9375” 1.40” (24mm) 1.40” (36mm) (36mm) 5.10” 5.10” (130mm) (130mm) 13.0” (330mm) 5.10” (130mm) 6.5625” (167mm) 0.9375” (24mm) www.altronix.com - 9 - NetWay4EWP / 4EWPN / 4EWPX / 4EX / 4EPL / 4EB...
  • Page 10 (H x W x D approx.) 10.75” x 8.875” x 2.375” (273.05mm x 225.42mm x 60.32mm) 8.875” (225.42mm) 8.25” (209.54mm) 0.25” (6.35mm) 10.25” 10.75” (260.34mm) (273.05mm) www.altronix.com - 10 - NetWay4EWP / 4EWPN / 4EWPX / 4EX / 4EPL / 4EB...
  • Page 11 NetWay4EWP / NetWay4EWPN - Mechanical Drawing and Dimensions (H x W x D approx.): 13.31” x 11.31” x 5.59” (338.1mm x 287.3mm x 142mm) 1.61” (40.894mm) 11.32” (287.528mm) 10.75” (273.05mm) 3.96” (100.584mm) 10.00” (254mm) 8.25” (209.55mm) 12.00” 10.25” (304.8mm) (260.35mm) 13.32”...
  • Page 12 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com. Lifetime Warranty, Made in U.S.A. IINetWay4EWP / NetWay4EWPN / NetWay4EWPX / NetWay4EX / NetWay4EPL / NetWay4EB L12P MEMBER www.altronix.com - 12 - NetWay4EWP / 4EWPN / 4EWPX / 4EX / 4EPL / 4EB...
