Worth Data LZ160-USB Owner's Manual

Usb laser scanners
Hide thumbs Also See for LZ160-USB:
Table of Contents

Advertisement

Quick Links

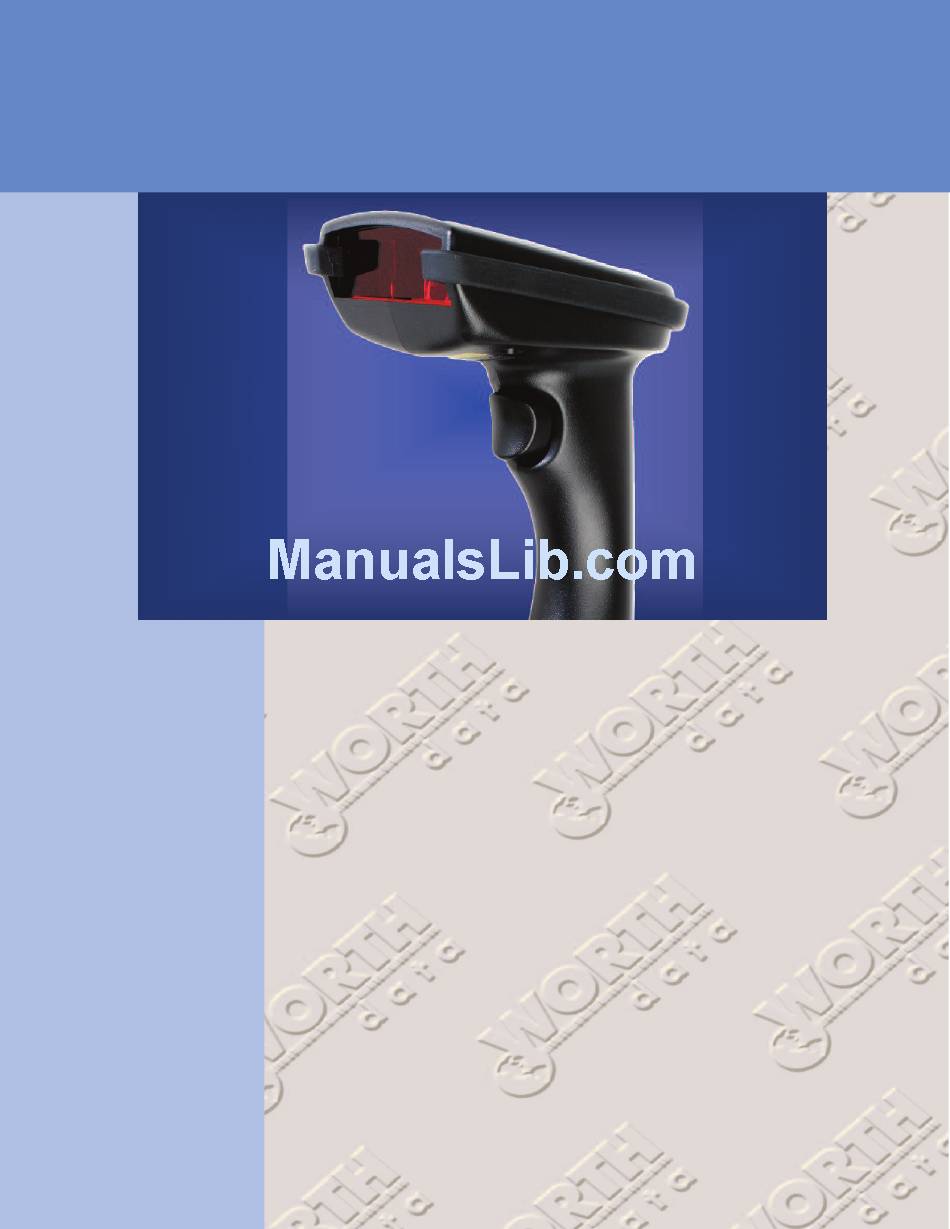

USB Laser Scanners
Worth Data
USB Keyboard Laser Scanners
®
Scanned Bar Codes
appear as keyed
data on a computer
running Windows
®,
macOS, Mac OS X,
& Linux
Owner's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LZ160-USB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Worth Data LZ160-USB

Summary of Contents for Worth Data LZ160-USB

  • Page 1 USB Laser Scanners Worth Data USB Keyboard Laser Scanners ® Scanned Bar Codes appear as keyed data on a computer running Windows ®, macOS, Mac OS X, & Linux Owner’s Guide...
  • Page 2 Santa Cruz, CA 95060 Phone: 1-800-345-4220 • 831-458-9938 Fax: 831-458-9964 Email: wds@barcodehq.com www.worthdata.com © Copyright 1986-2016, Worth Data, Inc. All Rights Reserved Worth Data is a registered Trademark in the USA & Elsewhere - All other trademarks are of their respective companies...

  • Page 3: Table Of Contents

    Table of Contents Introduction ............................Chapter 1 Getting Started ..........................Chapter 2 USB Laser Scanner Setup ......................... Chapter 3 Laser Scanners and Scanning Technique ..................Chapter 4 Special Features ..........................Chapter 5 Troubleshooting ..........................Appendix A Specifications for Code 39 ....................... Appendix B Codabar ............................

  • Page 4: Introduction

    Introduction Worth Data's USB Keyboard Laser Scanners are versatile bar code readers that attach to a USB port on a PC Computer running Windows®, macOS, Mac OS X, or Linux operating systems. Once installed the scanner provides bar code input data to any host computer program exactly as if the data had been typed at the keyboard, including function and control key support.

  • Page 5: Getting Started

    2. A USB Cable installed on the gun for attaching the Laser Scanner to your computer. For the: LZ160-USB, LZ360-USB C40 USB Cable is Pre-Installed 3. A Laser Scanner Holder for Desk or Wall Mounting. 4. A QwikStart Installation Guide.
  • Page 6 Model LZ160-USB, LZ360-USB The USB Laser Scanners have a USB cable that can be attached directly to the USB port on any Computer Running Windows, Mac OS X, or Linux. The LZ160-USB and LZ360-USB Readers use a field replaceable C40 USB Cable.

  • Page 7: Usb Laser Scanner Setup

    Find the USB Laser Scanner Setup Menu on the Utilities CD-ROM and print it out - it is also available in Appendix J of this manual. This simple menu lets you easily configure the Worth Data USB Laser Scanners to work with almost any computer system, and tailor its bar code reading and formatting characteristics precisely to your needs.

  • Page 8: Lowest

    Using the USB Laser Setup Menu You may use the USB Laser Setup Menu provided in Appendix J of this manual or on the Utilities CD-ROM or on our website www.barcodehq.com/downloads.html. If you have never scanned before, refer to Chapter 3 for scanning instructions. To configure your reader using the USB Laser Setup Menu, you must first scan the Start Setup code at the top left corner.
  • Page 9 USB Laser Setup Menu Configuration Options Beep Tone Lowest Medium High Highest Turn Beeper OFF, No “Laser Good” LED Turn Beeper OFF, Yes “Laser Good” LED The USB Laser Scanner gives you a choice of five different beep pitches. Code 39 Enable Code 39 Disable Code 39 Enable Full ASCII Code 39...

  • Page 10: Code

    UPC/EAN Enable UPC/EAN Disable UPC/EAN Enable UPC/EAN Supplements Disable UPC/EAN Supplements Enable transmission of UPC-A NSC and EAN-13 first two digits Disable transmission of UPC-A NSC and EAN-13 first two digits Enable transmission of UPC-A/EAN-13 Check Digit Disable transmission of UPC-A/EAN-13 Check Digit Enable transmission of UPC-E NSC and EAN-8 first digit Disable transmission of UPC-E NSC and EAN-8 first digit Enable transmission of UPC-E/EAN-8 Check Digit...
  • Page 11 2 of 5 Code Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 Enable Interleaved 2 of 5 check digit Disable Interleaved 2 of 5 check digit Enable check digit transmission Disable check digit transmission Enable Standard 2 of 5 Disable Standard 2 of 5 Enable UPC-E1 Disable UPC-E1...

  • Page 12: Code 128

    Code 128 Disable Code 128 Enable Standard Code 128 Disable UCC-128/EAN-128 Enable UCC-128/EAN-128 Bar Code ID’s transmitted Bar Code ID’s not transmitted See Appendix C for details on Code 128 and UCC-128/EAN-128. Bar Code ID’s are characters assigned to each bar code type to identify that particular type of code. These Bar Code ID’s can be used to identify what type of bar code you are using when you are not sure or you want your application to differentiate between the different types.

  • Page 13: Code

    Preamble A "Preamble" is a user-specified data string transmitted at the beginning of each bar code. For example, if you specify the preamble @@ and read data of 123456, "@@123456" would be transmitted to your computer. The default is no preamble. To select a preamble, scan up to 15 characters from the "FULL ASCII MENU" on the back of the Reader Setup Menu, and then scan SET when you're done.
  • Page 14 Postamble "Postamble" refers to a user-specified data string transmitted at the end of each bar code. For instance, if you specify the postamble @@ and read data of 123456, "123456@@" would be transmitted to your computer. To select a postamble, scan up to 15 characters from the "FULL ASCII MENU" on the back of the Reader Setup Menu, scanning SET when done.

  • Page 15: Keyboard Country

    Keyboard Country This option configures the USB Laser Scanner for your choice of 15 keyboard country settings, such as USA (the default), UK, French, German, etc. Scan the keyboard country bar code and then the two-digit code for your keyboard country (listed on the Reader Setup Menu), such as 14 for UK.

  • Page 16: Laser Scanners And Scanning Technique

    Chapter 3 Laser Scanners and Scanning Technique Different bar code applications require different scanner solutions. Worth Data offers a variety of scanners and the features of our Laser Scanners are described below: Laser Scanners offer not only the ease of "point-and-shoot" scanning, but allow the user to scan from a distance away. These features make Lasers easier use and allow the user to scan bar codes in hard-to-reach places (i.e.
  • Page 17 With the LZ160-USB, you can read a typical 100% UPC code from 0" to 10" away, the LZ360-USB, you can read a typical UPC code from 0" to 12" away. You should be able to read the Test Label shown below with any Worth Data Laser - LZ160, LZ360 - from anywhere between 2"...

  • Page 18: Disable

    "Hands-Free" Scanning A stand is available for the all of the Worth Data Lasers that allows for "hands-free" bar code reading. The stand is available in a mountable "goose neck" (S11) or in a free-standing version with a base (S21) pictured below. Just before placing the scanner in the stand, scan the “Stand On/Off”...

  • Page 19: Special Features

    Chapter 4 Special Features Function and Control Key Support The USB Laser Scanners can also transmit key sequences for function, control, alt (command and option keys on Macs), cursor and shift keys, for ease of use with the many software packages using these keys for menus or commands. These “keystrokes”...
  • Page 20 Windows key ON/OFF bar codes NULL, C (Command ON) and NULL, D (Command OFF) For the Option Key ON/OFF use RS (Option On) and US (Option Off ). If you have an older Worth Data Reader (before 6/1999), you can also imitate the Command Key by keycodes in the Preamble/Postamble. To transmit Command N would be:`E01F'N`E0F01F'...

  • Page 21: Accumulate Mode

    Accumulate Mode Accumulate Mode is an option (which can be enabled or disabled using the Reader Setup Menu's Code 39 section) allowing the reader to accumulate multiple bar codes in its buffer, then transmit them to the computer as if they had been a single bar code. This is useful for entering quantities and other variable data.

  • Page 22: Troubleshooting

    Carefully follow the scanning instructions in Chapter 3 when reading any and all bar codes. As straightforward as scanning • may seem, many people who call Worth Data with a complaint about poor read rate are simply not doing it correctly.

  • Page 23: Specifications For Code 39

    Appendix A Specifications for Code 39 Code 39 (or Code 3 of 9) is the de facto standard of non-retail American industry. It is widely used in the automotive industry (AIAG specifications) as well as in government and military applications (LOGMARS specifications).
  • Page 24 Mod 43 Check Character Standard Code 39 can be printed with a "Mod 43 Check Character". This Mod 43 check character cannot be used with Full Ascii Code 39. The check character is derived by assigning a value to each character in the data to be bar coded from the table as follows: Char Value Char...
  • Page 25 Full ASCII Extension to Code 39 "Full-ASCII Code 39" expands the Code 39 character set to include all 128 ASCII characters. Symbols 0-9, A-Z and punctuation characters . and - are identical to their Code 39 representations. Lower-case letters, additional punctuation charac-ters and control characters are represented by sequences of two Code 39 characters.

  • Page 26: Codabar

    Appendix B Codabar Codabar is widely used in libraries, blood banks, the cotton industry and transportation industries. Its' character set consists of numbers 0 through 9, and punctuation characters + . - / : and $. Symbols a, b, c, d, t, n, * and e are used as start and stop characters. Characters are constructed of four bars and three spaces.

  • Page 27: Code 128 Specifications

    Appendix C Code 128 Specifications Code 128 is a very powerful bar code, combining an extensive character set and variable length with compact-ness and error checking. The character set contains all 128 ASCII characters with each character made up of three bars and three spaces. Each element (bar or space) varies from one to four units in width, totaling 11 units of width per character.

  • Page 28: Interleaved 2 Of 5 Code

    Using the 00 setting is not recommended as you will easily get misreads with different length I 2 of 5 codes. • Use a check digit. Worth Data' LabelRIGHT printing program automatically calculates and prints a check digit upon request using the method below: Interleaved 2 of 5 Mod 10 check digit calculation 1.

  • Page 29: Upc/Ean Specifications

    Appendix E UPC/EAN Specifications UPC symbols are found on almost all grocery products and many other retail items. The UPC code most people are familiar with (UPC-A) is a fixed-length (12 digits) numeric only code, with the first digit controlled by UPC coding assignments and the last digit a checksum. UPC-E and UPC-E1 are variations of the standard UPC-A code.

  • Page 30: Isbn Specifications

    The last character in a UPC-A, UPC-E, UPC-E1, EAN-13 or EAN-8 bar code is the checksum. For reference, these are the methods of calculation: Checksum calculation for UPC-A, EAN-13 and EAN-8 Use Worth Data’s phone number (it's not a real UPC-A code) as sample data: 18314589938 Assign even and odd positions, starting at the right and moving left:...
  • Page 31 UPC-E Checksum Calculation Use the sample data of 123456 to demonstrate the UPC-E checksum calculation: 1. The 6 digit UPC-E code is converted to a 10-digit code, using an expansion scheme based on the sixth digit: code f the code UPC-E data Insertion digits Insertion...

  • Page 32: Msi/Plessey Specifications

    Appendix F MSI/Plessey Specifications Plessey is a variable length numeric only bar code. MSI Bar Code is a variable length, numeric-only code with an automatically appended Modulus 10 check digit. MSI is sometimes called Modified Plessey Code. If the user specifies an additional check digit, the MSI code can be 14 digits long, otherwise it has a maxi-mum length of 13 characters.

  • Page 33: Code 93 Specifications

    Appendix G Code 93 Specifications Code 93 is variable length, continuous, bi-directional, compact code. Code 93 is an alphanumeric bar code which consists of 43 data characters (0-9,A-Z,$/+% .- and Space), 4 control characters, and a unique start/stop character. The entire set of 128 ASCII characters is represented in Code 93 using combinations of control characters and data characters.

  • Page 34: Ascii Code Equivalent Table

    Appendix H ASCII Code Equivalent Table The 128 ASCII codes and their 3 digit decimal equivalents are detailed in the table below. Char ASCII Char ASCII Char ASCII Char ASCII ‘ “ & ‘ < >...

  • Page 35: Resolving Usb Installation Issues

    Appendix I Resolving USB Installation Issues The USB HID (Human Interface Device) keyboard driver is standard with Windows. All recent versions of Windows include necessary files in the installed Windows system folders so driver installation is easy if not automatic. It is possible for the user to cancel the HID driver installation before it is completed and this results in a problem.

  • Page 36: Windows 2000

    Windows 7 & Vista: 1. Go to the Start menu. 2. Select Control Panel. 3. Switch to Classic View if you are in Category View 4. Select System. 5. Select Hardware tab. 6. Select Device Manager 7. Double Click on Human Interface Devices 8.

  • Page 37: Macos Usb Installation

    USB Installation Issues The Worth Data USB Laser Scanners use the generic USB HID class (Human Interface Device) keyboard driver that is standard with Mac OS 9.0, Mac OS X, and macOS. All of these versions of the Macintosh operating system already include necessary files in the Mac System folders, so driver installation is easy if not automatic, and no downloads are required.

  • Page 38: Usb Laser Setup Menu

    Appendix J USB Laser Setup Menu END SETUP ST RT SETUP 1. Scan ST RT SETUP to put reader into Setup Mode */+/* */-/* 2. Scan the bar code of the parameter to change, (i.e. Code 3 of 9) 3. Scan bar codes from Barpad Table on right (0-9, -F) to change settings 4.

  • Page 39: Full Ascii Menu

    LEGEND: Full ASCII Menu Char (function) *%U* BARCODE (Items in parentheses are transmitted in keyboard HID mode.) Decimal DLE(f10) *¯* *%V* *%W* *+P* *%U* * P* SOH(f1) DC1(Del) * A* * Q* */A* *Q* *+A* *+Q* STX(f2) DC2(Ins) “ * B* * R* */B* *R* *+B* *+R* ETX(f3) DC3(...
