D-Link dir-510l Quick Install Manual

Shareport go iii wi-fi ac750 portable router and charger
Hide thumbs Also See for dir-510l:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Manual

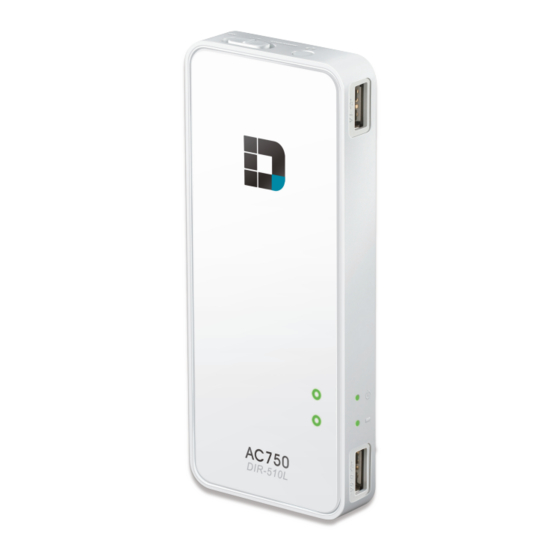

DIR-510L
SharePort™ Go III
Wi-Fi AC750 Portable Router and Charger
Quick Install Guide

Advertisement

Table of Contents
loading

Related Manuals for D-Link dir-510l

Summary of Contents for D-Link dir-510l

  • Page 1 DIR-510L SharePort™ Go III Wi-Fi AC750 Portable Router and Charger Quick Install Guide...

  • Page 2: Package Contents

    If any of the above items are missing, please contact your reseller. Note: Using a power supply with a different voltage than the one included with the DIR-510L will cause damage and void the warranty for this product. If any of the above items are missing, please contact your reseller.

  • Page 3: Product Overview

    Battery is at 80% or higher capacity. Orange Solid Battery is between 15% and 80% capacity. Solid Battery is lower than 15% capacity. Battery LED Blinking Battery is malfunctioning. Charging is complete (when connected to power supply) or battery is at 0% capacity. DIR-510L Install Guide...
  • Page 4 Charge and Power On Peel the protective film from the top and bottom of the device. Make sure the DIR-510L is charged* or plugged in before using. If you want to use the device without the power adapter, charge the DIR-510L for four hours, or until the battery LED indicator is solid green.

  • Page 5: What Mode Should I Use To Connect

    Router Connect your DSL/cable modem to the DIR-510L with an Ethernet cable. The DIR-510L connects to your cable modem, DSL modem or other Internet source and shares your Internet connection with your devices wirelessly, providing Internet access for an entire home or office.
  • Page 6 Plug the 3G/4G USB adapter into the USB port 1A, which is the port located near the top of the DIR-510L. Also, your SIM may require a PIN. Check the D-Link website for information about compatible 3G/4G USB adapters.

  • Page 7: Hotspot Mode

    Router Connect to a Wi-Fi Hotspot. The DIR-510L can connect to an existing wireless network with an Internet connection, such as a hotspot at a hotel, airport, or coffee shop, allowing you to share that single connection with multiple wireless devices. All you need is the Wi-Fi Network name and password of the hotspot you would like to connect to.
  • Page 8 Configuring the DIR-510L Make sure the DIR-510L mode switch is in the On position and the device is either charged or plugged in. CHARGER Note: The Battery LED will be solid green when the battery is at 80% or higher capacity.
  • Page 9 Settings > Internet Profiles and create a new profile with your Internet connection type. A dynamic connection (e.g., Cable) will automatically connect to the Internet. Refer to the user manual at http://www.dlink.com/DIR-510L for more information about adding, deleting, or editing Internet Profiles.
  • Page 10 Note: To connect remotely to the mydlink SharePort™ app, you need a mydlink account. Android From the Current Status page, navigate to Settings > mydlink to create a free mydlink account and register your device(s). Go to www.mydlink.com for more information. DIR-510L Install Guide...

  • Page 11: Connect Your Wireless Devices

    Connect Your Devices Using WPS Most wireless devices will have a WPS button. If yours do, the easiest and most secure way to connect to the DIR-510L is with Wi-Fi protected setup (WPS). Press the WPS button on the DIR-510L for one second.
  • Page 12 Charging Mobile Devices With the DIR-510L Charge your iPhone or Android phone when you are on the go with the DIR-510L. Make sure the Mode switch is in Charger the Charger position, and that the DIR-510L is either charged CHARGER or plugged in.

  • Page 13: Troubleshooting

    Visit www.java.com to download. • If you are using the DIR-510L in Router Mode, verify physical connectivity between the modem and your router. Make sure your computer or mobile device is connected to the router. • If you are using Wi-Fi to connect to the router or access point, ensure that your are connected to the correct wireless network, and that there are no connectivity problems.
  • Page 14 If you have attached one or more USB devices (such as a 2.5” US B drive) that draws a total of 0.7A or more power, the power adapter will not supply enough voltage to charge the DIR-510L while simultaneously powering the USB devices. Check your USB devices’ power usage specifications and disconnect if necessary.

  • Page 15: Gpl Code Statement

    GPL and LGPL. Written Offer for GPL and LGPL Source Code Where such specific license terms entitle you to the source code of such software, D-Link will provide upon written request via email and/or traditional paper mail the applicable GPL and LGPLsource code files via CD-ROM for a nominal cost to cover shipping and media charges as allowed under the GPL and LGPL.

  • Page 16: Technical Support

    November 6, 2013 11500Y20PQ00301A1 Copyright ©2013 All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries. Other trademarks are the property of their respective owners. Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.
