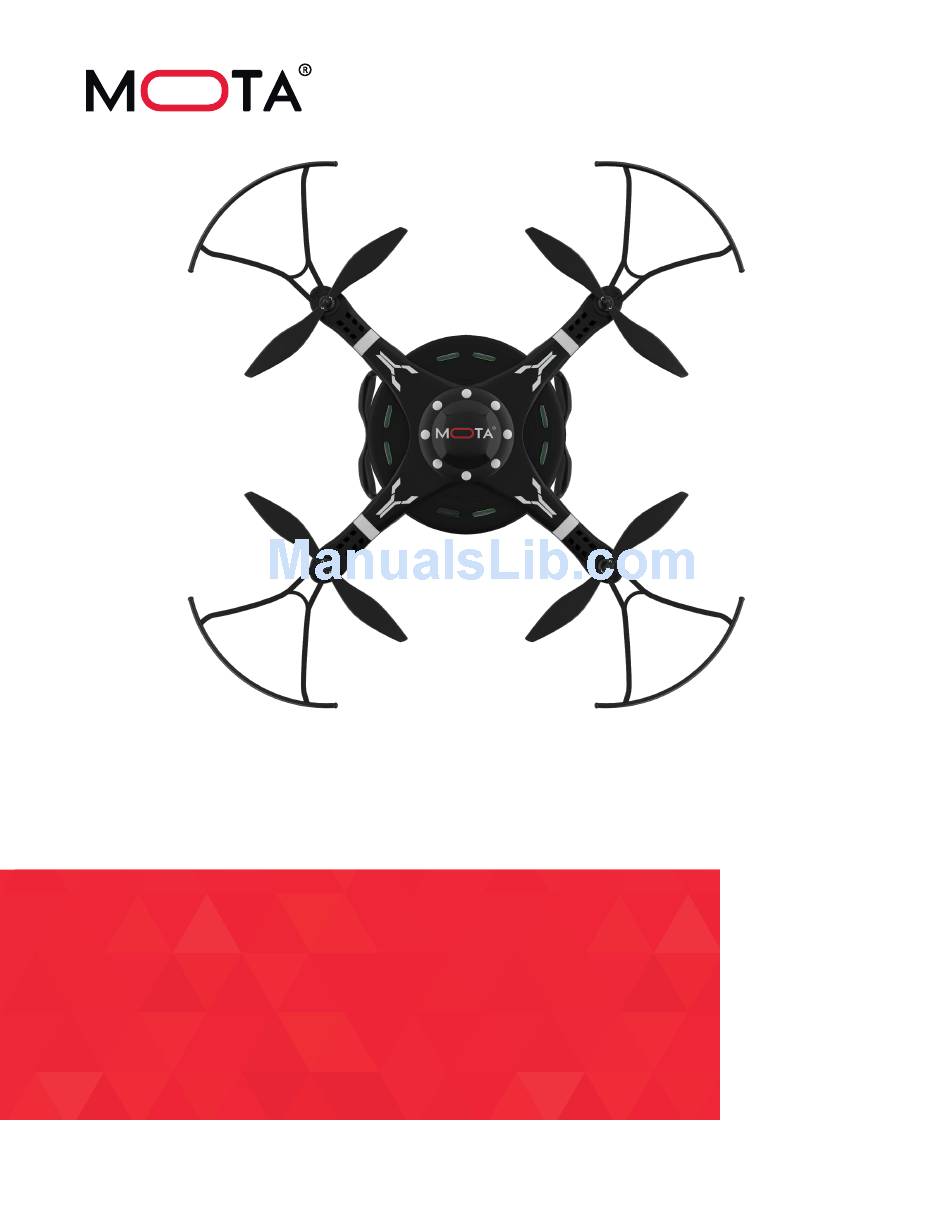

Pro live™-4000
O w n e r ' s M a n u a l
For Owner's Manual updates, warranty information, and support,
please visit: https://www.mota.com/pro-live-4000/
Please read this manual carefully before flying! It has
information you need to know for safe and efficient
flight. Please keep this manual in a safe place.
Advertisement
Table of Contents
Related Manuals for MOTA Pro live-4000
Summary of Contents for MOTA Pro live-4000
- Page 1 O w n e r ’ s M a n u a l For Owner’s Manual updates, warranty information, and support, please visit: https://www.mota.com/pro-live-4000/ Please read this manual carefully before flying! It has information you need to know for safe and efficient...
- Page 2 Fly Safely! Drones are sophisticated precision devices capable of complex aerial maneuvers. Please read these safety instructions before using your drone. Failure to operate your drone safely could degrade its perfomance and cause harm to people, animals, or property. Please do not fly: - Near or around obstacles such as birds or pets, aircraft, helicopters, other drones, antennas or overhead lines, or airborne toys like kites.
-
Page 3: Table Of Contents
Table of Contents In the Box Controller Overview Monitor Switching between Mode 1 and Mode 2 Shooting Video Taking Photos Controller Operation Channel Selection Before First Flight Propeller Attachment Fender Bracket Attachment Drone Battery Installation Charging Antenna Assembly Preflight (Mode 2) Link the Drone and Controller Unlock the Motors Flight (Mode 2) -
Page 4: In The Box
In the box Pro Live-4000 Manual Main Wing Camera Fender Bracket Main Body Controller Link / Barometer Status Indicators Screwdriver USB Charging Cable Propeller SD Card Card Reader... -
Page 5: Controller Overview
Controller Overview Monitor Monitor ON/OFF Switch Frequency Selection Flight Status Indicator Monitor Tilt Adjustment Knob Picture/Video One-Touch Landing Frequency-Selection One-Touch Take-Off Throttle Flight Stick Directional Flight Stick (Ascend & Descend) Forward & Backward / Left & Right Fly Stick Rotate (Left and Right) Mode Selection Mode 2 Power Switching between Mode 1 and Mode 2... -
Page 6: Shooting Video
Controller Overview Monitor Specifications Size: 4.3 in. Resolution: 480 X 272 Wi-Fi Receiver: 5.8 GHz 8 Channel Storage: MicroSD Card; maximum capacity 32GB Working Temperature: 0-40˚ F Video Signal Range: About 50 m.* Storage Temperature: -20-60˚ F *Video signal range will vary depending on battery charge, battery condition, environmental conditions, altitude, and flight parameters. -
Page 7: Controller Operation
Channel Selection The Pro Live-4000’s controller features 8 selectable channels for optimum 5.8 GHz video signal strength. The controller is set to channel 1 at the factory and will default to that channel each time it is powered on. -
Page 8: Before First Flight
Controller Operation Controller Channel Monitor Briefly press the Frequency Briefly press the Frequency Selection button Selection button six times. six times. The controller will beep seven times. Briefly press the Frequency Briefly press the Frequency Selection button Selection button seven times. seven times. -
Page 9: Fender Bracket Attachment
Before First Flight Fender Bracket Attachment Put the fender bracket into the card slot of Insert the middle positioning post of the the drone as shown above. fender bracket with the screw bits and secure it with the screws of the fender bracket as shown above. -
Page 10: Charging
Drone Battery Charging Remove the battery from the drone and connect one end to a USB charger. Plug the USB charger into a USB port. A flashing green light means the unit is charging. A solid green light indicates that that the battery is fully charged. -
Page 11: Preflight (Mode 2)
Preflight (Mode 2) Link the Drone and Controller Verify you are at least 1 m. from the drone. Nose Tail Drone Place the drone on level ground and switch it and the controller ON. When you hear a ‘beep’ and the drone’s lights start blinking, the drone and controller are linked. Unlock the Motors The motors must be unlocked before flight. -
Page 12: Flight Precautions
Flight (Mode 2) Left Sideward Flying Right Sideward Flying Link the drone with its controller, then press the One-Touch Take-off button. The Take-o drone will ascend to about 1.5 m. above ground level. Press the One-Touch Landing button. The Landing drone will land from its current position. -
Page 13: Drone Calibration
Drone Calibration The drone must be periodically calibrated to ensure stable flight. 1. Ensure the drone is on level ground. 2. First pair the drone and the controller, then proceed to push both flight sticks toward the bottom right as shown in the image below. Once the red indicator light begins flashing you’ll have successfully calibrated your drone. - Page 14 Copyright (©) 2016, Mota Group, Inc.
